2MP IP Door Station · PoE or 12 VDC · IP65
Clear visitor video and flexible IP intercom installation

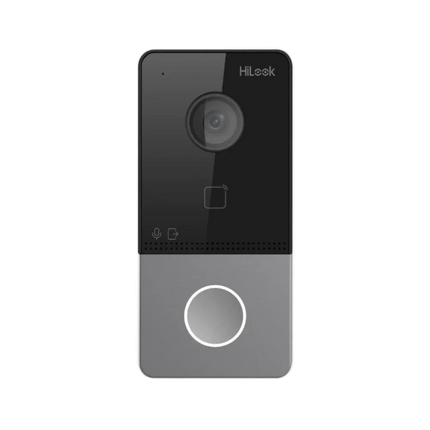

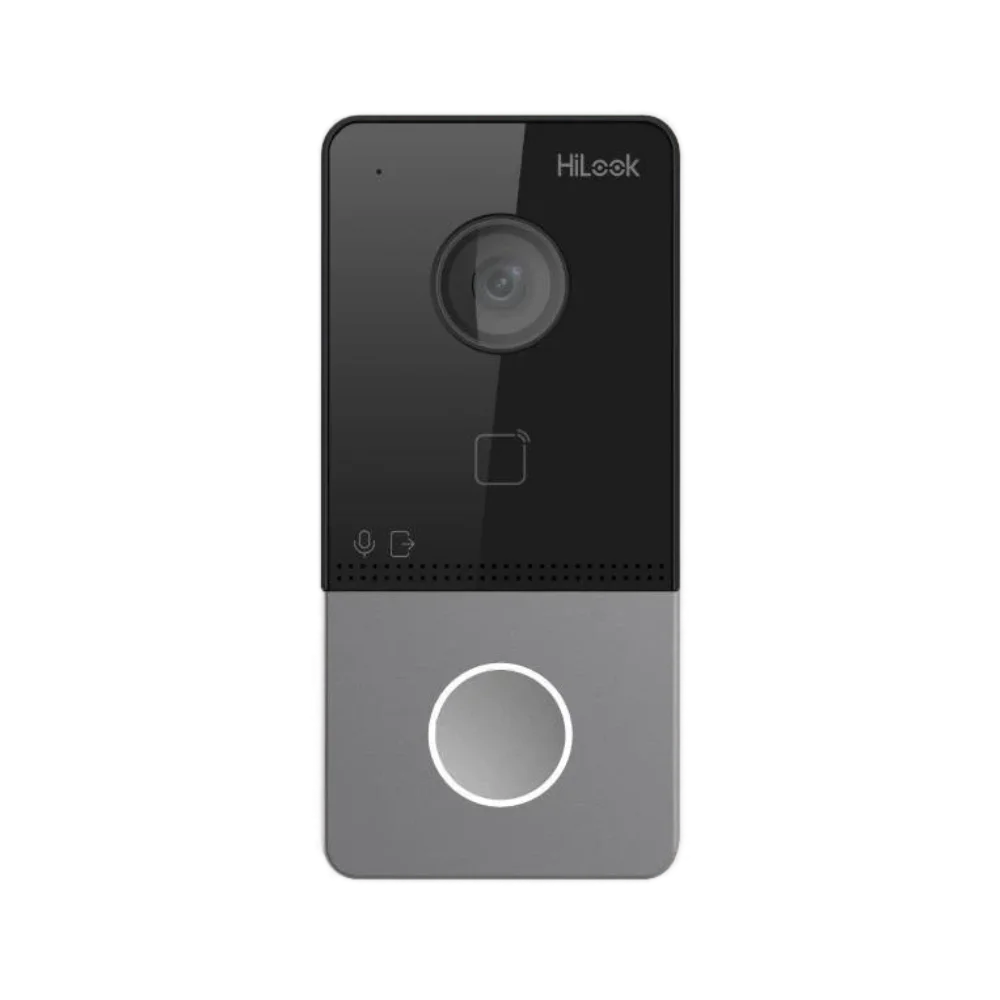

The HiLook HA-DS-IP1 is the outdoor door station used with the HiLook IP video intercom range, including the HA-KIT-IP1 system. It combines a 2 MP HD camera, wide-angle view, two-way audio, card access and relay door control in a slim surface-mount body.
Standard IEEE 802.3af PoE lets a single network cable carry power and data, or the station can be powered from a suitable 12 VDC supply. With an IP65 weather-resistant enclosure, infrared night vision and True WDR, it is designed to provide a useful view of visitors in changing outdoor light.
2 MP HD Camera
True WDR with a 131° horizontal field of view
PoE or 12 VDC
Choose network-cable power or local DC power
IP65 Outdoor Protection
Weather-resistant surface-mount housing
Door Access Control
Mifare card reader and one relay output
Built for everyday front-door use
See more of the entrance
The 2 MP camera provides a wide 131° horizontal and 78° vertical field of view, with True WDR and digital noise reduction helping maintain detail in mixed lighting.
Useful vision after dark
Built-in infrared illumination supports low-light viewing to approximately 3 m, so visitors remain visible at night without leaving a white light on.
Talk and release the door
Integrated microphone and speaker enable two-way conversation. A built-in relay can control a compatible electric lock rated up to 30 VDC, 2 A.
Expand an existing HiLook system
Use the HA-DS-IP1 as a replacement or additional compatible door station in a correctly configured HiLook IP intercom installation. Check system capacity and firmware compatibility before adding extra stations.
Technical specifications
| Model |
HA-DS-IP1 |
| Camera |
2 MP HD |
| Field of view |
131° horizontal, 78° vertical |
| Low-light support |
Infrared illumination, approximately 3 m |
| Image functions |
True WDR, backlight compensation and digital noise reduction |
| Audio |
Built-in microphone and speaker for two-way audio |
| Card access |
13.56 MHz Mifare card reader |
| Lock control |
1 relay, maximum 30 VDC / 2 A |
| Interfaces |
1 × RS-485 |
| Network protocols |
TCP/IP, RSTP |
| Power |
IEEE 802.3af standard PoE or 12 VDC |
| Protection |
IP65 |
| Dimensions |
138 × 65 × 27 mm |
| Warranty |
24 months |
Important compatibility note
This listing is for the HA-DS-IP1 door station only. An indoor station, PoE switch or suitable 12 VDC power supply, network cabling, electric lock and any access cards are sold separately unless specifically stated. For a complete package, see the HiLook HA-KIT-IP1 video intercom kit.
Downloads & resources
Frequently asked questions
Is this a complete intercom kit?
No. This listing is for the HA-DS-IP1 outdoor door station only. A compatible indoor monitor and power/network equipment are required.
Can the door station be powered by PoE?
Yes. It supports IEEE 802.3af standard PoE. It can also be powered by a suitable 12 VDC supply.
Does the door station connect by Wi-Fi?
No Wi-Fi specification is listed for the HA-DS-IP1 door station. Connect it to the IP network by Ethernet; Wi-Fi in the HA-KIT-IP1 system is provided by the indoor station.
Can it unlock an electric door?
Yes. The built-in relay can control a compatible lock up to 30 VDC and 2 A. Lock power requirements and safe egress design must be assessed separately.
Is it suitable for outdoor installation?
Yes. The housing is rated IP65. Install it correctly and use weather-protected cable entries for reliable outdoor service.
Does it include night vision?
Yes. Infrared supplementation supports low-light viewing to approximately 3 m.
