IP Intercom Kit · 2MP Door Station · 7" Touch · Wi-Fi & PoE · Hik-Connect
2MP IP Intercom Kit
HiLook HA-KIT-IP1 2MP IP Video Intercom Kit — Australian Stock & 2-Year Warranty

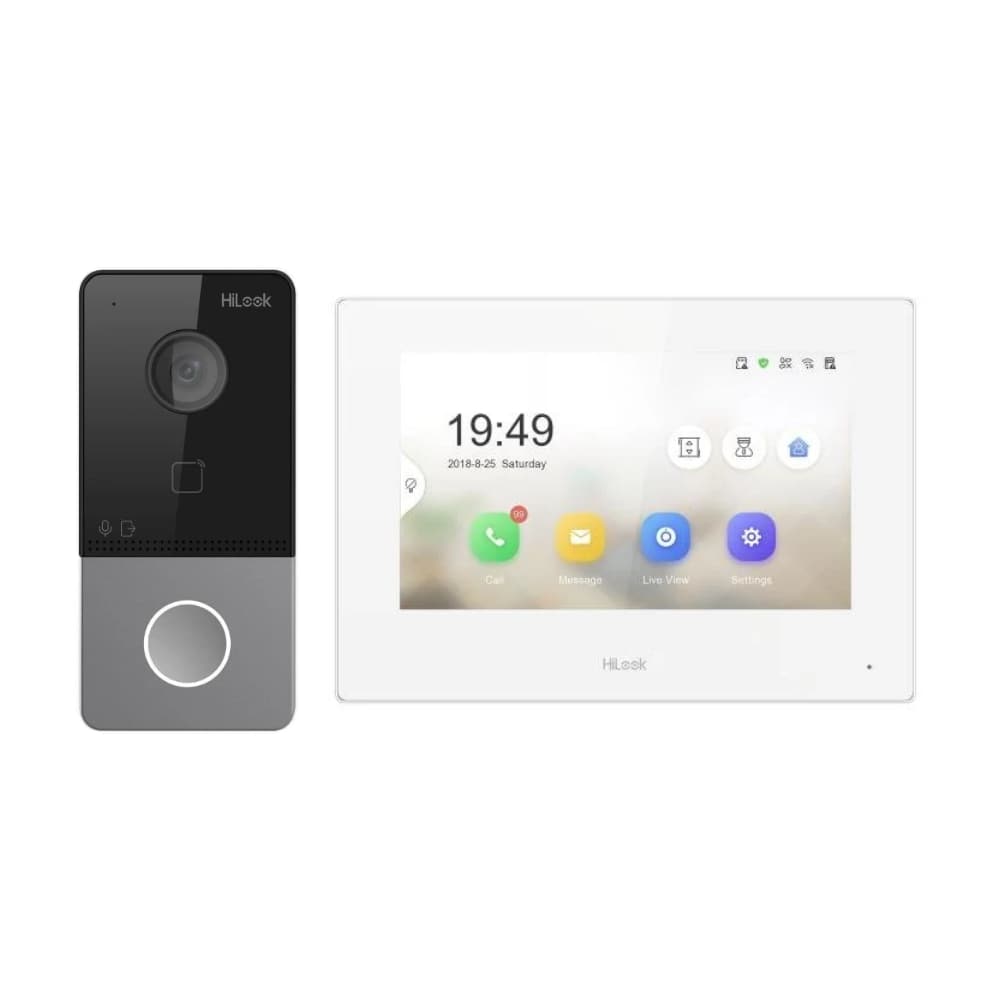

The HiLook HA-KIT-IP1 is a complete IP video intercom bundle that lets you see, hear and let in visitors from a 7-inch touch-screen indoor monitor or your smartphone. It pairs a weatherproof 2 MP IP door station with the HA-IN-IP71 indoor station. The indoor monitor supports 2.4 GHz Wi-Fi, standard PoE or 12 VDC; the door station uses standard PoE or 12 VDC. The Australian kit also includes two Australian-standard power adaptors, giving installers a practical choice between PoE and local power.
Beyond door entry, the indoor monitor doubles as a security hub — it can live-view up to 16 IP cameras, so you can check the whole property from one screen. Receive video calls and unlock the door from anywhere through the free Hik-Connect app, with two-way audio to talk to whoever is at the gate. The door station is IP65 rated with infrared night vision and a Mifare card reader for keyless entry. Backed by genuine Australian stock and a 2-year warranty.

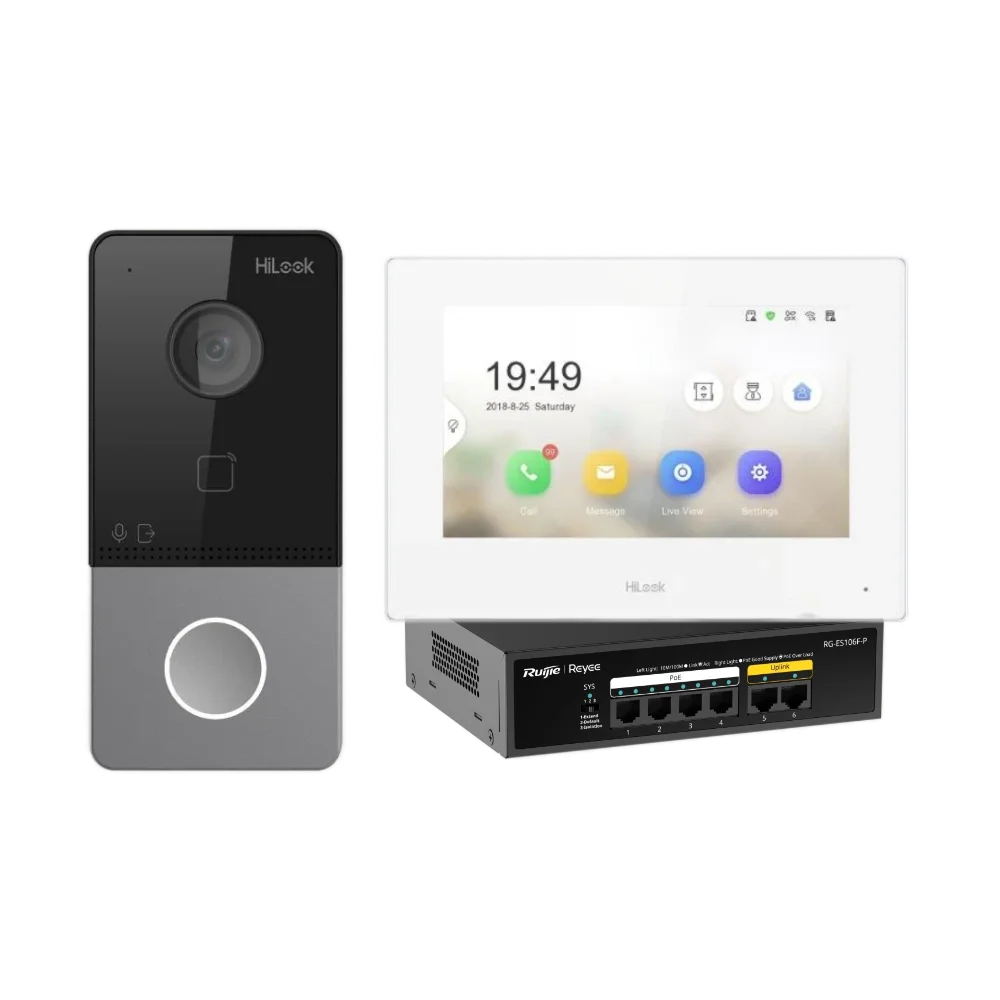

Choose your kit: select Intercom Kit Only for the standard package, or choose Intercom Kit + RG-ES106F-P PoE Switch to add a compact 6-port Fast Ethernet switch with four PoE+ camera/device ports and a 54 W PoE budget.
Camera View
Up to 16 IP Cameras
Door Entry and Security in One Kit
7-Inch Touch Indoor Station
The HA-IN-IP71 features a 7-inch capacitive touch screen (1024 × 600) with a friendly, plug-and-play interface for answering calls and releasing the door with a tap.
2 MP IP Door Station
A 2 MP HD camera with a wide field of view, infrared night vision and IP65 weatherproofing gives a clear colour view of every caller, plus a Mifare card reader for keyless entry.
Live-View 16 Cameras
The indoor monitor isn't just for the door — it can display live video from up to 16 HiLook or Hikvision IP cameras, turning it into a compact home security viewer.
Unlock From Anywhere
With Wi-Fi and the free Hik-Connect app, receive video calls, hold a two-way conversation and unlock the door from your phone, whether you're home or away.
What's in the Box
Kit Contents
| HA-IN-IP71 — 7-inch Touch IP Indoor Station |
1 × |
| HA-DS-IP1 — 2 MP IP Door Station (PoE / 12 VDC) |
1 × |
| Wall-mount bracket |
1 × |
| Australian-standard power adaptors |
2 × |
| Mounting hardware & fittings |
1 set |
| RG-ES106F-P — 6-port unmanaged PoE+ switch (4 PoE+, 54 W) |
1 × with PoE-switch variant only |
Technical Specifications
Door Station — HA-DS-IP1
| Camera |
2 MP HD camera |
| Resolution |
Main 1920 × 1080p / 720p; Sub 704 × 576 |
| Night Vision |
Low-illumination IR supplement, 3 m |
| Field of View |
Horizontal 131° / Vertical 78° |
| WDR / DNR |
True WDR, digital noise reduction |
| Video Compression |
H.264 |
| Audio |
Two-way audio (built-in mic + speaker) |
| Access Control |
Mifare card reader, 13.56 MHz; 1 relay lock control |
| Operation |
Single physical call button |
| Protection Level |
IP65 |
| Power |
IEEE 802.3af PoE or 12 VDC; < 10 W |
| Dimensions |
138 × 65 × 27 mm |
Indoor Station — HA-IN-IP71
| Display |
7-inch colour TFT LCD |
| Resolution |
1024 × 600 |
| Operation |
Capacitive touch |
| Camera Live-View |
Up to 16 IP cameras |
| Wired Network |
RJ-45, 10/100 Mbps self-adaptive |
| Wi-Fi |
802.11 b/g/n (2.4 GHz) |
| App / Mobile |
Hik-Connect — remote call, talk & unlock |
| Storage |
microSD (TF) up to 128 GB |
| Power |
PoE / 12 VDC; ≤ 6 W |
| Installation |
Surface mounting |
| Dimensions |
200 × 140 × 15.1 mm |
| Warranty |
2-Year Australian Warranty |
Downloads & Documentation
Frequently Asked Questions
How is the kit wired?
It's an IP system that supports both PoE and Wi-Fi. A single network cable can carry power and data, or you can connect the indoor monitor over Wi-Fi for a tidier install.
Can I unlock the door from my phone?
Yes. Through the free Hik-Connect app you can receive video calls, talk to visitors with two-way audio and release the door from anywhere.
Does it need an internet connection?
The door-to-monitor intercom works on your local network without internet. Internet is only required for remote answering and unlocking on your phone.
Can it view my other cameras?
Yes. The indoor monitor can live-view up to 16 HiLook or Hikvision IP cameras, so it doubles as a home security screen.
Is the door station weatherproof?
Yes. The HA-DS-IP1 door station is IP65 rated for outdoor use and includes infrared night vision for clear views after dark.
Does it support local storage?
The indoor monitor accepts a microSD (TF) card up to 128 GB for supported event and visitor storage. The official kit datasheet does not list a card slot for the outdoor door station.
What app does it use?
It uses Hik-Connect, Hikvision's free app for iOS and Android, for live video, two-way talk and remote door release.
Does the door station support card access?
Yes. It includes a 13.56 MHz Mifare card reader and a relay output for keyless door release.
