Dahua · DHI-VTO3222E-P · 2-Wire IP Villa Door Station · Keypad + Card Access
2-Wire Villa Station

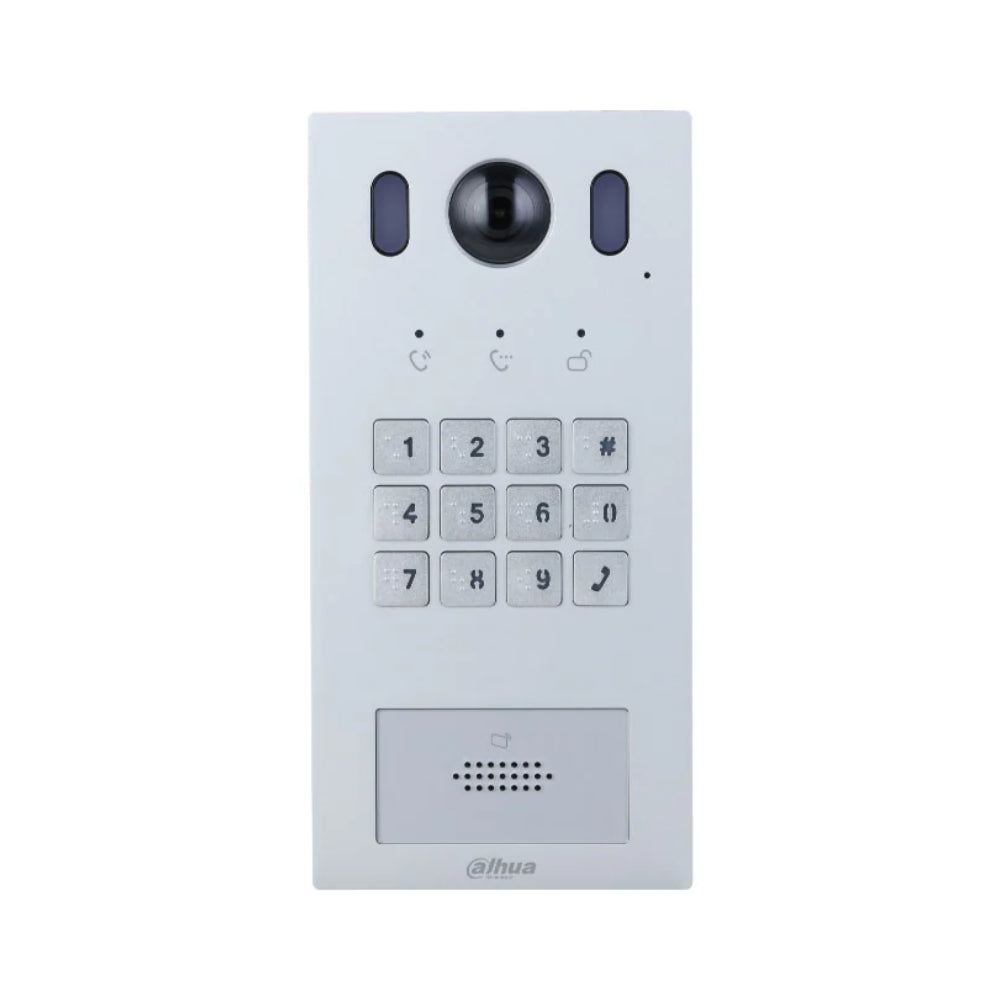

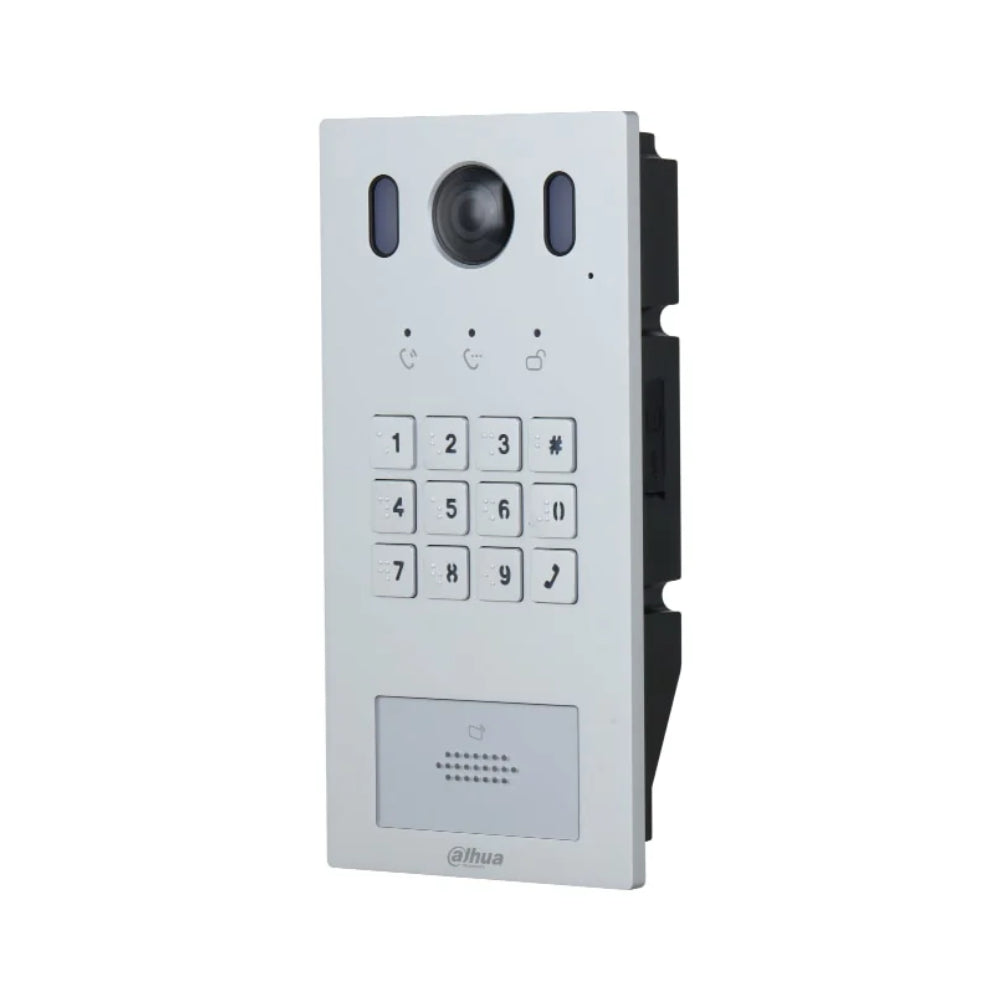

Dahua DHI-VTO3222E-P 2-Wire IP Villa Door Station — 2MP HD Camera, Mechanical Keypad & Card Unlock
The Dahua DHI-VTO3222E-P is a premium villa door station with a durable aluminium panel and mechanical keypad. It runs over Dahua's 2-wire IP system or standard PoE, captures clear video on a 2MP HD camera, and supports up to 5,000 users and 10,000 cards. Multiple unlock methods — password, IC card and remote app unlock — make it ideal for single-family homes and gated entries.
Unlock
Keypad / Card / App
Durable Aluminium Build
A solid aluminium front panel and vandal-resistant IK08 rating mean this station stands up to weather and rough handling at the gate. An IP65 ingress rating keeps rain and dust out for reliable year-round operation.

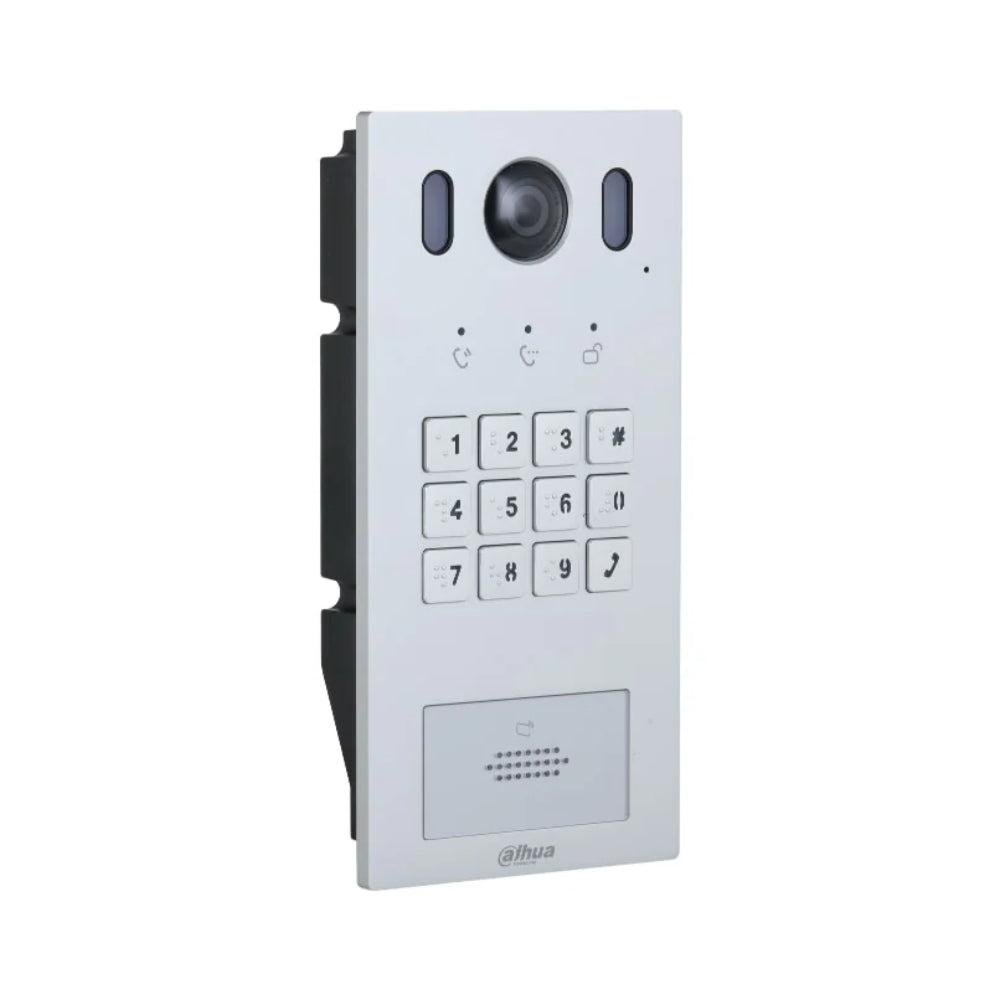

Keypad & Card Access
Residents can enter via PIN code or IC card, while the built-in reader supports up to 5,000 users and 10,000 cards. Wiegand output lets you connect external readers and controllers for larger setups.
Flexible 2-Wire or PoE Wiring
Run it on Dahua's simple 2-wire system or standard 802.3af/at PoE. The flexible wiring makes retrofits painless and lets installers reuse existing cabling in many homes.
See & Talk From Anywhere
Pair with a Dahua indoor monitor and the DMSS app to answer the door, see your visitor and unlock remotely from your phone — whether you are upstairs or away from home.
Specifications — DHI-VTO3222E-P
| Type |
Villa / single-family outdoor door station |
| Camera |
2MP HD CMOS |
| Wiring |
2-Wire IP or standard PoE (802.3af/at) |
| Input |
Mechanical keypad |
| Unlock Methods |
Password, IC card, remote app |
| Capacity |
5,000 users · 10,000 cards |
| Audio |
Two-way talk |
| Access Integration |
Wiegand (card readers / controllers) |
| App |
DMSS |
| Power |
2-Wire (48 VDC) / PoE · 12 VDC 600 mA output |
| Ingress / Impact |
IP65 · IK08 |
| Material / Mount |
Aluminium · surface & flush mount |
| Warranty |
3 years · CCTV Guru Australia |
Downloads & Resources
Does it work on Dahua's 2-wire system?
Yes. The VTO3222E-P runs on Dahua's 2-wire IP cabling, and it can also be powered by a standard 802.3af/at PoE switch.
What unlock methods are supported?
PIN password on the keypad, IC card, and remote unlock from a paired Dahua indoor monitor or the DMSS app.
Which indoor monitor does it pair with?
It pairs with Dahua 2-wire IP indoor monitors (VTH series). Talk to our team for the right matching monitor for your setup.
Is it weatherproof?
Yes — it is rated IP65 against dust and rain and IK08 for impact resistance. Apply the supplied silicone sealant during install as noted in the quick start guide.
