Hikvision DS-KV9503-WBE1 2 x 2MP Facial Recognition IP Intercom Door Station

Description

Hikvision Ultra Series

Commercial-Grade Access Control & Multi-Modal Video Intercom

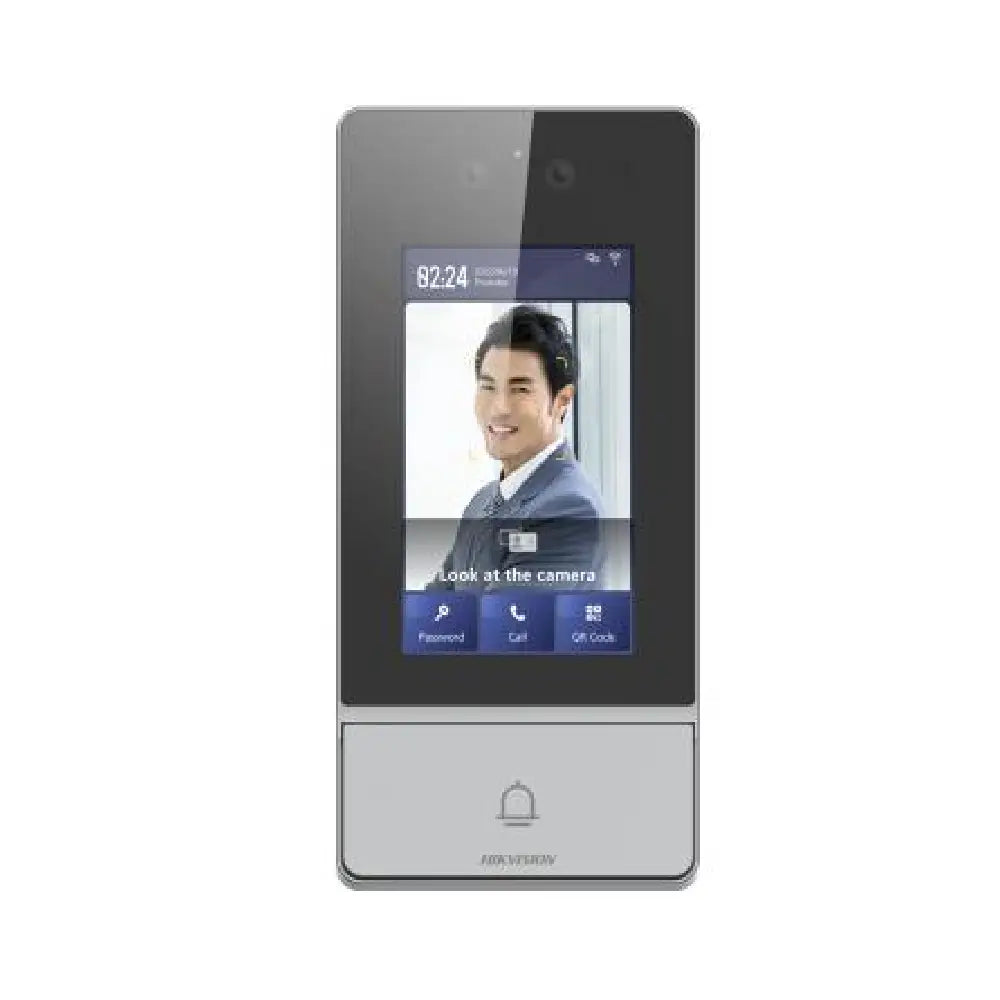

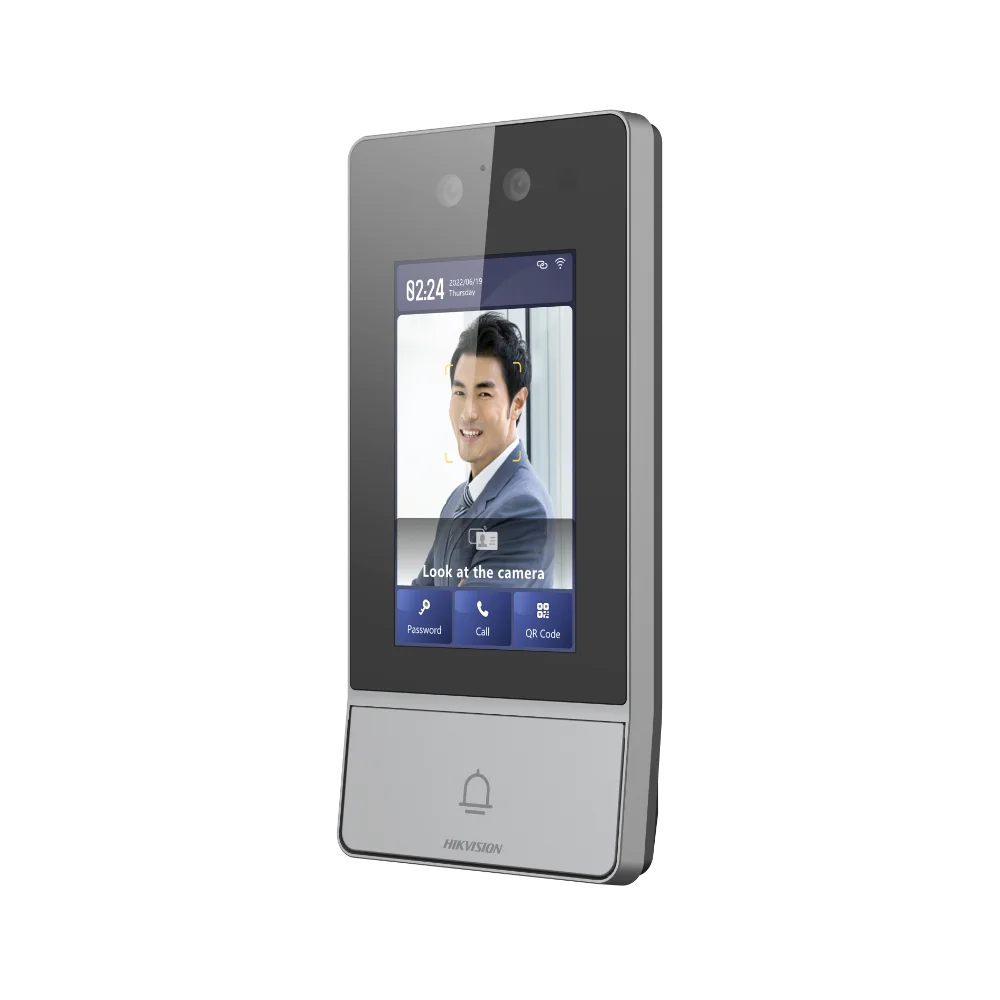

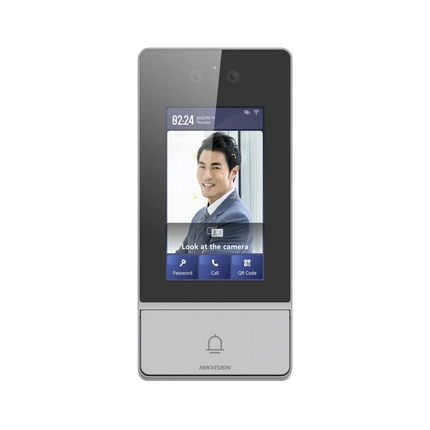

The DS-KV9503-WBE1 is Hikvision’s flagship Ultra Series IP facial recognition villa door station, engineered to deliver ultra-secure access control and high-definition video communication for luxury residences, commercial office buildings, and high-density multi-tenant environments. Featuring a sleek industrial metal housing and a bright 4.3-inch IPS capacitive touchscreen display, this station combines enterprise-grade biometric authentication with intuitive, multi-subscriber user interaction.

Resolution / Screen
Dual 2MP / 4.3" IPS Touch
Optics & Dynamic Range
120 dB WDR / IR Night
Network & Power
Wi-Fi & Standard PoE
Protection Rating
IP65 Weather / IK08 Vandal

Advanced Multi-Factor Authentication & Seamless Network Integration

Equipped with deep learning facial recognition algorithms capable of identifying authorized users in under 0.2 seconds with greater than 99% accuracy, the Hikvision DS-KV9503-WBE1 delivers versatile access control options including facial biometrics, Mifare 13.56 MHz RFID cards, temporary QR codes, PIN codes, and Bluetooth access. With built-in Wi-Fi and Ethernet connectivity, native Hik-Connect integration allows tenants to receive live video calls, communicate via full-duplex two-way audio, and remotely unlock entry points directly from smartphones.

Multi-Modal Biometric & Access Control

Supports up to 10,000 face templates, 20,000 registered users, and 100,000 RFID cards. Provides high throughput for multi-tenant and office environments while maintaining strict security via multi-factor authentication modes.

Vandal-Resistant Weatherproof Construction

Encased in an IK08 vandal-resistant alloy structure with IP65 weather sealing, operating seamlessly across temperatures from -40°C to +60°C. Designed for single-cable standard Power over Ethernet (PoE) deployment.

Technical Specification Matrix
Camera Model DS-KV9503-WBE1
Display Screen 4.3-inch IPS Capacitive Touchscreen (800 × 480 Resolution, 425 cd/m²)
Camera & Lens 2 × 2 MP Dual Lens (H: 88°, V: 44°)
Wide Dynamic Range & IR 120 dB True WDR, Built-in IR Light (Up to 3 m)
Authentication Modes Facial Recognition, Mifare Card (13.56 MHz), PIN, QR Code, Bluetooth
System Capacity 20,000 Users / 10,000 Faces / 100,000 Cards
Facial Recognition Speed < 0.2 s per person (Accuracy Rate ≥ 99%)
Network & Interfaces 10/100 Mbps Ethernet, 2.4GHz Wi-Fi, 2 Relays, 4 Alarm Inputs, 1 RS-485
Protection & Power IP65, IK08, Standard PoE (IEEE 802.3af) or 12 VDC
Can the DS-KV9503-WBE1 operate without an indoor station monitor?

Yes. The station natively supports direct call routing to the Hik-Connect mobile application via Wi-Fi or Ethernet, allowing users to receive calls and unlock doors from anywhere on smart devices.

How fast and reliable is the facial recognition feature?

The unit features deep learning biometrics capable of authenticating faces in under 0.2 seconds with an accuracy rate of over 99%, performing reliably even in low-light conditions using IR supplementation.

How is the unit powered during installation?

It supports Standard Power over Ethernet (PoE 802.3af), receiving power and data through a single network cable, or can be powered via a traditional 12 VDC power supply.

Is this door station suitable for harsh outdoor conditions?

Absolutely. It features an IP65 ingress protection rating against rain and dust, along with IK08 vandal resistance and an operating temperature range of -40°C to +60°C.

Technical Datasheet Quick Start Guide
Installation Manual
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery

Hikvision DS-KV9503-WBE1 2 x 2MP Facial Recognition IP Intercom Door Station

Product form

SKU: DS-KV9503-WBE1

$718.00  $489.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Warranty: 24 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180
