Hikvision Video Intercom Accessory
Purpose-Made Rain Shield for the DS-KV9503-WBE1 Door Station

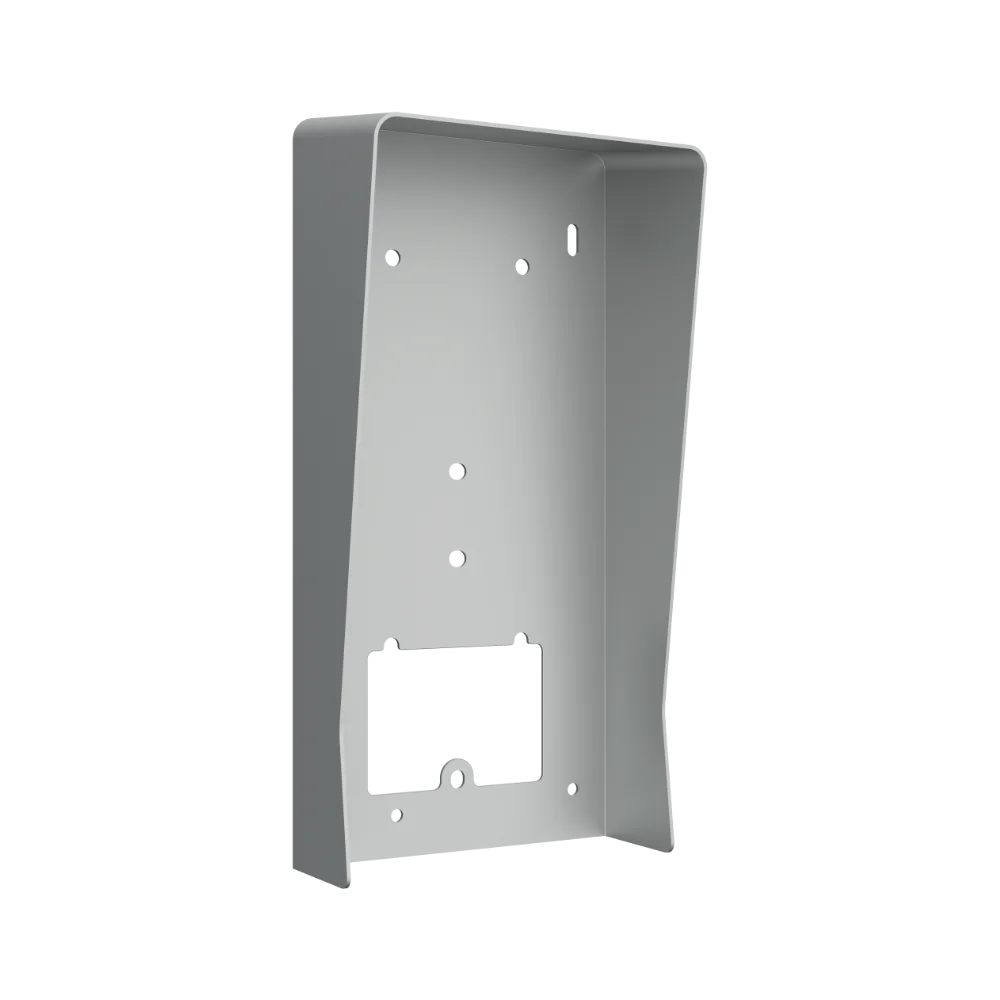

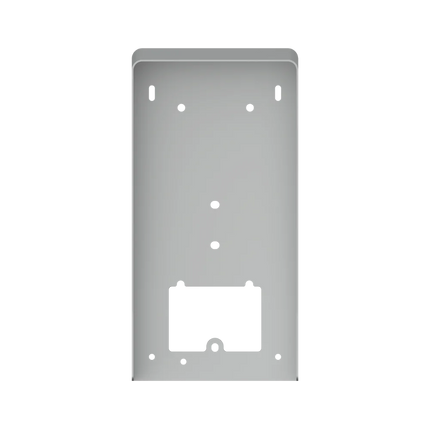

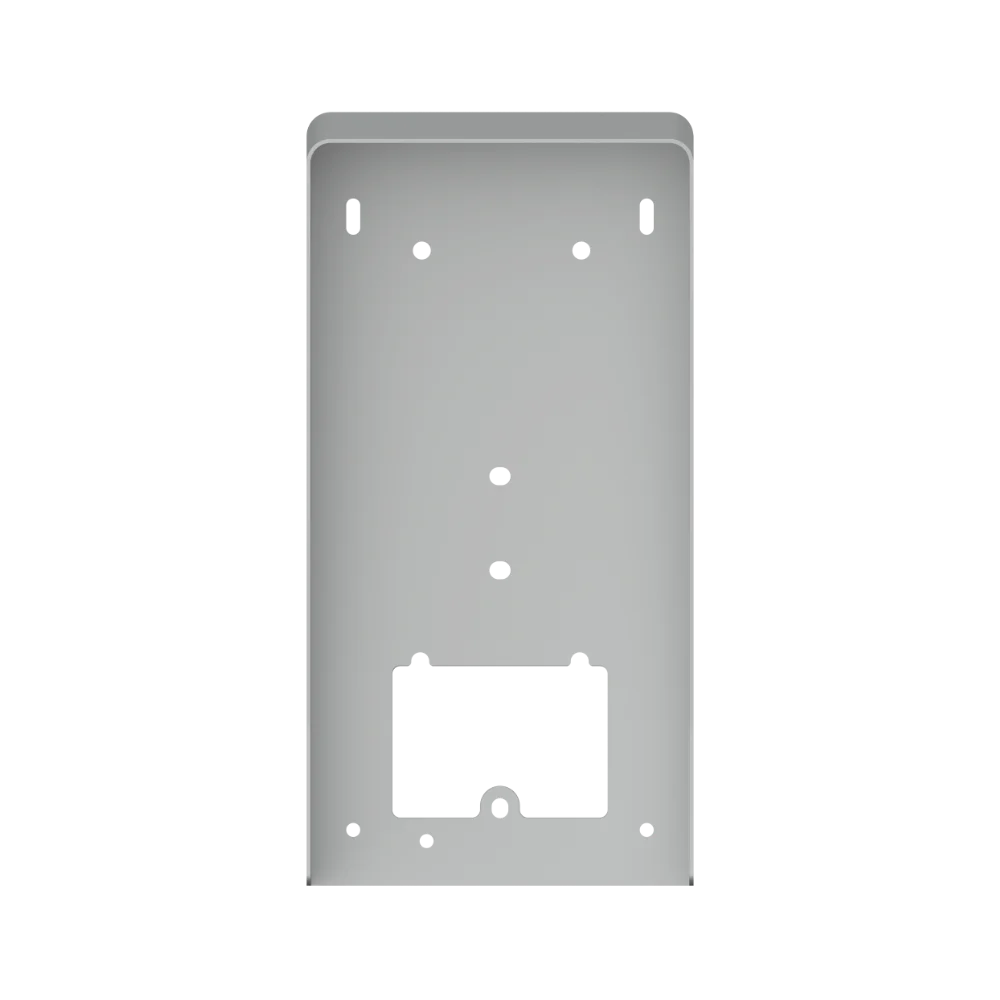

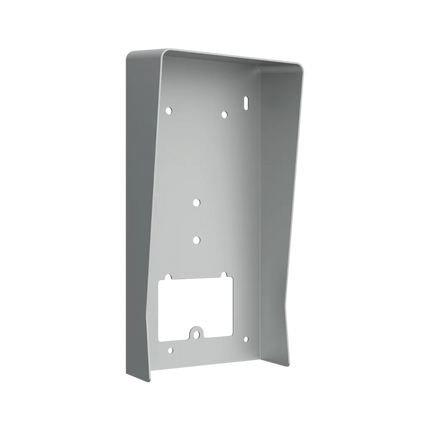

The Hikvision DS-KABV9503-RS is a genuine protective rain shield designed specifically for a surface-mounted DS-KV9503-WBE1 villa door station. Its fitted SGCC steel enclosure gives the installation a neat, professional finish while helping reduce direct exposure to rain and other weather at residential, apartment and commercial entry points.
Protection
Fitted Rain Shield
Compatibility
DS-KV9503-WBE1
Installation
Surface Mount
Construction
Durable SGCC Steel
A Cleaner, Better-Protected Intercom Installation
Model-Specific Fit
Designed for the Hikvision DS-KV9503-WBE1 rather than being a universal cover, helping maintain access to the screen, camera and call controls.
Surface-Mount Application
Suited to door stations mounted directly onto a wall, gate post or entry structure where a fitted hood and finished surround are preferred.
Weather Cover
The projecting top and side panels help reduce direct rain exposure. Correct cable sealing and installation weatherproofing are still required.
Wide Environmental Range
Specified for operation from −40 °C to 60 °C and 10% to 95% non-condensing humidity.
Technical Specifications
| Model |
DS-KABV9503-RS |
| Product Type |
Protective rain shield / surface-mount cover |
| Compatible Door Station |
Hikvision DS-KV9503-WBE1 |
| Mounting |
Surface mounting |
| Material |
SGCC steel |
| Dimensions (W × H × D) |
194 × 97 × 49.1 mm |
| Working Temperature |
−40 °C to 60 °C |
| Working Humidity |
10% to 95%, non-condensing |
Before You Order
The DS-KV9503-WBE1 door station is not included. This accessory is intended for surface-mounted installations. Confirm the exact door station model, cable entry and mounting surface before installation.
Downloads & Resources
Which door station does this rain shield fit?
It is designed specifically for the Hikvision DS-KV9503-WBE1 villa door station.
Is it suitable for flush mounting?
No. The DS-KABV9503-RS is specified for surface-mounted DS-KV9503-WBE1 installations.
Does the shield make the installation fully waterproof?
No. It helps reduce direct weather exposure, but correct cable sealing, wall preparation and installation weatherproofing are still required.
