Hikvision · 2MP Fisheye · Two-Wire
Two-Wire Simplicity, Modular Power

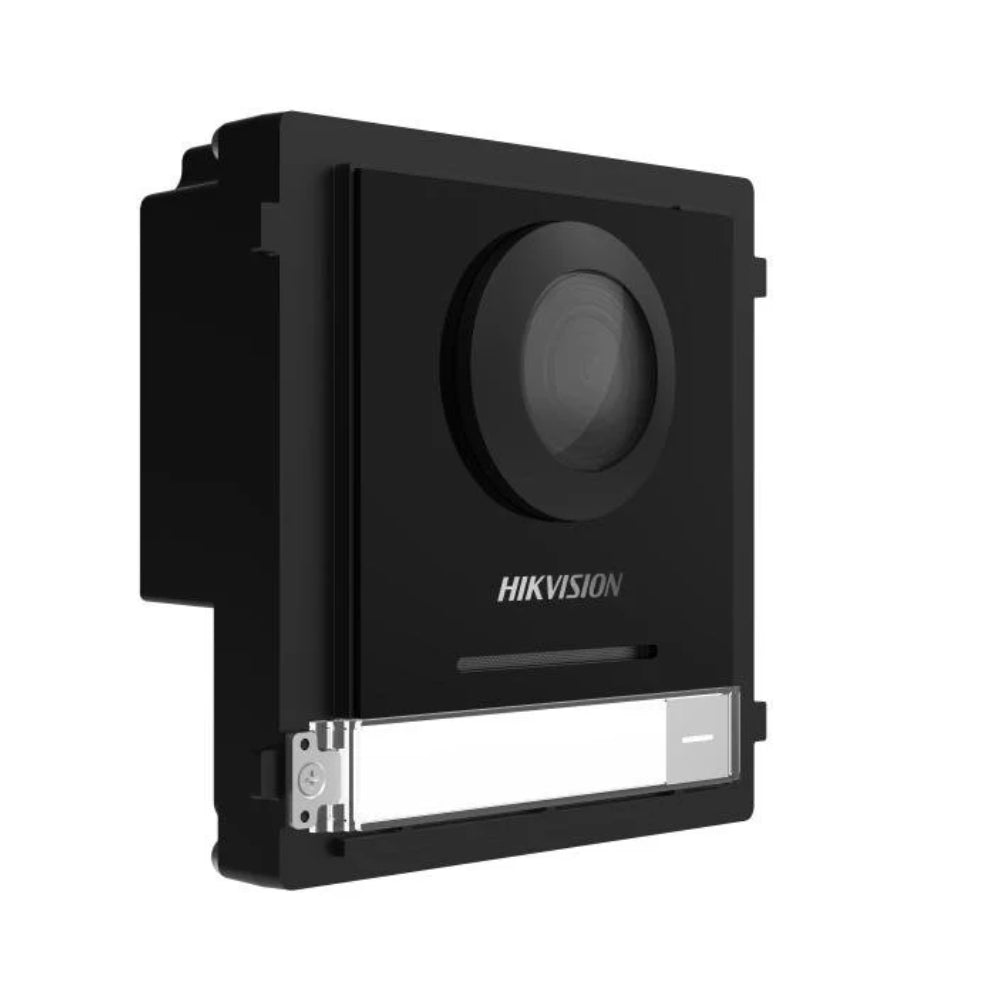

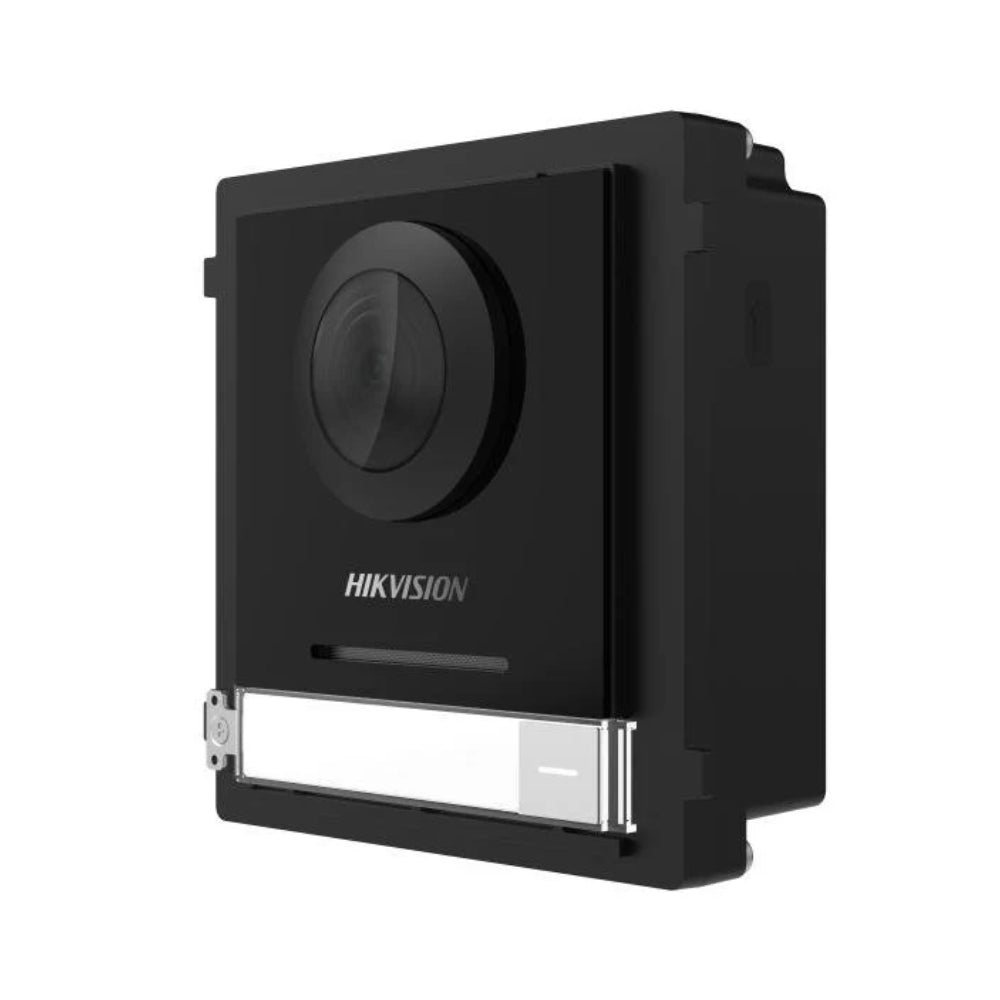

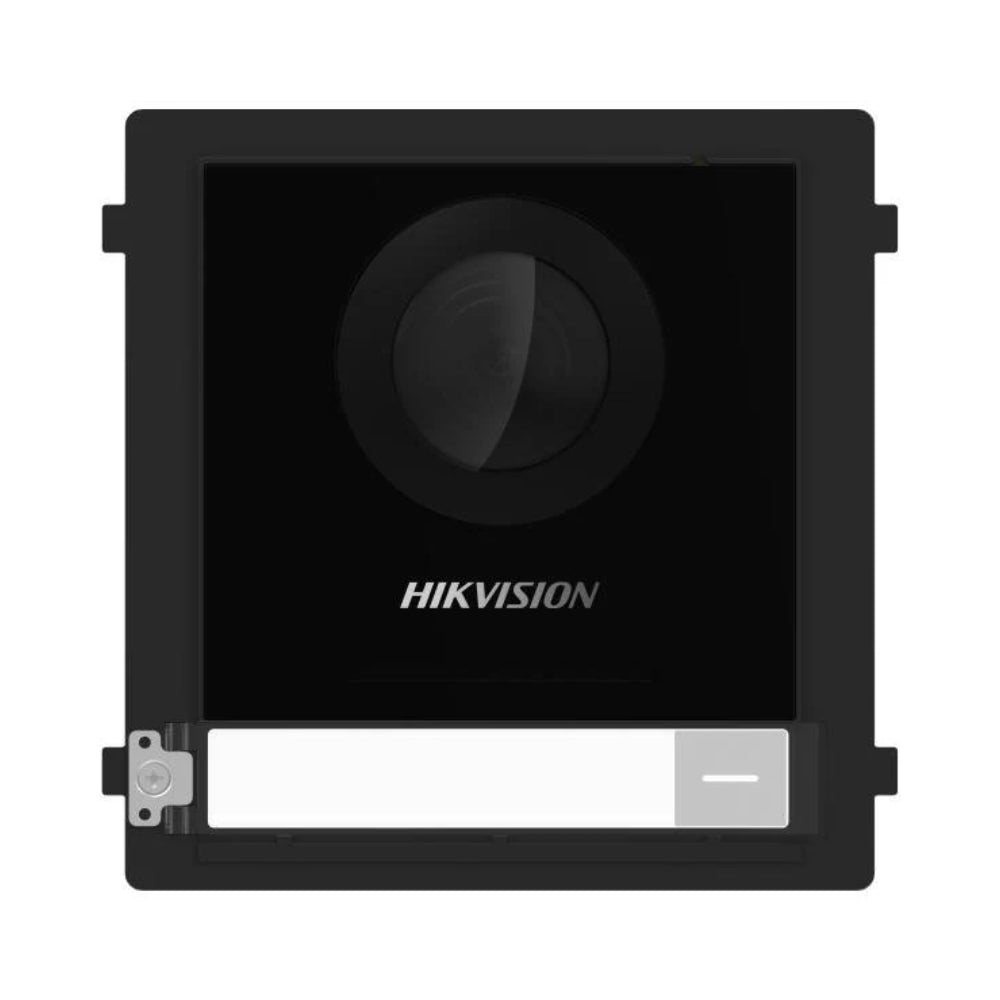

The Hikvision DS-KD8003Y-IME2 is the two-wire modular main unit that brings full video intercom functionality to your door using just a simple two-wire connection. Its 2MP fisheye camera with IR supplement delivers a wide, clear view of every visitor — day or night.
Built as the core of Hikvision's modular two-wire door station system, it features a single one-call button, two-lock control and a built-in 12V 500mA output that powers one electronic lock directly — no separate power supply needed. An IP65 rating keeps it protected against dust and rain at the entrance.
What's Included
DS-KD8003Y-IME2 Main Unit
Two-wire modular door station main unit with 2MP fisheye camera and one-call button.
Wiring Terminals
Two-wire connection terminals plus lock and exit-button interfaces.
Mounting Hardware
Standard fixings included; surface/flush mounting bracket sold separately.
Why Choose DS-KD8003Y-IME2
Two-Wire Install
Simple two-wire cabling reduces wiring effort and is ideal for retrofits and upgrades.
Powers Your Lock
Built-in 12V 500mA output drives one electronic lock with no extra power supply.
Two-Lock Control
Manage two locks for separate gate and door release from one station.
IP65 Protected
Sealed against dust and rain for reliable performance at the front door.
Recommended For
Single Homes & Villas
One-button calling suits a single household entrance.
Retrofit Upgrades
Two-wire system simplifies replacing legacy intercoms.
Gate + Door Setups
Two-lock control handles a gate and a main door together.
Technical Specifications
| Model |
DS-KD8003Y-IME2 |
| Type |
Two-Wire Modular Door Station Main Unit |
| Camera |
2MP fisheye with IR supplement |
| Call Button |
1 (one-call button) |
| Lock Control |
Two-lock control |
| Lock Power Output |
12V 500mA (powers one electronic lock) |
| Wiring |
Two-wire |
| Configuration |
Web remote configuration |
| Protection |
IP65 |
Downloads & Resources
Is this a complete door station?
Yes — it is the modular two-wire main unit with camera, call button and lock control, ready to use as the door station.
How is it wired?
It uses a simple two-wire connection, making it ideal for retrofits and reducing cabling work.
Can it power an electric lock?
Yes. The built-in 12V 500mA output powers one electronic lock directly without a separate power supply.
How many locks can it control?
It supports two-lock control, suitable for a gate and a main door.
What camera does it have?
A 2MP fisheye camera with IR supplement for a wide field of view in low light.
How many call buttons?
One one-call physical button for a single household.
Is it weatherproof?
Yes, it carries an IP65 rating against dust and rain.
Do I need a mounting bracket?
Yes, the mounting bracket is sold separately to suit surface or flush installation.
Can I configure it remotely?
Yes, it supports web-based remote configuration.
Order the DS-KD8003Y-IME2 today from CCTV Guru — genuine Australian stock, backed by our 3-Year AU Warranty, fast AU-wide shipping and local tech support.
