UniFi Protect AI MultiSensor 4 – 32MP 4-Lens PoE++ AI Camera (UVC-AI-MS-4)

Description

UniFi Protect — NDAA Compliant UniFi 32MP 4-Lens AI

UniFi Protect AI MultiSensor 4 — 32MP 4-Lens PoE++ AI Camera (UVC-AI-MS-4)

The Ubiquiti UniFi Protect AI MultiSensor 4 (UVC-AI-MS-4) replaces several cameras with one. Four independently adjustable 8MP lenses combine for 32MP of total resolution and 360° coverage, each aimable to watch a different approach, lane, or doorway from a single mounting point. A powerful Multi-TOPS AI engine identifies people, vehicles, animals, faces, and number plates, while 2.33× optical zoom, 16 adaptive IR LEDs, and onboard SSD/microSD storage make it a true enterprise tool. Built tough with an IP66, IK10 vandal-resistant body, it's ideal for car parks, intersections, and large sites across Australia. Available in White (UVC-AI-MS-4) and Black (UVC-AI-MS-4-B), with genuine Ubiquiti stock and fast Australia-wide shipping.

Resolution
32 MP
Lenses
4 Adjustable
Optical Zoom
2.33×
Protection
IP66 / IK10

Why Choose the AI MultiSensor 4?

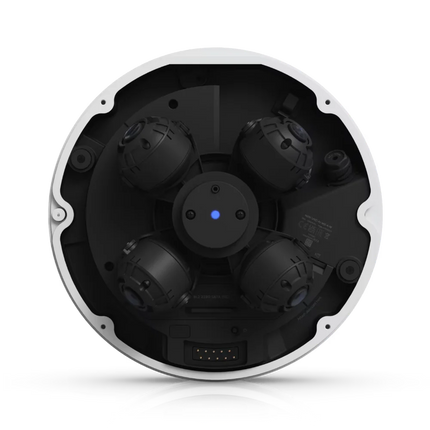

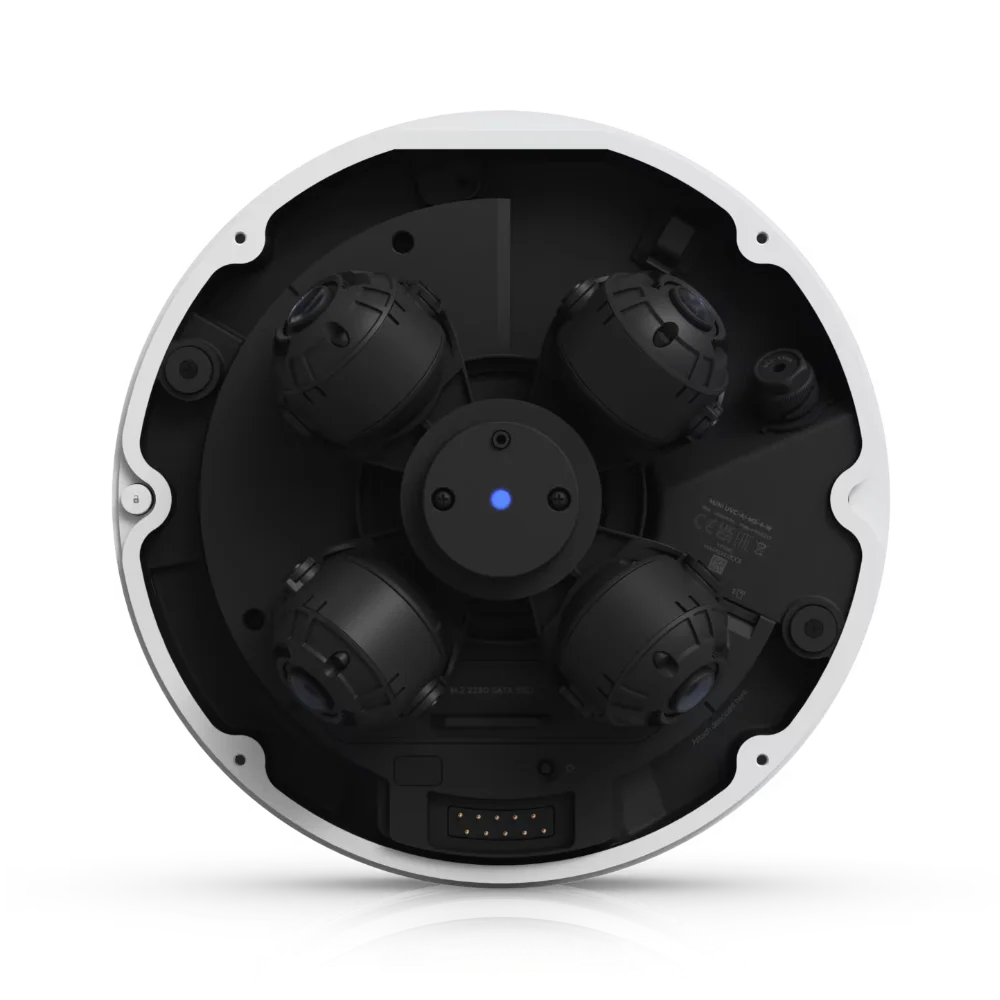

Four Cameras in One

Four independently aimable 8MP lenses cover up to 360° from a single mount — point each at a different lane, entrance, or aisle and replace several fixed cameras.

32MP Total Resolution

Each lens records 4K (3840 × 2160) for 32MP combined detail at up to 24 FPS with HDR — sharp enough to identify faces and read plates across a wide scene.

Multi-TOPS AI Engine

On-camera AI detects people, vehicles, animals, faces, and number plates in real time, cutting false alerts so you only act on what matters.

2.33× Optical Zoom & 360° IR

Each lens offers 2.33× optical zoom for close-up framing, with 16 adaptive IR LEDs giving 360° night coverage up to 20 m.

Onboard SSD & microSD Storage

Dual microSD slots plus an M.2 SATA SSD bay deliver high-capacity edge recording alongside your UniFi Protect host.

Enterprise-Grade Build

An aluminium-alloy body sealed to IP66 with strong IK10 impact resistance and a −20 to 50°C range — engineered for demanding sites.

NDAA Compliant

Fully NDAA Section 889 compliant for government, defence, and security-sensitive installations.

Technical Specifications

Model UVC-AI-MS-4 (White: UVC-AI-MS-4 / Black: UVC-AI-MS-4-B)
Resolution 32 MP total — 4 × 8 MP, 3840 × 2160 (16:9) @ 24 FPS
Image Sensors 4 × 1/2.8″ 8 MP CMOS, HDR
Lenses 4 × F 3.18–7.42 mm, ƒ/1.8–ƒ/2.8 • independently adjustable • 2.33× optical zoom
Field of View (each) Wide: H 108.8° / V 57.6° / D 130.8° • Tele: H 42.8° / V 24.1° / D 49.1°
Night Vision 16 IR LEDs with adaptive control, 360° coverage, up to 20 m
AI / Smart Detection People, vehicles, animals, face recognition, number-plate recognition (Multi-TOPS AI Engine)
Weatherproof Rating IP66
Impact / Tamper Resistance IK10 (vandal-resistant)
Network Interface Gigabit (GbE) RJ45
Power Method PoE++ (802.3bt), 42.5–57 V DC • max 34.6 W
Processor Dual-core Arm® Cortex®-A76
Storage 2 × microSD card • 1 × M.2 2280 SATA SSD bay
Mounting Ceiling mount (included); pole, corner, arm, pendant mount (optional)
Enclosure Aluminium alloy & polycarbonate

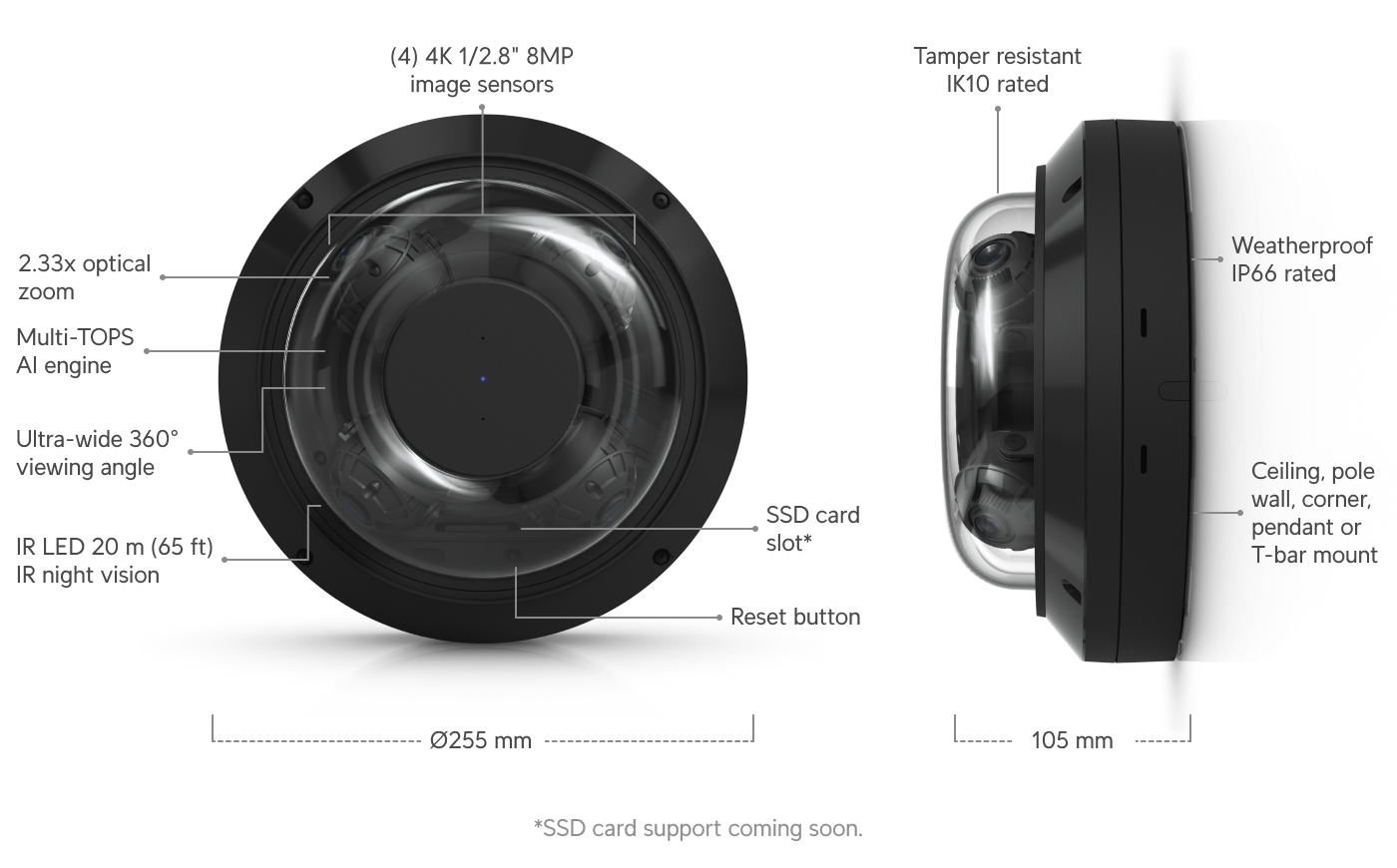

Dimensions / Weight ⌀255 × 105 mm • 2.4 kg
Operating Temperature −20 to 50°C, 0–90% non-condensing
Certifications CE, FCC, IC
Compliance NDAA compliant

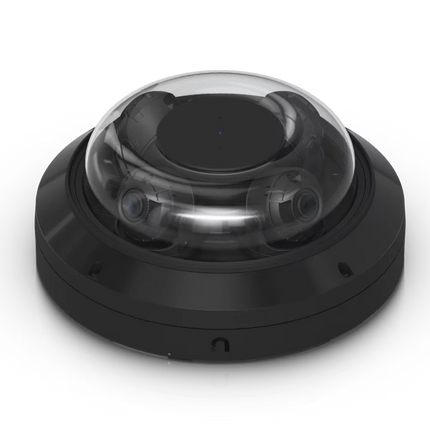

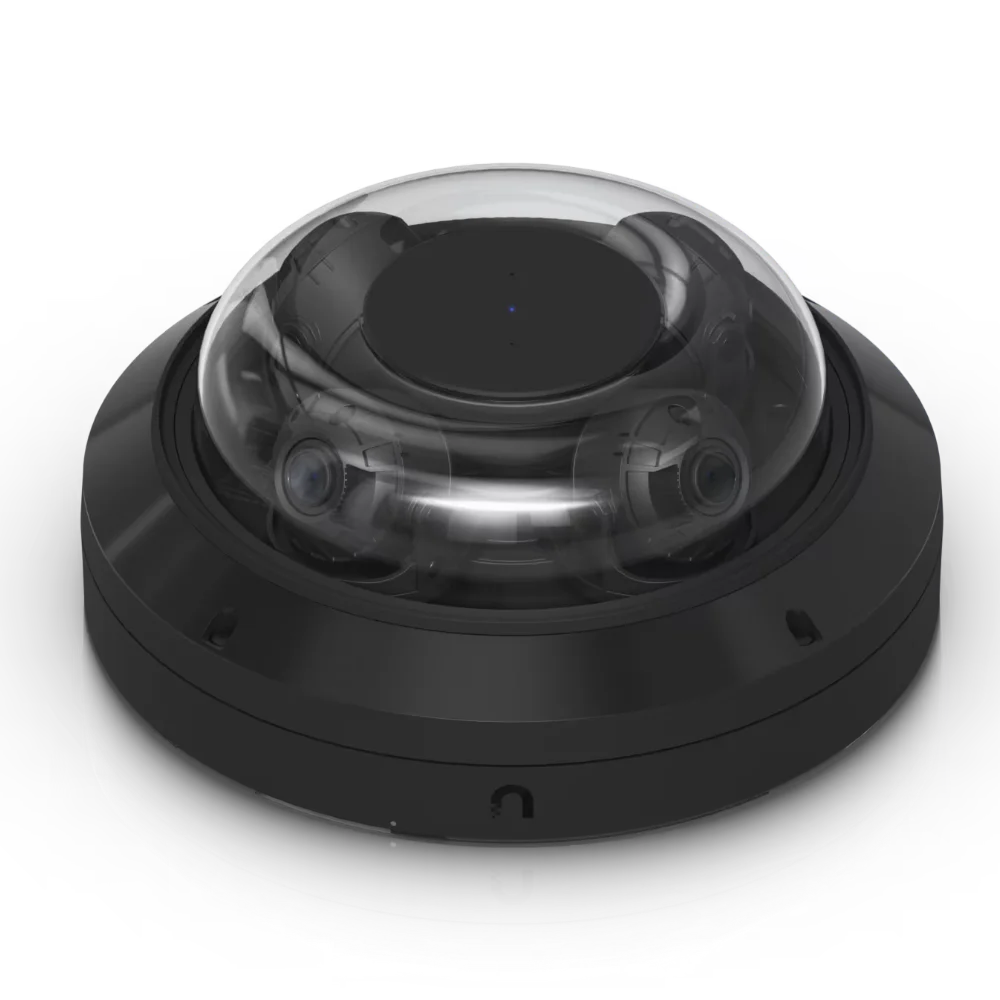

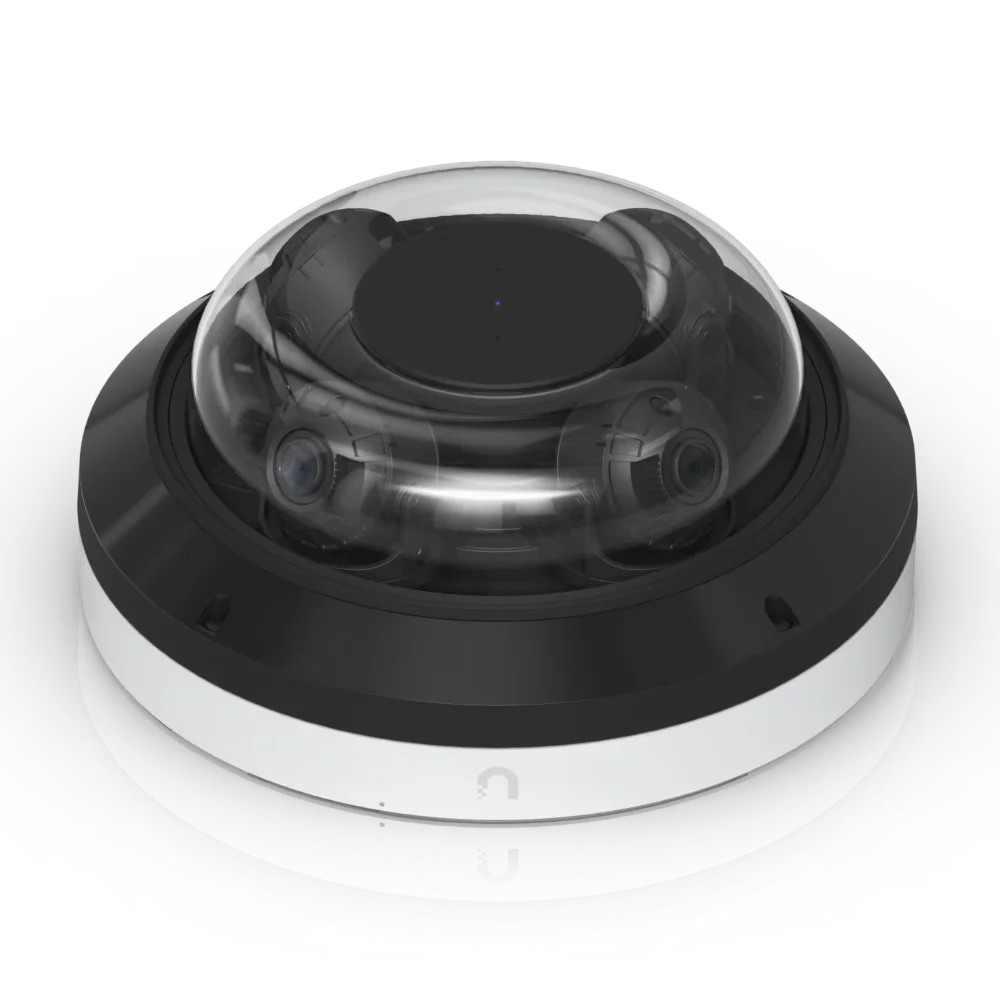

Colours Available White (UVC-AI-MS-4) / Black (UVC-AI-MS-4-B)

Downloads & Resources

UVC-AI-MS-4 Datasheet Ubiquiti AI MultiSensor 4 Quick Start Guide

What's in the Box

UniFi Protect AI MultiSensor 4

Your choice of White (UVC-AI-MS-4) or Black (UVC-AI-MS-4-B) finish.

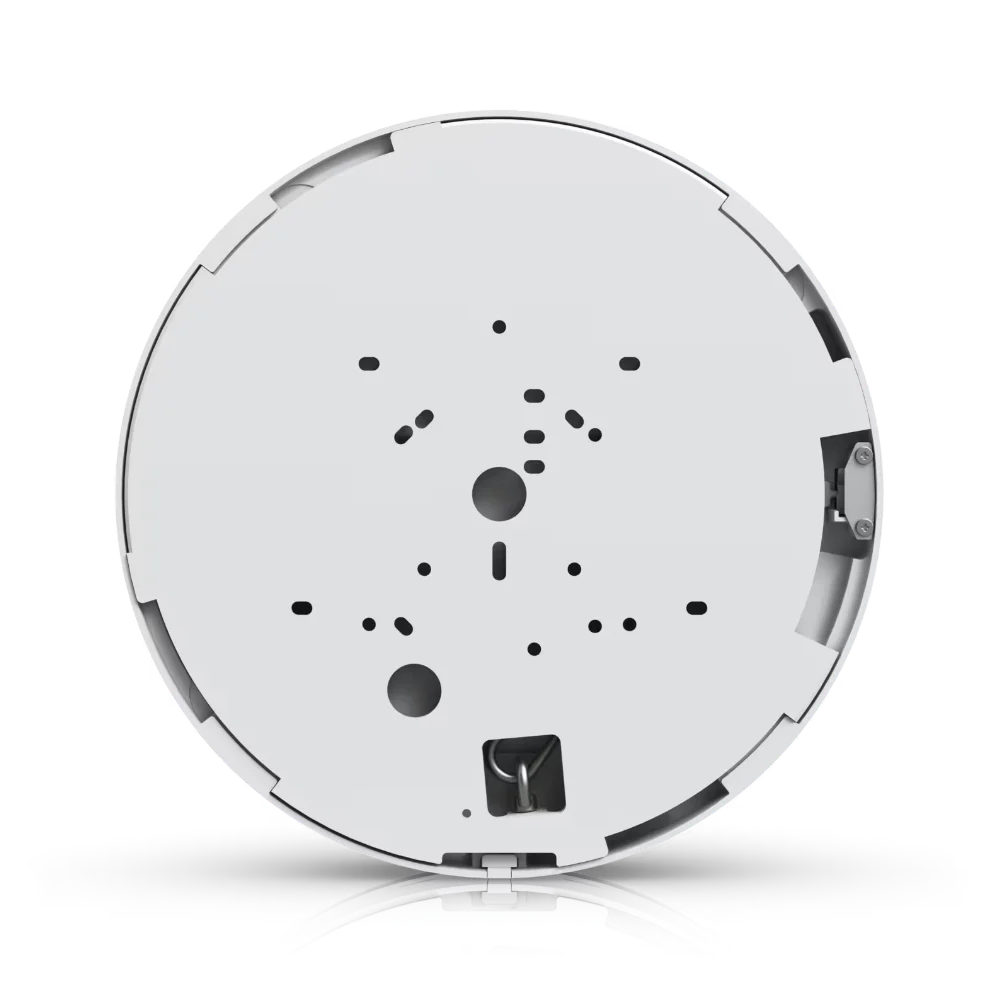

Ceiling Mount

Ceiling mount, screws and anchors included.

Documentation

Quick-start guide and installation instructions.

Not Included

A PoE++ (802.3bt) switch/injector, network cable, and microSD/SSD storage are sold separately.

Best For

Car Parks & Intersections

Aim each lens down a different lane for full coverage and number-plate capture from one pole.

Large Open Sites

Replace four fixed cameras with a single 32MP multi-sensor for warehouses and yards.

Building Corners

Cover two façades plus approaches from a single corner mount.

Campuses & Councils

Wide-area monitoring with face and plate recognition for high-traffic public spaces.

  • Requires a UniFi Protect host (UNVR, UNVR Pro, Cloud Key+, Dream Machine Pro/SE/Wall) running UniFi Protect.
  • Powered by a PoE++ (802.3bt) switch or injector — PoE/PoE+ is not sufficient (max draw 34.6 W).
  • Ceiling mount is included; pole, corner, arm and pendant mounts are optional.
  • Add microSD cards or an M.2 SATA SSD for high-capacity on-camera recording.

Frequently Asked Questions

How many cameras does the AI MultiSensor 4 replace?

It has four independently aimable 8MP lenses, so a single unit can do the work of up to four fixed cameras from one mounting point.

What power does it need?

PoE++ (802.3bt), up to 34.6 W. Standard PoE or PoE+ will not power it — use a PoE++ switch or injector.

Can it recognise faces and number plates?

Yes. The Multi-TOPS AI engine includes face recognition and number-plate recognition, plus people, vehicle, and animal detection.

Does it have onboard storage?

Yes — two microSD slots plus an M.2 2280 SATA SSD bay for high-capacity edge recording, alongside your UniFi Protect host.

Is it suitable for outdoor use in Australia?

Yes. IP66 weatherproofing, IK10 vandal resistance, and a −20 to 50°C range suit Australian outdoor environments.

What's the difference between White and Black?

Identical specs and performance — only the colour differs. White (UVC-AI-MS-4) suits light surfaces; Black (UVC-AI-MS-4-B) suits dark or discreet installs.

Fast AU Shipping
Genuine Ubiquiti Stock
Expert AU Support

UniFi Protect AI MultiSensor 4 – 32MP 4-Lens PoE++ AI Camera (UVC-AI-MS-4)

Product form

SKU: UVC-AI-MS-4-W
