Ubiquiti UniFi Pro 24 PoE — Managed 24-Port Gigabit Layer 3 PoE++ Switch (USW-Pro-24-POE)

Description

UniFi Switching — NDAA Compliant

UniFi Pro 24 PoE — Managed 24-Port Gigabit Layer 3 PoE++ Switch (USW-Pro-24-POE)

The Ubiquiti UniFi Pro 24 PoE (USW-Pro-24-POE) is an enterprise-grade managed switch with 24 Gigabit RJ45 ports — 16 delivering 802.3af/at PoE+ and 8 delivering high-power 802.3bt PoE++ up to 64 W per port — plus dual 10G SFP+ uplinks and full Layer 3 routing. With a 400 W total PoE budget, an 88 Gbps switching capacity, and a built-in 1.3″ touchscreen, it powers and manages cameras, access points, VoIP phones, and IoT devices from a single pane of glass in UniFi Network. Genuine Ubiquiti stock with fast shipping right across Australia.

Ports
24 × Gigabit PoE
PoE Budget
400 W Total
Uplinks
2 × 10G SFP+
Routing
Layer 3

Why Choose the UniFi Pro 24 PoE?

24 Gigabit PoE Ports

Sixteen 802.3af/at PoE+ ports plus eight 802.3bt PoE++ ports (up to 64 W each) power cameras, access points, phones, and IoT devices directly — no separate injectors required.

400 W Total PoE Budget

A 450 W internal AC/DC power supply delivers a 400 W total PoE budget, comfortably running a mixed fleet of legacy PoE and high-power PoE++ devices at once.

Dual 10G SFP+ Uplinks

Two 1/10G SFP+ ports provide high-speed fibre or DAC aggregation to your core network or storage server, with plenty of headroom for surveillance and multi-AP sites.

Full Layer 3 Routing

Beyond Layer 2 switching, the Pro 24 PoE adds inter-VLAN routing, static routing, DHCP server and DHCP relay — keeping traffic local and fast without a separate router.

High-Performance Hardware

An 88 Gbps switching capacity, 44 Gbps non-blocking throughput, 65 Mpps forwarding rate, and support for 1,000 VLANs handle demanding enterprise and surveillance LANs with ease.

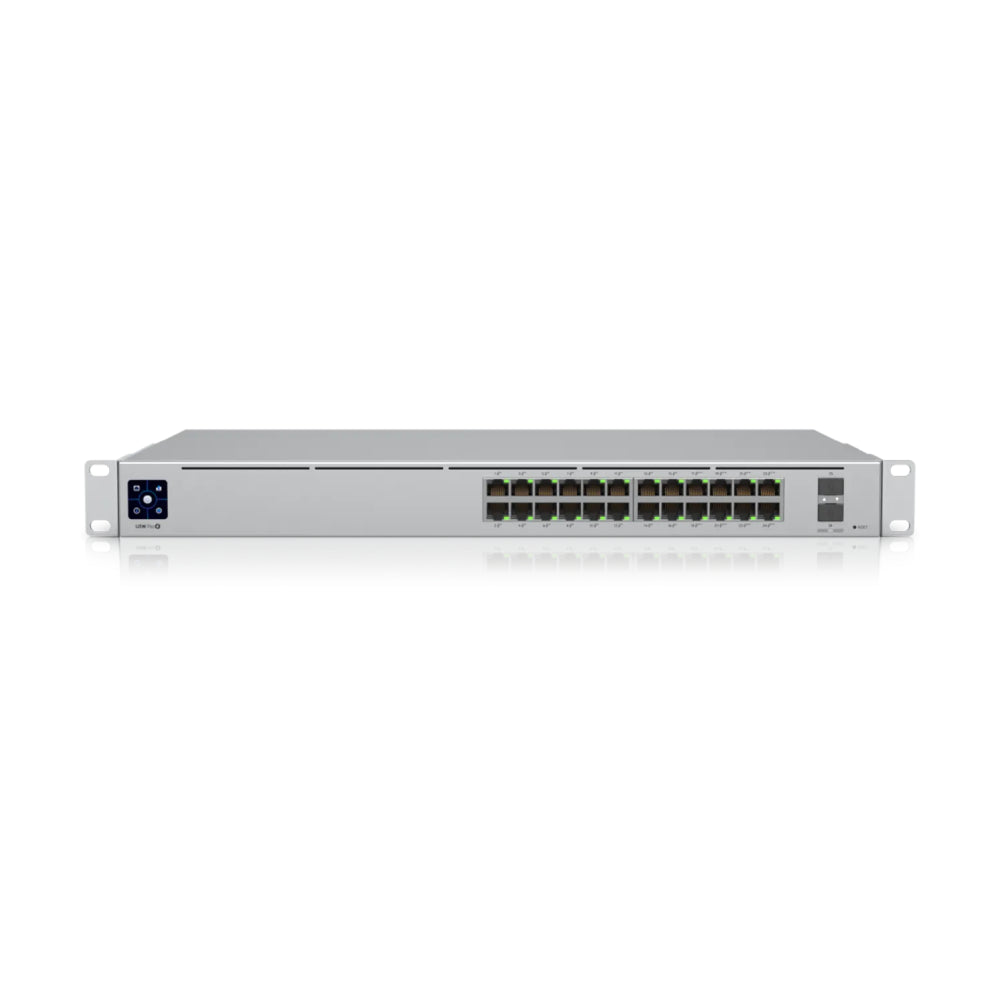

1.3″ Touchscreen Display

A built-in 1.3″ LCM touchscreen shows live status and port information for quick monitoring and troubleshooting right at the rack.

Managed by UniFi Network

Provision, monitor and configure everything — VLANs, PoE scheduling, LACP, QoS, 802.1X, port mirroring — from the UniFi Network controller or mobile app, no licence fees.

Power Redundancy + NDAA

A USP-RPS DC backup input guards against PSU failure, while full NDAA Section 889 compliance suits government, defence, and security-sensitive sites.

Technical Specifications

Model USW-Pro-24-POE (UniFi Pro 24 PoE)
RJ45 Ports 24 × Gigabit (10/100/1000) — 16 × 802.3af/at PoE+, 8 × 802.3bt PoE++
SFP+ Uplinks 2 × 1/10G SFP+
Max PoE per Port PoE+ 30 W • PoE++ 64 W
Total PoE Budget 400 W
Switching Capacity 88 Gbps
Non-Blocking Throughput 44 Gbps
Forwarding Rate 65 Mpps
Layer Layer 3 (inter-VLAN routing, static routing, DHCP server/relay)
Supported VLANs 1,000
MAC Address Table 16,000
L2 Features LACP, STP/RSTP, QoS (DSCP), IGMP snooping, 802.1X, port mirroring, jumbo frames, storm control
Display 1.3″ LCM touchscreen
Power Supply AC/DC internal, 450 W • 100–240 V AC, 50/60 Hz
Redundancy USP-RPS DC backup input
Max Power Consumption 50 W (excluding PoE output)
Form Factor 1U rack mount (brackets included)
Enclosure SGCC steel
Dimensions / Weight 442 × 285 × 44 mm • 4.3 kg
Operating Temperature −5°C to 40°C, 10–90% non-condensing
Management UniFi Network (v5.10.5 and later) & mobile app
Certifications CE, FCC, IC, Anatel
Compliance NDAA compliant

Downloads & Resources

USW-Pro-24-POE Datasheet Ubiquiti Installation Guide

What's in the Box

UniFi Pro 24 PoE Switch

The USW-Pro-24-POE managed Layer 3 PoE++ switch in its 1U steel chassis.

Rackmount Kit

Rack-mount brackets and screws for a clean 1U install in any standard rack.

Power Cord

Mains power cord for the internal 450 W AC/DC power supply.

Not Included

SFP+ modules/DAC cables and a USP-RPS for power redundancy are sold separately.

Best For

CCTV & Surveillance

Power and manage UniFi Protect cameras over a single cable with plenty of PoE headroom and 10G uplinks to the NVR.

Offices & Campuses

Drive access points, VoIP phones, and IoT across VLANs with Layer 3 routing keeping traffic local and fast.

Smart Buildings

High-power 802.3bt PoE++ runs PTZ cameras, displays, and access control without separate power runs.

Edge Aggregation

Dual 10G SFP+ uplinks aggregate downstream switches into the core for multi-service edge LANs.

  • Adopt and manage through a UniFi Network host — Cloud Gateway, Cloud Key, or UniFi Network self-hosted (v5.10.5+).
  • Mounts in any standard 1U rack space with the included brackets; supports 400–1200 mm rack depth.
  • Use SFP+ DAC or fibre transceivers for 10G uplinks to your core or NVR (sold separately).
  • Add a USP-RPS to the DC backup input for automatic power-supply failover (sold separately).

Frequently Asked Questions

What PoE standards does the USW-Pro-24-POE support?

16 ports deliver 802.3af/at PoE+ (up to 30 W) and 8 ports deliver 802.3bt PoE++ (up to 64 W), with a 400 W total PoE budget across all ports.

Is this a Layer 3 switch?

Yes. The Pro 24 PoE supports Layer 3 features including inter-VLAN routing, static routing, and DHCP server/relay, alongside full Layer 2 switching.

How do I manage it?

It's managed through UniFi Network (version 5.10.5 or later) via the controller or mobile app — no subscription or licence fees.

What are the uplink options?

Two 1/10G SFP+ ports allow high-speed fibre or DAC aggregation to your core network, storage server, or NVR.

Does it support power redundancy?

Yes. A USP-RPS DC backup input provides automatic failover if the internal 450 W power supply fails (USP-RPS sold separately).

Is the Pro 24 PoE NDAA compliant?

Yes. Ubiquiti is a US-based manufacturer and the USW-Pro-24-POE is NDAA Section 889 compliant — suitable for government and security-sensitive sites.

Fast AU Shipping
Genuine Ubiquiti Stock
Expert AU Support
