Ubiquiti USW-Pro-XG-Aggregation 32-Port 25G Layer 3 Switch

Description

UniFi Switching — NDAA Compliant

USW-Pro-XG-Aggregation — 32× 25G SFP28 Layer 3 Etherlighting Aggregation Switch · Genuine Australian Ubiquiti Stock

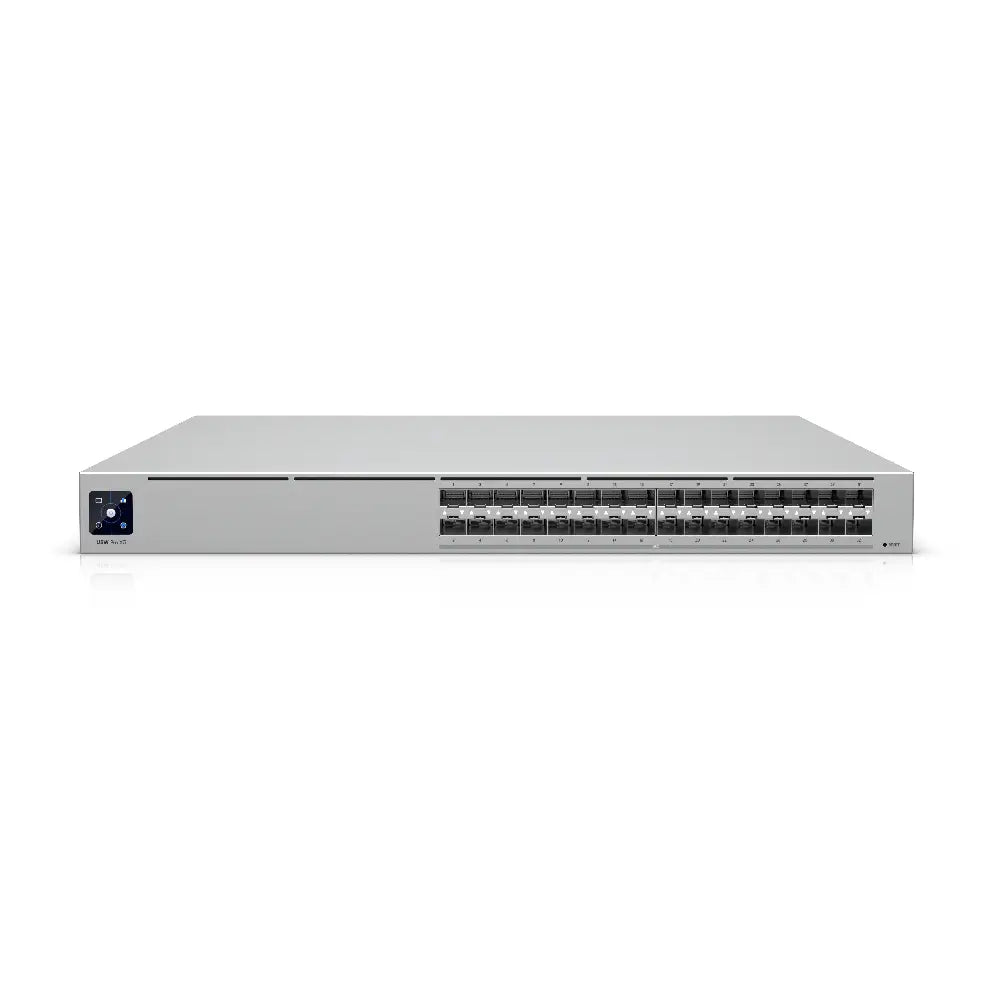

The Ubiquiti UniFi Pro XG Aggregation (USW-Pro-XG-Aggregation) is a professional 1U aggregation switch that collapses your high-speed core into 32 ports of 25G SFP28 — each auto-negotiating 25G / 10G / 1G. It moves data at a 1.6 Tbps switching capacity with 800 Gbps non-blocking throughput, adds full Layer 3 routing and Pro AV multicast profiles, and shows link speed and VLANs at a glance through Etherlighting™ and a 1.3″ touchscreen. Dual-power ready with a USP RPS DC backup input, built in SGCC steel, and NDAA Section 889 compliant — with genuine Australian stock and fast nationwide shipping.

32× 25G SFP28 High-Density Core

Thirty-two SFP28 ports each auto-link at 25G / 10G / 1G over fibre or DAC, delivering 1.6 Tbps switching, 800 Gbps non-blocking throughput and a 1.2 Bpps forwarding rate for demanding aggregation.

Full Layer 3 + Pro AV

Inter-VLAN and static routing, DHCP server & relay, 1,000 VLANs and 512 IPv4 static routes — plus Pro AV profiles (Dante, Q-SYS, NDI, SDVoE, AES67, Crestron) and advanced IGMP for broadcast-grade multicast.

Etherlighting™ & Touchscreen

Illuminated ports instantly show link speed, activity and native VLAN, while the built-in 1.3″ LCM touchscreen with AR management makes rack-side setup and diagnostics fast.

Redundant Power, NDAA Compliant

An internal 200 W AC supply pairs with a dedicated USP RPS DC backup input for high availability. SGCC-steel 1U chassis, NDAA compliant, CE / FCC / IC / Anatel certified.

Technical Specifications

Model USW-Pro-XG-Aggregation (UniFi Pro XG Aggregation)
Networking Interfaces (32) 25G SFP28 ports — auto 25G / 10G / 1G
Switching Capacity 1.6 Tbps
Total Non-Blocking Throughput 800 Gbps
Forwarding Rate 1.2 Bpps
Layer 3 Features Inter-VLAN routing, static routing, DHCP server & relay
Layer 2 Features LACP, STP & RSTP, 802.1X, IGMP snooping, ACLs, port mirroring, jumbo frames, storm control, loop protection
Pro AV Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron profiles
Supported VLANs 1,000
MAC Address Table 32,000
IPv4 Static Routes 512
Packet Buffer 8 MB
LCM Display 1.3″ touchscreen (Ethernet & AR management)
Etherlighting™ Yes (SFP28) • RPS status LED
Power Method (1) 100–240V AC, 50/60 Hz • (1) USP RPS DC input
Power Supply Internal AC/DC, 200 W
Max. Power Consumption 200 W
Heat Dissipation 682 BTU/hr
Form Factor Rack-mount 1U
Dimensions 442.4 × 43.7 × 480 mm
Weight 7.1 kg (7.2 kg with bracket)
Enclosure SGCC steel
Supported Rack Depth 19″ four-post, 600–1,066 mm post depth
ESD Protection Air ±12 kV, contact ±8 kV
Operating Temperature −5 to 40°C
Operating Humidity 10 to 90% non-condensing
Certifications CE, FCC, IC, Anatel
Compliance NDAA compliant

Frequently Asked Questions

What plugs into the 25G SFP28 ports?

Each port accepts 25G, 10G or 1G SFP28/SFP+/SFP optics or direct-attach copper (DAC) cables, and auto-negotiates the link speed — ideal for fibre uplinks and short-reach DAC runs between switches and servers.

Does the switch provide PoE?

No. The USW-Pro-XG-Aggregation is a pure SFP28 fibre/DAC aggregation switch — it has no RJ45 or PoE ports. Use it to aggregate access switches, servers and gateways at 25G/10G, and power devices from your PoE access switches.

Does it do full Layer 3 routing?

Yes. It supports inter-VLAN routing, static routing (512 IPv4 routes), and a local DHCP server and relay, alongside a full Layer 2 feature set including LACP, STP/RSTP, 802.1X and IGMP snooping.

How does power redundancy work?

The switch runs from its internal 200 W AC supply and adds a dedicated USP RPS DC input, so a UniFi SmartPower Redundant Power System (USP-RPS) can keep it online if the primary supply fails.

Is it suitable for Pro AV and multicast networks?

Yes. It ships with Pro AV profiles for Dante, Q-SYS, NDI, SDVoE, AES67, Shure and Crestron, plus advanced IGMP configuration, making it well suited to broadcast and AV-over-IP deployments.

What UniFi console manages it?

Adopt and manage it in UniFi Network from any UniFi OS console — for example a UDM-SE / Dream Machine Pro, Cloud Key, or Enterprise gateway.

Downloads & Resources

USW-Pro-XG-Aggregation Datasheet Ubiquiti Pro XG Aggregation Quick Start Guide

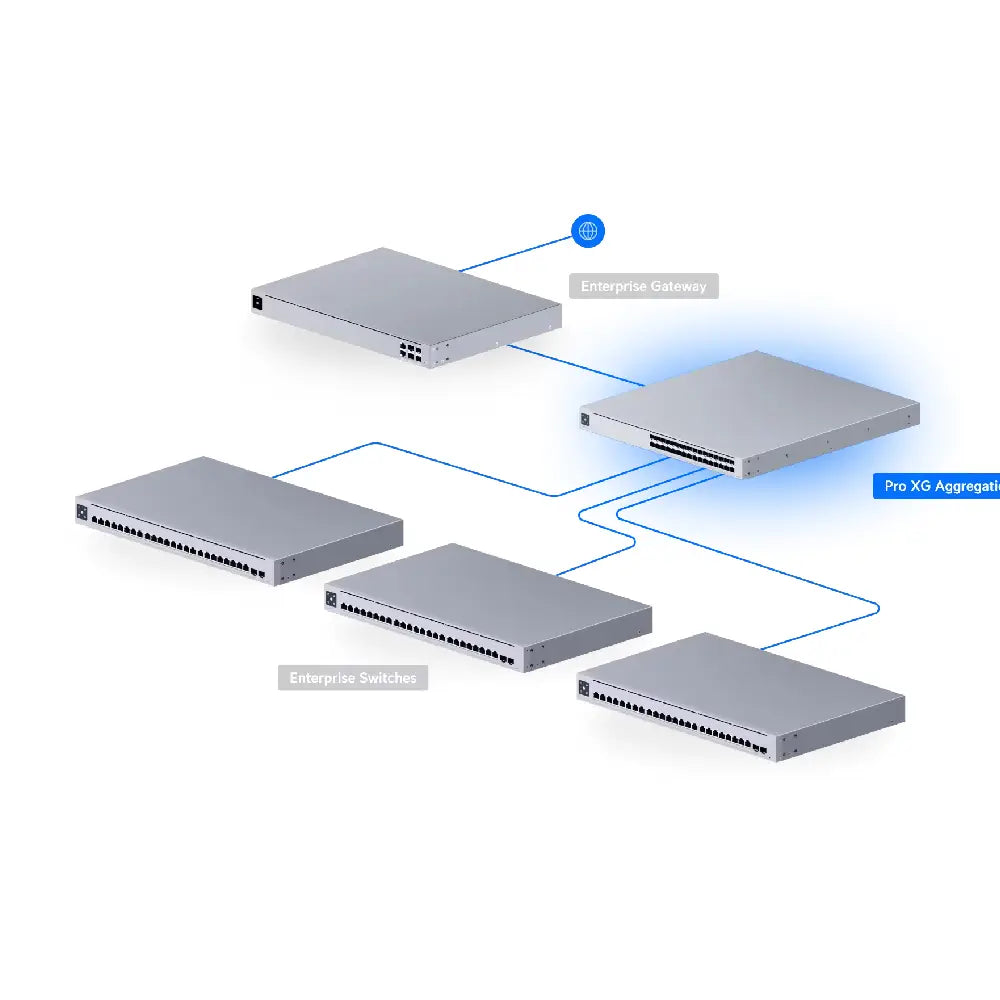

  • Populate the SFP28 ports with 25G/10G/1G optics or DAC cables to aggregate access switches, servers and gateways.
  • Mount in a 19″ four-post rack (1U); supports post depths from 600 to 1,066 mm.
  • Add a UniFi SmartPower RPS (USP-RPS) and SmartPower cable to the DC input for power redundancy.
  • Adopt in UniFi Network on a UniFi OS console and use Etherlighting plus the 1.3″ touchscreen for quick verification.
Genuine Ubiquiti Stock
Fast AU-Wide Shipping
Expert AU Support
