Ubiquiti Dream Machine Special Edition, All-In-One Unifi Solution, 8x Gbe PoE RJ45 Ports, 3.5' HDD Bay

Description

Ubiquiti Dream Machine Special Edition, All-In-One Unifi Solution, 8x Gbe PoE RJ45 Ports, 3.5' HDD Bay. You can use this UDM-SE as all-in-one router and security gateway with an integrated PoE switch and NVR network video recorder.

The UniFi Dream Machine - Special Edition is the first UniFi Console that offers a full UniFi application suite right out of the box. Instantly run a complete UniFi deployment without the need for an additional PoE Switch, NVR, or Hard Disk Drive for storage. The UDM SE is an all-in-one router/security gateway that can power your UniFi devices directly from the integrated 8 port gigabit PoE switch and store your UniFi Protect recordings on the integrated 128GB internal hard drive. UDM SE is completely scalable and customizable, so you can easily expand your deployment.

Enterprise-grade, rack-mount UniFi Cloud Gateway with full UniFi application support, 10 Gbps Cloud Gateway with 100+ UniFi device / 1,000+ client support, 3.5 Gbps IPS routing, and built-in PoE switching.

Includes full UniFi application suite for device management
3.5+ Gbps routing with IDS/IPS

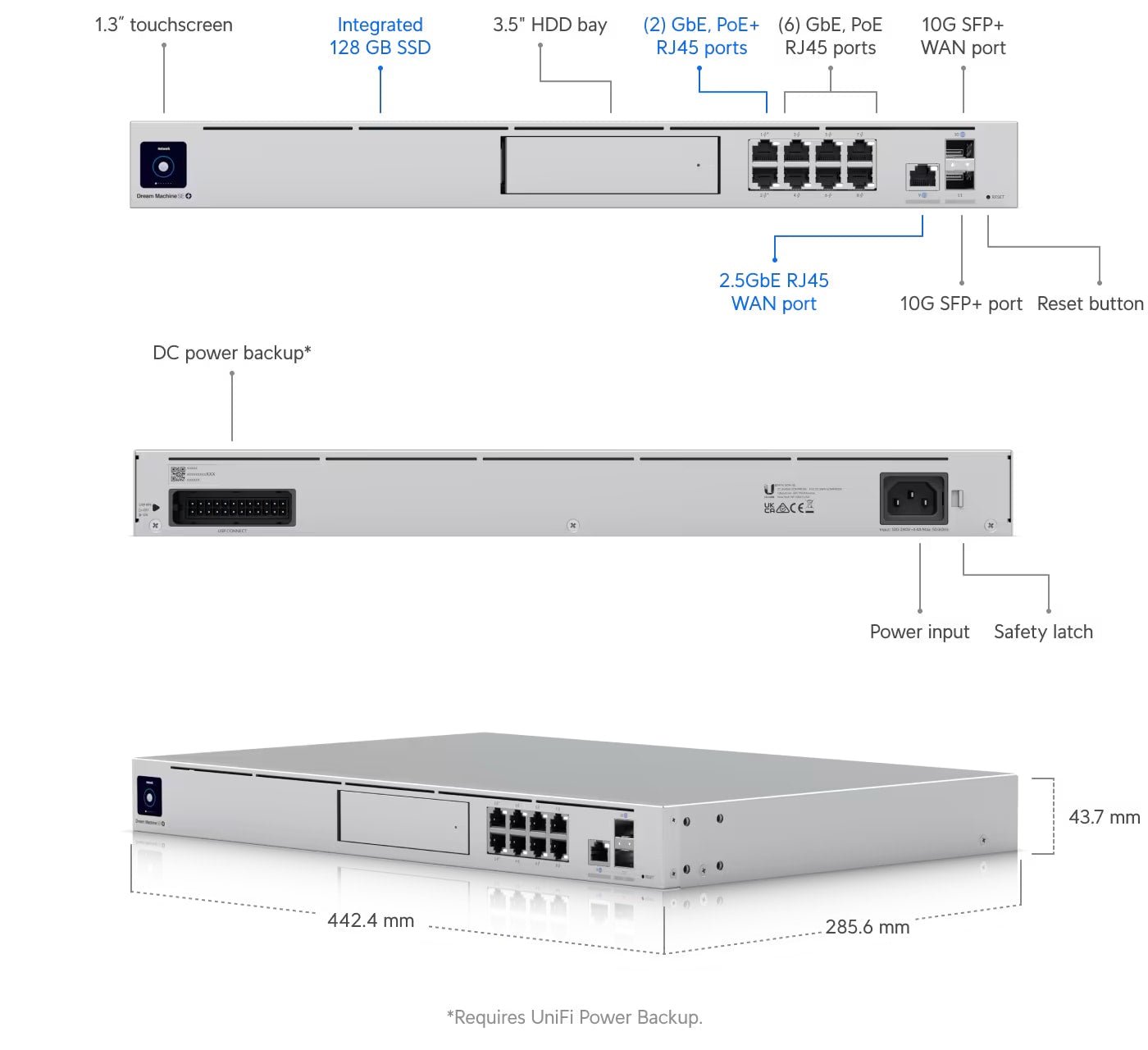

(1) 10G SFP+*, (8) GbE RJ45 LAN ports including (2) PoE+, and (6) PoE
(1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports
(1) 3.5" NVR HDD bay
Built-in 128 GB SSD for NVR detection recordings
1.3" touchscreen

Technical Specifications

Mechanical
Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight 5 kg (10.9 lb)
Enclosure material Aluminium CNC, SGCC steel
Mount material SGCC steel
Hardware
Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz
System memory 4 GB DDR4
On-board storage 16 GB eMMC
Integrated 128 GB SSD
Management interface Ethernet
Bluetooth
Networking interface LAN:
(8) GbE RJ45 ports
(1) 10G SFP+ port

WAN:
(1) 2.5 GbE RJ45 port
(1) 10G SFP+ port
PoE interface (6) PoE (Pair A 1, 2+; 3, 6-)
(2) PoE+ (Pair A 1, 2+; 3, 6-)
IDS/IPS throughput 3.5 Gbps*
*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
Power method (1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz
(1) USP-RPS DC input, 52V DC, 3.94A
Power supply AC/DC, internal, 240W
Supported voltage range 100—240V AC
Max. power consumption 50W (Excluding PoE output)
PoE budget 180W
Max. PoE wattage per port by PSE PoE: 15.4W
PoE+: 30W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
ESD/EMP protection Air: ± 15kV, contact: ± 8kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Ambient operating temperature -10 to 40° C (14 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Gateway Features
Performance Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
LEDs
Ethernet White: link/activity
SFP+ White: link/activity
HDD White: disk activity
Amber: disk error
RPS Blue: ready

Downloads

Installation Guide

Introducing: UniFi Dream Machine SE

Ubiquiti Dream Machine Special Edition, All-In-One Unifi Solution, 8x Gbe PoE RJ45 Ports, 3.5' HDD Bay

Product form

SKU: UDM-SE

Ubiquiti Dream Machine Special Edition, All-In-One Unifi Solution, 8x Gbe PoE RJ45 Ports, 3.5' HDD Bay. You can use this... Read more

$1,044.00 $1,021.90 Incl. GST

  • Dispatch today? Order within: Jun 25, 2024 14:00:00 +1000
  • Warranty: 12 months
  • 30 day money back guarantee
  • Australian Stocks & Express Delivery
  • Back-to-base Warranty & Tech Support
    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • Zip
    • Klarna
    • Afterpay

    Description

    Ubiquiti Dream Machine Special Edition, All-In-One Unifi Solution, 8x Gbe PoE RJ45 Ports, 3.5' HDD Bay. You can use this UDM-SE as all-in-one router and security gateway with an integrated PoE switch and NVR network video recorder.

    The UniFi Dream Machine - Special Edition is the first UniFi Console that offers a full UniFi application suite right out of the box. Instantly run a complete UniFi deployment without the need for an additional PoE Switch, NVR, or Hard Disk Drive for storage. The UDM SE is an all-in-one router/security gateway that can power your UniFi devices directly from the integrated 8 port gigabit PoE switch and store your UniFi Protect recordings on the integrated 128GB internal hard drive. UDM SE is completely scalable and customizable, so you can easily expand your deployment.

    Enterprise-grade, rack-mount UniFi Cloud Gateway with full UniFi application support, 10 Gbps Cloud Gateway with 100+ UniFi device / 1,000+ client support, 3.5 Gbps IPS routing, and built-in PoE switching.

    Includes full UniFi application suite for device management
    3.5+ Gbps routing with IDS/IPS
    (1) 10G SFP+*, (8) GbE RJ45 LAN ports including (2) PoE+, and (6) PoE
    (1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports
    (1) 3.5" NVR HDD bay
    Built-in 128 GB SSD for NVR detection recordings
    1.3" touchscreen

    Technical Specifications

    Mechanical
    Dimensions 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
    Weight 5 kg (10.9 lb)
    Enclosure material Aluminium CNC, SGCC steel
    Mount material SGCC steel
    Hardware
    Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz
    System memory 4 GB DDR4
    On-board storage 16 GB eMMC
    Integrated 128 GB SSD
    Management interface Ethernet
    Bluetooth
    Networking interface LAN:
    (8) GbE RJ45 ports
    (1) 10G SFP+ port

    WAN:
    (1) 2.5 GbE RJ45 port
    (1) 10G SFP+ port
    PoE interface (6) PoE (Pair A 1, 2+; 3, 6-)
    (2) PoE+ (Pair A 1, 2+; 3, 6-)
    IDS/IPS throughput 3.5 Gbps*
    *Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
    Power method (1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz
    (1) USP-RPS DC input, 52V DC, 3.94A
    Power supply AC/DC, internal, 240W
    Supported voltage range 100—240V AC
    Max. power consumption 50W (Excluding PoE output)
    PoE budget 180W
    Max. PoE wattage per port by PSE PoE: 15.4W
    PoE+: 30W
    Voltage range PoE mode PoE: 44—57V
    PoE+: 50—57V
    ESD/EMP protection Air: ± 15kV, contact: ± 8kV
    LCM display (1) 1.3" touchscreen
    Button Factory reset
    Ambient operating temperature -10 to 40° C (14 to 104° F)
    Ambient operating humidity 5 to 95% noncondensing
    Certifications CE, FCC, IC
    Gateway Features
    Performance Redundant WAN with failover and load balancing
    WiFi QoS with UniFi APs
    Application, domain, and country-based QoS
    Application and device type identification
    Additional internet failover with LTE Backup
    Internet quality and outage reporting
    Next-generation security Application-aware firewall rules
    Signature-based IPS/IDS threat detection
    Content, country, domain, and ad filtering
    VLAN/subnet-based traffic segmentation
    Full stateful firewall
    Advanced networking License-free SD-WAN
    WireGuard, L2TP and OpenVPN server
    OpenVPN client
    OpenVPN and IPsec site-to-site VPN
    One-click Teleport and Identity VPN
    Policy-based WAN and VPN routing
    DHCP relay
    Customizable DHCP server
    IGMP proxy
    IPv6 ISP support
    LEDs
    Ethernet White: link/activity
    SFP+ White: link/activity
    HDD White: disk activity
    Amber: disk error
    RPS Blue: ready

    Downloads

    Installation Guide

    Introducing: UniFi Dream Machine SE
