Ubiquiti UniFi · NDAA & TAA COMPLIANT
High-Performance Multi-Gigabit Connectivity for Critical Enterprise Infrastructure
Engineered for seamless network aggregation and mission-critical environments, the Ubiquiti USW-WAN-RJ45 delivers elite performance for high-density commercial deployments. Designed to link dual high-availability gateways to a single ISP connection, this advanced 1U rack-mountable switch guarantees zero-downtime operations, robust switching capacity, and low power consumption for enterprise-grade network edges.
Port Configuration
3x 10GbE & 1x 1GbE RJ45
Switching Capacity
20 Gbps Non-Blocking
Power Redundancy
Dual AC Inputs (18W Max)
Chassis Construction
SGCC Steel 1U Rackmount
Advanced Network Management and Shadow Mode Integration
The USW-WAN-RJ45 is built to optimize complex routing topologies. By pairing directly with UniFi Shadow Mode High Availability gateways, it effortlessly bridges multi-gigabit workloads while maintaining strict security compliance. Centralized control via the UniFi Network application provides real-time traffic monitoring, granular diagnostic tools, and swift configuration adjustments across your entire infrastructure stack.
High-Availability Shadow Mode Support

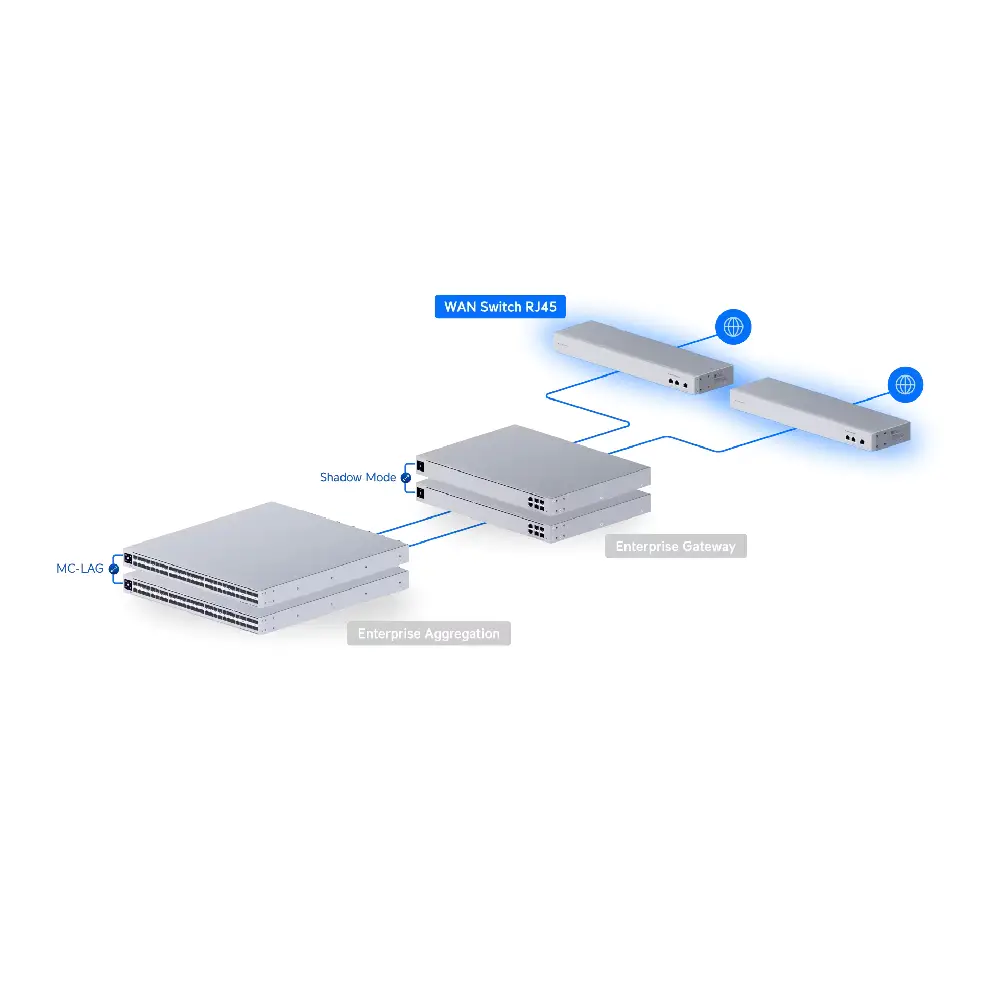

Designed specifically to aggregate dual gateway setups, routing traffic smoothly to a single ISP connection to eliminate single points of failure in mission-critical networks.
Enterprise Power Redundancy
Features dual internal AC power inputs ensuring continuous operational uptime even if a primary power source fails, backed by an ultra-efficient 18W maximum power draw.
Technical Specification Matrix
| Model |
USW-WAN-RJ45 |
| Dimensions |
442.4 x 120 x 43.7 mm (17.4 x 4.72 x 1.7 in) |
| Weight |
Without brackets: 2.3 kg (5.1 lb); With brackets: 2.4 kg (5.3 lb) |
| Port Layout |

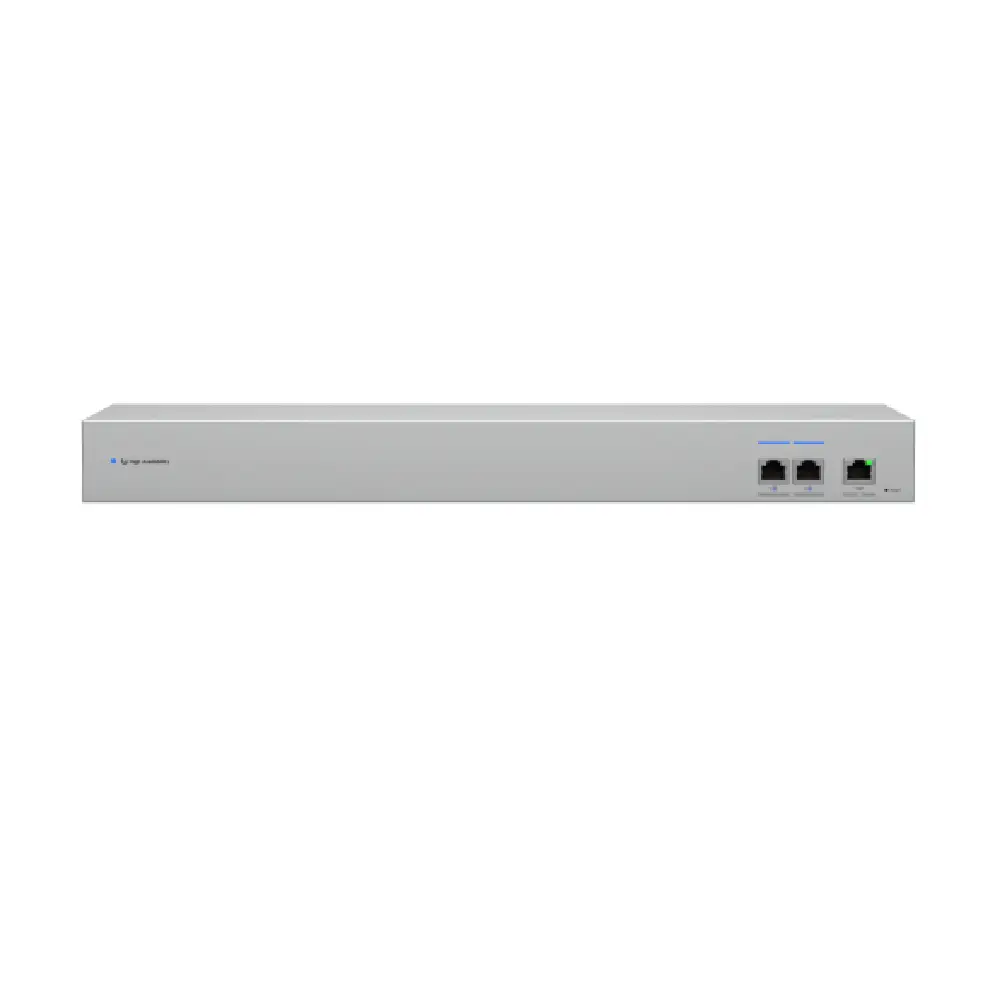

(3) 10GbE RJ45 ports (10G/5G/2.5G/1G/100M), (1) 1GbE RJ45 management port |
| Switching Capacity |
20 Gbps |
| Total Non-Blocking Throughput |
10 Gbps |
| Enclosure Material |
SGCC Steel |
| Compliance Status |
NDAA Compliant |
What is the primary use case for the USW-WAN-RJ45 switch?
It is designed to aggregate connections from dual UniFi Cloud Gateways running in Shadow Mode High Availability, directing them into a single ISP uplink while providing robust power and link redundancy.
Is this switch NDAA compliant for government deployments?
Yes, the Ubiquiti USW-WAN-RJ45 is fully NDAA compliant, making it suitable for federal, defense, and enterprise installations requiring strict regulatory adherence.
What management platform does this device require?
The switch integrates natively with the UniFi Network application (version 9.1.120 and later) for streamlined provisioning and ongoing remote management.
Does the unit support power redundancy out of the box?
Yes, it features dual internal AC inputs (100–240V AC) to deliver enterprise-grade power redundancy out of the box.
