UniFi Protect G5 Dome
The UVC-G5-Dome is a high-definition 2K (4MP) PoE-powered camera designed for overhead surveillance. Built to perform in both indoor and covered outdoor settings, it utilizes a high-sensitivity 5MP CMOS sensor and advanced image processing to deliver clear forensic evidence and smooth 30 FPS video.
Available Variations
-

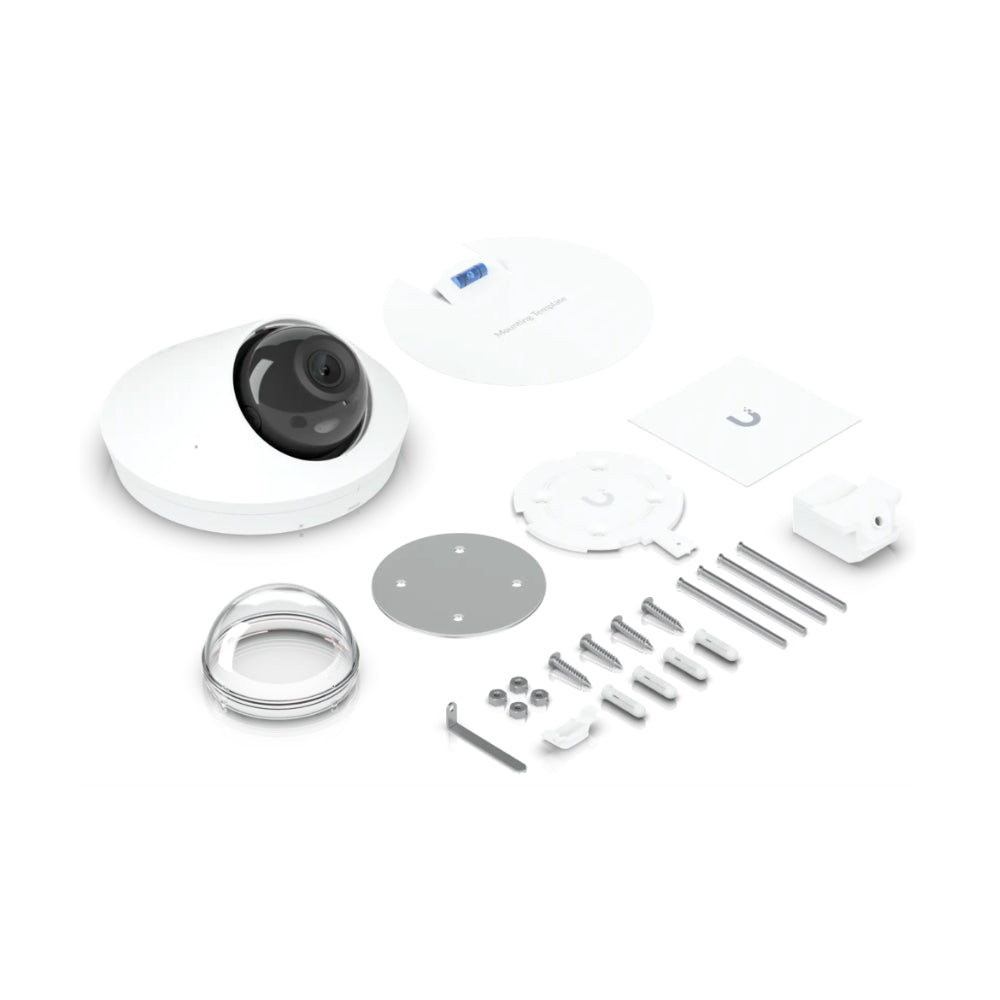

Single Unit: Includes (1) G5 Dome camera, mounting bracket, and hardware kit.
-

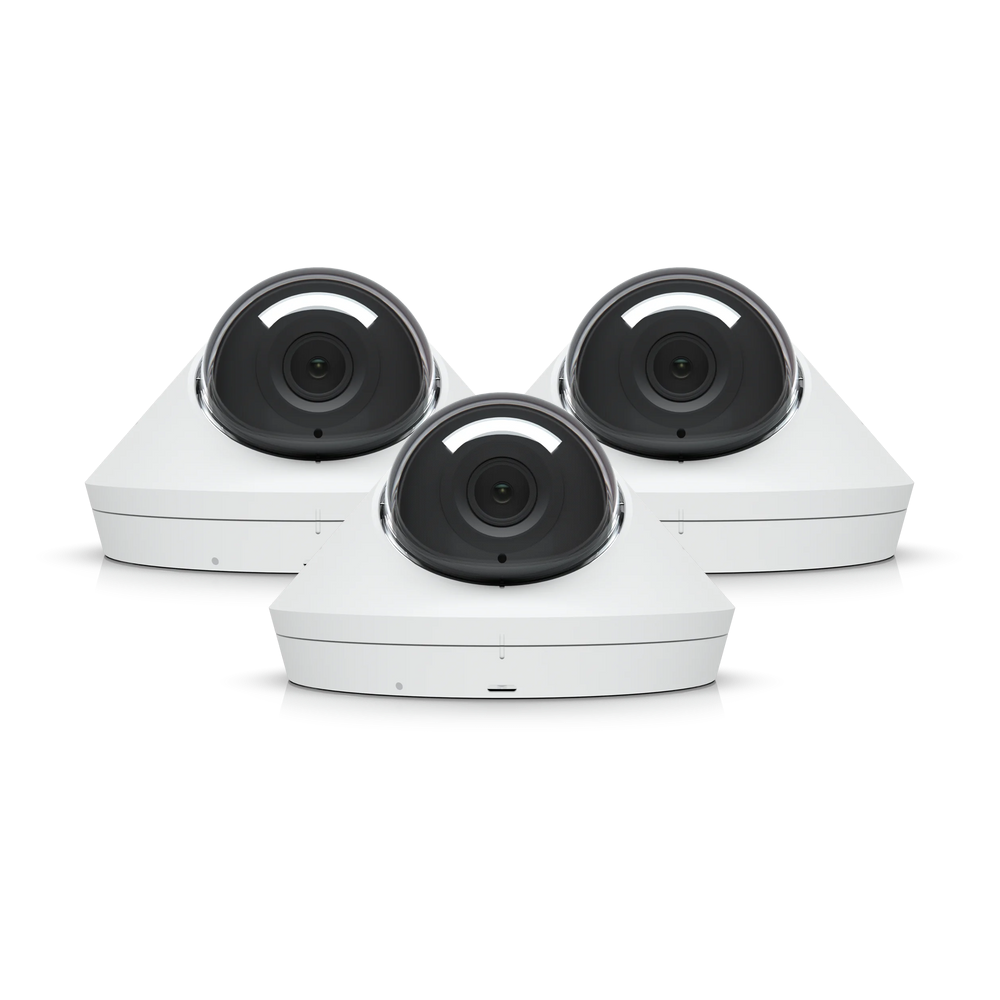

3-Pack: Cost-effective multi-pack including (3) G5 Dome units and mounting hardware.
Advanced Hardware Features
-
2K HD Video Quality: Records at 2688 x 1512 resolution, providing significantly higher detail than standard 1080p cameras.
-
Ultra-Wide Coverage: The 102.4° horizontal viewing angle captures large rooms or building perimeters with minimal blind spots.
-
Integrated Night Vision: High-power infrared LEDs provide clear black-and-white video in total darkness up to 9 meters (30 feet).
-
Two-Way Audio: Features a built-in microphone and speaker for real-time remote communication via the UniFi Protect app.
-
Vandal-Resistant Design: The IK08-rated housing protects the lens and internal components against physical impact and tampering.
-
Flexible Adjustment: An internal three-axis gimbal allows for manual pan, tilt, and rotation adjustment to achieve the perfect angle.
Technical Specifications
| Sensor |
5MP CMOS Sensor |
| Resolution |
2K (4MP) 2688 x 1512 (16:9) |
| Networking |
10/100 MbE RJ45 Port |
| Power |
802.3af PoE (Max 5W) |
| Durability |
IK08 Vandal Resistance & IPX4 Weatherproofing |
More Information
Access the official technical documentation and setup guides for the G5 Dome:
Download Installation Guide
Note: For full functionality, this camera requires a UniFi Protect Controller (Dream Machine Pro, NVR, or Cloud Key Gen2 Plus).
