| Mechanical |
| Dimensions |
99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3") |
| Weight |
295 g (10.4 oz) |
| Enclosure material |
Polycarbonate |
| Hardware |
| Management interface |
Ethernet In-Band |
| Networking interface |

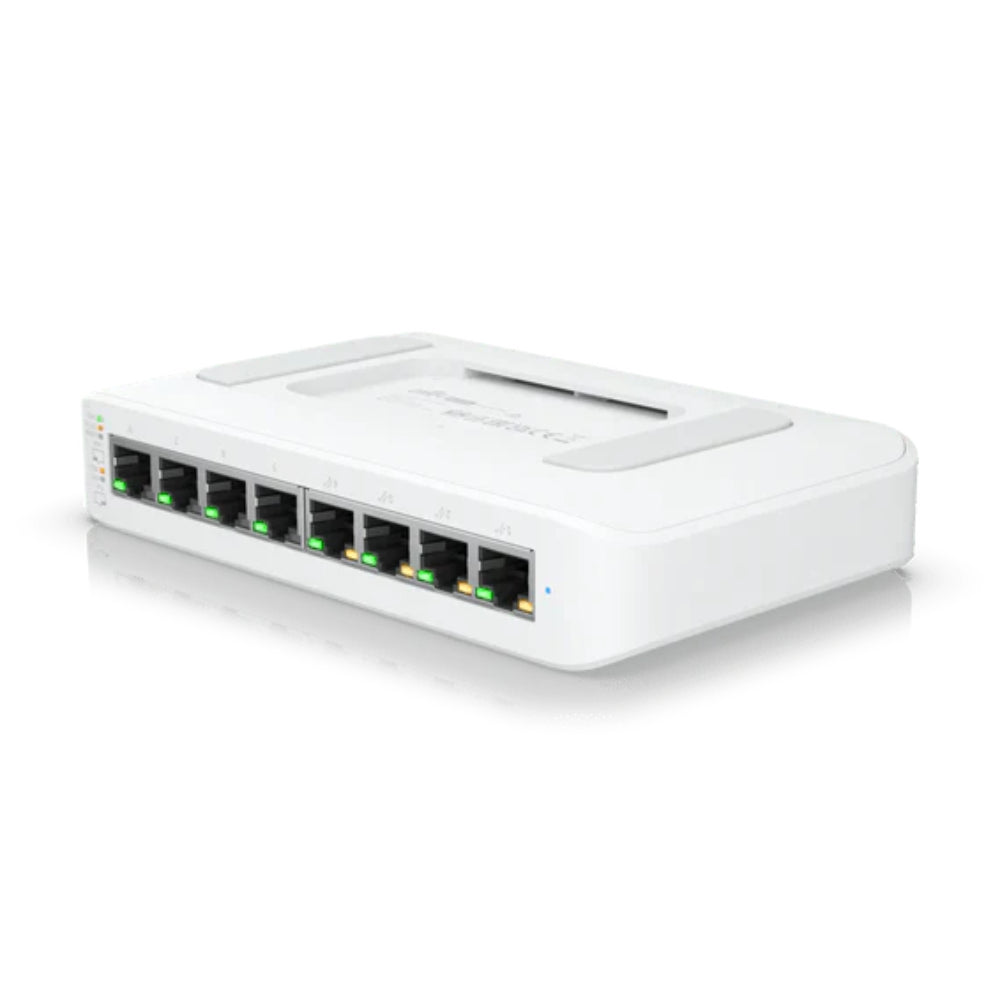

(8) GbE RJ45 ports |
| PoE interface |
(4) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput |
8 Gbps |
| Switching capacity |
16 Gbps |

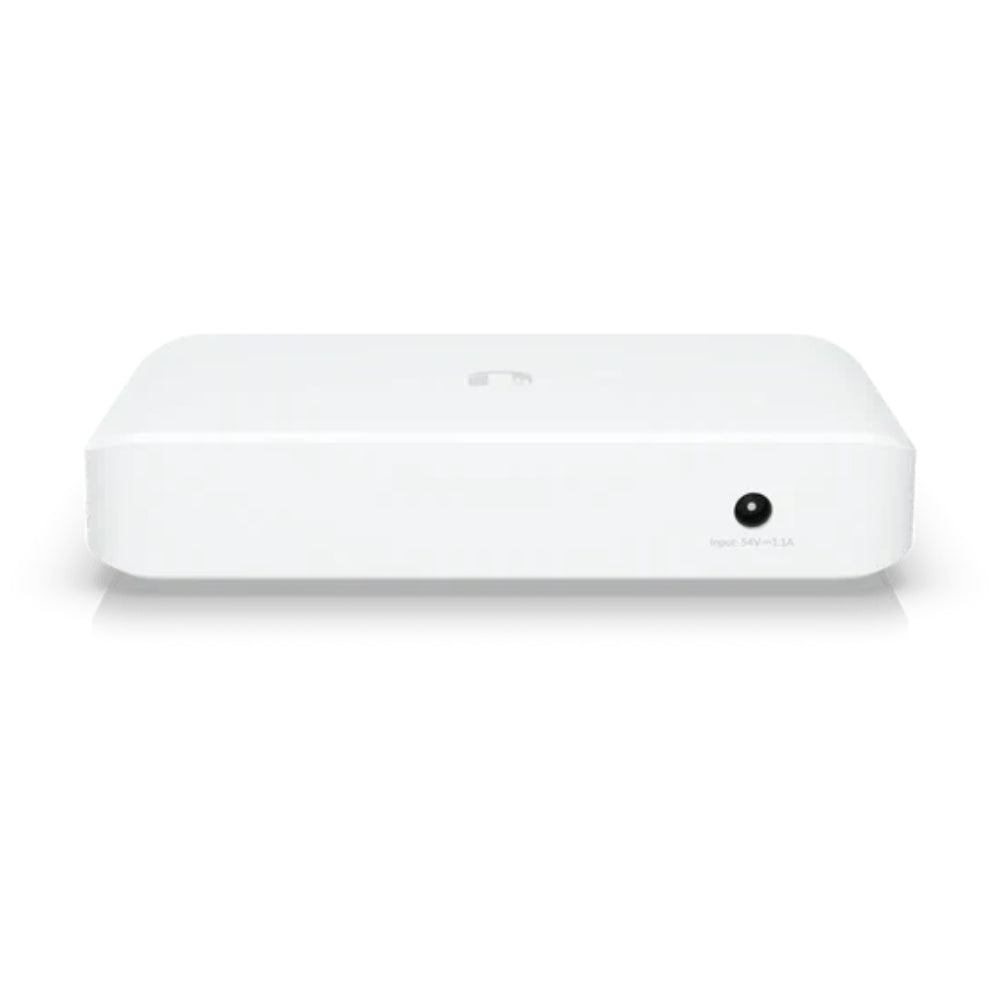

| Power method |
54V DC, 1.1A power adapter |
| Power supply |
54V, external, 60W |
| Supported voltage range |
50—57V DC |
| Max. power consumption |
8W (Excluding PoE output) |
| Total available PoE |
52W*
*With an external 60W power adapter.
|
| Max. PoE wattage per port by PSE |
PoE+: 30W |
| Button |
Factory reset |
| Ambient operating temperature |
-15 to 40° C (5 to 104° F) |
| Ambient operating humidity |
10 to 90% noncondensing |
| Certifications |
CE, FCC, IC |
| Switching Features |
| Layer 2 features |
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs |
| Layer 3 features |
– |
| LEDs |
| System |
Status |
| Ethernet |
PoE
Speed/link/activity |
| PoE |
Link/activity |
| Application Requirements |
| UniFi Network |
Version 7.2.94 and later |
