Hikvision CCTV Monitor

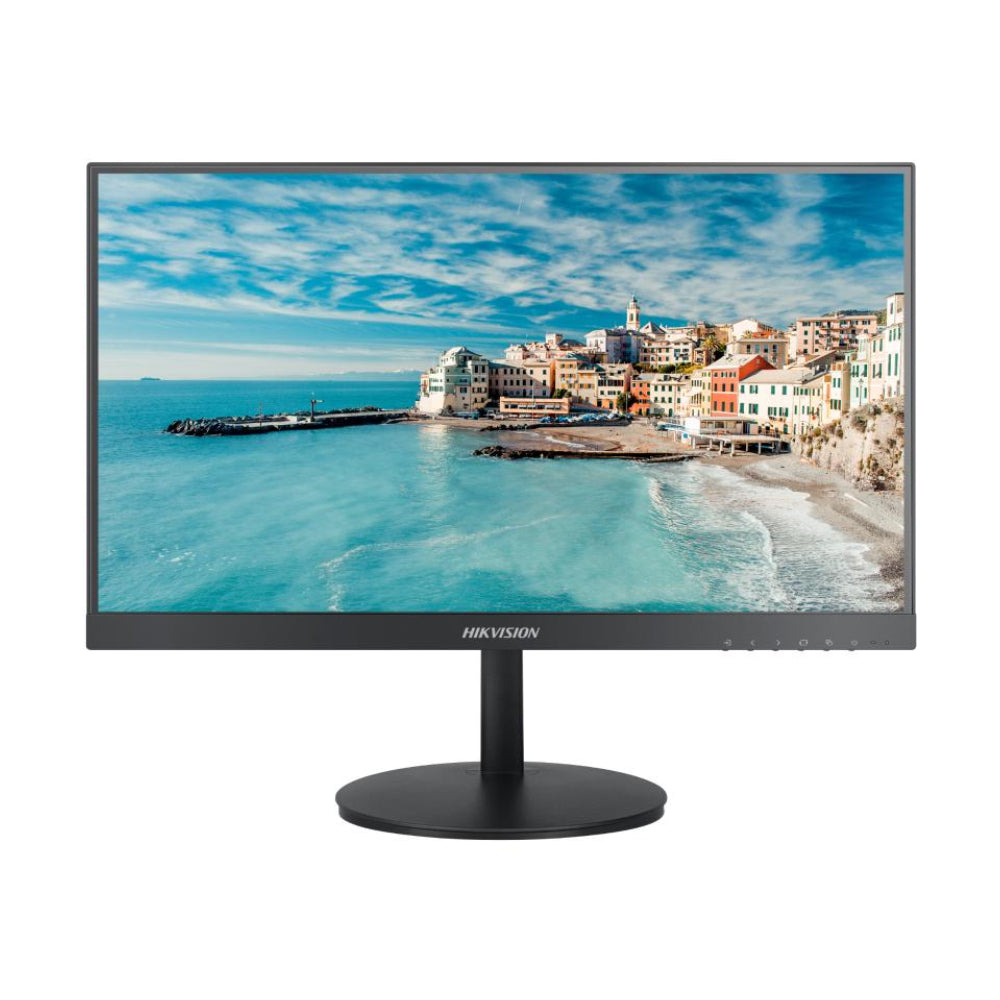

Hikvision DS-D5022FN00 — 21.5-inch Full HD Monitor
Keep live camera views and recorded footage within easy reach at your counter or desk. Connect this compact display to a compatible NVR, DVR or computer using HDMI or VGA.
Full HD
21.5-inch, 1080p display
Daily operation
16 hours per day
Connections

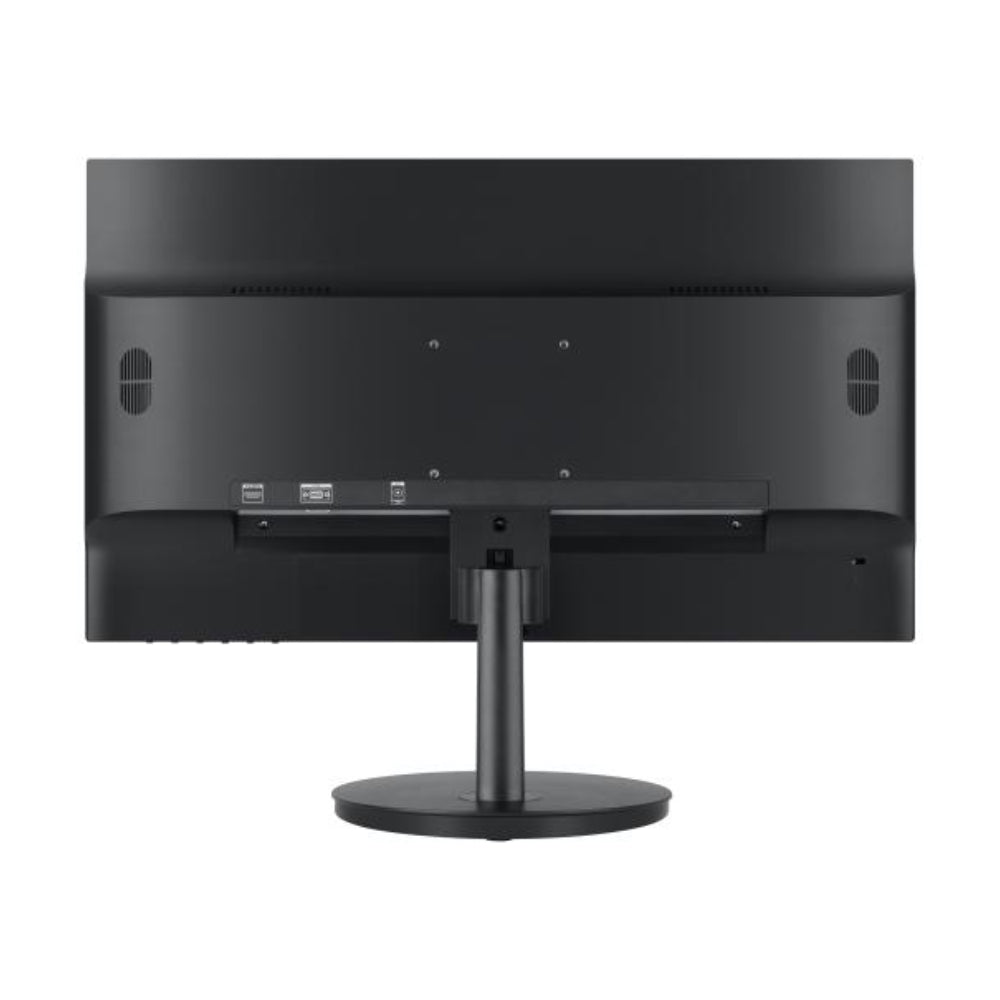

HDMI and VGA inputs
Power included
12 V DC adaptor
Choose the right display for your viewing hours
This is not a 24/7-rated monitor. Its specified daily operating window suits scheduled viewing. Your recorder can continue recording independently when the display is switched off.
Specifications
| Model |
DS-D5022FN00 |
| Resolution / refresh rate |
1920 × 1080 / 60 Hz |
| Backlight |
E-LED (edge-lit LED) |
| Brightness / contrast |
250 cd/m² / 3000:1 |
| Viewing angle |
178° horizontal and vertical |
| Response time |
6.5 ms |
| Operating duty |
16 hours/day, 7 days/week |
| Video inputs |
1 × HDMI 1.4; 1 × VGA |
| Power supply |
12 V DC, 2 A |
| Power consumption |
≤24 W; standby ≤0.5 W |
| Mounting |
75 × 75 mm VESA; 4-M4 × 6 mm |
| Operating temperature |
0°C to 40°C |
What’s included
Monitor, desktop base, 12 V DC 2 A power adaptor, 1.5 m HDMI cable and documentation. Wall mounting hardware is sold separately.
Downloads & Resources
Frequently Asked Questions
Can I leave this monitor running 24/7?No. Hikvision specifies 16 hours per day, seven days per week. Choose a monitor with an explicit 24/7 rating for continuous viewing.
Will it connect to my recorder?It accepts HDMI or VGA video. Check your recorder has a matching output and set its output resolution to 1920 × 1080 at 60 Hz.
Does it include a power supply and stand?Yes. The packing list includes a desktop base, 12 V DC 2 A power adaptor and 1.5 m HDMI cable.
Can I mount it on a wall?Yes. Use a suitable 75 × 75 mm VESA mount, sold separately.
