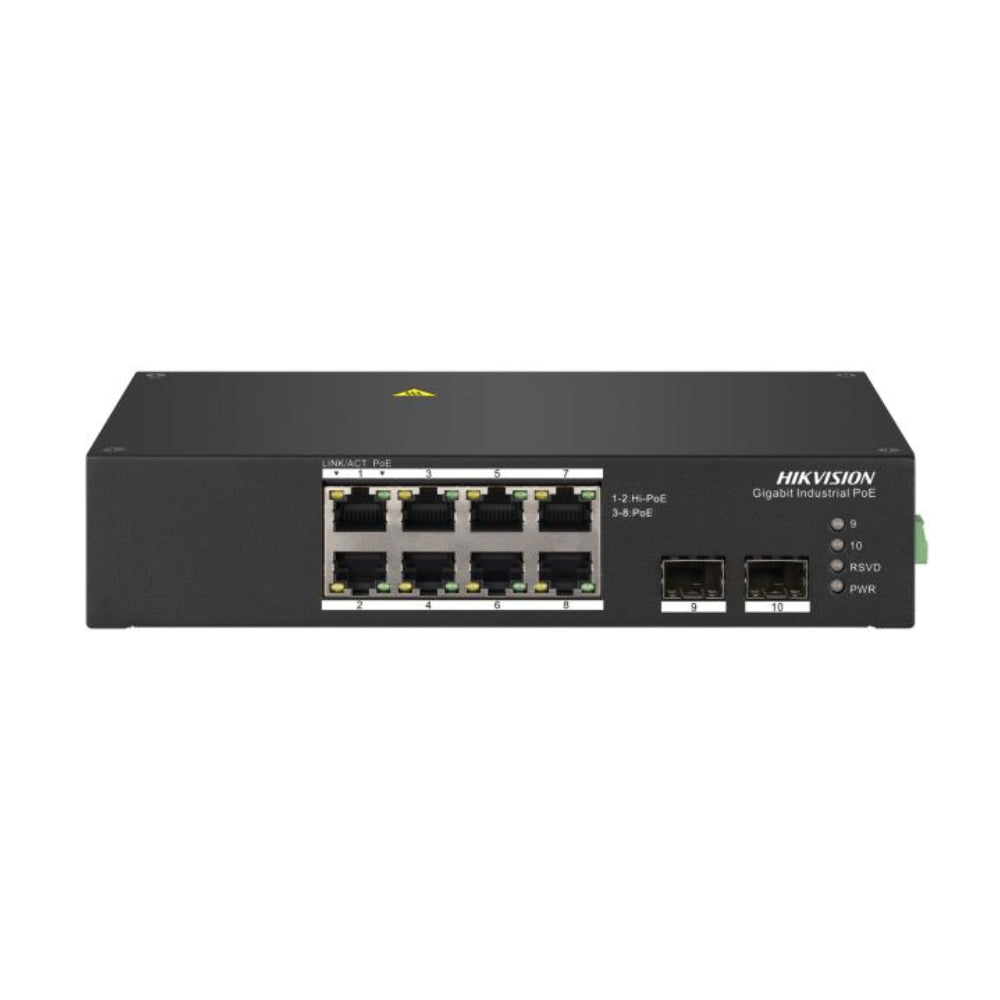

Hikvision DS-3T0510HP 8-Port Gigabit Unmanaged Hi-PoE Switch

Description

Hikvision INDUSTRIAL SERIES

High-Power Gigabit Connectivity for Demanding Surveillance Infrastructure

The Hikvision DS-3T0510HP is an industrial-grade 8-port Gigabit unmanaged Hi-PoE switch designed to deliver high-capacity power and seamless data transmission across commercial security networks. Built with a fan-free metal shell, this robust layer-2 switch features two 90W Hi-PoE ports to power high-draw PTZ cameras and multi-sensor devices, six 30W PoE ports, and dual Gigabit SFP fiber optical ports for ultra-fast, long-distance backhaul. Optimized for harsh operational environments, the DS-3T0510HP provides wide-temperature performance (-30°C to 65°C) and heavy-duty 6kV surge protection, making it the ideal connectivity hub for critical perimeter defense and enterprise installations.

Port Configuration
8x GbE PoE + 2x GbE SFP
PoE Output Capacity
90W Hi-PoE (802.3bt)
Extended Reach
Up to 300m Transmission
Surge & Climate Rating
6kV Surge / -30°C to 65°C

Advanced Hardware Architecture for Uninterrupted Surveillance Operation

Engineered to eliminate system downtime, the hikvision-ds-3t0510hp-8-port-gigabit-hi-poe-switch incorporates intelligent network health features directly into its hardware layer. Integrated PoE Watchdog functionality continuously checks the operational status of connected IP cameras, automatically power-cycling frozen or unresponsive end-devices without requiring manual technician intervention. Furthermore, built-in DIP switches enable instant Port Isolation to prevent broadcast storms and security breaches across adjacent ports, while hardware-level 802.3bt standard compliance delivers up to 90W on designated ports to reliably power demanding infrared illuminators, heaters, and high-speed domes.

Intelligent PoE Watchdog Self-Healing

Automates system maintenance by real-time monitoring of connected IP cameras. If an endpoint stops responding, the switch automatically resets the individual PoE port to restore power and communications seamlessly.

Ultra-Long Distance Transmission

Supports extended mode on dedicated ports, driving power and Gigabit data up to 300 meters away without needing external signal repeaters or costly network extenders.

Technical Specification Matrix
Camera Model DS-3T0510HP
Network Ports 6 x Gigabit PoE RJ45, 2 x Gigabit Hi-PoE RJ45, 2 x Gigabit SFP Fiber
PoE Budget & Standard 110W Total Budget; Ports 1-2: IEEE 802.3af/at/bt (Max 90W); Ports 3-8: IEEE 802.3af/at (Max 30W)
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
MAC Address Table 4K
Surge Protection 6 kV Surge Protection for PoE Ports
Operating Temperature -30 °C to 65 °C (-22 °F to 149 °F)
Power Supply & Input 54 V DC, 2.5 A (Max Power Consumption: 120 W)
What power output is supported on the Hi-PoE ports?

Ports 1 and 2 support the IEEE 802.3bt standard, providing up to 90W of power output per port to easily supply energy-intensive hardware like heavy-duty PTZ cameras or outdoor enclosures with built-in heaters.

How far can data and power be transmitted with this switch?

When the Long Range mode is enabled, the switch supports extended data and PoE transmission up to 300 meters on specified ports, significantly overcoming standard 100m Ethernet limits.

Does the DS-3T0510HP require complex configuration or management?

No, it is an unmanaged plug-and-play switch that operates out of the box without requiring manual software setup or network configuration.

How does the built-in PoE Watchdog function benefit my network?

The PoE Watchdog automatically monitors status of connected cameras. If a device becomes unresponsive, the switch power-cycles the port to reboot the camera, minimizing field service calls and downtime.

Technical Datasheet Quick Start Guide
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery

Hikvision DS-3T0510HP 8-Port Gigabit Unmanaged Hi-PoE Switch

Product form

SKU: DS-3T0510HP

$214.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Shipped today? Order within: Sep 09, 2026 14:00:00 +1000
    • Warranty: 24 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180
