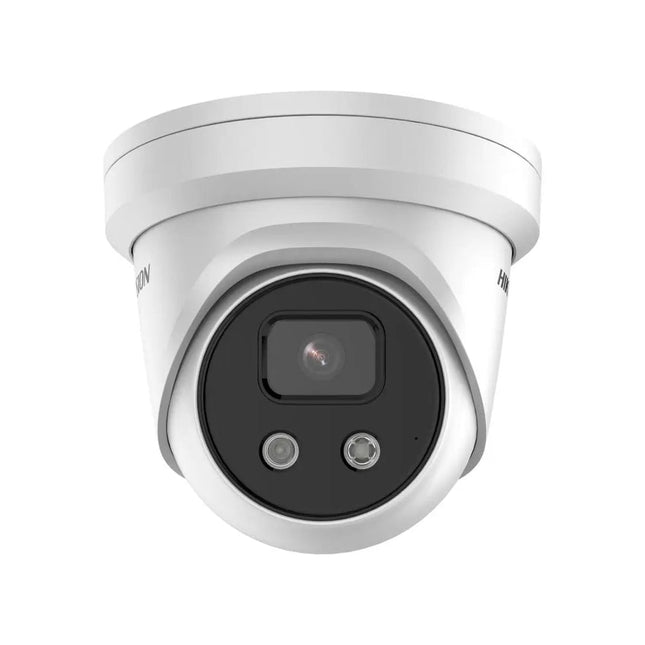

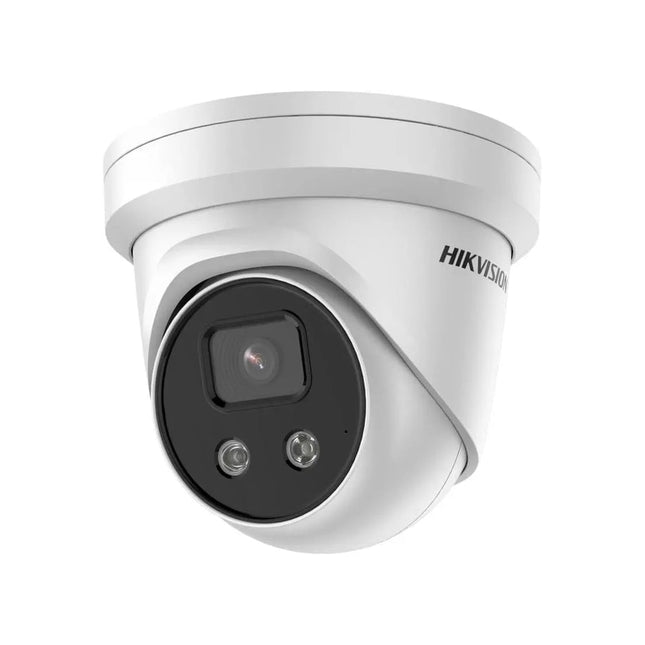

Hikvision 6MP DS-2CD2366G2-I Outdoor AcuSense Gen 2 Turret Camera, H.265, WDR, 30m IR, IP67, 2.8mm (2366)
Capture crystal clear images day and night with the Hikvision 6MP Outdoor AcuSense Gen 2 Turret Camera. Its powered-by-DarkFighter technology ensures excellent low-light performance, while efficient H.265+ compression technology reduces storage needs. With deep learning-based human and vehicle target classification and a built-in microphone for audio security, this camera provides comprehensive security. Its IP67 waterproof and dust-proof rating makes it perfect for outdoor use.
Features
High quality imaging with 6 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security(-U)
Water and dust resistant (IP67)
Camera
Image Sensor
1/2.4" Progressive Scan CMOS
Max. Resolution
3200 × 1800
Min. Illumination
Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens Type
Fixed lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°;
4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°;
6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.6
DORI
DORI
2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m;
4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m;
6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region Of Interest (ROI)
1 fixed region(s) for main stream and sub-stream
Audio
Audio Type
-U: Mono sound
Audio Compression
-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
-U: Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK, ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch
Yes
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch
Day,Night,Auto,Schedule
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Image Enhancement
BLC,HLC,3D DNR
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone
-U: Yes
Reset Key
Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
Deep Learning Function
Face Capture
Yes
General
Power
12 VDC ± 25%, 0.45 A, max. 5.4 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material
Metal except for trim ring
Dimension
Ø138.3 mm × 111.4 mm (Ø5.4" × 4.4")
Package Dimension
170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Weight
Approx. 740 g (1.6 lb.)
With Package Weight
Approx. 1070 g (2.4 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-flicker
Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
Download
DS-2CD2366G2-I Datasheet
