Hikvision Pro Series · 6MP DarkFighter · AcuSense · F1.0 · Built-in Mic · IP67
Hikvision 6MP DarkFighter Turret

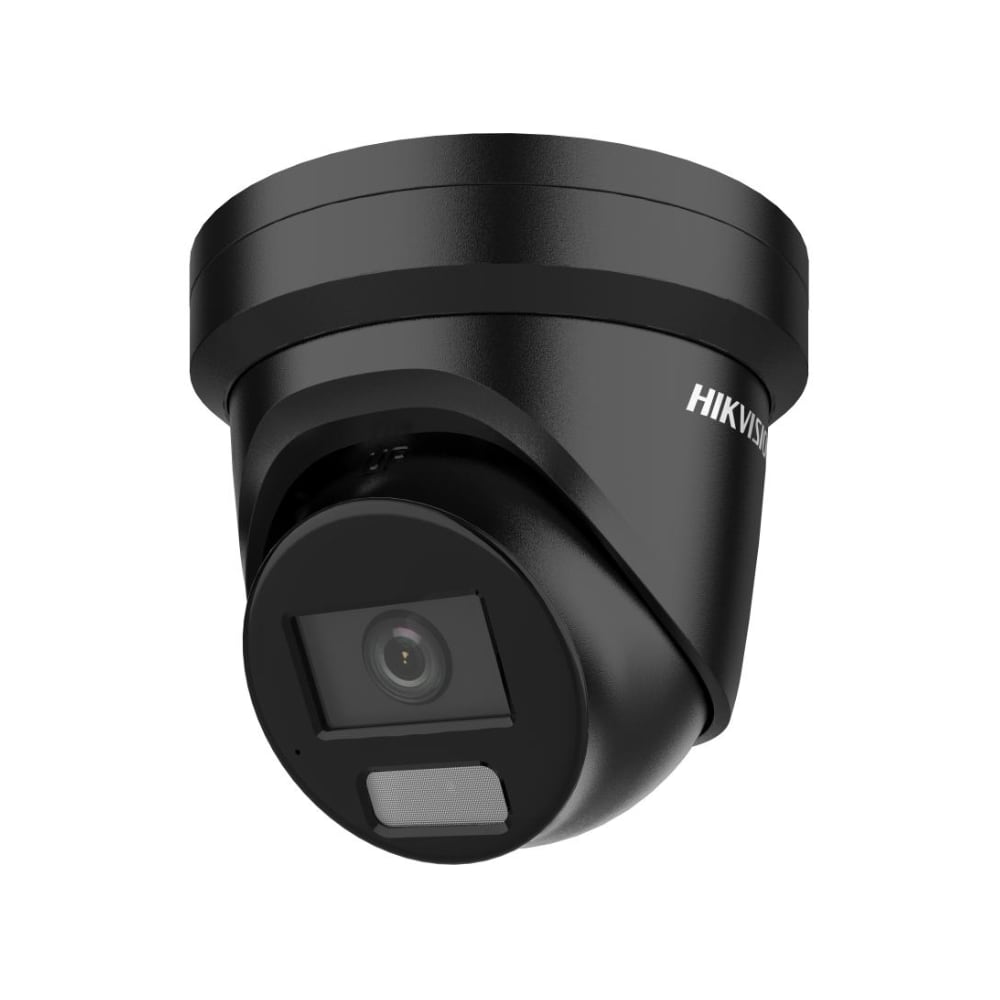

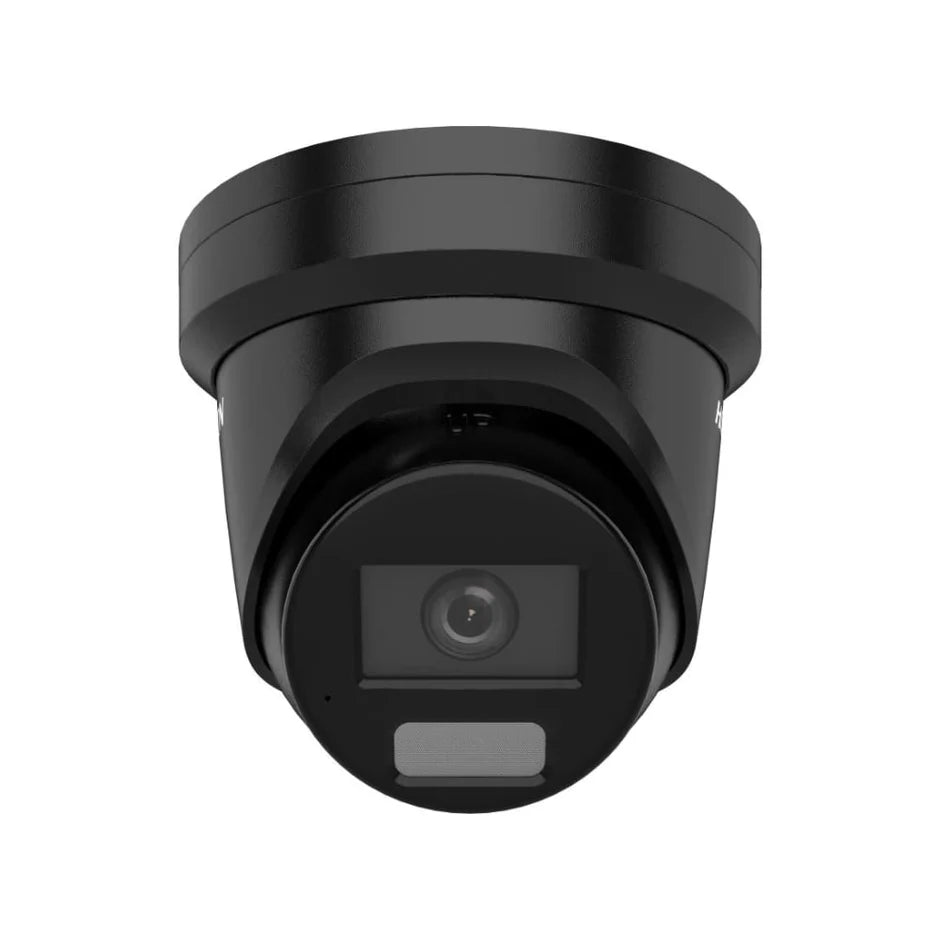

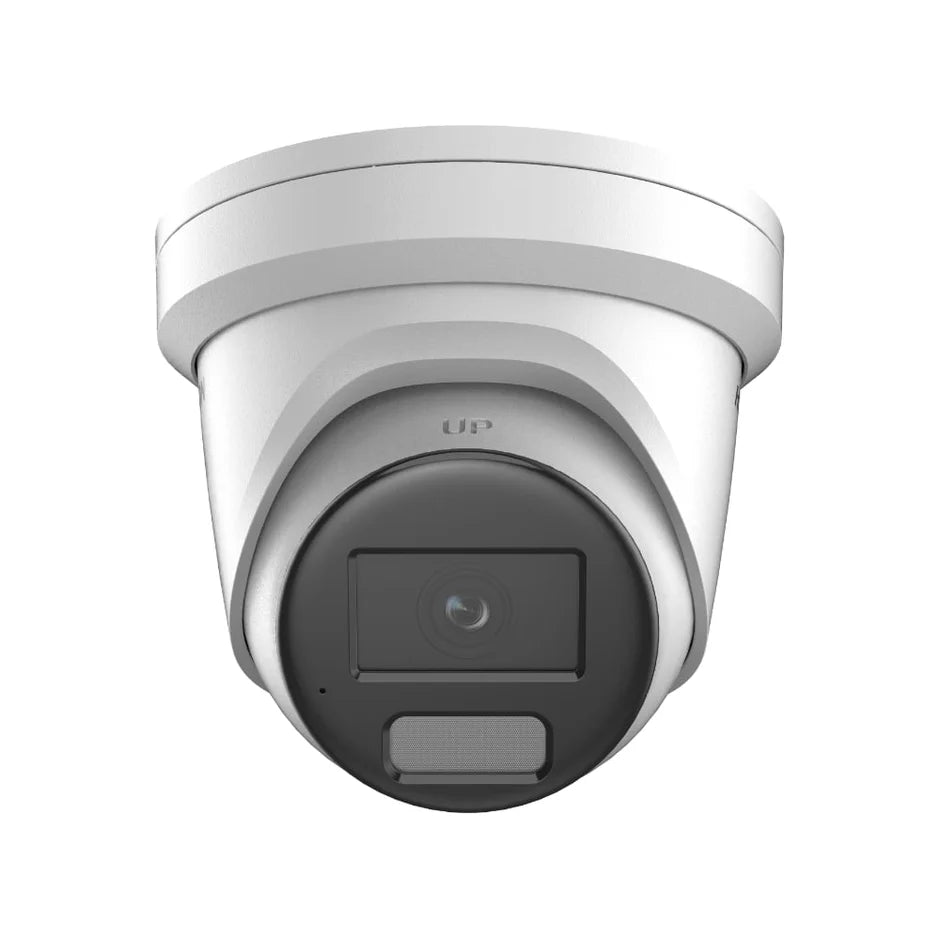

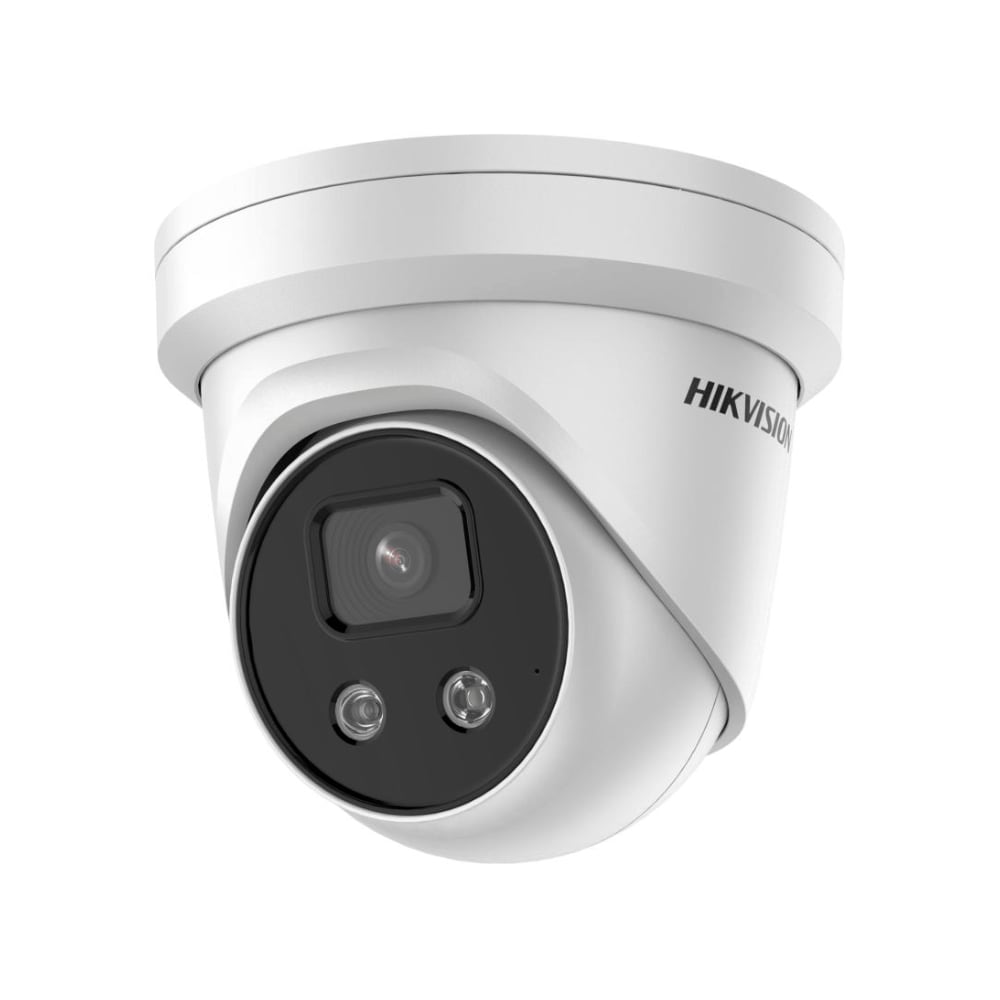

Hikvision DS-2CD2366G2H-IU — 6MP DarkFighter AcuSense Turret with F1.0 Lens, Built-in Mic & 120dB WDR
The Hikvision DS-2CD2366G2H-IU is a 6 MP DarkFighter turret camera from Hikvision's Pro Series — the workhorse choice for Australian residential entries, small commercial premises and body-corporate common areas. A 1/1.8" progressive CMOS paired with an ultra-fast F1.0 aperture lens delivers 0.0005 lux colour sensitivity — bright, low-noise colour imaging in near-total darkness before the IR even switches in. AcuSense H/V classification filters false alarms on animals, foliage and precipitation so your NVR only pushes notifications on actual humans and vehicles, and a built-in microphone records synchronised audio for a full evidentiary picture on every recording. Available in 2.8 mm wide-angle or 4 mm narrower-view lens, in White or Black finish. Backed by 3-year Australian warranty from CCTV Guru.
Resolution
6 MP · 3200 × 1800
Lens Options
2.8 mm (114.8°) or 4 mm (94°) · F1.0
Low-Light
DarkFighter · 0.0005 lux · 30 m IR
Audio
Built-in Mic · Sync Audio Recording
AcuSense AI
Human + Vehicle Classification
Protection
IP67 · 120 dB WDR · White or Black
Choose Your Lens — 2.8 mm Wide Angle or 4 mm Narrower View
Same camera body, same 6 MP DarkFighter sensor, same built-in mic — pick the lens focal length that suits your scene. The 2.8 mm wide-angle covers a broader area with a shorter effective distance; the 4 mm narrower-view gives you more detail at longer range with a tighter frame. Both are F1.0 fixed-focus with a 30 m Smart IR illuminator built in.
Lens Comparison — 2.8 mm vs 4 mm
|
2.8 mm Wide Angle (White SKU: DS-2CD2366G2H-IU · Black SKU: DS-2CD2366G2H-IU-BLK) |
Horizontal FOV 114.8° · Vertical 58° · Diagonal 137°. Best for front doors, small yards, garage bays, side paths, shopfront awnings, apartment entry vestibules — anywhere you need a broad scene in a single frame from a close mounting position. |
|
4 mm Narrower View (White SKU: DS-2CD2366G2H-IU-4MM) |
Horizontal FOV 94° · Vertical 51° · Diagonal 114°. Best for medium-length driveways, side fences, loading dock views, alleyways — the extra reach gives you identification-level detail at 10-15 m where the 2.8 mm would only give a body-in-frame. |
Rule of thumb: for indoor rooms, front-door porches, garages and shopfronts, go 2.8 mm. For a residential driveway from 5-15 m away, go 4 mm. Not sure? The 2.8 mm covers more scene and you can always digitally crop in on 6 MP footage.
What Makes This Camera Worth Choosing
F1.0 Aperture — Almost 3× the Light of an F1.6 Lens
The DarkFighter H-suffix models get a genuine F1.0 aperture — that's 2.5× more light gathered per frame than a typical F1.6 camera. Result: 0.0005 lux colour sensitivity — you keep bright, natural colour in scenes where a standard camera has already switched to monochrome IR.
AcuSense — Human / Vehicle Classification
Onboard deep-learning classifier ignores animals, wind-blown foliage, rain and headlight flare. Your NVR only pushes notifications when the camera actually detects a person or vehicle — typical false-alarm reduction is 80-90% vs a plain motion camera.
120 dB True WDR
Real hardware Wide Dynamic Range — handles the classic Australian problem scenes: sunlit garage door with dark interior behind, driveway staring into afternoon sun, front verandah in harsh backlight. Both bright and dark regions of the frame stay legible.
Built-in Microphone
Records synchronised audio with the video — useful for capturing spoken threats, arguments at the front door, delivery confirmations, and general context on incidents. No separate mic cable to run — it's inside the camera.
30 m Smart IR
Built-in Smart IR illuminator adjusts intensity + angle automatically to avoid IR washout on close targets (no white blob when someone stands 2 m from the camera) while still lighting the far end of a driveway.
H.265+ Smart Compression
Reduces bandwidth and storage by ~50 % vs H.265 alone. A single 6 MP stream at 25 fps uses ~4-6 Mbps with H.265+ — a 4 TB HDD comfortably holds ~30-45 days of recording across 4 cameras.
Where This Camera Belongs — Real Australian Use Cases
Front Doors & Porches
2.8 mm wide-angle covers the doorway, porch and approach path in a single frame from a close under-eave mount. Built-in mic captures conversation with visitors — pair with the recording NVR and you have full evidentiary audio + video.
Residential Driveways & Front Yards
4 mm variant covers a typical AU suburban driveway from house corner to street. Reads number plates at 10-15 m under IR. AcuSense filters out cars driving down the street so you only get notifications when someone actually enters the driveway.
Garages & Side Paths
2.8 mm indoors — one camera covers the whole garage from a corner-of-ceiling mount. Also excellent for narrow side paths where a wider FOV catches the full corridor and both walls.
Shopfronts & Small Commercial
2.8 mm wide-angle covers the counter, aisle and entry in one frame. Built-in mic captures customer interactions for training and dispute resolution (subject to signage and privacy law compliance).
Body Corp Common Areas
Lobbies, letterbox banks, bin rooms, gym entries — 2.8 mm covers the full space. Black finish blends into modern architectural facades; white for older render and weatherboard buildings. IP67 rated for accessible ground-floor and outdoor common area installs.
Backyards & Rear Access
4 mm for longer rear yards where you want to catch someone hopping the back fence at 10-15 m. AcuSense stops the camera from waking up every time a possum or cat walks through the frame.
Detection Range (DORI) Guide
DORI Distances — 2.8 mm vs 4 mm Lens
| DORI Level |
2.8 mm | 4 mm — What it means |
| Detect |
64 m · 77 m — enough pixels to see a person exists in the frame |
| Observe |
25 m · 30 m — enough to describe clothing, general behaviour |
| Recognise |
12 m · 15 m — enough to recognise a known individual |
| Identify |
6 m · 7 m — enough to identify a stranger from footage |
Practical takeaway: if you want footage that police can use to identify an unknown intruder, you need them within ~6-7 m of the camera. Beyond that, footage is useful for recognising known faces but not for identifying strangers.
Technical Specifications
DS-2CD2366G2H-IU · Full Specifications
| SKU — White · 2.8 mm |
DS-2CD2366G2H-IU |
| SKU — White · 4 mm |
DS-2CD2366G2H-IU-4MM |
| SKU — Black · 2.8 mm |
DS-2CD2366G2H-IU-BLK |
| Camera Type |
Hikvision Pro Series · 6MP AcuSense Fixed Turret · DarkFighter · Built-in Mic |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Max. Resolution |
3200 × 1800 (6 MP) |
| Main Stream |
25/30 fps @ 3200 × 1800 · 2560 × 1440 · 1920 × 1080 |
| Lens Options |
2.8 mm F1.0 (H 114.8°) or 4 mm F1.0 (H 94°) — fixed focal length |
| Field of View (2.8 mm) |
Horizontal 114.8° · Vertical 58° · Diagonal 137° |
| Field of View (4 mm) |
Horizontal 94° · Vertical 51° · Diagonal 114° |
| Min. Illumination |
Colour: 0.0005 lux @ F1.0 (AGC ON) · 0 lux with IR |
| Wide Dynamic Range |
120 dB True WDR |
| Shutter Speed |
1 s to 1/100,000 s |
| IR Distance |
Up to 30 m · Smart IR intensity + angle auto-adjust |
| Video Compression |
H.265+ · H.265 · H.264+ · H.264 · MJPEG |
| Smart Functions |
AcuSense: Human + Vehicle classification · Line crossing · Intrusion · Region entrance · Region exiting |
| Additional Analytics |
Motion detection · Video tampering · Face detection · Scene change · Audio exception |
| Audio |
Built-in microphone · Audio compression: G.711 / G.722.1 / G.726 / MP2L2 |
| Alarm I/O |
None on this variant (see -SU/SL siblings for alarm I/O) |
| Ethernet |
1× RJ-45 10/100 Mbps |
| Protocols |
IPv4/IPv6 · HTTPS · 802.1X · QoS · FTP · SMTP · UPnP · SNMP · DNS · DDNS · NTP · RTSP · TCP · UDP · IGMP · DHCP · Bonjour · SRTP · TLS |
| Storage |
microSD / SDHC / SDXC up to 512 GB · NAS · ANR (Auto Network Replenishment) |
| API |
ISAPI · Hikvision SDK · ONVIF (Profile S / G / T)
|
| Client Software |
iVMS-4200 · Hik-Central Professional · Hik-Connect |
| Power |
12 VDC · PoE 802.3af Class 3 (max ≈ 6 W) |
| Weatherproof |
IP67 (IEC 60529) |
| Operating Temperature |
−30 °C to +60 °C · humidity ≤95 % |
| Dimensions / Weight |
Ø 111 × 84.9 mm · ~500 g |
| Finish Options |
White (2.8 mm + 4 mm) or Black (2.8 mm only) |
| Warranty |
3-Year Australian Warranty (back-to-base) |
Pair with a Hikvision M-Series or AcuSeek NVR
DS-7604NI-M1/4P — 4CH · 4 PoE
Four-channel M-Series NVR — ideal for a single-family home with 4 of these turrets around the perimeter. Handles the AcuSense metadata for smart notification filtering. View DS-7604NI-M1/4P →
DS-7608NI-M2/8P — 8CH · 8 PoE · 2 HDD
Eight channels with 2 HDD bays — commercial small-site and larger residential. Dual-drive redundancy protects critical footage. View DS-7608NI-M2/8P →
DS-7616NI-M2/16P — 16CH · 16 PoE · 2 HDD
Mid-tier commercial site with up to 16 of these turrets on the perimeter, entries and interiors. View DS-7616NI-M2/16P →
DS-7608NXI-I2/8P/VPro — AcuSeek AI NVR
For sites that want natural-language search across recordings — "show me all people at the front door between 6 pm and 10 pm." AcuSeek indexes the AcuSense metadata for post-incident search. View AcuSeek NVR →
Frequently Asked Questions
What does the "H" in G2H mean?The H suffix denotes Hikvision's DarkFighter-enhanced variant of the standard G2 model — larger 1/1.8" sensor, F1.0 aperture and improved image processor. It gets ~2.5× more light than a standard AcuSense camera at the same price tier. Worth the small premium for any night-time use case.
Why is Black only offered in 2.8 mm?Hikvision's supply of the black-finish version is limited to the 2.8 mm SKU (DS-2CD2366G2H-IU-BLK). If you need a 4 mm in black, contact us — we sometimes have alternative black-finish Hikvision turrets in the same 6 MP range that might suit.
Does it need a special PoE switch?No — PoE 802.3af Class 3 (max ~6 W). Runs on any standard Hikvision NVR PoE port or generic 802.3af PoE switch. Also accepts 12 VDC for legacy or off-grid installs.
Is the built-in microphone always recording?Yes, when audio recording is enabled on the NVR. You can also configure the microphone to trigger an alarm on audio exception (sudden loud noise, breaking glass) even when video motion doesn't fire. Note: recording audio at some AU workplaces requires signage and staff notification — check your obligations.
Does AcuSense really cut false alarms?Yes — typical reduction is 80-90% vs a motion-only camera. The camera classifies the target as human, vehicle or "other" before firing an alarm. Rain, foliage, insects, animals and passing headlights get filtered out.
Can I integrate with a non-Hikvision VMS?Yes — the camera speaks ONVIF Profile S, G and T and RTSP. Compatible with Milestone XProtect, Genetec, Exacq, Immix and most other AU VMS platforms. AcuSense metadata is only fully indexed on Hikvision NVRs.
What's the difference between this and the DS-2CD2367G3-LIS2UY/SL?The G3 sibling is Gen 3 — adds Smart Hybrid Light (integrated white LED + strobe), Live-Guard active deterrent and NEMA 4X anti-corrosion housing. The G2H turret you're looking at is the cost-effective workhorse — same AcuSense AI, same 6 MP resolution, no active deterrent. If you want proactive strobe + audio warnings, look at the G3. If you want reliable evidence recording at a lower price, the G2H is the right choice.
What warranty applies?3-Year Australian warranty, serviced back-to-base through Hikvision Australia by CCTV Guru. Cameras registered on Hik-Connect within 30 days of purchase are automatically tracked.
Downloads & Resources
Order the Hikvision DS-2CD2366G2H-IU from CCTV Guru
Select your lens (2.8 mm wide-angle or 4 mm narrower-view) and finish (White or Black — Black is 2.8 mm only) from the dropdowns above. Australian stock, 3-year Australian warranty, fast Australia-wide dispatch, project pricing for multi-camera installs and specialist pre-sales advice from our Sydney team. Request a free quote or contact our Australian team.
