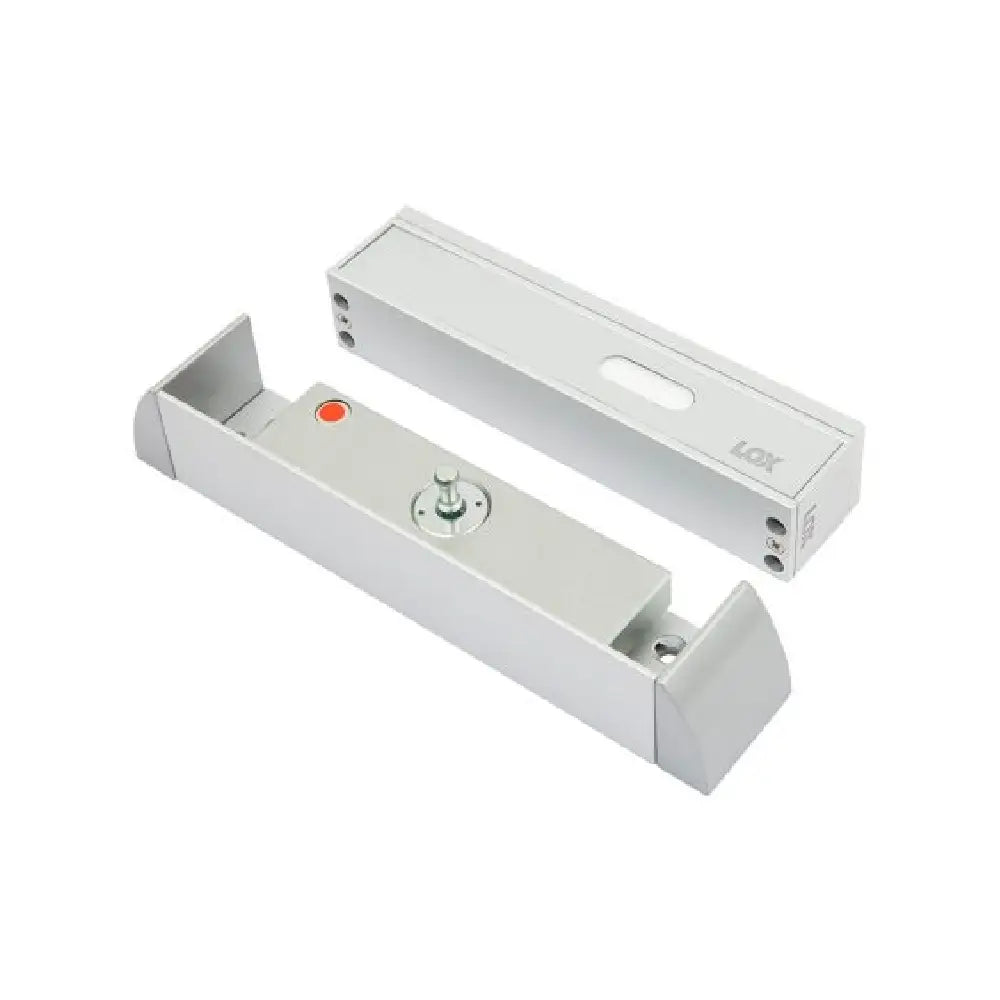

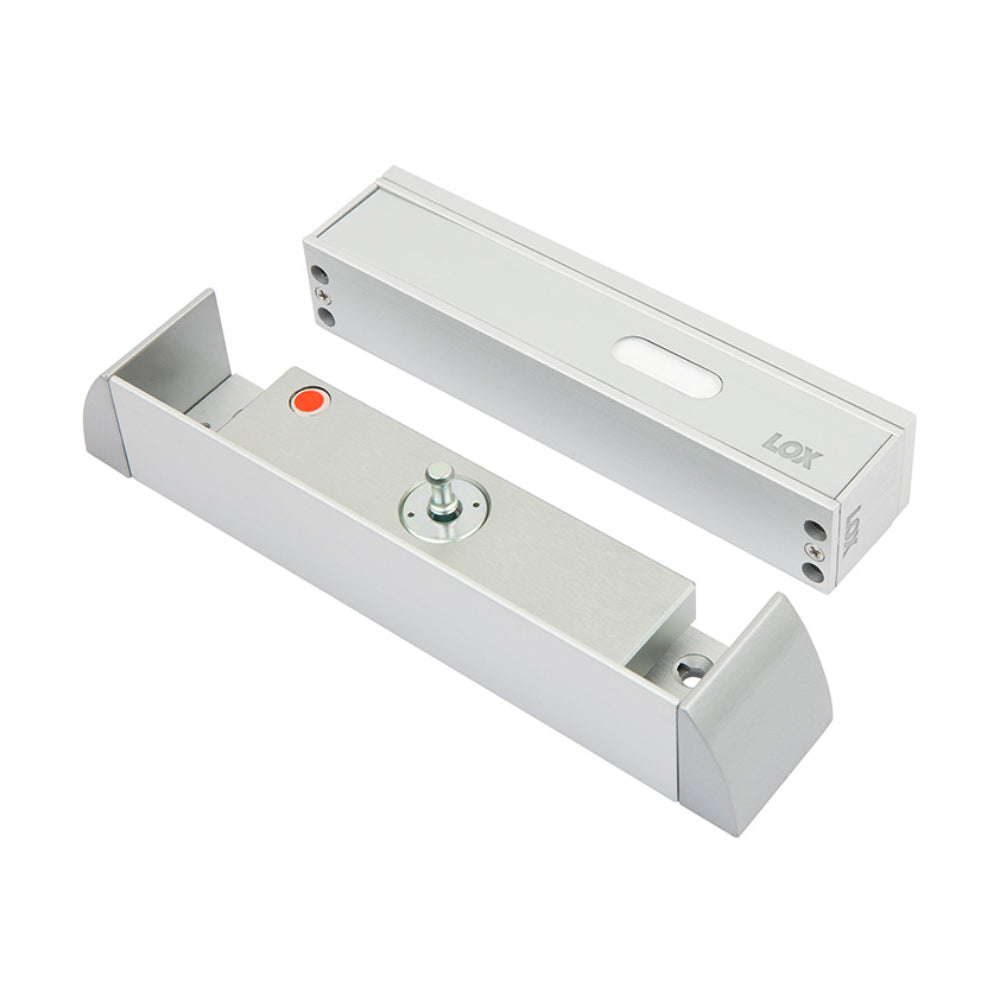

LOX MML2400 Micro Magnetic Lock – 280kg Holding Force (Monitored)
Overview
The LOX MML2400 is an ultra-compact electromagnetic lock engineered for applications where space is at a premium but security cannot be compromised. Despite its slim micro form factor — just 180mm long and 32mm high — it delivers a substantial 280kg holding force, far exceeding standard cabinet and locker locks. With built-in Hall Effect lock status monitoring and a satin anodised aluminium finish, it integrates cleanly into modern interior environments including medical facilities, retail displays, IT rooms, and architectural glass door applications across Australia.
Key Features
-
280kg Holding Force – Industrial-strength security in a micro body; significantly stronger than standard cabinet or locker locks.
-
Ultra-Compact Form Factor – 180mm(L) × 32mm(H) × 25mm(D); designed for discreet installation where space is limited.
-
Hall Effect Lock Status Monitoring (LSS) – Built-in sensor provides real-time lock status feedback to your access control system.
-
Zero Residual Magnetism – Instant, clean release on power-off; no sticking or delayed access.
-
Dual Voltage Operation – Accepts 12VDC or 24VDC with low power consumption for easy integration.
-
Satin Anodised Aluminium Finish – Premium, low-profile finish that blends seamlessly into modern interior architecture and cabinetry.
-
Fail-Safe Operation – Releases automatically on power loss for safe egress compliance.
-
Lifetime Warranty – Manufacturer-backed for long-term confidence in demanding installations.
Use Cases
- Medical and pharmacy drug safes and controlled substance cabinets
- IT server racks, network cabinets, and secure lockers
- Retail glass display cases and high-value merchandise cabinets
- Compact office doors and internal access-controlled partitions
- Architectural glass doors in corporate and hospitality environments
- Museum display cases and secure archival storage
Technical Specifications
| Specification |
Details |
| Model |
MML2400 (Monitored) |
| Holding Force |
280kg (approx. 615lbs) |
| Dimensions (Lock Body) |
180mm(L) × 32mm(H) × 25mm(D) |
| Finish |
Satin Anodised Aluminium |
| Monitoring Output |
Hall Effect Sensor (Lock Status Sensing) |
| Input Voltage |
12VDC / 24VDC |
| Current Draw (12V) |
420mA |
| Current Draw (24V) |
210mA |
| Safety Type |
Fail-Safe (Releases on Power Loss) |
| Warranty |
Lifetime |
Downloads
Frequently Asked Questions
What makes the MML2400 different from a standard magnetic lock?
The MML2400 is specifically designed for confined spaces where a full-size mag lock won’t fit. At just 180mm long and 32mm high, it installs discreetly inside cabinets, lockers, and slim door frames while still delivering a 280kg holding force — far stronger than conventional mechanical cabinet locks.
Can the MML2400 be used on glass doors?
Yes. Its slim, satin anodised aluminium profile makes it well-suited to architectural glass door applications in corporate offices, hospitality venues, and retail environments where aesthetics matter as much as security.
Does the MML2400 provide lock status monitoring?
Yes. The built-in Hall Effect Sensor outputs a Lock Status Sensing (LSS) signal to your access control panel, providing real-time confirmation of whether the lock is energised and secured.
Is the MML2400 fail-safe or fail-secure?
The MML2400 is a fail-safe (fail-open) device — it releases automatically when power is removed. This is the standard behaviour for electromagnetic locks and is required for fire egress compliance on designated exit paths.
What power supply does the MML2400 require?
The MML2400 operates on 12VDC (420mA) or 24VDC (210mA). A standard access control power supply is suitable. Ensure your supply can deliver sufficient current for the lock plus any other devices on the same circuit.
Is there an armature plate included?
Please refer to the LOX MML2400 Installation Manual above or contact us to confirm armature plate inclusion and compatible accessories for your specific application.
Installer Note: The MML2400’s micro form factor requires precise armature plate alignment to achieve the rated 280kg holding force. Ensure the mounting surface is rigid and flat. Contact us if you need application-specific installation advice.
