Description

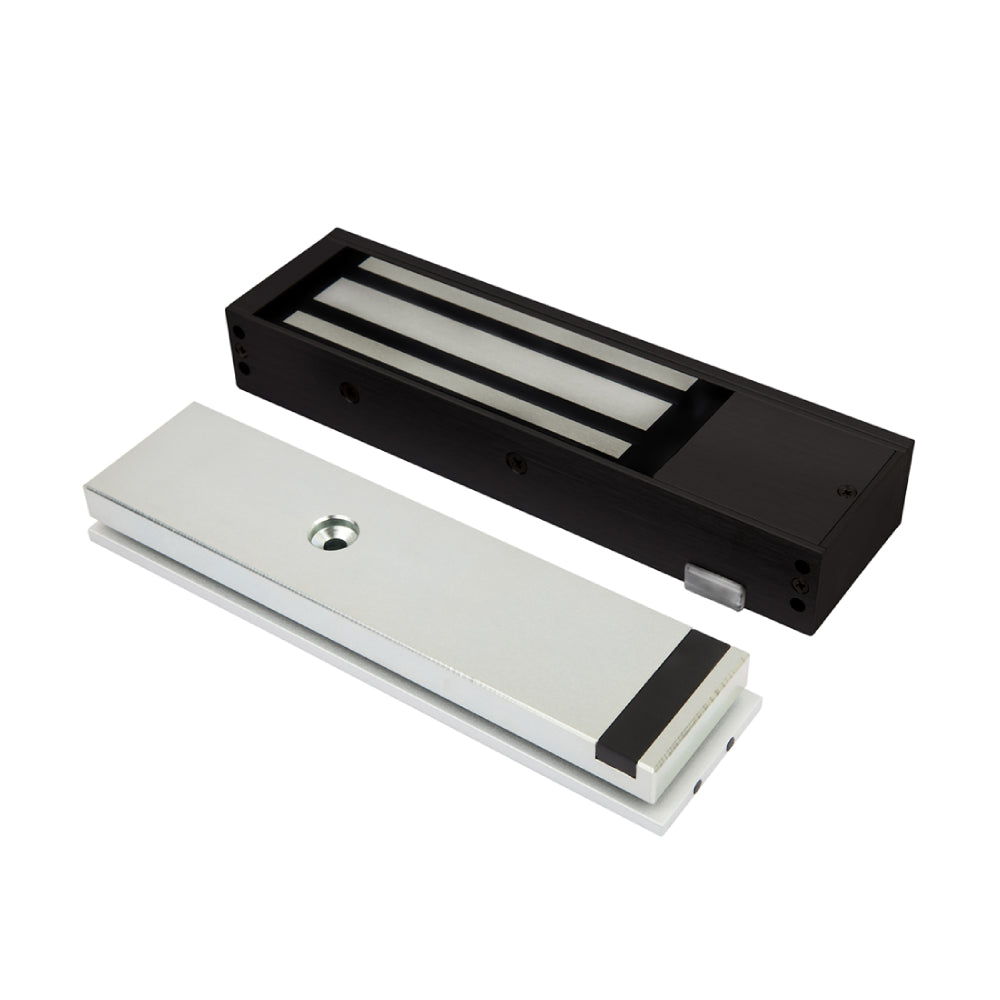

LOX EM5700M-BLK Monitored Magnetic Lock – Matte Black | 600kg Holding Force
Overview
The LOX EM5700M-BLK is a premium single-door electromagnetic lock that pairs a 600kg holding force with an architectural matte black finish and full monitoring capability. Designed for environments where security performance and interior aesthetics must coexist, it is the go-to choice for modern commercial fit-outs, designer retail spaces, and high-security access points across Australia.
Key Features
-
600kg Holding Force – Robust resistance against forced entry on single door applications.
-
Monitored Output (LSS & DSS) – Built-in Hall Effect Sensor provides real-time Lock Status Sensing and Door Status Sensing for integration with access control systems.
-
Architectural Matte Black Finish – Durable, premium coating engineered to complement all-black door hardware and contemporary interior design schemes.
-
LED Status Indicator – High-visibility LED gives instant visual confirmation of lock state at the door.
-
4-Hour Fire Rating – Certified to Australian Standards for use on fire door assemblies and compliant egress paths.
-
Zero Residual Magnetism – Immediate door release on power-off; no sticking or delayed egress in an emergency.
-
Dual Voltage Operation – Accepts 12VDC or 24VDC for straightforward integration with existing access control infrastructure.
-
Lifetime Warranty – Manufacturer-backed for long-term confidence in demanding installations.
Use Cases
- Modern corporate offices with black door frames and designer hardware
- High-end retail boutiques, galleries, and showrooms
- Access-controlled perimeters requiring remote lock and door status monitoring
- Fire-rated exit doors where visual aesthetics are a priority
- Hotels, serviced apartments, and premium hospitality environments
Technical Specifications
| Specification |
Details |
| Model |
EM5700M-BLK (Monitored) |
| Finish |
Architectural Matte Black |
| Holding Force |
600kg (1,320lbs) |
| Monitoring Output |
LSS & DSS (Lock & Door Status Sensing) |
| Sensor Type |
Hall Effect |
| Input Voltage |
12VDC / 24VDC |
| Current Draw (12V) |
500mA |
| Current Draw (24V) |
250mA |
| Fire Rating |
4 Hours (AS Standard) |
| LED Indicator |
Yes |
| Warranty |
Lifetime |
Downloads
Frequently Asked Questions
What does “monitored” mean on the EM5700M-BLK?
The monitored version includes a built-in Hall Effect Sensor that outputs both Lock Status Sensing (LSS) and Door Status Sensing (DSS) signals. These connect to your access control panel to provide real-time alerts on whether the lock is energised and whether the door is open or closed.
Is the matte black finish durable in high-traffic areas?
Yes. The matte black coating is a high-quality architectural finish engineered for commercial use. It is resistant to everyday wear and maintains its appearance in high-traffic environments. Avoid abrasive cleaners to preserve the finish.
What is the difference between the EM5700M-BLK and the standard EM5700M?
The EM5700M-BLK is functionally identical to the EM5700M but features an architectural matte black finish instead of the standard silver/aluminium anodised finish. Both are monitored models with LSS and DSS outputs.
Can I use this lock with a 12V power supply?
Yes. The EM5700M-BLK operates on both 12VDC (500mA) and 24VDC (250mA). Ensure your power supply can deliver sufficient current for continuous operation.
Is this lock suitable for fire-rated doors?
Yes. The EM5700M-BLK carries a 4-hour fire rating to Australian Standards, making it compliant for installation on fire door assemblies and designated egress paths.
What brackets should I use to match the matte black finish?
LOX offers matching matte black L-brackets and Z-brackets to maintain a consistent architectural look. Refer to the LOX Accessories Guide above or contact us for configuration-specific advice.
Installer Note: To maintain the all-black architectural look, pair this lock with LOX Matte Black Brackets (L-Bracket or Z-Bracket) suited to your door configuration. Refer to the Accessories Guide above for compatible options.
