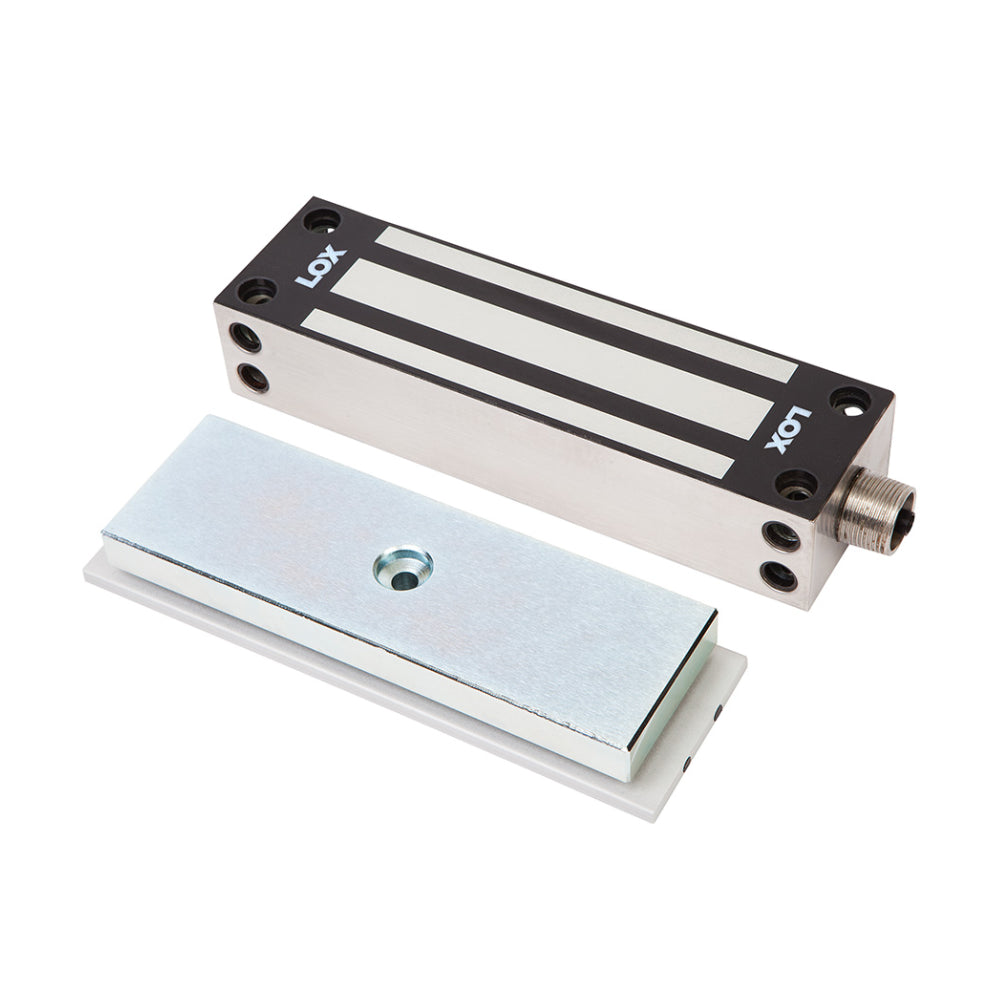

LOX EM5000 IP67 Weatherproof Magnetic Gate Lock – 630kg Holding Force
Overview
The LOX EM5000 is the most powerful weather-resistant electromagnetic lock in the LOX outdoor range. Engineered for high-security commercial and industrial perimeter gates, it delivers a formidable 630kg holding force inside a fully sealed 304-grade stainless steel body rated IP67. Whether it’s a tropical downpour, coastal salt air, or a dust storm in the outback, the EM5000 keeps performing where lesser locks fail. It is the go-to choice for security installers and facilities managers across Australia who need maximum gate security without compromise.
Key Features
-
630kg Holding Force – The highest holding force in the LOX outdoor gate lock range; engineered for heavy-duty commercial and industrial gate applications.
-
IP67 Weatherproof Rating – Fully encapsulated electronics; completely sealed against dust ingress and water immersion for reliable operation in the harshest Australian outdoor conditions.
-
304-Grade Stainless Steel Body – Superior corrosion resistance compared to standard zinc-plated locks; built for coastal, tropical, and high-humidity environments.
-
Hall Effect Lock Status Monitoring (LSS) – Built-in sensor provides real-time lock status feedback to your access control system for remote monitoring and alarm integration.
-
Zero Residual Magnetism – Instant, clean gate release on power-off; no sticking or delayed egress.
-
Fail-Safe Operation – Automatically releases during power loss for emergency egress compliance.
-
Dual Voltage Operation – Accepts 12VDC or 24VDC for flexible integration with existing access control infrastructure.
-
Dual Fixing Arrangement – Supports both front and header mounting to suit a wide range of heavy gate configurations.
-
Lifetime Warranty – Manufacturer-backed for long-term confidence in the most demanding outdoor installations.
Use Cases
- High-security industrial and commercial perimeter gates
- Data centres, utilities, and critical infrastructure entry points
- Coastal and marine facilities including ports, marinas, and surf lifesaving clubs
- Mining, resources, and remote site access gates
- Government, defence, and correctional facility perimeter gates
- Heavy swing gates and sliding gate applications requiring maximum holding force
Technical Specifications
| Specification |
Details |
| Model |
EM5000 (Monitored) |
| Housing Material |
304-Grade Stainless Steel (Fully Sealed) |
| IP Rating |
IP67 (Dust & Water Immersion) |
| Holding Force |
630kg (approx. 1,380lbs) |
| Monitoring Output |
Hall Effect Sensor (Lock Status Sensing) |
| Anti-Residual Magnetism |
Yes (Instant Release) |
| Input Voltage |
12VDC / 24VDC |
| Current Draw (12V) |
460mA |
| Current Draw (24V) |
230mA |
| Mounting Options |
Front Mount / Header Mount (Dual Fixing) |
| Fail-Safe Operation |
Yes (Releases on Power Loss) |
| Warranty |
Lifetime |
Downloads
Frequently Asked Questions
How does the EM5000 compare to the EM4700?
Both are IP67-rated stainless steel gate locks with Hall Effect LSS monitoring, but the EM5000 delivers 630kg holding force versus the EM4700’s 380kg. The EM5000 is the preferred choice for heavy industrial gates, high-security perimeters, and applications where maximum resistance to forced entry is required.
Is the EM5000 suitable for coastal and marine environments?
Yes. The fully sealed 304-grade stainless steel body and IP67 rating make it one of the most corrosion-resistant electromagnetic locks available. It is widely used at ports, marinas, surf lifesaving clubs, and other high-exposure coastal sites across Australia.
What does IP67 mean in practice?
IP67 means the lock is fully protected against dust ingress (6) and can withstand temporary water immersion up to 1 metre for 30 minutes (7). This makes it suitable for gates subject to heavy rain, hose-down cleaning, or occasional flooding.
What brackets are compatible with the EM5000?
The EM5000 requires a rigid mounting surface. For swinging gates, use compatible LOX L & Z Brackets to maintain the full 630kg holding force integrity. Refer to the LOX Accessories Guide above for the correct bracket for your gate configuration.
Does the EM5000 provide lock status monitoring?
Yes. The built-in Hall Effect Sensor outputs a Lock Status Sensing (LSS) signal to your access control panel, providing real-time confirmation of whether the lock is energised and secured.
Is this lock fail-safe or fail-secure?
The EM5000 is a fail-safe (fail-open) device — it releases automatically when power is removed. This is the standard and required behaviour for fire egress compliance on designated exit paths. For fail-secure applications, a different locking mechanism is required.
What power supply do I need for the EM5000?
The EM5000 operates on 12VDC (460mA) or 24VDC (230mA). For outdoor installations, use a weatherproof power supply enclosure rated for continuous outdoor use. Ensure your supply can deliver sufficient current for the lock plus any other devices on the same circuit.
Installer Note: Due to its 630kg holding force, the EM5000 requires a rigid, structurally sound mounting surface. For swinging gates, always use compatible LOX L & Z Brackets to maintain full holding force integrity. Use a weatherproof power supply enclosure for all outdoor installations.
