Description
Overview

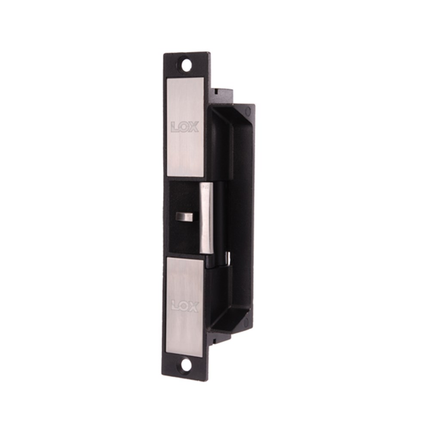

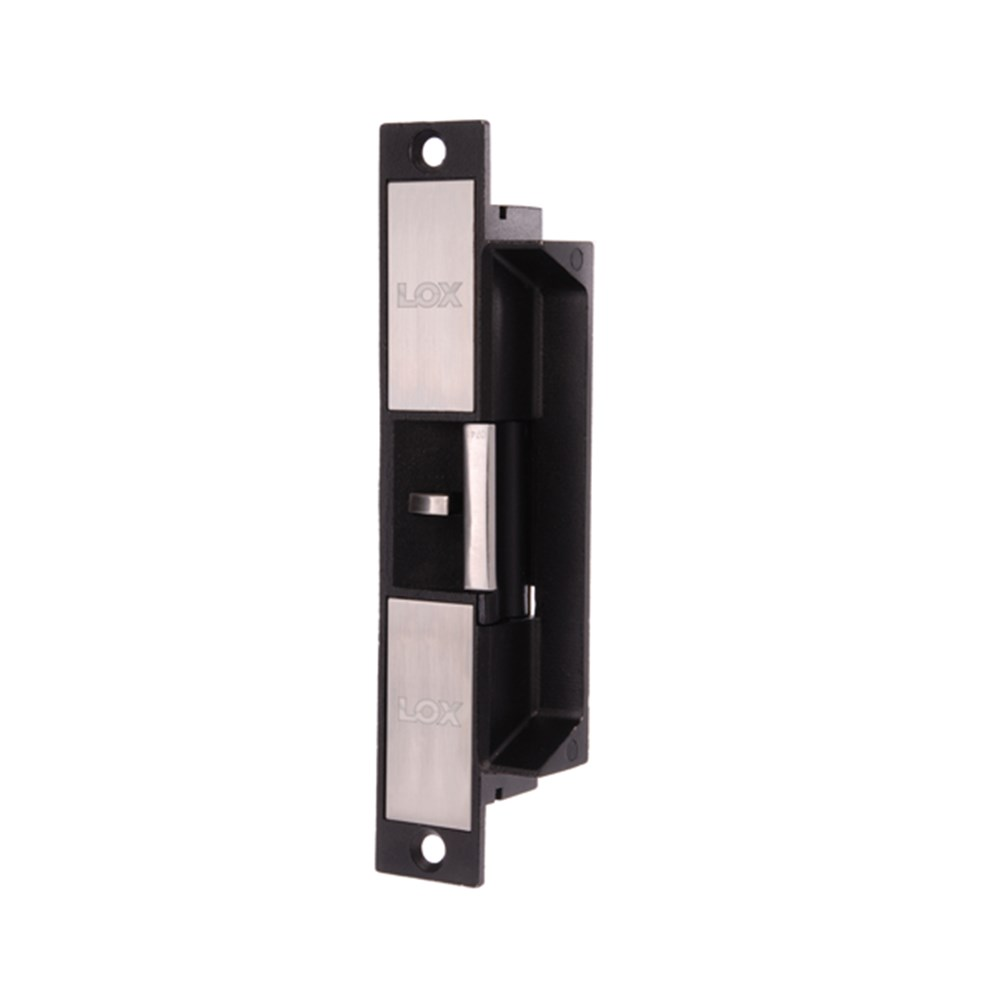

The LOX ES20M is a commercial-grade, fully monitored high-security electric strike built for hinged doors in demanding Australian access control applications. Engineered with an Australian Footprint — a form factor designed to retrofit cleanly into standard Australian commercial door frames — the ES20M delivers a 1,000kg holding force from a solid stainless steel body. Triple monitoring via LSS (Lock Status), DSS (Door Status), and ATS (Anti-Tamper) sensors gives your access control system complete real-time visibility, while multi-voltage 10–30VDC operation and field-selectable Fail-Safe or Fail-Secure modes make it one of the most versatile and compliant electric strikes available in Australia.
Key Features
-
1,000kg Holding Force – Solid stainless steel body tested to 1.5 million cycles for high-traffic, high-security commercial doors.
-

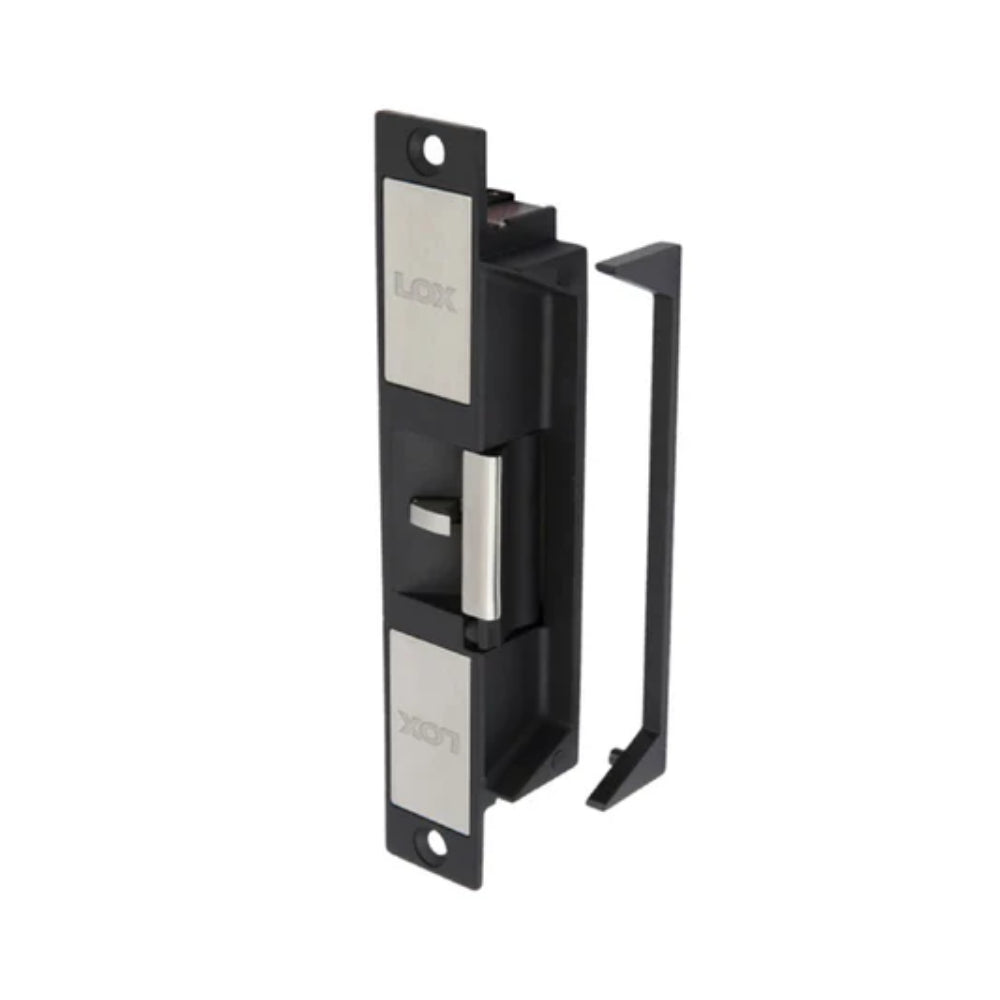

Triple Monitoring – LSS, DSS & ATS – Real-time lock status, door position, and anti-tamper feedback to your access control panel.
-
Multi-Voltage 10–30VDC – Compatible with virtually all access control power supplies used in Australian installations.
-
Field-Selectable Fail-Safe / Fail-Secure – Switch between Power-to-Lock and Power-to-Release on site without replacing hardware.
-
4-Hour Fire Rating – Certified to AS/NZS Standards for fire-rated hinged door assemblies.
-

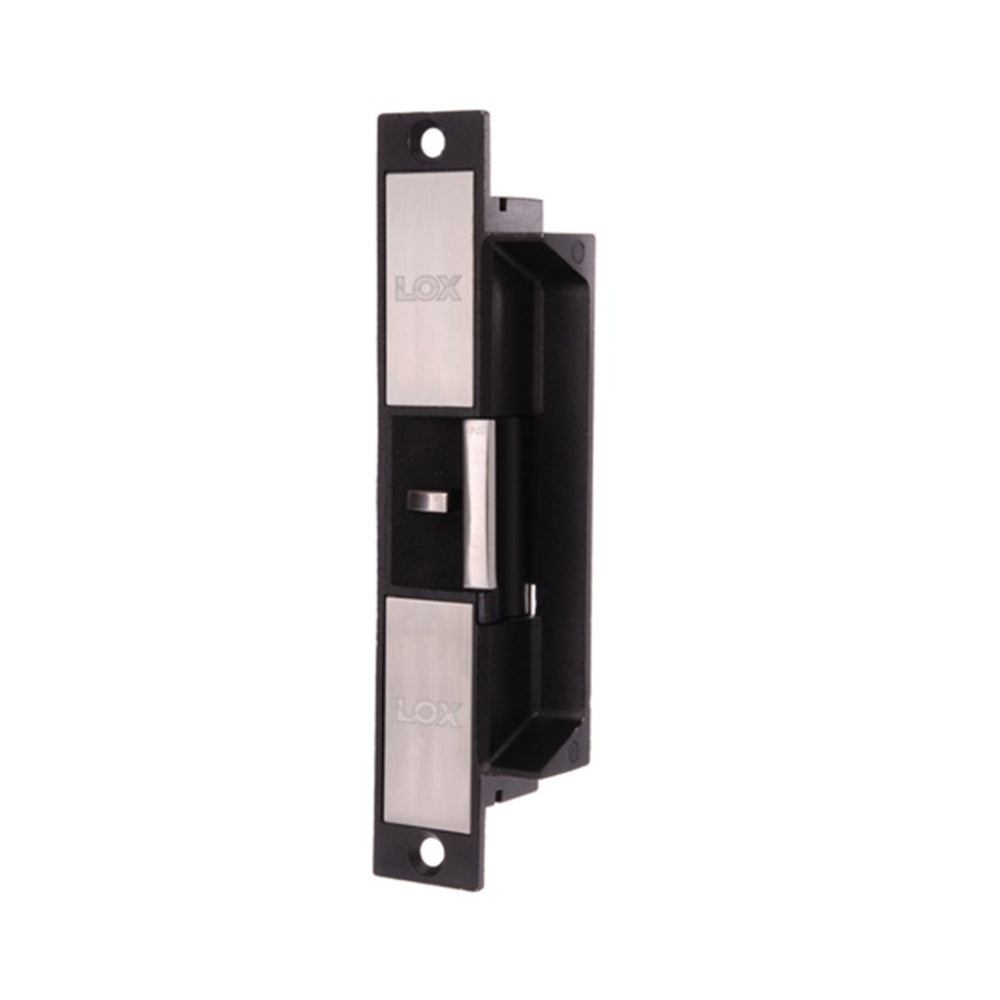

Australian Footprint – Retrofits into standard Australian commercial door frames, reducing installation time and modification costs.
-
10mm Safety Strike Lip – Prevents personal injury and clothing snagging during normal door use.
-
Solid Stainless Steel Construction – Corrosion resistant and built for 24/7 commercial operation.
-

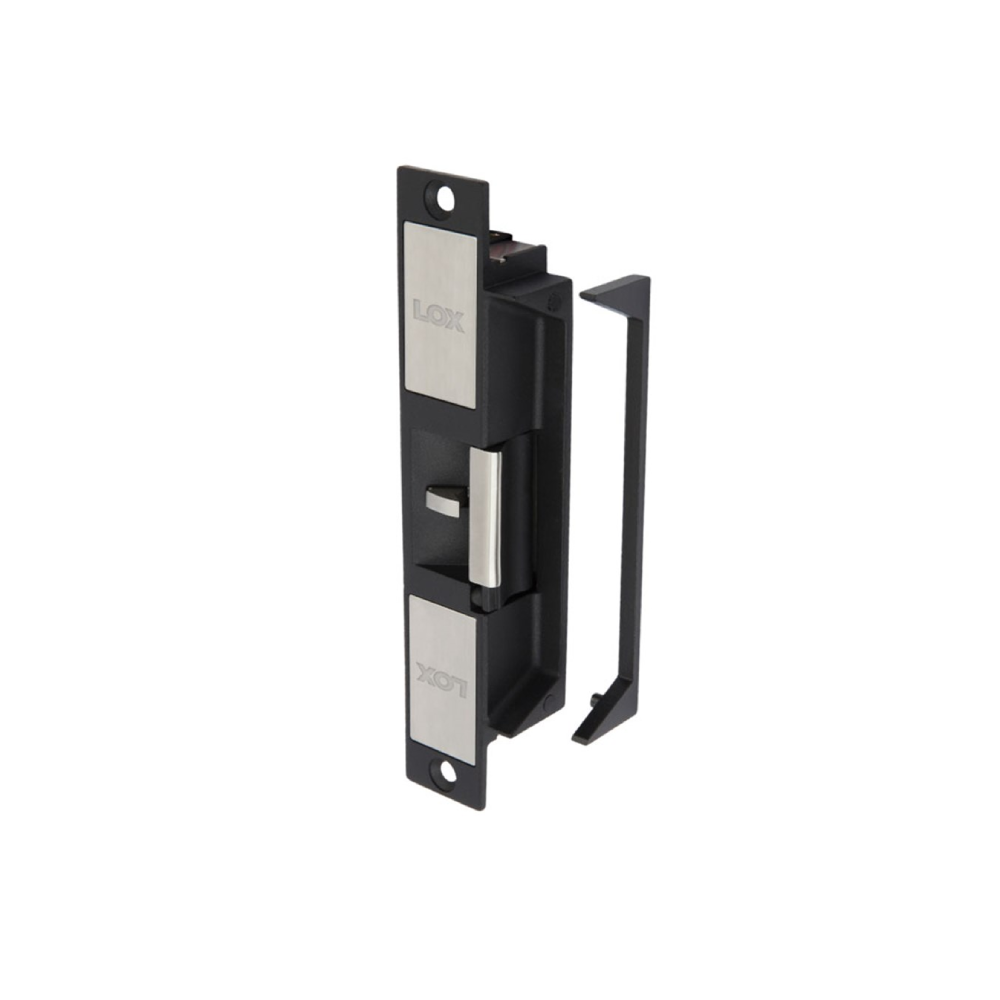

Available in Stainless Steel & Matte Black (ES20M-BLK) – Two finish options to suit standard and architectural door hardware.
Technical Specifications
| Specification |
Detail |
| Model |
LOX ES20M (Fully Monitored) |
| Holding Force |
Up to 1,000kg |
| Operating Voltage |
10–30VDC (Multi-Voltage) |
| Current Draw |
250mA @ 12VDC / 125mA @ 24VDC |
| Monitoring |
LSS (Lock Status), DSS (Door Status), ATS (Anti-Tamper) |
| Operating Mode |
Field Selectable – Fail-Safe or Fail-Secure |
| Construction |
Solid Stainless Steel |
| Dimensions |
175mm (L) × 44mm (W) × 27mm (D) |
| Strike Lip |
10mm Safety Lip |
| Fire Rating |
Up to 4 Hours (AS/NZS Certified) |
| Cycle Rating |
1,500,000 cycles |
| Available Finishes |
Stainless Steel / Matte Black (ES20M-BLK) |
| Certifications |
CE, RCM (C-Tick), AS/NZS Fire Rated |
Use Cases
-
Commercial Office Buildings – Secure hinged door entry and exit points with full monitoring feedback.
-
Government & Council Facilities – Meets compliance requirements for monitored, fire-rated access control hardware.
-
Schools, Universities & TAFE Campuses – High cycle rating handles heavy daily use across education facilities.
-
Hospitals & Healthcare – Controlled entry with real-time door and lock status for security and compliance.
-
Strata & Apartment Buildings – Common area hinged doors with reliable fail-safe egress during power outages.
-
Industrial & Warehouse Facilities – Robust stainless steel construction handles demanding environments.
Recommended Accessories
-
Access Control Power Supply (12VDC / 24VDC) – Regulated supply with battery backup; the ES20M’s 10–30VDC range is compatible with virtually any standard Australian access control power supply.
-
Door Controller / Access Panel – Single or multi-door panels that accept LSS, DSS, and ATS monitoring outputs for full system integration.
-
Card Reader / Keypad / Intercom – Any 12VDC or 24VDC compatible credential device for controlling access at the door.
-
Exit Button / Request-to-Exit (RTE) – Surface-mount or flush egress button for compliant door release from the secure side.
-
Door Closer – Required for fire door compliance and correct electric strike operation; ensures the door returns to the latched position after each use.
-
LOX ES20M-BLK – Matte black version for architectural commercial door hardware where a black finish is specified.
Frequently Asked Questions
- What is the difference between an electric strike and an electromagnetic lock?
- An electric strike replaces the door frame’s strike plate and works with the door’s existing latch or deadbolt — the lock stays in the door leaf, allowing free egress from the inside at all times. A maglock holds the door closed magnetically and requires a separate egress button. Electric strikes are generally preferred for hinged doors where existing door hardware is retained.
- What is the difference between Fail-Safe and Fail-Secure on the ES20M?
-
Fail-Safe (Power-to-Lock): Locks when power is applied, releases when power is cut — correct for most commercial and fire-rated applications requiring safe egress during a power failure. Fail-Secure (Power-to-Release): Remains locked when power is cut — correct for high-security applications where the door must stay locked during a power failure. The ES20M is field-selectable between both modes on site.
- What does the ATS (Anti-Tamper Sensor) do?
- The ATS detects if the ES20M strike body is physically tampered with, forced, or removed from the door frame, and outputs an alert to your access control panel — a layer of security that LSS/DSS-only strikes cannot provide.
- What is the “Australian Footprint”?
- The ES20M is dimensioned to retrofit directly into standard Australian commercial door frame strike pockets without modification, reducing installation time and eliminating the need for custom routing or adaptor plates on most Australian commercial frames.
- Is the ES20M suitable for fire-rated doors?
- Yes. The ES20M is certified to AS/NZS Standards for use on fire-rated hinged door assemblies for up to 4 hours, meeting Australian building code requirements for fire-rated access control hardware.
- Do you ship Australia-wide?
- Yes. We ship to all states and territories including NSW, VIC, QLD, WA, SA, TAS, ACT, and NT. Contact us for bulk order pricing and project quotes.
