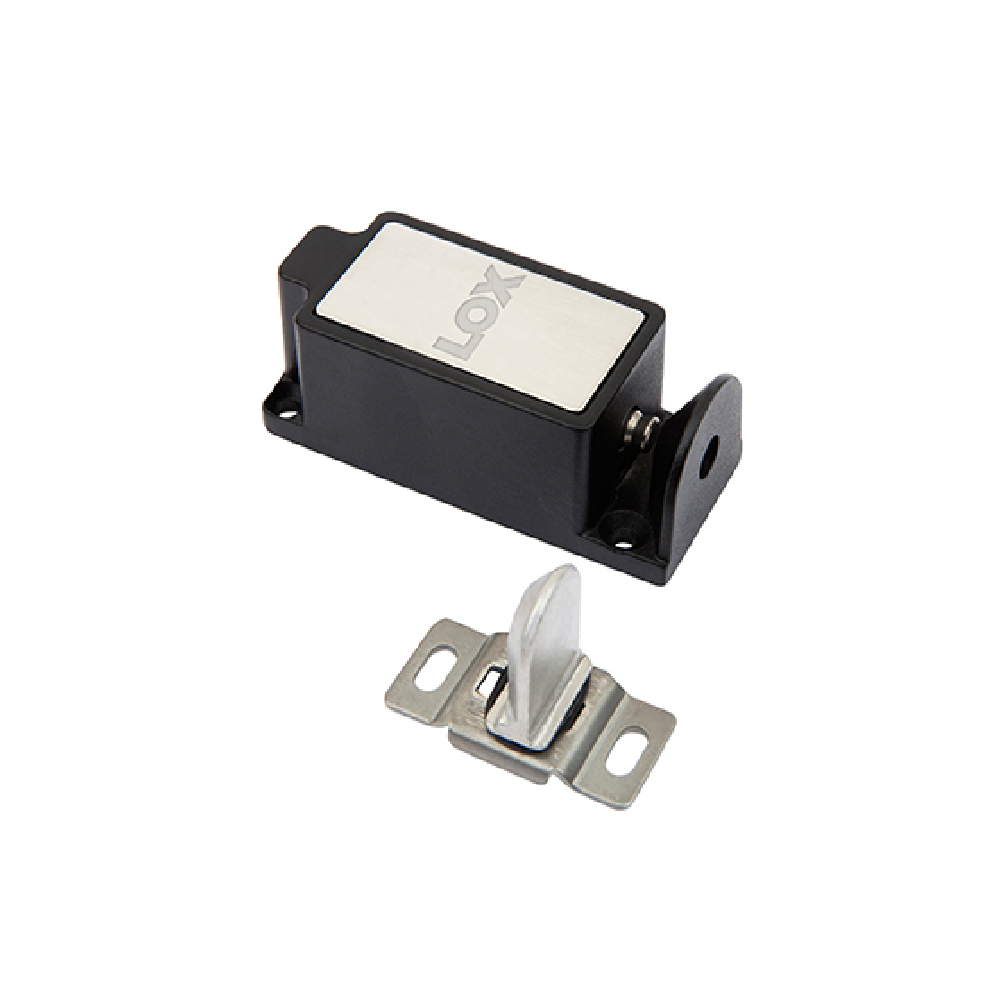

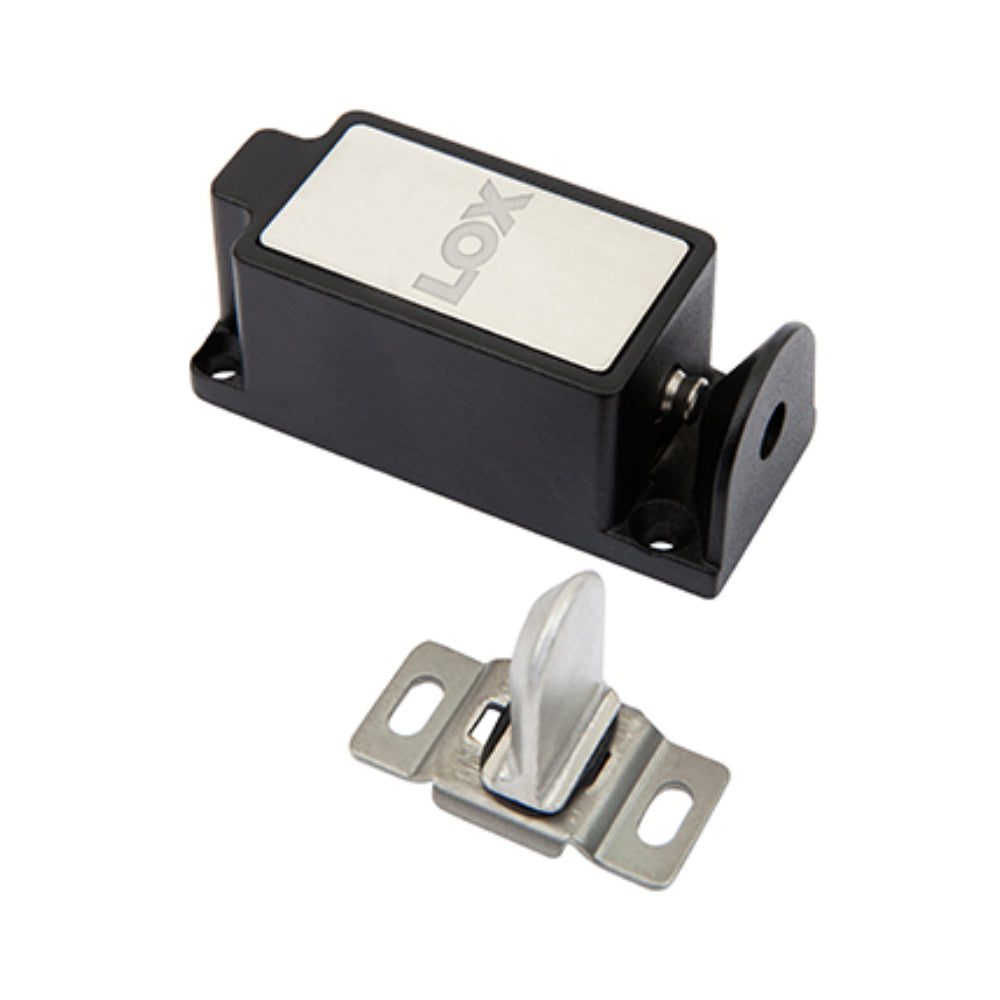

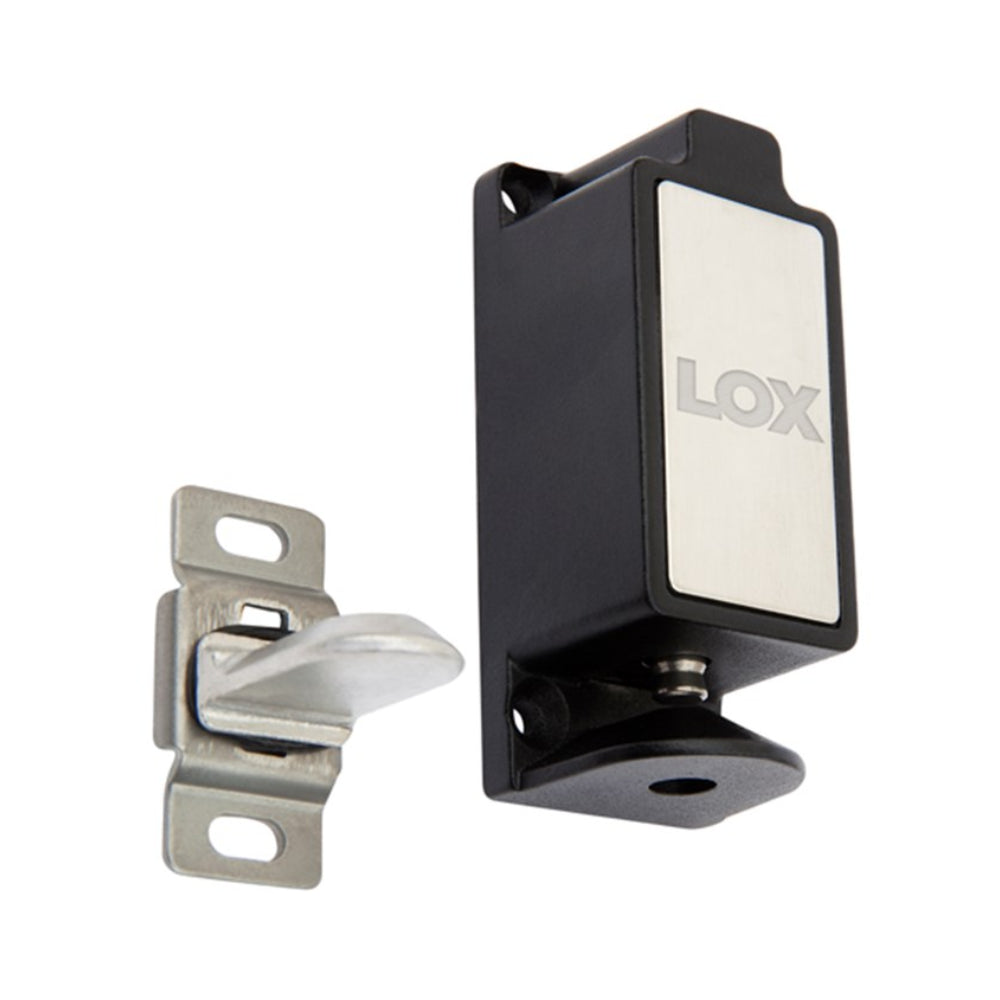

LOX CL0001 Surface Mount Cabinet Lock – 150kg Holding Force, Fail-Safe & Fail-Secure, 12/24VDC
Overview
The LOX CL0001 is a compact, professional-grade electromechanical cabinet lock built for securing lockers, drawers, retail displays, medicine cabinets, and office enclosures. With a 150kg holding force, field-selectable Fail-Safe or Fail-Secure operation, and dual 12V/24VDC compatibility, the CL0001 delivers reliable access control in a discreet surface-mount form factor — trusted by installers and facilities managers across Australia.
Description
Where a standard padlock or mechanical latch isn’t enough, the CL0001 steps in. Its compact 100 × 50 × 50mm body fits inside small enclosures where space is tight, while its 150kg holding force provides serious resistance against forced entry. The field-selectable operating mode is a standout feature — switch between Fail-Safe and Fail-Secure on-site without tools, giving installers the flexibility to adapt to changing site requirements without replacing hardware.
Rated to 400,000 cycles and certified to CE, C-Tick, and 4-hour fire rating standards, the CL0001 is built for long-term commercial reliability. It integrates with virtually any access control panel, card reader, keypad, or intercom system that outputs 12VDC or 24VDC — making it a versatile addition to any security installation across Australia.
Fail-Safe vs Fail-Secure – Which Mode Do You Need?
Fail-Safe (Power to Lock): The lock engages when power is applied and releases when power is cut. Best for emergency egress applications where doors must open freely during a power outage or fire alarm event.
Fail-Secure (Power to Open): The lock remains locked when power is cut and releases only when power is applied. Ideal for securing high-value storage where security must be maintained even during a power failure.
The CL0001 lets you choose the right mode for your site — and change it in the field if requirements evolve.
Key Features
-
150kg Holding Force: Robust resistance against forced entry, ideal for securing high-value assets in lockers, cabinets, and enclosures.
-
Field-Selectable Fail-Safe / Fail-Secure: Switch operating modes on-site without tools — no need to replace hardware if site requirements change.
-
Dual Voltage – 12VDC / 24VDC: Integrates seamlessly with most access control panels, card readers, and intercom systems.
-
Compact Surface Mount Design: 100 × 50 × 50mm body fits inside small enclosures where space is at a premium.
-
Versatile Door Compatibility: Installs on hinged, sliding, or double-action (swing-through) doors.
-
400,000-Cycle Rated: Built for long-term commercial reliability in high-use environments.
-
CE, C-Tick & 4-Hour Fire Rated: Compliant with Australian and international standards for commercial and fire-rated installations.
-
Optional 8m Cable: Extended cable version available for installations where the control panel is located further from the lock.
Use Cases
- Retail display cabinets and jewellery showcases
- Office and workplace lockers
- Medicine and pharmaceutical cabinets
- IT equipment enclosures and server racks
- School and gym lockers
- Hospitality and hotel room safes
- Government and secure facility storage
- Strata and apartment building parcel lockers
Technical Specifications
| Specification |
Detail |
| Model |
LOX CL0001 |
| Holding Force |
Up to 150kg |
| Operating Voltage |
12VDC @ 190mA | 24VDC @ 90mA |
| Operating Mode |
Field Selectable – Fail-Safe or Fail-Secure |
| Monitoring |
Non-Monitored |
| Lock Dimensions |
100mm (L) × 50mm (W) × 50mm (H) |
| Cable Length |
200mm standard (optional 8m version available) |
| Cycle Rating |
400,000 cycles |
| Certifications |
CE, C-Tick, 4-Hour Fire Rated |
| Mounting Type |
Surface Mount |
| Door Compatibility |
Hinged, Sliding, Double-Action (Swing-Through) |
Product Video
Overview of the LOX CL0001 electromechanical cabinet lock.
Frequently Asked Questions
Can I change the operating mode after installation?
Yes. The CL0001 is field-selectable, meaning you can switch between Fail-Safe and Fail-Secure modes on-site without returning the unit or requiring specialist tools.
What access control systems is the CL0001 compatible with?
The CL0001 works with any access control panel that outputs 12VDC or 24VDC. It is compatible with most card readers, keypads, and intercom systems available in Australia.
Is the CL0001 suitable for fire-rated doors?
Yes. The CL0001 carries a 4-hour fire rating, making it suitable for use on fire-rated door assemblies where required by Australian building codes.
Does this lock provide door position monitoring?
This is the non-monitored version of the CL0001. If lock status monitoring is required for your access control system, please contact us about the monitored variant.
What is the standard cable length and can it be extended?
The standard cable is 200mm. An optional 8-metre cable version is available for installations where the control panel is located further from the lock.
Is this product covered by a warranty?
Yes. LOX products are backed by a manufacturer’s warranty. Contact CCTV Guru for full warranty terms and after-sales support.
