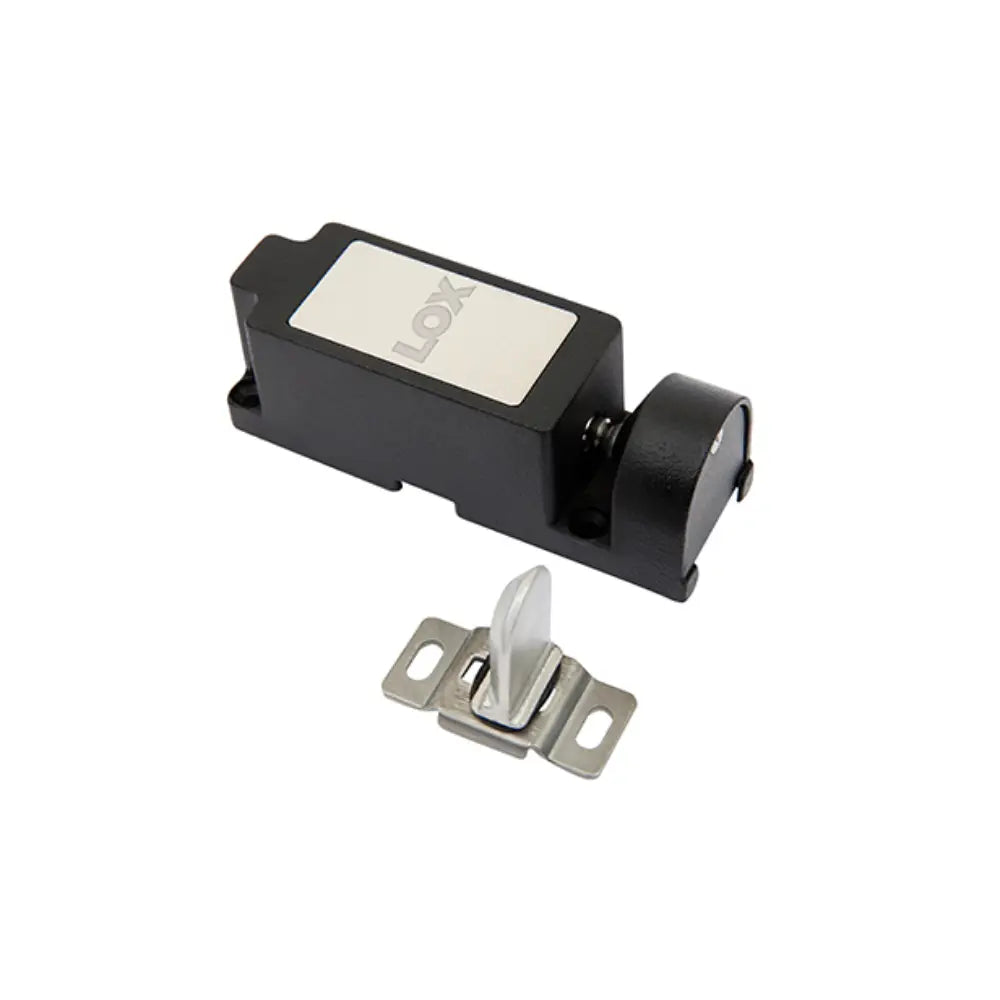

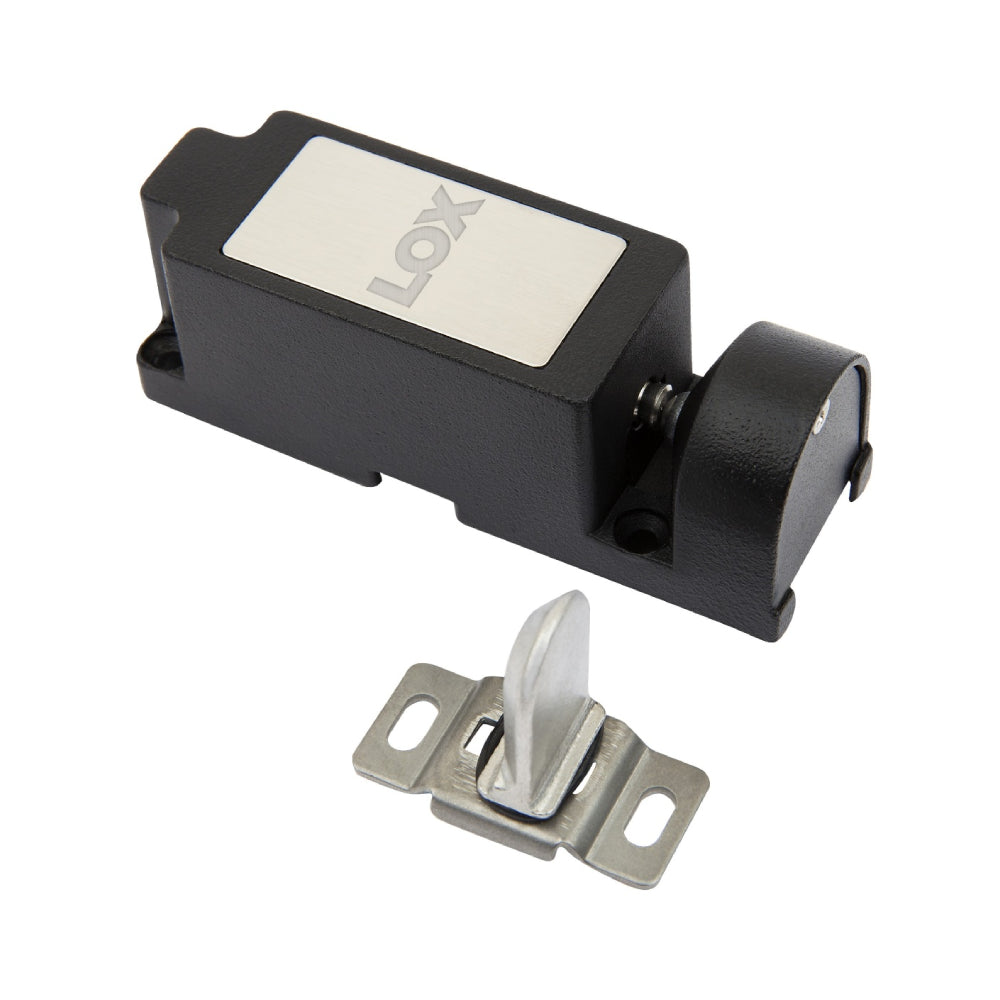

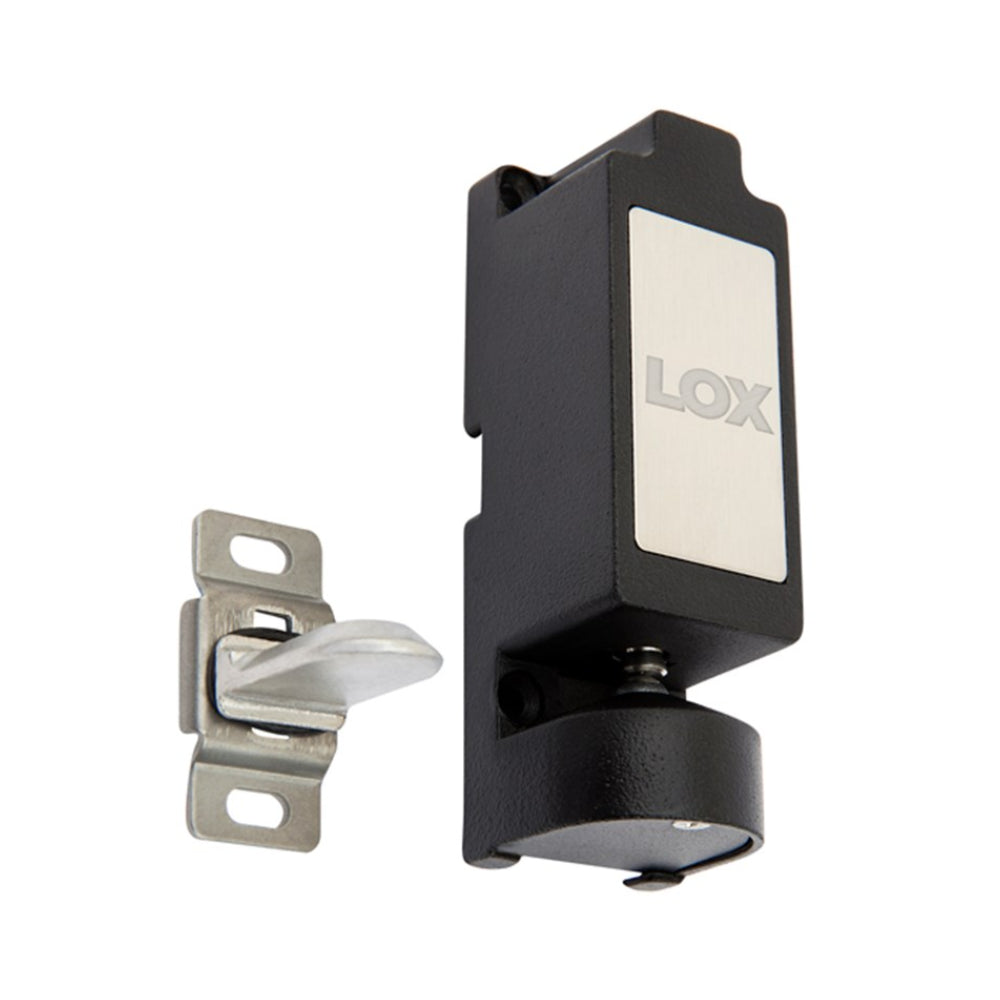

LOX CL0002 Electromechanical Cabinet & Locker Lock
The LOX CL0002 is a compact, internally mounted electromechanical lock engineered for discreet, high-security applications. Invisible once installed, it delivers reliable fail-secure locking for cabinets, drawers, and lockers across retail, medical, and commercial environments throughout Australia.
Key Features
-
150kg Holding Force — robust resistance against forced entry in a compact form factor
-
Dual Voltage (12VDC / 24VDC) — integrates seamlessly with existing access control and alarm systems
-
Fail-Secure Operation — remains locked during a power outage, maintaining security at all times
-
Compact Dimensions — 72.7mm(L) × 28.6mm(W) × 28mm(H), fits tight internal spaces where traditional locks cannot
-
Flexible Mounting — horizontal or vertical installation to suit doors, drawers, and locker configurations
-
Hidden Installation — internally mounted design keeps the lock invisible to end users
-
Low Current Draw — 150mA @ 12V / 75mA @ 24V, minimising load on your power supply
-
Commercial Grade Durability — tested for high-cycle use in demanding environments
Use Cases
-
Retail — jewellery display cases, smartphone kiosks, and high-value merchandise cabinets
-
Medical & Healthcare — pharmaceutical storage, patient record cabinets, and controlled substance lockers
-
Office & Workplace — staff lockers, filing cabinets, and secure document storage
-
Automation & Logistics — vending machines, parcel delivery lockers, and automated dispensing units
Technical Specifications
| Model |
LOX CL0002 (Non-Monitored) |
| Holding Force |
Up to 150kg |
| Operating Voltage |
12VDC or 24VDC |
| Current Draw |
150mA @ 12V / 75mA @ 24V |
| Dimensions (L × W × H) |
72.7mm × 28.6mm × 28mm |
| Operation Mode |
Fail-Secure (locked without power) |
| Mounting Orientation |
Horizontal or Vertical |
| SKU |
CL0002 |
| Brand |
LOX |
Downloads
Frequently Asked Questions
Is the LOX CL0002 fail-secure or fail-safe?
The CL0002 is fail-secure — it remains locked when power is removed. This makes it suitable for applications where security must be maintained during a power outage.
Can it be used with a standard 12V access control power supply?
Yes. The CL0002 operates on 12VDC or 24VDC and draws only 150mA at 12V, making it compatible with most standard access control power supplies.
Is the lock visible once installed?
No. The CL0002 is designed for internal (hidden) mounting, so it is completely concealed within the cabinet or locker once installed.
Can it be mounted in any orientation?
Yes. The CL0002 supports both horizontal and vertical mounting to accommodate a wide range of cabinet and drawer configurations.
