Description
Overview

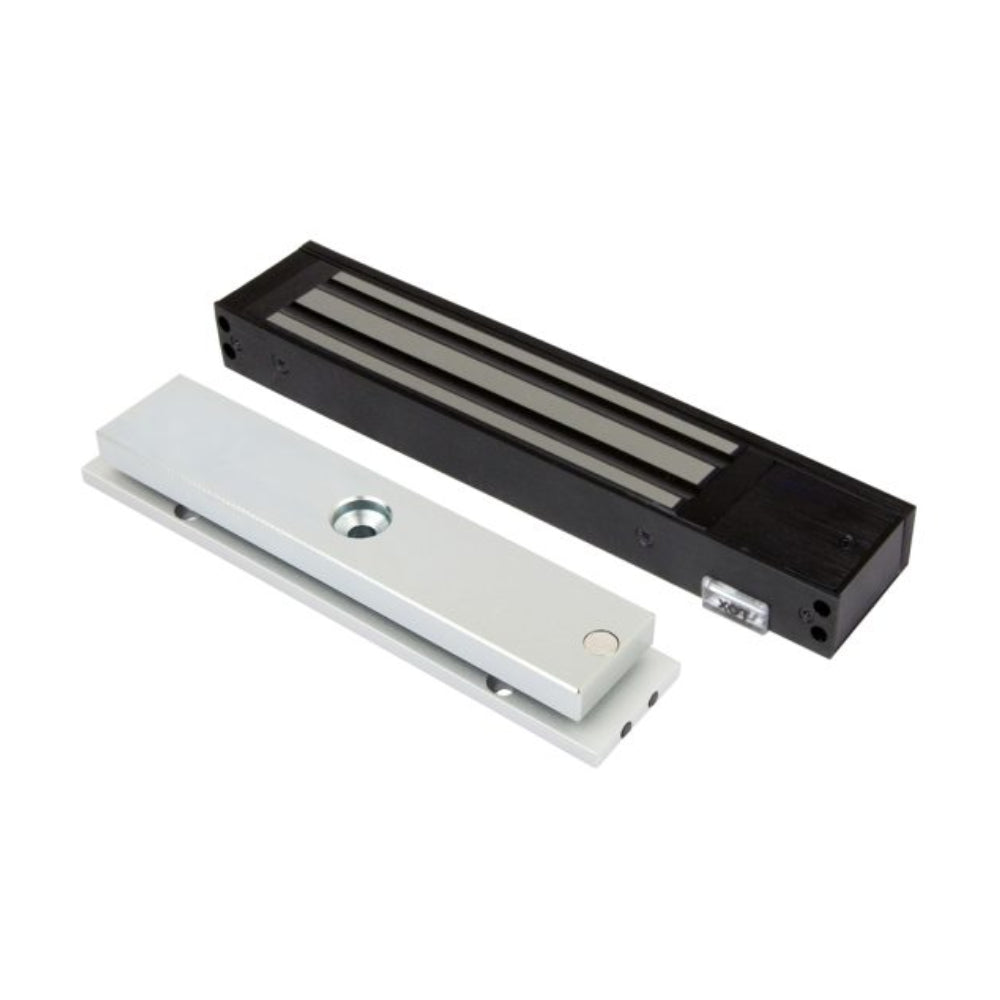

The LOX EM3500M-BLK is a premium monitored electromagnetic lock engineered for high-security commercial and architectural applications across Australia. Part of the LOX Black Series, it combines a sleek black anodised finish with a 280kg holding force and integrated door and lock status monitoring — making it the go-to choice for installers who demand reliability and aesthetics in one package.
Key Features
-
280kg Holding Force – Tested to 1 million cycles for long-term dependability.
-
Dual Monitoring Sensors – LSS (Lock Status Sensor) via Hall Effect and DSS (Door Status Sensor) via integrated reed switch.
-
Red/Green LED Indicator – Instant visual status at a glance for installers and end users.
-
4-Hour Fire Rating – Tested to Australian Standards (AS), suitable for fire-rated door assemblies.
-
Dual Voltage Operation – Accepts 12VDC or 24VDC for flexible system integration.
-
No Residual Magnetism – Instant door release when power is cut, ensuring safe egress.
-
Anti-Tamper Fixing Plate – Protects the armature bolt against hostile removal attempts.
-
Black Anodised Finish – Ideal for modern interiors, dark door frames, and architectural glass doors.
-
Lifetime Warranty – Manufacturer-backed guarantee for peace of mind.
Technical Specifications
| Specification |
Detail |
| Model |
EM3500M-BLK |
| Holding Force |
Up to 280kg |
| Voltage |
12VDC / 24VDC |
| Current Draw |
530mA (12VDC) / 260mA (24VDC) |
| Lock Status Sensor (LSS) |
Hall Effect Sensor |
| Door Status Sensor (DSS) |
Integrated Reed Switch |
| LED Indicator |
Red/Green |
| Finish |
Black Anodised |
| Fire Rating |
Up to 4 Hours (AS Standard) |
| Operating Temperature |
-20°C to 60°C |
| Certifications |
CE, RCM, C-Tick |
| Cycle Tested |
1,000,000 cycles |
| Warranty |
Lifetime |
Use Cases
-
Commercial Office Buildings – Secure entry and exit points with real-time door and lock status feedback.
-
Architectural Glass Doors – Slimline black finish complements frameless and dark-framed glass door installations.
-
Fire-Rated Door Assemblies – Compliant with Australian fire door requirements up to 4 hours.
-
Access Control Integration – Compatible with most access control panels requiring fail-safe electromagnetic locking.
-
High-Traffic Entrances – 1 million cycle rating ensures durability in busy commercial environments.
Recommended Accessories
-
LOX AMZB4-BLK – L & Z Bracket Kit (Black) – for standard door frame mounting.
-
LOX U-Bracket (Black) – For frameless glass door applications.
Downloads
Frequently Asked Questions
- What is the difference between the EM3500M-BLK and the standard EM3500-BLK?
- The EM3500M-BLK is the monitored version, featuring both a Lock Status Sensor (LSS) and a Door Status Sensor (DSS). These allow your access control system to track whether the lock is engaged and whether the door is open or closed — the standard model does not include these sensors.
- Is this maglock suitable for fire-rated doors in Australia?
- Yes. The EM3500M-BLK has been tested to Australian Standards and carries a 4-hour fire rating, making it suitable for use on fire-rated door assemblies.
- Can I use this lock with a 24VDC power supply?
- Yes. The lock operates on either 12VDC (530mA) or 24VDC (260mA), giving you flexibility to match your existing power supply infrastructure.
- Does the lock release immediately when power is cut?
- Yes. The EM3500M-BLK is designed with no residual magnetism, ensuring the door releases instantly upon power loss — a critical safety requirement for egress compliance.
- What brackets are compatible with this lock?
- The LOX AMZB4-BLK L & Z bracket kit and black U-brackets for glass doors are the recommended accessories for this model.
