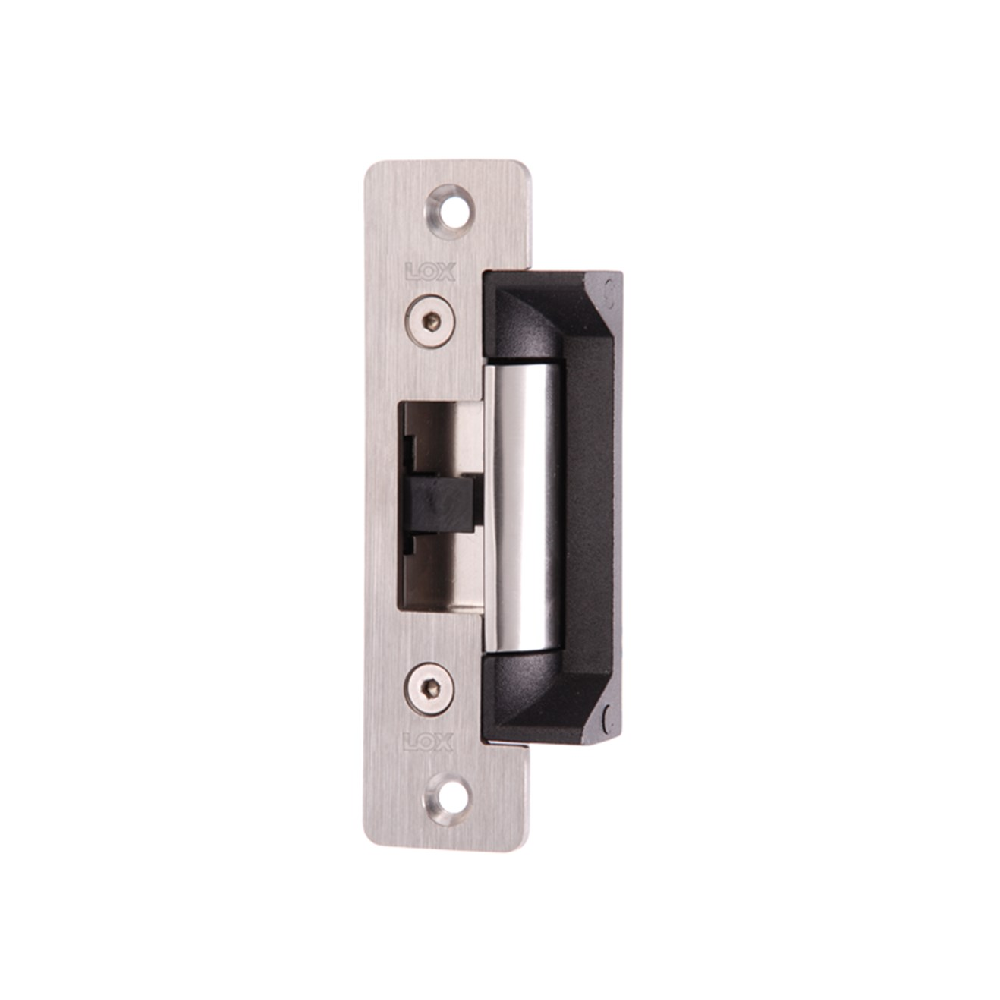

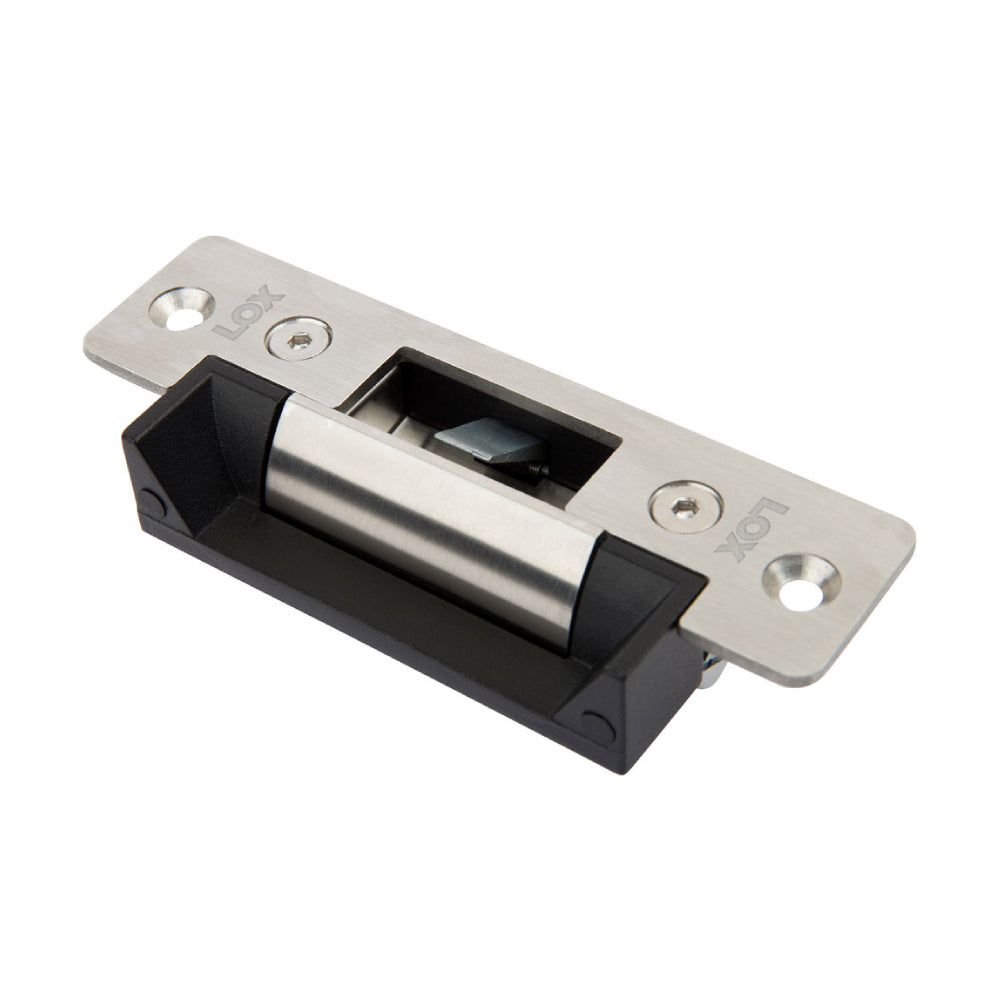

LOX ES10M Monitored ANSI Electric Strike – 1200kg Holding Force, DSS Monitoring, Fail-Safe & Fail-Secure, Fire Rated
Overview
The LOX ES10M is a premium, high-security ANSI-style monitored electric door strike built for both residential and commercial access control applications across Australia. Delivering an impressive 1,200kg holding force from a compact stainless steel body, the ES10M includes an integrated Door Status Sensor (DSS) for real-time latch position monitoring — ideal for alarm system integration and access control audit trails. Field-selectable Fail-Safe or Fail-Secure operation, dual 12V/24VDC compatibility, and a 4-hour fire rating make it a versatile and compliant choice for Australian security installers.
Description
ANSI-style electric strikes are the standard format for most residential and light commercial door hardware in Australia, designed to work with cylindrical and mortice latches on hinged doors. The ES10M’s compact 124mm body fits the ANSI strike pocket found in the majority of Australian door frames, making it a straightforward retrofit or new installation without frame modification.
The integrated DSS (Door Status Sensor) monitors latch position in real time, feeding status back to your access control panel or alarm system — so you know whether the door is properly latched and the strike is engaged. Field-selectable Fail-Safe or Fail-Secure modes are set on site with a small screwdriver, giving installers the flexibility to configure the correct egress behaviour without replacing hardware. The high-grade stainless steel striker and faceplate are built for long-term operational life in high-traffic commercial environments, and the 4-hour fire rating ensures compliance with Australian building codes for fire-rated door assemblies.
Key Features
-
1,200kg Holding Force: High-grade stainless steel construction delivers exceptional resistance against forced entry in residential and commercial applications.
-
DSS Latch Monitoring: Integrated Door Status Sensor provides real-time latch position feedback to your access control panel or alarm system.
-
Field-Selectable Fail-Safe / Fail-Secure: Switch between Power-to-Lock (Fail-Safe) and Power-to-Release (Fail-Secure) on site with a small screwdriver — no hardware replacement required.
-
Dual Voltage – 12VDC / 24VDC: Compatible with the vast majority of access control power supplies and panels used in Australian installations.
-
ANSI-Style Form Factor: Compact 124mm body fits standard ANSI strike pockets in most Australian door frames — straightforward retrofit or new installation.
-
4-Hour Fire Rating: Certified to AS Standards for use on fire-rated hinged door assemblies in Australian commercial buildings.
-
Stainless Steel Striker & Faceplate: Corrosion resistant and built for long-term reliability in high-traffic commercial environments.
-
CE & C-Tick (RCM) Certified: Compliant with Australian and international standards for commercial access control hardware.
-
Available in Stainless Steel & Matte Black (ES10M-BLK): Two finish options to suit standard and architectural commercial door hardware.
Use Cases
- Commercial office building hinged door entry and exit points
- Residential apartment and townhouse entry doors
- Retail stores and shopfront entry doors
- Schools, universities, and TAFE campuses
- Strata and apartment building common area hinged doors
- Healthcare facility non-critical entry points
- Hospitality and hotel room and back-of-house doors
- Any hinged door with a standard ANSI latch requiring monitored electric strike access control
Technical Specifications
| Specification |
Detail |
| Model |
LOX ES10M (Monitored) |
| Holding Force |
Up to 1,200kg |
| Operating Voltage |
12VDC / 24VDC (Dual Voltage) |
| Current Draw |
200mA @ 12VDC | 100mA @ 24VDC |
| Monitoring |
DSS (Door Status / Latch Monitoring) |
| Operating Mode |
Field Selectable – Fail-Safe or Fail-Secure |
| Strike Style |
ANSI Style |
| Dimensions |
124mm (L) × 43mm (W) × 35mm (D) |
| Material |
Stainless Steel |
| Fire Rating |
Up to 4 Hours (AS Certified) |
| Available Finishes |
Stainless Steel | Matte Black (ES10M-BLK) |
| Certifications |
CE, RCM (C-Tick), AS Fire Rated |
Recommended Accessories & Compatible Products
-
LOX ES20M – Upgrade option with triple monitoring (LSS, DSS & ATS), 1,000kg holding force, and multi-voltage 10–30VDC operation — ideal for higher-security or fully monitored access control systems.
-

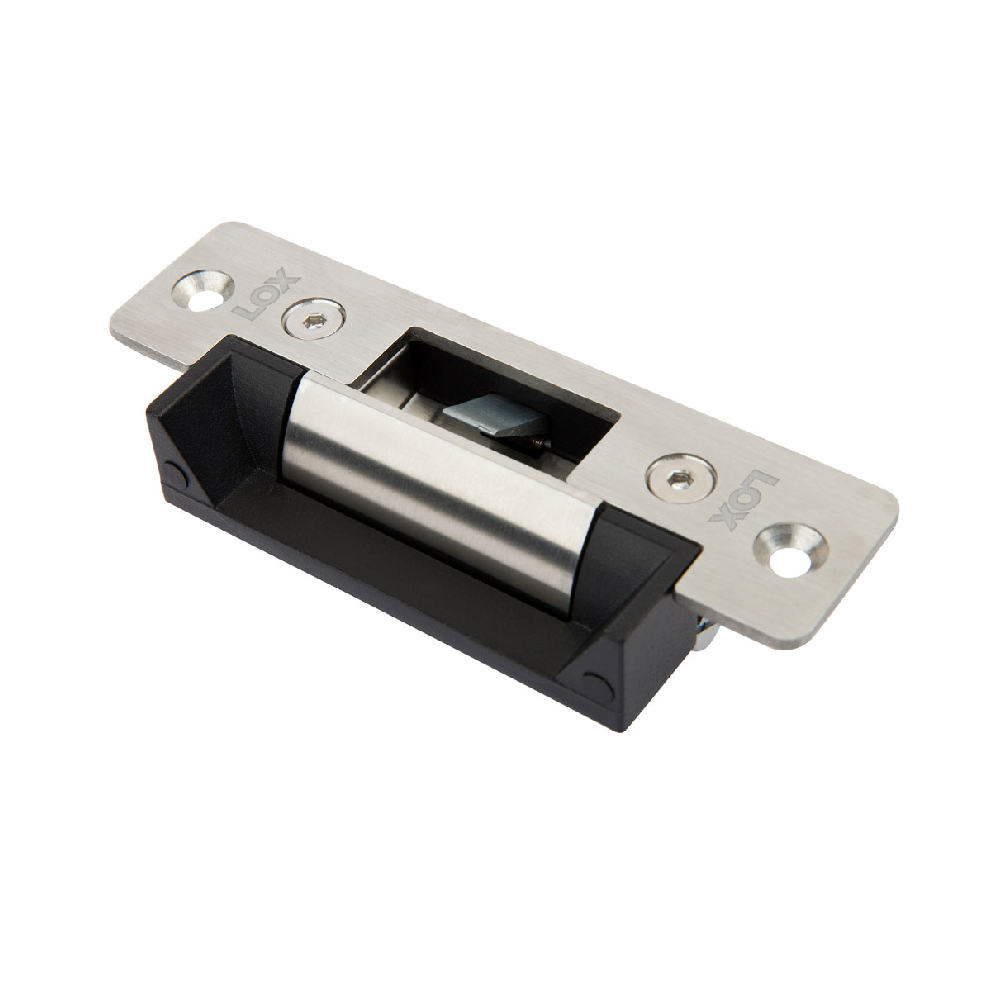

LOX ES10M-BLK – Matte black version of the ES10M for architectural commercial door hardware where a black finish is specified.
-
Access Control Power Supply (12VDC / 24VDC) – Regulated power supply with battery backup for reliable electric strike operation.
-
Door Controller / Access Panel – Single or multi-door panels compatible with the ES10M’s DSS monitoring output for alarm integration and access logging.
-
Card Reader / Keypad / Intercom – Any 12VDC or 24VDC compatible credential device for controlling access at the door.
-
Exit Button / Request-to-Exit (RTE) – Surface-mount or flush egress button for compliant door release from the secure side.
-
Door Closer – Overhead door closer to ensure the door returns to the latched position after each use; required for fire door compliance and correct electric strike operation in Australia.
Frequently Asked Questions
What is an ANSI-style electric strike?
ANSI-style electric strikes follow the standard ANSI/BHMA dimensions used for most residential and light commercial door hardware in Australia. The ES10M’s 124mm body fits the ANSI strike pocket found in the majority of Australian door frames, making it a straightforward retrofit without frame modification.
What does the DSS (Door Status Sensor) monitor?
The DSS monitors the position of the door latch in real time. It detects whether the latch is engaged in the strike (door properly closed) or retracted (door open or ajar), feeding this status back to your access control panel or alarm system for monitoring and alert triggering.
What is the difference between the ES10M and the ES20M?
The ES10M is an ANSI-style strike with DSS latch monitoring and 1,200kg holding force. The ES20M is a larger format strike with triple monitoring (LSS, DSS & ATS), 1,000kg holding force, multi-voltage 10–30VDC operation, and an “Australian Footprint” designed to retrofit into standard Australian commercial door frames. The ES20M is the preferred choice for higher-security or fully monitored commercial access control systems.
What is the difference between Fail-Safe and Fail-Secure?
Fail-Safe (Power-to-Lock): The strike locks when power is applied and releases when power is cut — correct for most commercial and fire-rated door applications where safe egress during a power failure is required. Fail-Secure (Power-to-Release): The strike remains locked when power is cut and releases only when power is applied — correct for high-security applications where the door must remain locked during a power failure. The ES10M is field-selectable between both modes on site.
Is the ES10M suitable for fire-rated doors?
Yes. The ES10M is certified to AS Standards for use on fire-rated hinged door assemblies for up to 4 hours, meeting Australian building code requirements for fire-rated access control hardware.
