Description
LOX ES15 Electric Strike | Rim-Mounted | IP56 Weather Resistant | 12/24VDC

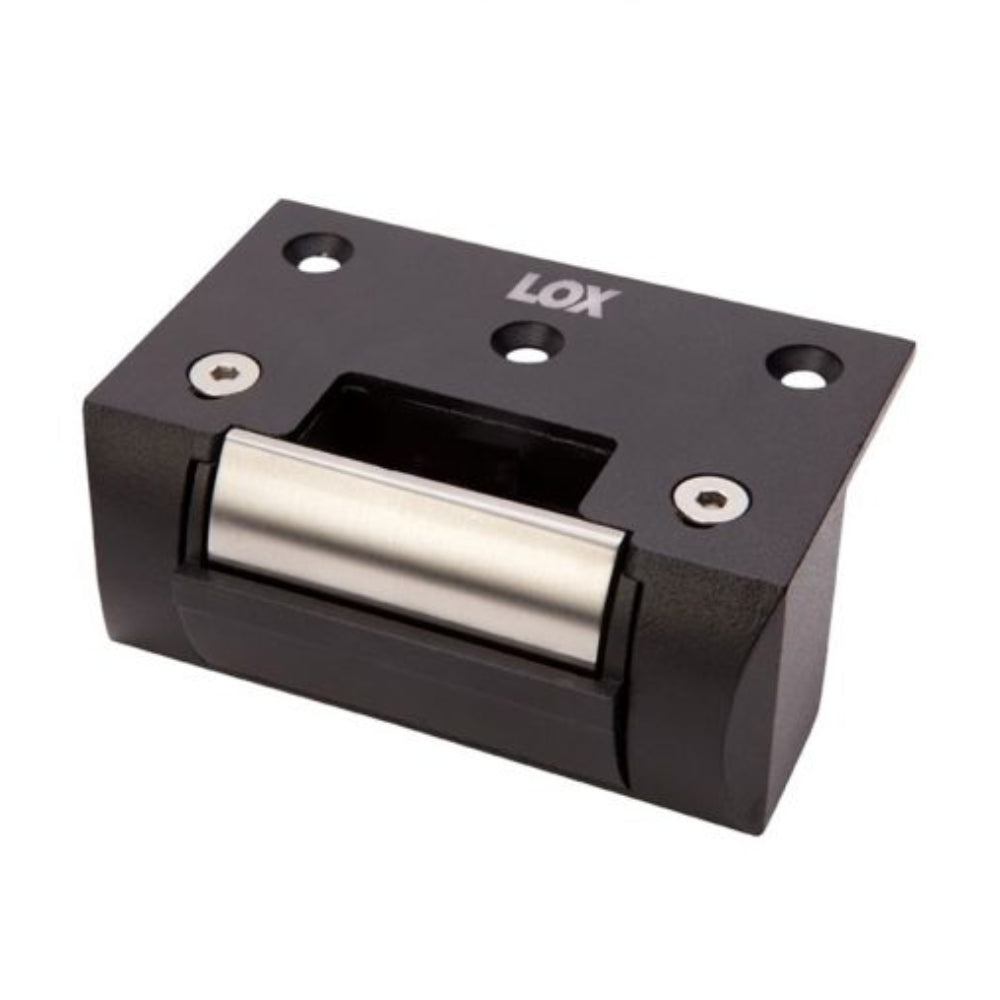

The LOX ES15 is a heavy-duty, surface-mounted (rim-mounted) electric strike engineered for pedestrian gates and light commercial access control applications. With an IP56 weather resistance rating, site-switchable fail modes, and a 1200kg holding force, it delivers reliable, installer-friendly performance in demanding Australian outdoor environments.
Key Features
-
1200kg Holding Force — robust security for pedestrian gates and commercial entry points
-
IP56 Weather Resistant — rated for outdoor and exposed installations, resisting dust and water jets
-
Dual Voltage (12VDC / 24VDC) — integrates with most standard access control and intercom systems
-
Site-Switchable Fail Mode — change between Fail-Secure and Fail-Safe on-site with a small screwdriver — no rewiring required
-
Rim / Surface Mounted — straightforward installation without mortising; ideal for retrofits and new installations
-
5-Year Warranty — backed by LOX’s commercial-grade quality assurance
-
Non-Monitored Version — clean, cost-effective solution where door position monitoring is not required
Use Cases
-
Pedestrian Gates — residential complexes, strata buildings, and commercial premises
-
Light Commercial Doors — offices, retail entries, and staff access points
-
Outdoor & Exposed Installations — car parks, loading docks, and external building entries
-
Retrofit Access Control — upgrading existing mechanical strikes to electronic access without major door modifications
-
Intercom & Video Intercom Systems — pairs with door intercoms for remote electric release
Technical Specifications
| Model |
LOX ES15 (Non-Monitored) |
| Part Number |
S114868 |
| Holding Force |
Up to 1200kg |
| Operating Voltage |
12VDC or 24VDC |
| Mounting Type |
Rim / Surface Mounted |
| Fail Mode |
Fail-Secure / Fail-Safe (site switchable) |
| IP Rating |
IP56 (Weather Resistant) |
| Monitoring |
Non-Monitored |
| Warranty |
5 Years |
| SKU |
ES15 |
| Brand |
LOX |
Frequently Asked Questions
What is the difference between Fail-Secure and Fail-Safe on the ES15?
Fail-Secure means the strike remains locked when power is lost — ideal for security-critical doors. Fail-Safe means the strike releases (unlocks) when power is lost — required for fire egress doors. The ES15 can be switched between both modes on-site using a small screwdriver, with no rewiring needed.
Is the LOX ES15 suitable for outdoor use?
Yes. The ES15 carries an IP56 rating, meaning it is protected against dust ingress and powerful water jets, making it well suited to outdoor gates, car parks, and exposed entry points across Australia.
Can the ES15 work with my existing 12V access control system?
Yes. The ES15 accepts both 12VDC and 24VDC, so it is compatible with the vast majority of standard access control panels and intercom power supplies.
Does the ES15 require mortising into the door frame?
No. The ES15 is a rim-mounted (surface-mounted) strike, meaning it mounts directly onto the door frame surface — no chiselling or mortising required. This makes it particularly suitable for retrofits.
