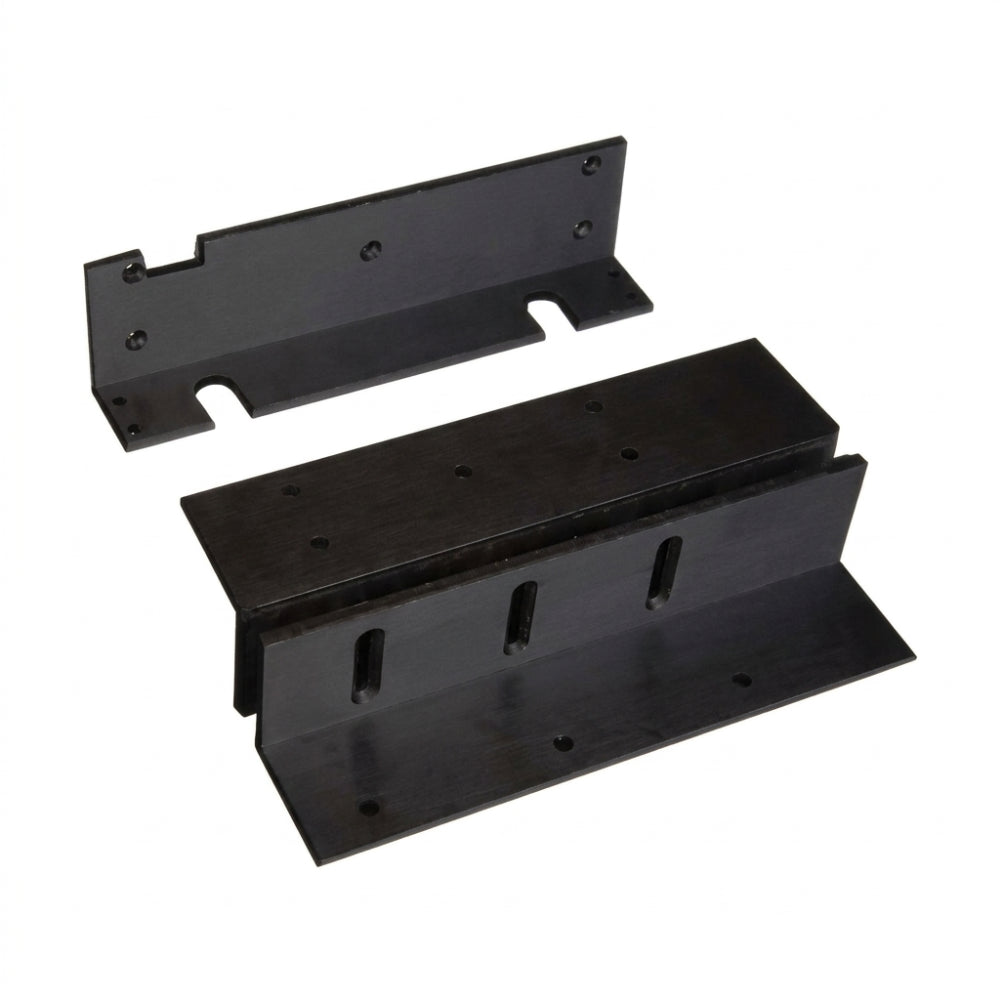

LOX AMZB4-BLK L&Z Bracket | Black Anodised | For EM3500 & EM4700 Series Maglocks
The LOX AMZB4-BLK is a black anodised L&Z mounting bracket designed to extend the installation versatility of LOX EM3500 and EM4700 series electromagnetic locks. It allows maglocks to be correctly positioned on inward or outward swinging doors where a standard header mount is not suitable, ensuring full armature plate contact and maximum holding force.
Key Features
-
Black Anodised Finish — matches the EM3500M-BLK and other black anodised LOX maglocks for a consistent, professional appearance
-
L&Z Bracket Design — provides the correct offset and alignment for swinging door applications where a direct header mount is not possible
-
Broad Compatibility — suits the LOX EM3500, EM3500M, EM3500M-BLK, and EM4700 series electromagnetic locks
-
Robust Construction — engineered to maintain structural integrity under the full holding force of compatible maglocks
-
Installer-Friendly — pre-drilled mounting points for straightforward installation on timber, aluminium, and steel door frames
Use Cases
-
Inward Swinging Doors — positions the maglock correctly when the door swings toward the lock body
-
Outward Swinging Doors — provides the necessary offset to achieve full armature plate contact on outward-opening doors
-
Commercial & Institutional Fitouts — offices, schools, hospitals, and government buildings using EM3500 or EM4700 series maglocks with a black hardware specification
-
Retrofit Installations — adapts existing door frames to accept LOX maglocks without structural modification
Compatible Maglocks
- LOX EM3500 (Single Door, Non-Monitored)
- LOX EM3500M (Single Door, Monitored)
- LOX EM3500M-BLK (Single Door, Monitored, Black Anodised)
- LOX EM4700 Series
Technical Specifications
| Model |
LOX AMZB4-BLK |
| Bracket Type |
L&Z Mounting Bracket |
| Finish |
Black Anodised Aluminium |
| Compatible Models |
EM3500, EM3500M, EM3500M-BLK, EM4700 Series |
| Application |
Inward & outward swinging doors |
| SKU |
AMZB4-BLK |
| Brand |
LOX |
Frequently Asked Questions
What is an L&Z bracket used for?
An L&Z bracket is a two-part mounting bracket that positions an electromagnetic lock on swinging doors where a direct header mount is not achievable. The “L” section mounts to the door frame and the “Z” section attaches to the door, ensuring the maglock body and armature plate align correctly for full holding force regardless of door swing direction.
Which LOX maglocks is the AMZB4-BLK compatible with?
The AMZB4-BLK is compatible with the LOX EM3500 (non-monitored), EM3500M (monitored), EM3500M-BLK (monitored, black anodised), and EM4700 series electromagnetic locks.
Why choose the black anodised version?
The AMZB4-BLK is specifically designed to match the black anodised finish of the EM3500M-BLK and other black LOX hardware, ensuring a consistent, professional appearance across the entire installation — particularly important in architectural and high-end commercial fitouts.
Does CCTV Guru ship the LOX AMZB4-BLK Australia-wide?
Yes. We ship to all states and territories across Australia, including metro and regional areas.
