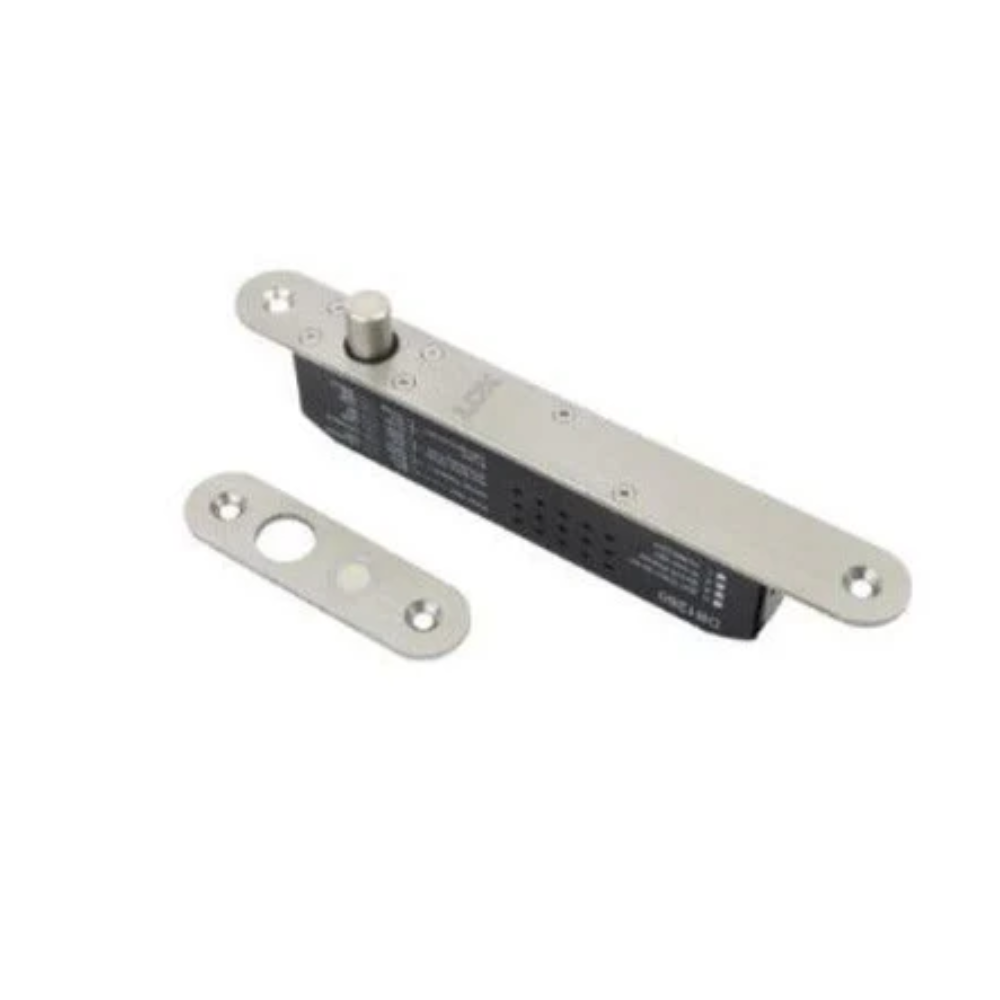

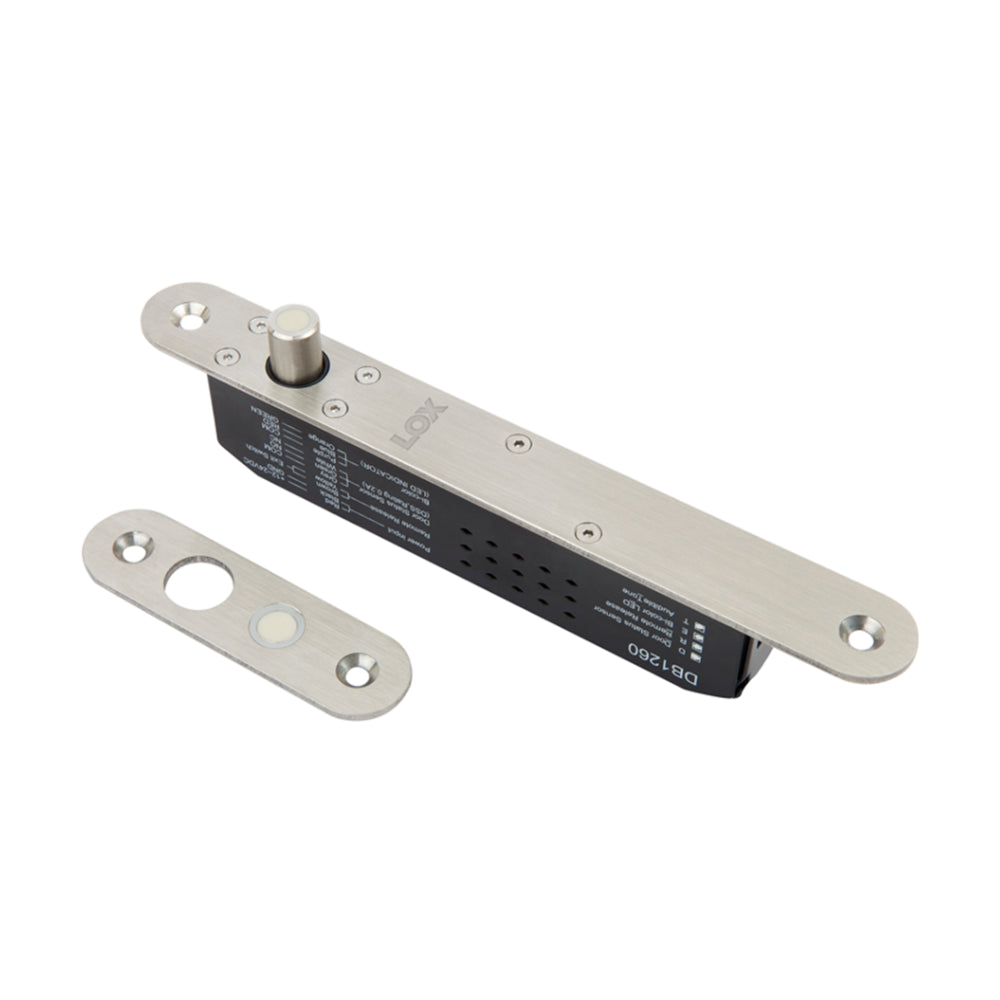

LOX DB1260PTL Electric Drop Bolt – Narrow Style, Fail-Safe (Power to Lock), 300kg, Fire Rated
Overview
The LOX DB1260PTL is a premium electric drop bolt engineered for narrow-frame swing doors and glass door installations where a standard-width lock simply won’t fit. With a slimline 25mm faceplate and just 35mm body depth, it slots cleanly into a 44mm door frame while delivering a formidable 300kg holding force via a 14.5mm stainless steel bolt. Operating in Fail-Safe (Power to Lock) mode, it automatically releases during a power failure — keeping occupants safe and your installation compliant with Australian fire egress requirements.
Description
Drop bolts are the preferred locking solution for swing doors where a maglock isn’t suitable — particularly on narrow aluminium frames, frameless glass doors, and timber doors where a recessed mortice mount is required. The DB1260PTL’s slimline profile solves the most common installation challenge: fitting a high-security electric lock into a frame that’s too narrow for standard hardware.
The built-in Door Status Sensor (DSS) uses a reed switch to provide real-time door position feedback to your access control panel, while the selectable 0, 3, 6, or 10-second re-lock time delay gives installers flexibility to match the lock behaviour to the door closer speed. Integrated surge protection (MOV varistor) guards the internal circuitry against voltage spikes — a practical feature in Australian commercial environments where power quality can vary. Dual 12VDC/24VDC compatibility and a 4-hour fire rating round out a specification sheet that covers virtually every commercial installation scenario.
Key Features
-
300kg Holding Force: High-security bolt retention tested to 400,000 cycles for long-term commercial reliability.
-
Slimline 25mm Faceplate: 35mm body depth fits into 44mm narrow door frames — ideal where standard locks won’t fit.
-
Fail-Safe (Power to Lock): Automatically releases when power is cut, ensuring safe emergency egress and fire compliance.
-
4-Hour Fire Rating: Certified to Australian Standards (AS) for use on fire-rated door assemblies.
-
Selectable Re-Lock Time Delay: Choose 0, 3, 6, or 10 seconds to match your door closer speed and site requirements.
-
Door Status Sensor (DSS): Integrated reed switch provides real-time door position monitoring to your access control panel.
-
Built-In Surge Protection: MOV varistor protects internal circuits from voltage spikes — extends product life in variable power environments.
-
Dual Voltage – 12VDC / 24VDC: Compatible with most access control power supplies and panels used across Australia.
-
Mortice Mount (Recessed): Clean, flush installation into the door frame edge for a professional finish.
-
Wide Operating Temperature: -20°C to +60°C — suitable for both air-conditioned interiors and exposed Australian outdoor environments.
Use Cases
- Narrow aluminium-frame swing doors in commercial office buildings
- Frameless and semi-frameless glass door installations
- Timber door frames in heritage and residential buildings
- Fire-rated door assemblies requiring fail-safe electric locking
- School and university secure access doors
- Healthcare facility controlled entry points with door monitoring
- Retail and hospitality back-of-house doors
- Strata and apartment building common area doors with narrow frames
Technical Specifications
| Specification |
Detail |
| Model |
LOX DB1260PTL |
| Mounting Type |
Mortice Mount (Recessed) |
| Configuration |
Fail-Safe – Power to Lock (PTL) |
| Holding Force |
Up to 300kg |
| Operating Voltage |
12VDC / 24VDC (Dual Voltage) |
| Current Draw @ 12VDC |
Initial: 1.15A | Standby: 250mA |
| Current Draw @ 24VDC |
Initial: 0.62A | Standby: 140mA |
| Bolt Diameter |
14.7mm |
| Bolt Throw |
14.5mm |
| Faceplate Size |
210mm (L) × 25mm (W) |
| Body Depth |
35mm (fits 44mm door frame) |
| Re-Lock Time Delay |
Selectable: 0, 3, 6, or 10 seconds |
| Door Monitoring |
DSS via Reed Switch |
| Surge Protection |
MOV Varistor (Built-In) |
| Operating Temperature |
-20°C to +60°C |
| Cycle Rating |
400,000 cycles |
| Certifications |
CE, C-Tick, 4-Hour Fire Rated (AS) |
Recommended Accessories & Compatible Products
-
LOX DB1260PTO – Fail-Secure (Power to Open) version of the DB1260 for applications where the door must remain locked during a power failure.
-
Strike Plate / Bolt Receiver – Matching LOX strike plate for correct bolt engagement and full holding force.
-
Access Control Power Supply (12VDC / 24VDC) – Regulated power supply with battery backup to maintain lock operation during outages.
-
Exit Button / Request-to-Exit (RTE) – Surface-mount or flush egress button for compliant door release.
-
Door Closer – Overhead door closer to ensure the door returns to the locked position after each use; required for fire door compliance in Australia.
-
Access Control Panel / Door Controller – Compatible with any panel accepting DSS reed switch monitoring input.
Frequently Asked Questions
What is the difference between Fail-Safe (PTL) and Fail-Secure (PTO)?
The DB1260PTL is Fail-Safe (Power to Lock) — it locks when power is applied and releases when power is cut. This is the correct configuration for most commercial and fire-rated door applications in Australia where safe egress during a power failure is required. If you need the door to remain locked during a power failure, the Fail-Secure (Power to Open) DB1260PTO is the alternative.
What door frame width does the DB1260PTL fit?
The DB1260PTL has a 35mm body depth and is designed to fit into a 44mm door frame. Its 25mm faceplate makes it suitable for narrow aluminium, timber, and glass door frames where standard-width locks cannot be used.
Does the DB1260PTL include door position monitoring?
Yes. The DB1260PTL includes an integrated Door Status Sensor (DSS) via a reed switch, providing real-time door position feedback to your access control panel.
What is the re-lock time delay and how do I set it?
The re-lock delay is selectable at 0, 3, 6, or 10 seconds and is set via an internal switch. This allows you to match the lock’s re-engagement timing to your door closer speed, preventing the bolt from striking the frame before the door is fully closed.
Is the DB1260PTL suitable for fire-rated doors?
Yes. The DB1260PTL carries a 4-hour fire rating to Australian Standards (AS), making it suitable for use on fire-rated door assemblies in commercial buildings.
Do you ship Australia-wide?
Yes. We ship to all states and territories including NSW, VIC, QLD, WA, SA, TAS, ACT, and NT. Contact us for bulk order pricing and project quotes.
