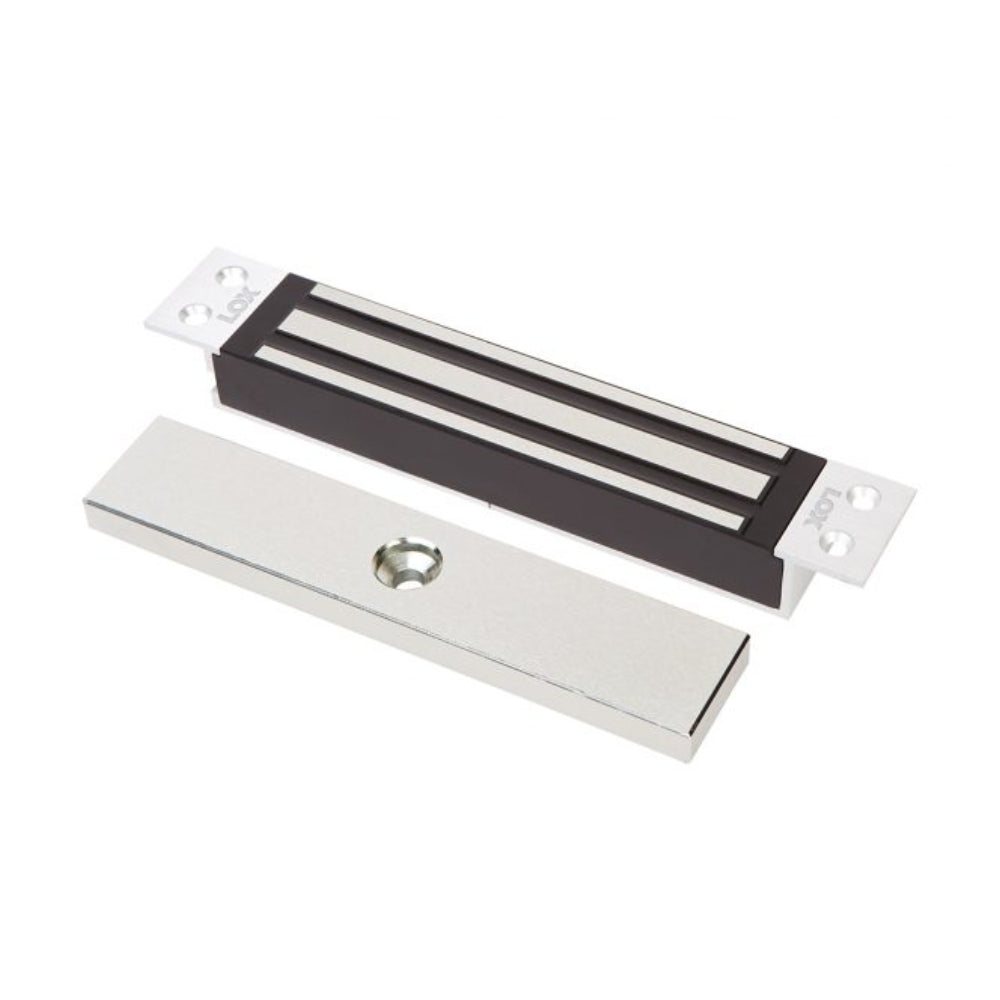

LOX EM3500FM Flush Mount Electromagnetic Lock | 280kg | Monitored | Fire Rated
The LOX EM3500FM is a high-performance, flush-mount (recessed) electromagnetic lock engineered for architectural applications where a clean, concealed finish is essential. Delivering 280kg of holding force with integrated dual monitoring — Lock Status Sensing (LSS) and Door Status Sensing (DSS) — it provides both robust security and full access control system integration, all hidden neatly within the door frame.
Key Features
-
280kg Holding Force — reliable, heavy-duty security in a concealed form factor
-
Flush / Recessed Mount — lock body installs within the door frame header for a seamless, architectural finish on timber or metal frames
-
Dual Monitoring (LSS & DSS) — Lock Status Sensor monitors the magnetic bond (locked/unlocked); Door Status Sensor uses a built-in reed switch to track door position (open/closed)
-
Up to 4-Hour Fire Rating — tested and certified to Australian Standards (AS), CE & RCM approved
-
Dual Voltage (12VDC / 24VDC) — site-selectable voltage, compatible with most access control power supplies
-
Anti-Tamper Plate — protects the armature bolt from tampering or forced manipulation
-
No Moving Parts — 1,000,000+ cycle tested for high-traffic, long-life commercial use
-
Lifetime Warranty — covered by the LOX Locking lifetime replacement warranty
Use Cases
-
Architectural & High-End Commercial Fitouts — offices, hotels, and corporate lobbies where aesthetics and security must coexist
-
Sliding Doors — flush mount design is ideal for sliding door headers where surface-mount locks are not practical
-
Swinging Doors with Concealed Hardware — internal doors requiring a hidden locking solution
-
Healthcare & Education — monitored access on fire-rated doors in hospitals, aged care, and schools
-
Government & Institutional Buildings — high-security doors requiring both fire compliance and door status feedback
-
Access Control Systems Requiring Monitoring — any installation where the panel needs real-time lock and door status signals
Technical Specifications
| Model |
LOX EM3500FM (Monitored) |
| Mounting Type |
Flush / Recessed Mount |
| Holding Force |
280kg (approx. 600 lbs) |
| Operating Voltage |
12VDC or 24VDC (site selectable) |
| Current Draw |
530mA @ 12VDC / 260mA @ 24VDC |
| Monitoring |
Dual — LSS (Lock Status Sensor) & DSS (Door Status Sensor / Reed Switch) |
| Fire Rating |
Up to 4 hours (to Australian Standards) |
| Tamper Protection |
Anti-tamper armature plate |
| Cycle Life |
1,000,000+ cycles |
| Approvals |
CE, RCM (C-Tick) |
| Warranty |
Lifetime (LOX Locking replacement warranty) |
| SKU |
EM3500FM |
| Brand |
LOX |
Downloads
Frequently Asked Questions
What is the difference between LSS and DSS monitoring?
LSS (Lock Status Sensor) monitors whether the electromagnetic bond is engaged — confirming the lock is physically holding the door. DSS (Door Status Sensor) uses a built-in reed switch to detect whether the door is physically open or closed, independent of the lock state. Together, they give your access control panel complete real-time visibility of both the lock and the door.
Is the EM3500FM suitable for sliding doors?
Yes. The flush-mount (recessed) design makes the EM3500FM particularly well suited to sliding door applications, where the lock body is installed within the door frame header and remains completely hidden when the door is closed.
Is the LOX EM3500FM fire rated?
Yes. The EM3500FM is fire rated to up to 4 hours in accordance with Australian Standards, and carries CE and RCM (C-Tick) approvals, making it suitable for fire-rated doors on compliant egress paths.
What warranty does the EM3500FM carry?
The EM3500FM is covered by the LOX Locking lifetime replacement warranty, reflecting the brand’s confidence in the long-term reliability of this product.
