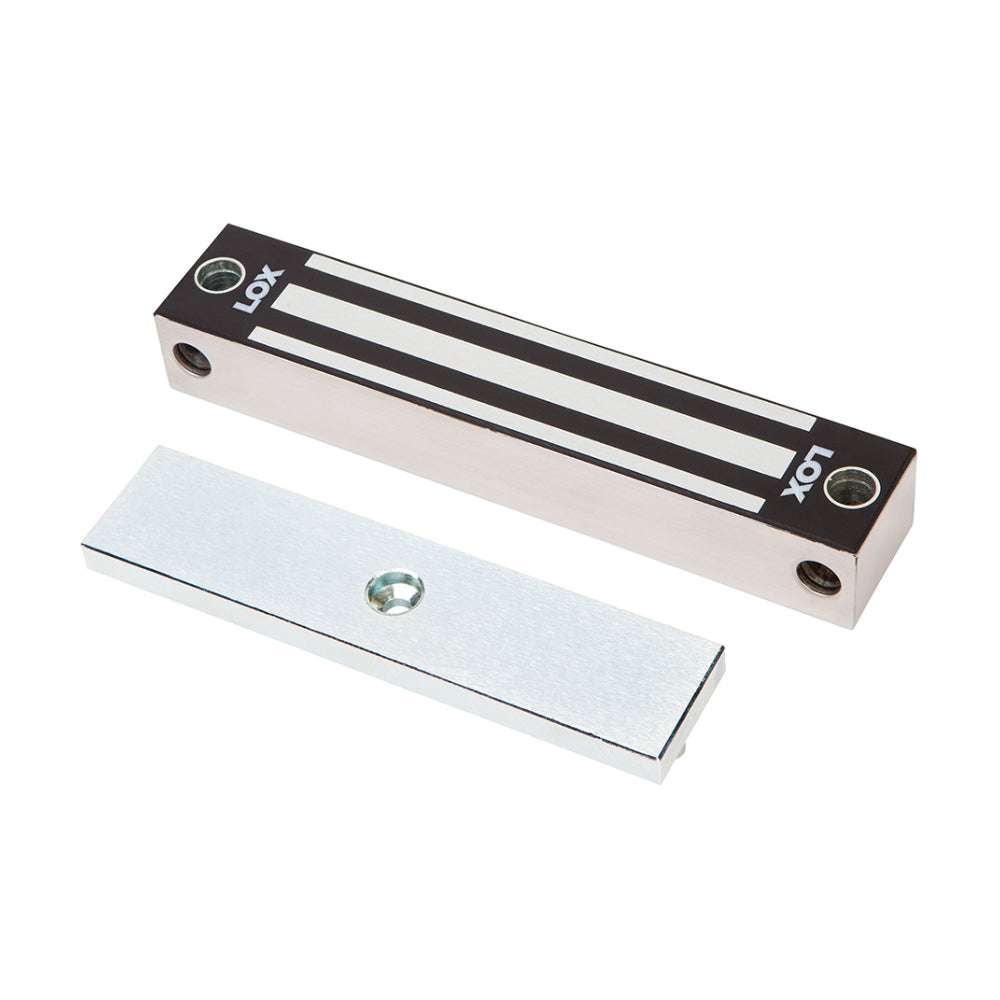

LOX EM4500 IP67 Weatherproof Magnetic Gate Lock – 200kg Holding Force
Overview
The LOX EM4500 is a compact, heavy-duty electromagnetic gate lock engineered specifically for outdoor and harsh-environment applications. Built from 304-grade stainless steel and rated IP67 for full dust and water immersion protection, it delivers reliable 200kg holding force on gates and external doors exposed to Australia’s toughest weather conditions — from coastal salt spray to tropical downpours.
Key Features
-
IP67 Weatherproof Rating – Fully sealed against dust ingress and water immersion; suitable for exposed outdoor gate installations.
-
304-Grade Stainless Steel Housing – Corrosion-resistant construction designed to withstand coastal, tropical, and high-humidity environments.
-
200kg Holding Force – Reliable security in a compact mini form factor, ideal for pedestrian gates and access-controlled perimeters.
-
Monitored Reed Switch (DSS) – Built-in Door Status Sensor provides real-time open/closed gate monitoring via your access control system.
-
Zero Residual Magnetism – Instant gate release on power-off; no sticking or delayed egress.
-
Dual Voltage Operation – Accepts 12VDC or 24VDC for flexible integration with existing access control infrastructure.
-
Dual Fixing Arrangement – Supports both front and header mounting to suit a wide range of gate configurations.
-
Wide Operating Temperature – Rated from -20°C to +60°C for reliable performance in extreme Australian climates.
-
Lifetime Warranty – Manufacturer-backed for long-term confidence in demanding outdoor installations.
Use Cases
- Pedestrian access gates at commercial and industrial sites
- Perimeter security gates in coastal or high-humidity environments
- School and childcare facility entry gates requiring monitored access control
- Residential estate and apartment complex gates
- Car parks, loading docks, and service yard entry points
- Any outdoor gate application where IP67 protection is required
Technical Specifications
| Specification |
Details |
| Model |
EM4500 (Monitored) |
| Housing Material |
304-Grade Stainless Steel |
| IP Rating |
IP67 (Dust & Water Immersion) |
| Holding Force |
200kg |
| Monitoring Output |
Reed Switch (Door Status Sensor) |
| Input Voltage |
12VDC / 24VDC |
| Current Draw (12V) |
360mA |
| Current Draw (24V) |
180mA |
| Operating Temperature |
-20°C to +60°C |
| Mounting Options |
Front Mount / Header Mount (Dual Fixing) |
| Warranty |
Lifetime |
Downloads
Frequently Asked Questions
Is the EM4500 suitable for coastal environments?
Yes. The 304-grade stainless steel housing and IP67 rating make it highly resistant to corrosion and salt spray. It is one of the most suitable electromagnetic locks available for coastal Australian installations.
What does the IP67 rating mean in practice?
IP67 means the lock is fully protected against dust ingress (6) and can withstand temporary water immersion up to 1 metre for 30 minutes (7). This makes it suitable for exposed outdoor gates subject to heavy rain, hose-down cleaning, or flooding risk.
Does the EM4500 require a specific bracket?
The EM4500 supports dual fixing (front and header mount). For inward-opening gates, the LOX AMZB3 L & Z Bracket is commonly required for a secure fit. Refer to the LOX Accessories Guide above for compatible bracket options.
Can I monitor whether the gate is open or closed?
Yes. The EM4500 includes a built-in Reed Switch (Door Status Sensor) that outputs an open/closed signal to your access control panel, enabling real-time gate status monitoring and alarm integration.
What power supply do I need?
The EM4500 operates on 12VDC (360mA) or 24VDC (180mA). Ensure your power supply is rated for continuous outdoor use and can deliver sufficient current. A weatherproof enclosure for the power supply is recommended for fully exposed installations.
Is this lock fail-safe or fail-secure?
The EM4500 is a fail-safe (fail-open) device — it releases when power is removed. This is the standard and required behaviour for fire egress compliance on designated exit paths. For fail-secure applications, a different locking mechanism is required.
Installer Note: For inward-opening gates, pair the EM4500 with the LOX AMZB3 L & Z Bracket to achieve correct armature plate alignment. Always use a weatherproof power supply enclosure for fully exposed outdoor installations.
