Description

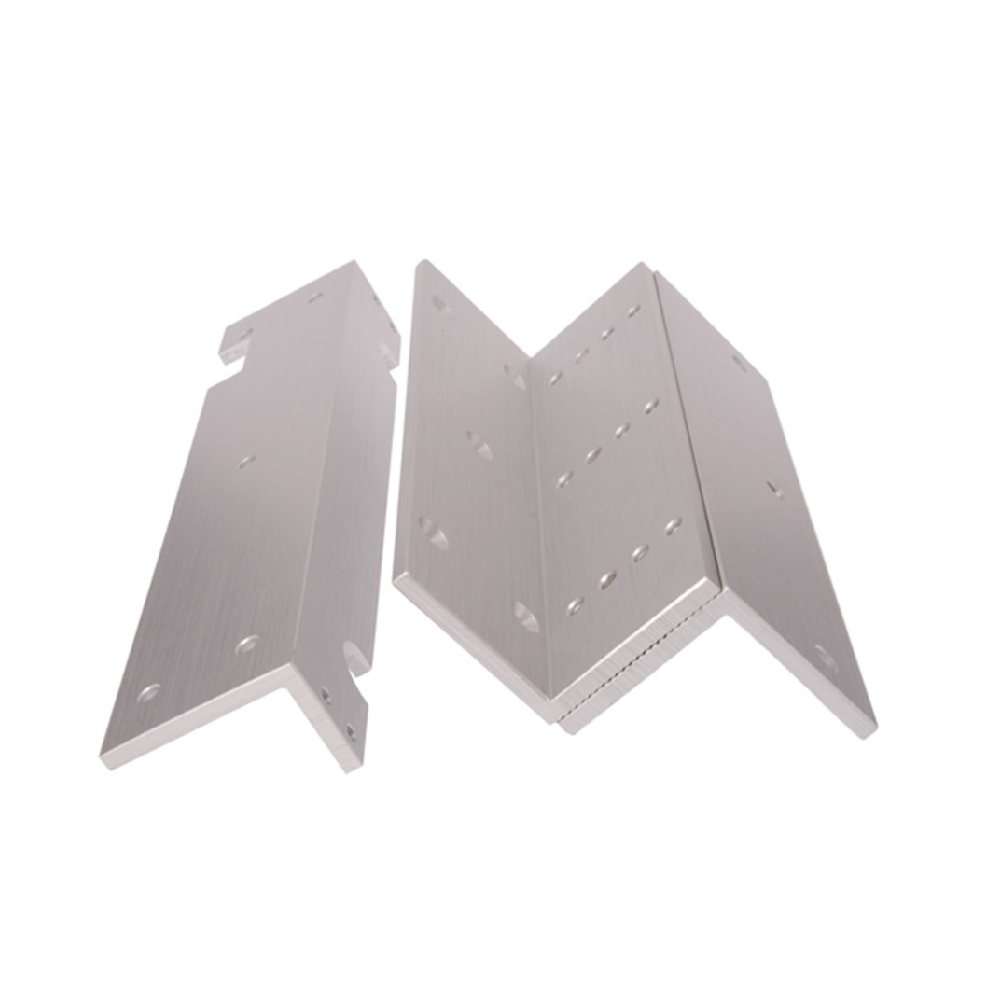

LOX AMZB4-LP L & Z Bracket Kit – Single Electromagnetic Lock Mounting for Inward-Opening Doors
Overview
The LOX AMZB4-LP is a professional-grade L & Z bracket kit engineered for mounting single electromagnetic locks on inward-opening (swing-in) doors. Designed specifically for the LOX EM3500, EM3500M, and EM5700 maglock series, this kit delivers precise armature alignment, a clean architectural finish, and compliance with fire-rated door assemblies — making it the go-to choice for Australian security installers and facility managers.
Description
When a door swings inward, a standard L bracket simply won't do the job. The AMZB4-LP solves this with its combined L and Z plate design, allowing the magnet to sit on the door frame while the armature plate remains correctly positioned on the door leaf. The result is full holding force, a flush finish, and a reliable installation that stands up to daily use in commercial and government environments.
Constructed from high-grade anodised aluminium, the bracket resists corrosion in humid Australian conditions and blends seamlessly with modern door hardware. Multiple adjustment slots accommodate varying door and frame thicknesses, reducing installation time and eliminating the need for custom fabrication.
Key Features
-
Designed for Inward-Opening Doors: The L & Z configuration is the correct and reliable solution when the door swings into the secured area.
-
Compatible with LOX EM3500, EM3500M & EM5700: Purpose-built fitment ensures full holding force and no compromise on lock performance.
-

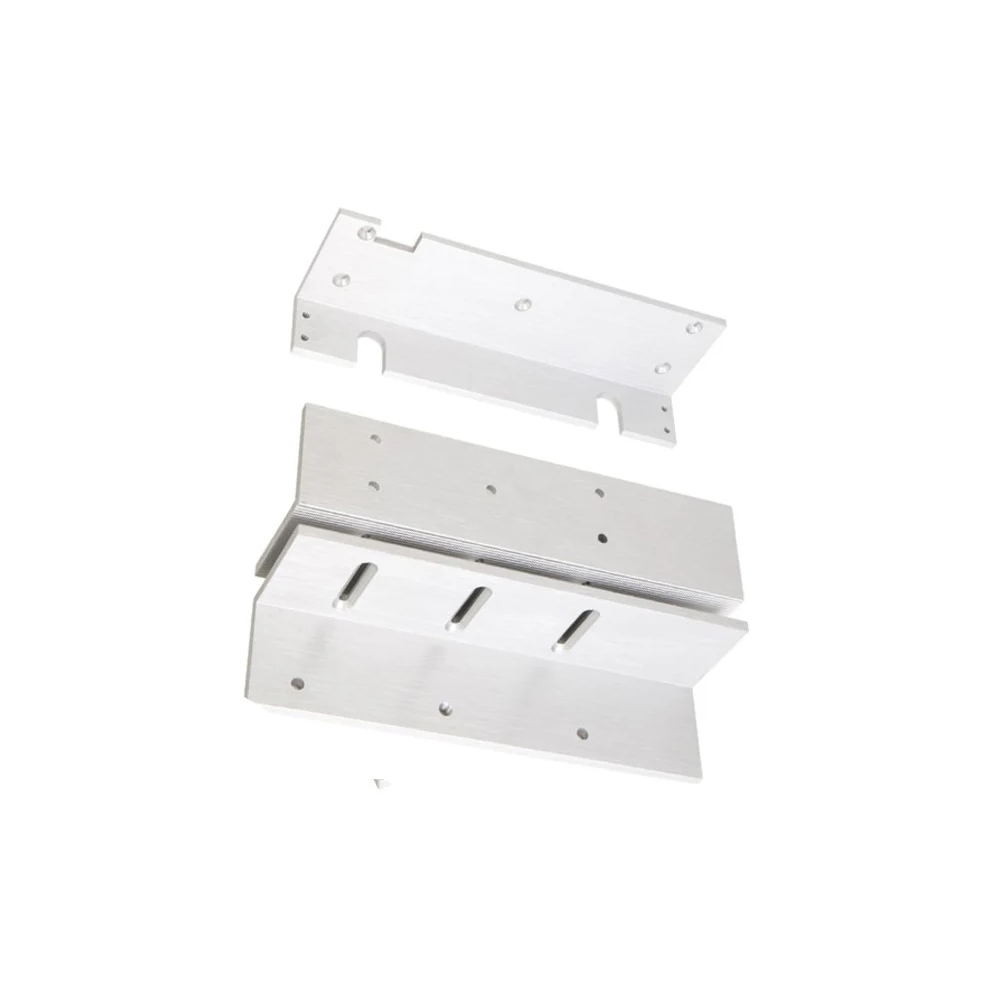

Adjustable Z-Plate: Multiple mounting slots allow precise armature alignment across different door and frame profiles.
-
Anodised Aluminium Construction: Corrosion-resistant satin silver finish suits commercial interiors and withstands Australian humidity.
-
Fire-Rated & CE Approved: Suitable for use on fire-rated door assemblies, maintaining building compliance and safety integrity.
-
Anti-Tamper Design: Fixings are concealed once installed, deterring unauthorised removal.
-

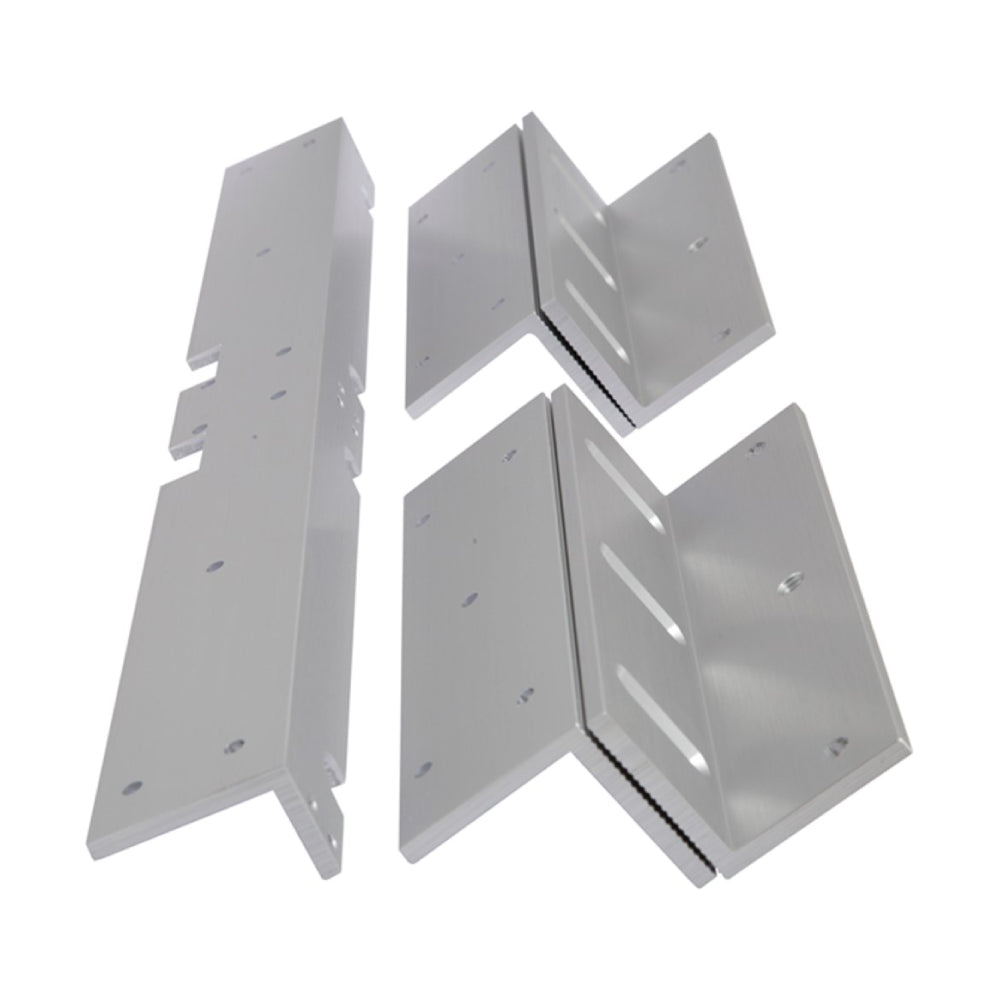

Low-Profile Build: Minimises protrusion from the door frame for a clean, professional appearance.
Use Cases
- Commercial office entry and server room doors
- Retail store back-of-house and stockroom access
- Government and healthcare facility secure zones
- Educational institutions and childcare centres
- Strata and apartment building common area doors
- Any inward-opening door requiring a LOX EM3500 or EM5700 maglock installation
Technical Specifications
| Specification |
Detail |
| Model |
AMZB4-LP (Single) |
| Compatible Locks |
LOX EM3500, EM3500M, EM5700 |
| Door Configuration |
Inward Opening (Swing-In) |
| Material |
High-Grade Anodised Aluminium |
| Finish |
Satin Anodised Silver |
| Adjustment |
Adjustable Z-Plate for armature alignment |
| Certification |
Fire Rated, CE Approved |
| Profile |
Low Profile (LP) |
| Quantity |
Single Kit |
Frequently Asked Questions
What is the difference between a standard L bracket and this L & Z kit?
A standard L bracket is designed for outward-opening doors. The L & Z kit is required for inward-opening doors — it allows the armature plate to remain on the door leaf while the magnet is fixed to the frame, maintaining correct alignment and full holding force.
Will this bracket work with other brands of maglocks?
The AMZB4-LP is purpose-built for the LOX EM3500 and EM5700 series. It may physically fit other 280 kg (600 lb) maglocks with similar mounting hole patterns, but we recommend pairing it with LOX locks for guaranteed compatibility and performance.
Is this bracket suitable for fire-rated doors?
Yes. The AMZB4-LP is approved for use on fire-rated door assemblies, making it compliant for use in buildings where fire door integrity must be maintained.
Do I need any special tools to install this bracket?
Standard installation tools are sufficient. The adjustable slots reduce the need for custom drilling, and the concealed fixings provide a clean finish once installed. Always refer to the LOX installation guide for your specific lock model.
