Description

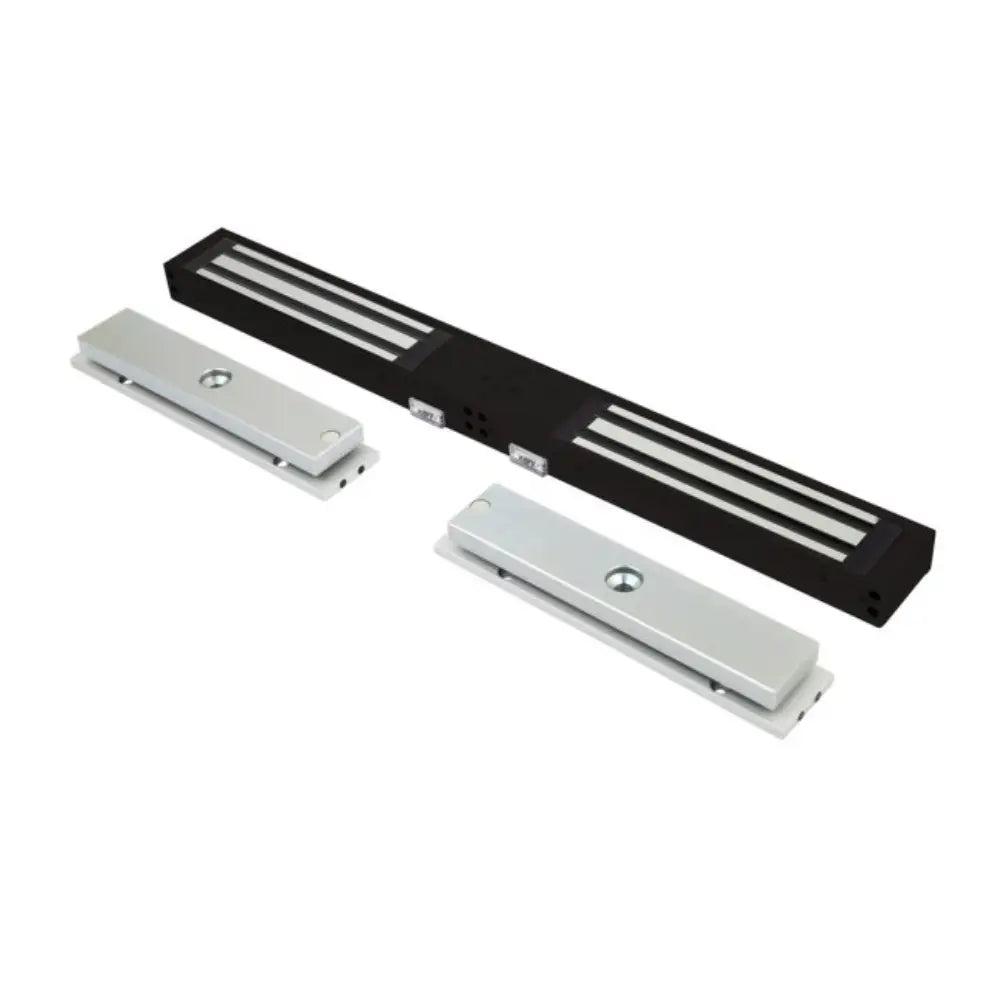

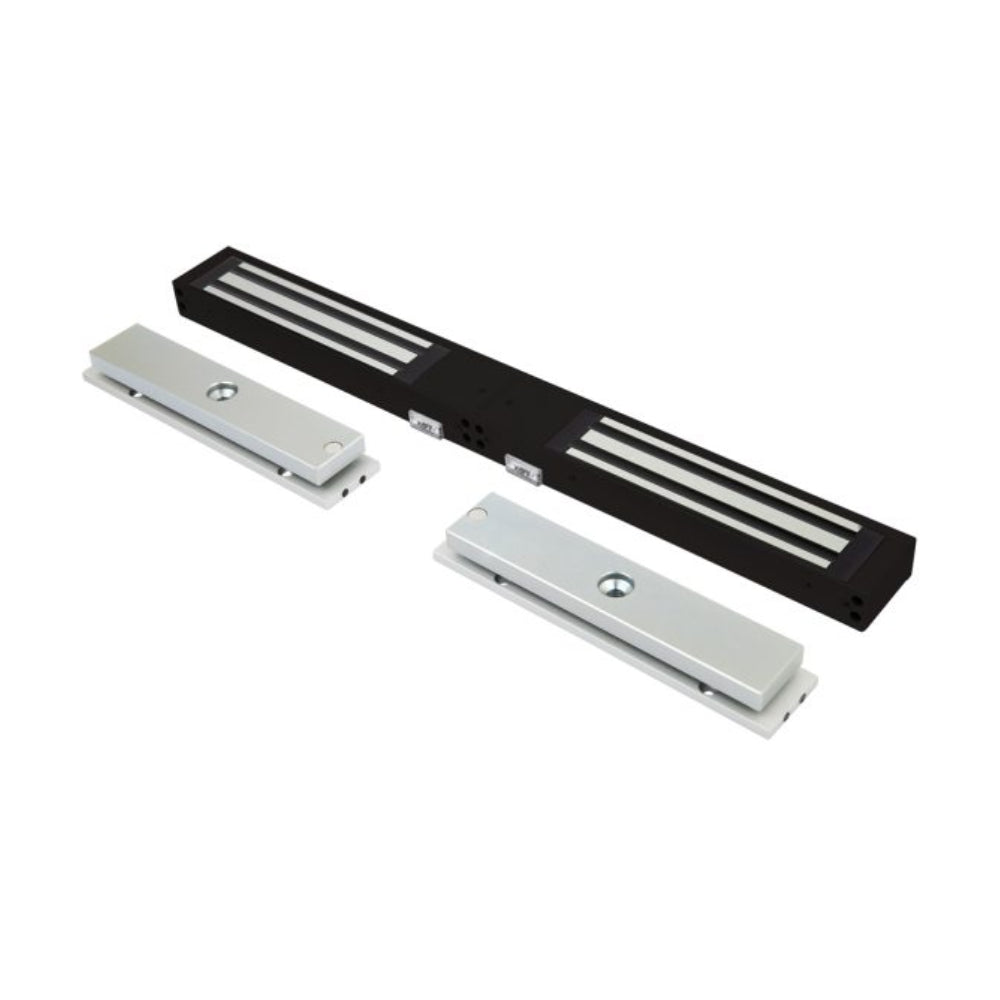

LOX EM3500DM-BLK Double Door Slimline Maglock | Black Anodised | 280kg | Monitored
The LOX EM3500DM-BLK is a premium black anodised double-door electromagnetic lock from the LOX Slimline Series, engineered for high-traffic commercial and architectural environments where aesthetics matter as much as security. Delivering 280kg of holding force per door with integrated dual monitoring (LSS & DSS), a 4-hour fire rating, and a lifetime warranty, it is one of the most capable and trusted maglocks available in Australia.
Key Features
-
280kg Holding Force Per Door — robust double-door security with 560kg combined holding strength
-
Black Anodised Aluminium Housing — sleek, modern finish that integrates seamlessly with contemporary architectural hardware and dark door frames
-
Dual Monitoring (LSS & DSS) — built-in Hall Effect Sensor (Lock Status) and Reed Switch (Door Status) for full access control panel integration
-
Up to 4-Hour Fire Rating — certified to Australian Standards (AS), suitable for fire-rated exit doors and egress compliance
-
Dual Voltage (12VDC / 24VDC) — compatible with most standard access control and alarm power supplies
-
Fail-Safe Operation — door releases when power is removed, ensuring safe egress in emergencies
-
Zero Residual Magnetism — instant door release with no magnetic sticking after de-energisation
-
Anti-Tamper Fixing Plate — protects armature plate bolts against forced manipulation
-
Slimline Profile — compact 477mm × 48mm × 25mm body for discreet header installation
-
Lifetime Warranty — covered by the LOX Locking lifetime replacement warranty
Use Cases
-
Commercial Office Buildings — double-door lobby entries and internal access points with dark or black hardware finishes
-
Retail & Hospitality — boutique retail, hotels, and restaurants requiring discreet, high-performance locking
-
Healthcare Facilities — monitored double-door access on fire-rated egress paths in hospitals and aged care
-
Education — school and university double-door entries requiring fire-rated, monitored locking
-
Government & Institutional — high-security double doors requiring both fire compliance and real-time door status feedback
-
Architectural Fitouts — any project where a black anodised finish is specified for access control hardware
Technical Specifications
| Model |
LOX EM3500DM-BLK (Double Monitored) |
| Door Configuration |
Double Door |
| Holding Force |
280kg per door (560kg combined) |
| Operating Voltage |
12VDC or 24VDC |
| Current Draw |
1060mA @ 12VDC / 540mA @ 24VDC |
| Dimensions (L × H × D) |
477mm × 48mm × 25mm |
| Monitoring |
LSS (Hall Effect — Lock Status) & DSS (Reed Switch — Door Status) |
| Fail Mode |
Fail-Safe (releases on power loss) |
| Residual Magnetism |
Zero |
| Fire Rating |
Up to 4 hours (to Australian Standards) |
| Finish |
Black Anodised Aluminium |
| Tamper Protection |
Anti-tamper fixing plate |
| Warranty |
Lifetime (LOX Locking replacement warranty) |
| SKU |
EM3500DM-BLK |
| Brand |
LOX |
Downloads
Frequently Asked Questions
What is the difference between the EM3500DM-BLK and the standard EM3500D?
The EM3500DM-BLK adds dual monitoring (LSS Hall Effect sensor and DSS reed switch) and comes in a black anodised finish. The standard EM3500D is non-monitored and available in a silver/natural anodised finish. Choose the DM-BLK when your access control panel requires real-time lock and door status feedback, or when a black finish is specified.
Is the EM3500DM-BLK fail-safe or fail-secure?
The EM3500DM-BLK operates in fail-safe mode — the door releases when power is removed. This is the required configuration for fire egress doors, ensuring occupants can always exit in an emergency.
Is this maglock fire rated?
Yes. The EM3500DM-BLK is fire rated to up to 4 hours in accordance with Australian Standards, making it suitable for installation on fire-rated double doors on compliant egress routes.
What does “zero residual magnetism” mean in practice?
It means the door releases instantly the moment power is cut, with no lingering magnetic force. This is critical for egress compliance and prevents the door from sticking after the lock is de-energised.
