Description

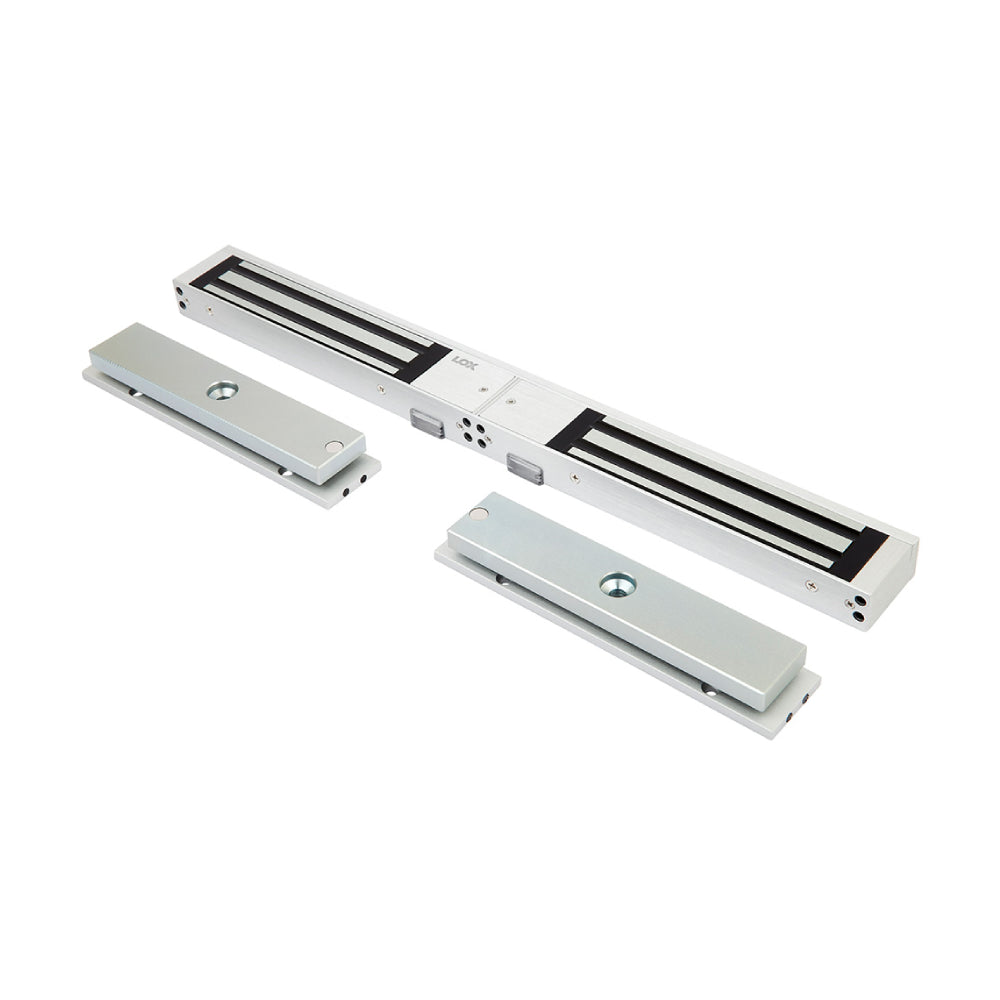

LOX EM3500D Double Door Electromagnetic Lock | 560kg | 12/24VDC | Fire Rated
The LOX EM3500D is one of Australia's most trusted electromagnetic locks for double-door applications. Delivering 280kg of holding force per magnet (560kg combined), it is engineered for commercial, institutional, and industrial facilities where reliable, fire-rated access control is non-negotiable. Zero residual magnetism ensures instant door release the moment power is removed.
Key Features
-
560kg Total Holding Force — 280kg per magnet, providing robust security across both leaves of a double door
-
Up to 4-Hour Fire Rating — certified to Australian Standards (AS), suitable for fire-rated exit routes and compliance-critical installations
-
Dual Voltage (12VDC / 24VDC) — compatible with most standard access control and alarm power supplies
-
Zero Residual Magnetism — door releases instantly when power is removed, preventing sticking or delayed egress
-
1 Million+ Cycle Tested — built for long-term, high-frequency commercial use
-
Integrated MOV (Varistor) — built-in surge protection guards against power spikes and voltage transients
-
CE & RCM (C-Tick) Approved — meets Australian and international compliance requirements
-
Non-Monitored — clean, cost-effective solution where door or lock status monitoring is not required
Use Cases
-
Commercial Building Entrances — main lobby double doors in offices, retail centres, and mixed-use buildings
-
Healthcare Facilities — hospital ward entries, pharmacy access, and controlled egress doors
-
Education — school and university double-door entries requiring fire-rated locking
-
Emergency Exit Routes — fire-rated double doors on compliant egress paths
-
Glass Double Doors — when used with compatible LOX glass door brackets or armature holders
-
Industrial & Warehouse — high-traffic double-door access points requiring heavy-duty holding force
Technical Specifications
| Model |
LOX EM3500D (Non-Monitored) |
| Door Configuration |
Double Door |
| Holding Force |
280kg × 2 (560kg total) |
| Operating Voltage |
12VDC or 24VDC |
| Current Draw |
530mA × 2 @ 12V / 260mA × 2 @ 24V |
| Fire Rating |
Up to 4 hours (to Australian Standards) |
| Residual Magnetism |
Zero |
| Cycle Life |
1,000,000+ cycles |
| Surge Protection |
Integrated MOV (Varistor) |
| Operating Temperature |
−20°C to +60°C |
| Approvals |
CE, RCM (C-Tick) |
| Monitoring |
Non-Monitored (see EM3500DM for monitored version) |
| SKU |
EM3500D |
| Brand |
LOX |
Downloads
Frequently Asked Questions
What is the difference between the EM3500D and the EM3500DM?
The EM3500D is the non-monitored version — ideal where lock or door status feedback is not required. The EM3500DM adds Lock Status Sensing (LSS), Door Status Sensing (DSS), and LED indicators for integration with access control panels that require door monitoring.
Is the LOX EM3500D suitable for fire-rated doors?
Yes. The EM3500D is fire rated to up to 4 hours in accordance with Australian Standards, making it suitable for installation on fire-rated double doors on compliant egress routes.
Can the EM3500D be used on glass double doors?
Yes, when paired with compatible LOX glass door brackets or armature holders. Refer to the LOX Accessories Catalogue (available in the Downloads section above) for suitable bracket options.
What does “zero residual magnetism” mean?
It means the maglock releases the door instantly when power is cut, with no lingering magnetic force. This is critical for egress compliance and ensures the door does not stick after the lock is de-energised.
