FSH FES20 Series · Australian footprint
High-security electric strike with field-selectable locking mode

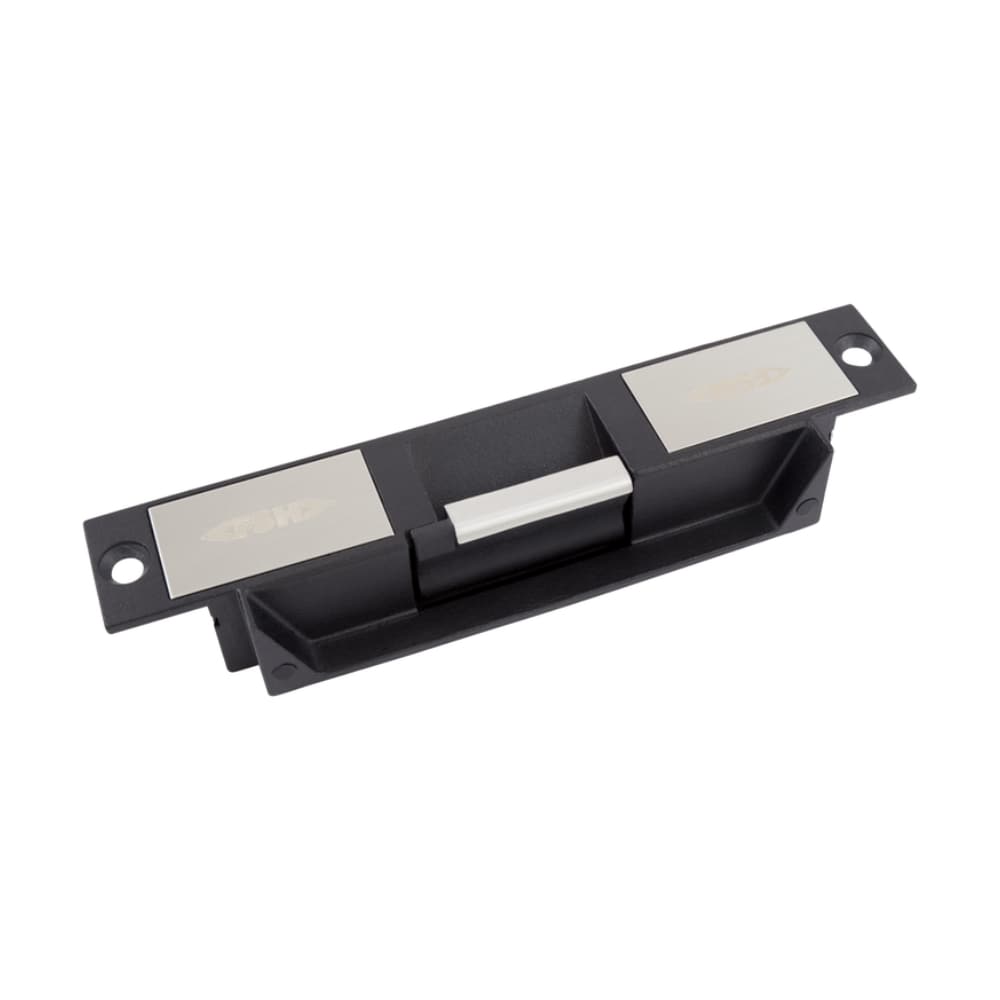

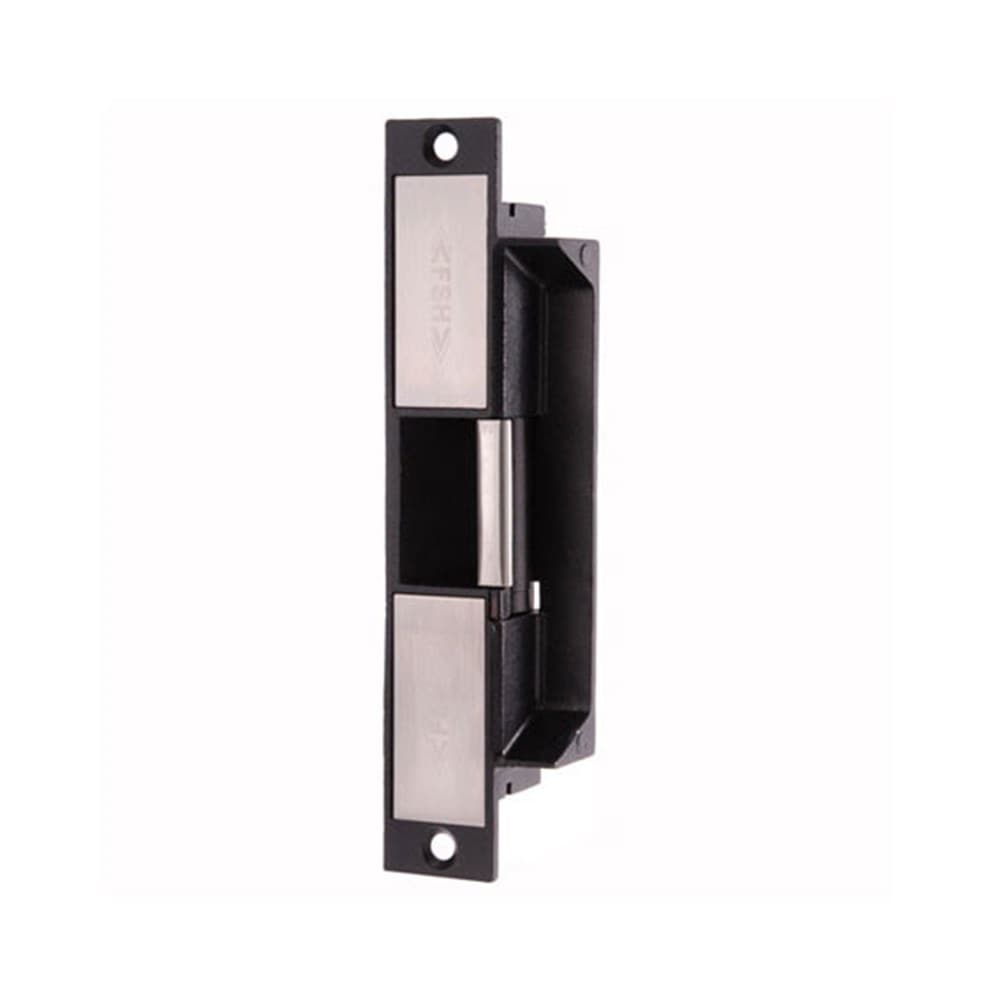

The FSH FES20 Series is a stainless-steel mortise electric strike for hinged-door access-control installations. Both models accept 12–36VDC and allow the installer to select Power to Lock (PTL / fail safe) or Power to Open (PTO / fail secure) on site without loose pins or springs.
Choose the standard FES20 non-monitored model for straightforward controlled entry, or the FES20M fully monitored model when the access-control system needs lock, latch and anti-tamper feedback.
Key features
-
High-security construction: stainless-steel strike with holding strength up to 1,200kg according to the current FSH specification.
-
Field-selectable PTL/PTO: select fail-safe or fail-secure operation during installation.
-
Wide-voltage input: operates from 12 to 36VDC.
-
Australian footprint: designed for compatible Australian mortise strike preparations.
-
10mm strike lip: supplied as standard and pre-drilled for optional extension lips.
-
Fire rated: tested for up to four hours in accordance with AS 1905.1:2015; suitability depends on the approved door assembly.
-
Installation hardware included: mounting kit supplied.
-
Five-year warranty: manufacturer-backed mechanical and electronic warranty.
Which model should I choose?
| Feature |
FES20 Non-Monitored |
FES20M Fully Monitored |
| Locking function |
PTL/PTO field selectable |
PTL/PTO field selectable |
| Input voltage |
12–36VDC |
12–36VDC |
| Monitoring outputs |
None |
LSS, DSS and ATS |
| SCEC approval |
No |
Yes, for secure areas |
| Best suited to |
Standard access-controlled doors where status feedback is not required |
Higher-security sites requiring lock, latch and removal monitoring |
Understanding FES20M monitoring
-
LSS — Lock Status Sensor: reports the status of the internal locking mechanism.
-
DSS — Door Status Sensor: reports whether the door latch is engaged in the strike keeper.
-
ATS — Anti-Tamper Sensor: reports whether the strike remains installed in the door frame.
Technical specifications
| Models |
FES20 non-monitored / FES20M fully monitored |
| Mounting |
Mortise mount, Australian footprint |
| Construction |
Stainless steel |
| Locking modes |
Power to Lock / Power to Open, field selectable |
| Input voltage |
12–36VDC |
| Current draw |
220mA at 12VDC; 120mA at 24VDC; 80mA at 36VDC |
| Holding strength |
Up to 1,200kg |
| Standard strike lip |
10mm; pre-drilled for optional extension lips |
| Fire rating |
Up to four hours in accordance with AS 1905.1:2015; contact Allegion/FSH for project-specific approval details |
| Warranty |
5 years |
What’s included
- 1 × selected FSH FES20 Series electric strike
- 1 × mounting kit
Optional extension lips, power supplies, access-control equipment and other door hardware are sold separately unless specifically stated.
Installation notes
Electric strikes form part of the complete door, lock and access-control system. Door preparation, latch compatibility, wiring, operating mode and fire-door suitability should be confirmed by a qualified locksmith or access-control installer before ordering. Fire-rated use is subject to the approved door assembly and applicable project requirements.
Frequently asked questions
What is the difference between FES20 and FES20M?
The FES20 is non-monitored. The FES20M adds lock-status, door-latch and anti-tamper monitoring and is SCEC approved for secure areas.
Can I change between fail-safe and fail-secure operation?
Yes. Both models use FSH’s field-selectable PTL/PTO mechanism, allowing the installer to choose Power to Lock or Power to Open during installation.
Will it operate from a 12V or 24V access-control supply?
Yes. Both models accept 12–36VDC. Ensure the power supply has sufficient regulated current for the complete access-control system.
Is it suitable for fire-rated doors?
FSH states that the FES20 Series is rated for up to four hours in accordance with AS 1905.1:2015. Suitability must still be confirmed for the specific certified door assembly and installation.
