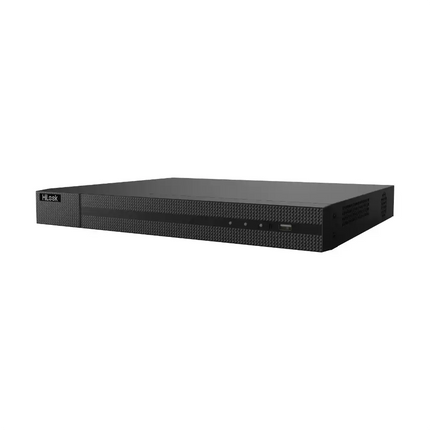

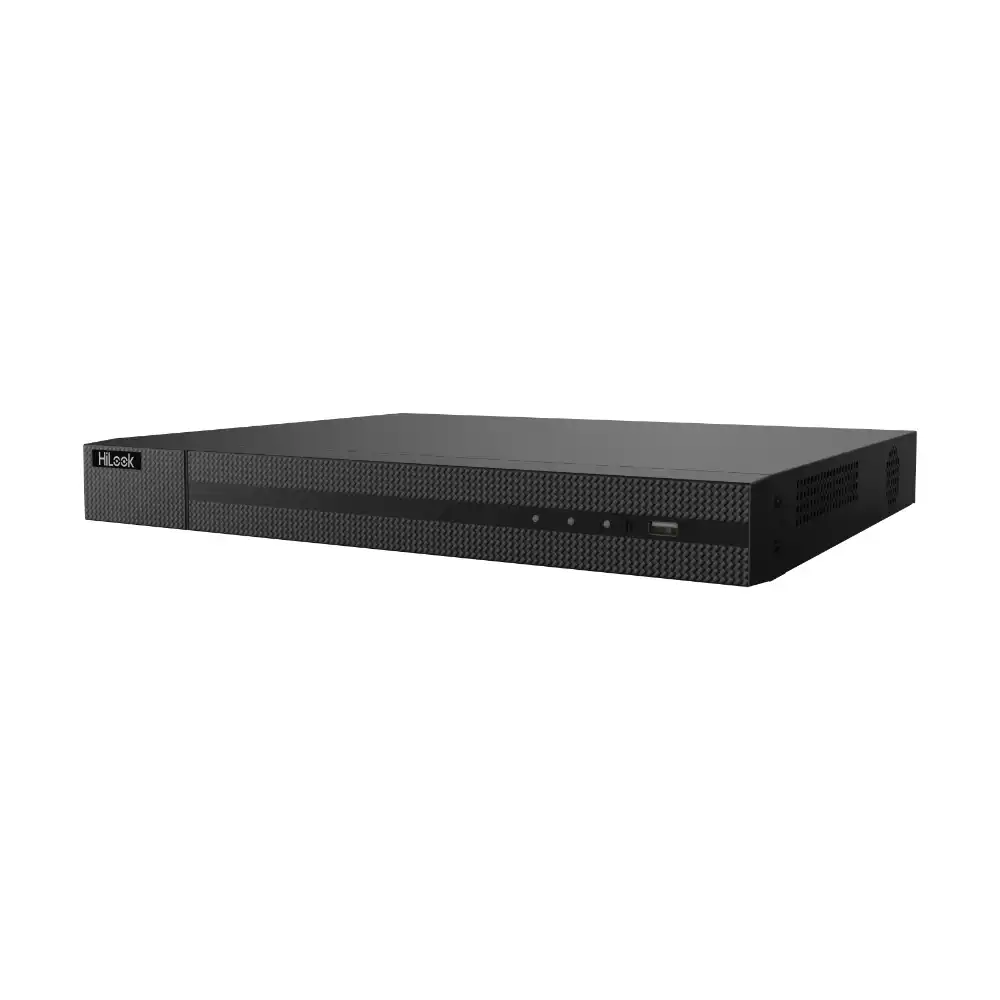

HiLook Pro NVR-216MH-K/16P — 16-Channel 16-PoE 4K Network Video Recorder

Description

The HiLook Pro NVR-216MH-K/16P is a 16-channel, 1U 4K NVR with 16 built-in PoE ports for fast plug-and-play camera installs. It supports H.265+/H.265/H.264+/H.264, delivers up to 160 Mbps incoming bandwidth, dual display outputs (HDMI up to 4K + VGA), and 2× SATA bays (up to 16TB per HDD) for reliable local recording.

Key benefits

  • True plug-and-play (16× PoE ports): power + data over one cable per camera (IEEE 802.3af/at), PoE budget up to 200W.
  • Crisp local viewing: HDMI up to 4K (3840×2160@30Hz) plus VGA, with independent output mode.
  • Storage-ready: 2× SATA bays, up to 16TB each (up to 32TB total, drive dependent).
  • Efficient compression: H.265+ support helps reduce storage and bandwidth vs older codecs.
  • AI features (smarter alarms): supports facial recognition / perimeter / Motion Detection 2.0 and more (feature availability depends on how analytics are deployed and which cameras are used).
  • Remote access capacity: up to 128 remote connections plus ONVIF Profile S/G compatibility for broader camera interoperability.
  • Low base power draw: ≤ 15W (without HDD and PoE off).

Technical Specifications

Key Specifications

Model NVR-216MH-K/16P (HiLook Pro)
IP Camera Inputs 16 channels
Built-in PoE Ports 16 × RJ-45 (10/100 Mbps), IEEE 802.3af/at, PoE budget up to 200 W
Video Compression H.265 / H.265+ / H.264+ / H.264
Incoming / Outgoing Bandwidth 160 Mbps / 160 Mbps
HDMI Output 1-ch, up to 4K (3840 × 2160) @ 30 Hz
VGA Output 1-ch, up to 1920 × 1080 @ 60 Hz
Playback Up to 16-ch synchronous playback
Decoding Capability Up to 2-ch @ 12MP / 4-ch @ 8MP / 8-ch @ 4MP / 16-ch @ 1080p (varies by AI settings)
Storage 2 × SATA HDD bays, up to 16 TB per HDD
USB Ports 2 × USB 2.0 (Front: 1, Rear: 1)
Alarm I/O 4 in / 1 out
Network Interface 1 × RJ-45 10/100/1000 Mbps
Protocols / Integration ONVIF (Profile S/G), SDK, ISAPI; RTSP, HTTPS, DDNS, NTP, SMTP, SNMP, NFS, iSCSI, UPnP and more
Remote Connections Up to 128
Power Supply 100–240 VAC, 50/60 Hz
Consumption ≤ 15 W (without HDD and PoE off)
Operating Temperature -10°C to 55°C
Dimensions (W × D × H) 385 × 315 × 52 mm
Weight ≤ 3 kg (without HDD)

Why this NVR is a great choice

  • Cleaner installs: 16 PoE ports power cameras directly—less gear, fewer points of failure.
  • Sharper live view: 4K HDMI output for crisp monitoring on a main display.
  • Longer retention: dual HDD bays for bigger storage and flexible RAID-free retention planning.
  • Smarter alerts: AI functions can help reduce false alarms when paired/configured correctly.
  • More compatibility: ONVIF support helps when mixing camera brands (where supported).

Guru's recommendation

Choose the NVR-216MH-K/16P if you want a clean up-to-16 camera install where the NVR powers the cameras directly (no separate PoE switch), and you want 4K local display plus dual HDD bays for longer retention. It’s a strong fit for:

  • retail shops, warehouses, offices, workshops
  • multi-camera home builds (driveway + perimeter + entry points)
  • customers wanting “set-and-forget” recording with room to expand to 16 IP cameras

FAQs

  • Does this NVR power cameras directly?
    Yes — it has 16 built-in PoE ports (IEEE 802.3af/at) with up to 200W PoE budget.
  • How many cameras can it record?
    Up to 16 IP cameras.
  • Does it support 4K output to a monitor?
    Yes — HDMI supports up to 4K (3840×2160@30Hz), plus a VGA output.
  • How much storage can I add?
    It has 2× SATA bays, up to 16TB per HDD (check HDD compatibility/availability).

HiLook Pro NVR-216MH-K/16P — 16-Channel 16-PoE 4K Network Video Recorder

Product form

SKU: NVR-216MH-K/16P

The HiLook Pro NVR-216MH-K/16P is a 16-channel, 1U 4K NVR with 16 built-in PoE ports for fast plug-and-play camera installs.... Read more

$510.00  $465.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay
    • Klarna
    • Shop Pay

    » Find this item cheaper? We will beat it by 5%. Chat now!

    Add Ons & Accessories

    • Dispatch today? Order within: Mar 05, 2026 14:00:00 +1100
    • Warranty:  months
    • 30 day money back guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support

    Description

    The HiLook Pro NVR-216MH-K/16P is a 16-channel, 1U 4K NVR with 16 built-in PoE ports for fast plug-and-play camera installs. It supports H.265+/H.265/H.264+/H.264, delivers up to 160 Mbps incoming bandwidth, dual display outputs (HDMI up to 4K + VGA), and 2× SATA bays (up to 16TB per HDD) for reliable local recording.

    Key benefits

    • True plug-and-play (16× PoE ports): power + data over one cable per camera (IEEE 802.3af/at), PoE budget up to 200W.
    • Crisp local viewing: HDMI up to 4K (3840×2160@30Hz) plus VGA, with independent output mode.
    • Storage-ready: 2× SATA bays, up to 16TB each (up to 32TB total, drive dependent).
    • Efficient compression: H.265+ support helps reduce storage and bandwidth vs older codecs.
    • AI features (smarter alarms): supports facial recognition / perimeter / Motion Detection 2.0 and more (feature availability depends on how analytics are deployed and which cameras are used).
    • Remote access capacity: up to 128 remote connections plus ONVIF Profile S/G compatibility for broader camera interoperability.
    • Low base power draw: ≤ 15W (without HDD and PoE off).

    Technical Specifications

    Key Specifications

    Model NVR-216MH-K/16P (HiLook Pro)
    IP Camera Inputs 16 channels
    Built-in PoE Ports 16 × RJ-45 (10/100 Mbps), IEEE 802.3af/at, PoE budget up to 200 W
    Video Compression H.265 / H.265+ / H.264+ / H.264
    Incoming / Outgoing Bandwidth 160 Mbps / 160 Mbps
    HDMI Output 1-ch, up to 4K (3840 × 2160) @ 30 Hz
    VGA Output 1-ch, up to 1920 × 1080 @ 60 Hz
    Playback Up to 16-ch synchronous playback
    Decoding Capability Up to 2-ch @ 12MP / 4-ch @ 8MP / 8-ch @ 4MP / 16-ch @ 1080p (varies by AI settings)
    Storage 2 × SATA HDD bays, up to 16 TB per HDD
    USB Ports 2 × USB 2.0 (Front: 1, Rear: 1)
    Alarm I/O 4 in / 1 out
    Network Interface 1 × RJ-45 10/100/1000 Mbps
    Protocols / Integration ONVIF (Profile S/G), SDK, ISAPI; RTSP, HTTPS, DDNS, NTP, SMTP, SNMP, NFS, iSCSI, UPnP and more
    Remote Connections Up to 128
    Power Supply 100–240 VAC, 50/60 Hz
    Consumption ≤ 15 W (without HDD and PoE off)
    Operating Temperature -10°C to 55°C
    Dimensions (W × D × H) 385 × 315 × 52 mm
    Weight ≤ 3 kg (without HDD)

    Why this NVR is a great choice

    • Cleaner installs: 16 PoE ports power cameras directly—less gear, fewer points of failure.
    • Sharper live view: 4K HDMI output for crisp monitoring on a main display.
    • Longer retention: dual HDD bays for bigger storage and flexible RAID-free retention planning.
    • Smarter alerts: AI functions can help reduce false alarms when paired/configured correctly.
    • More compatibility: ONVIF support helps when mixing camera brands (where supported).

    Guru's recommendation

    Choose the NVR-216MH-K/16P if you want a clean up-to-16 camera install where the NVR powers the cameras directly (no separate PoE switch), and you want 4K local display plus dual HDD bays for longer retention. It’s a strong fit for:

    • retail shops, warehouses, offices, workshops
    • multi-camera home builds (driveway + perimeter + entry points)
    • customers wanting “set-and-forget” recording with room to expand to 16 IP cameras

    FAQs

    • Does this NVR power cameras directly?
      Yes — it has 16 built-in PoE ports (IEEE 802.3af/at) with up to 200W PoE budget.
    • How many cameras can it record?
      Up to 16 IP cameras.
    • Does it support 4K output to a monitor?
      Yes — HDMI supports up to 4K (3840×2160@30Hz), plus a VGA output.
    • How much storage can I add?
      It has 2× SATA bays, up to 16TB per HDD (check HDD compatibility/availability).
