Description

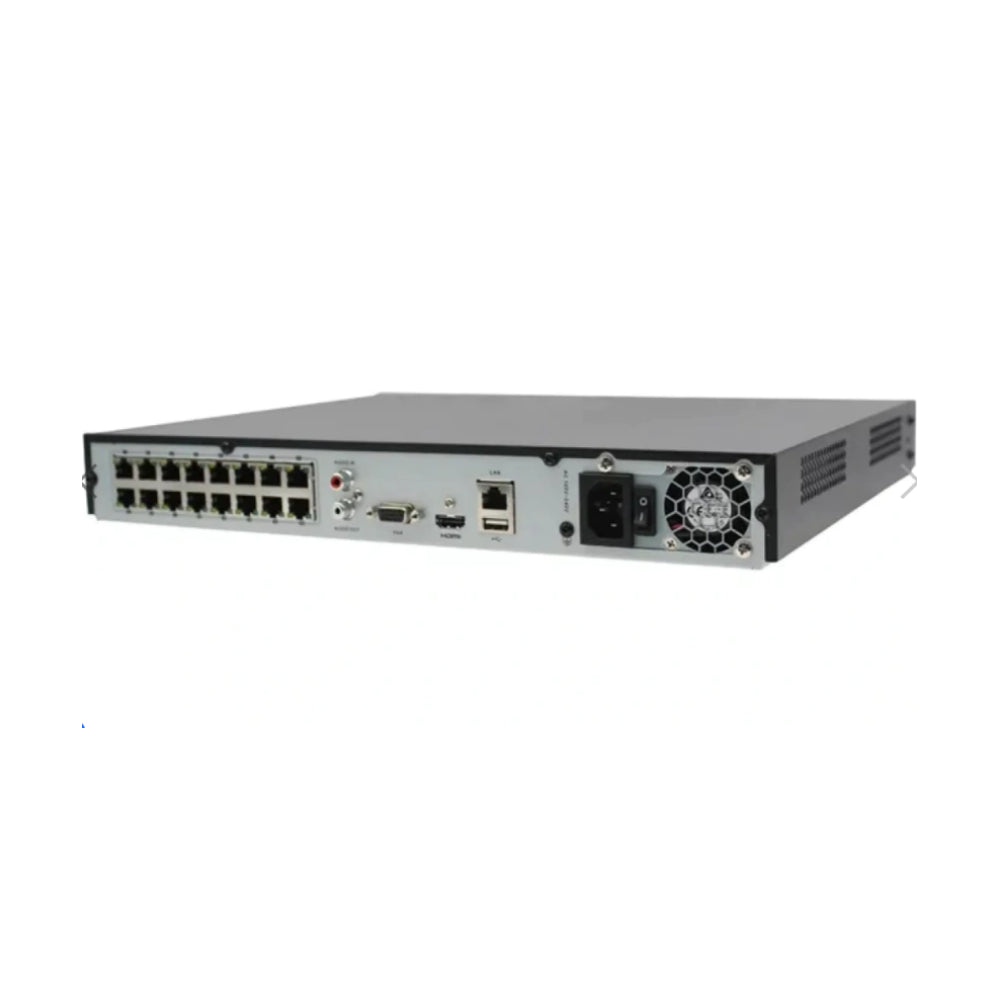

HiLook NVR-216MH-C/16P 16-ch 1U 16 PoE 4K NVR
- Up to 16-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
- Up to 160 Mbps incoming bandwidth
Video And Audio
- IP Video Input: 16-ch
- Incoming Bandwidth: 160 Mbps
- Outgoing Bandwidth: 80 Mbps
- HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output: 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Video Output Mode: HDMI/VGA simultaneous output
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
- Decoding Format: H.265+,H.265,H.264+,H.264
- Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Decoding Capability: 4-ch@1080p
- Synchronous Playback: 16-ch
Network
- Remote Connection: 32
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Interface: 16-ch
- Power: ≤ 150 W
- Standard: IEEE 802.3 af/at
Auxiliary Interface
- SATA: 2 SATA interfaces
- Capacity: Up to 8 TB capacity for each disk
- USB Interface: 2 × USB 2.0
General
- Power Supply: 100 to 240 VAC, 50 to 60 Hz
- Consumption: ≤ 15 W (without HDD and PoE off)
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10 to 90 %
- Chassis: 1U chassis
- Dimension (W × D × H): 385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
- Weight: ≤ 2.6 kg (without HDD, 5.7 lb.)
