Dahua DH-IPC-HFW3849T1-AS-PV-PRO-ANZ — 8 MP WizSense 3 TiOC PRO WizColor Active Deterrence Bullet Network Camera (3849 PRO Series, F1.0, 1/1.8" Sensor, 2.8 mm)

Description

DAHUA TiOC PRO · 8 MP 4K · WIZCOLOR F1.0 · STROBE + SIREN + VOICE · ANZ

DH-IPC-HFW3849T1-AS-PV-PRO-ANZ 8 MP TiOC PRO WizColor Active Deterrence Bullet — Australian Stock & 3-Year Warranty

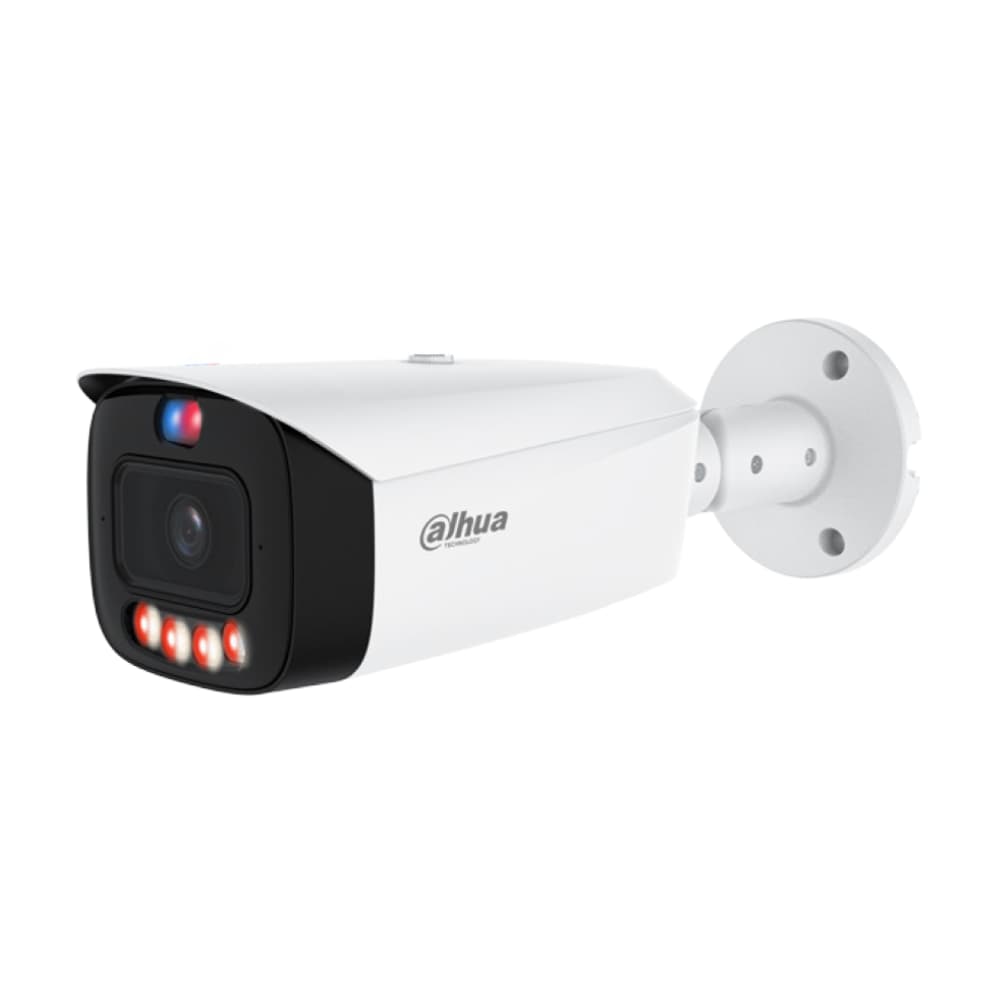

The Dahua DH-IPC-HFW3849T1-AS-PV-PRO-ANZ is the PRO-tier 8 MP TiOC (Three-in-One Camera) bullet from Dahua's WizSense 3 range — combining Pro AI perimeter protection with on-camera active deterrence (red/blue strobe, siren and two-way voice broadcast) plus WizColor 24/7 full-colour night vision. Purpose-built for the Australian and New Zealand market with local firmware and 3-year AU warranty.

The PRO tier upgrades to a 1/1.8" large-format CMOS sensor and an F1.0 ultra-fast lens — delivering usable colour images at just 0.0008 Lux. When the AI detects a person or vehicle, four multi-core LEDs fire up to 50 m warm light, the red/blue strobe activates, the 110 dB SPL speaker plays a voice warning, and the SMD 4.0 event log fires an alarm to your NVR — all in the split-second before an intruder can reach the front door.

Dual built-in microphones + built-in 2 W speaker enable two-way audio through DMSS. WizSense 3 Pro AI runs on-camera Perimeter Protection (tripwire, intrusion, loitering, stay) with human/vehicle classification, SMD 4.0, face detection, and AcuPick attribute search when paired with a compatible Dahua AI NVR.

3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why the HFW3849T1-AS-PV-PRO-ANZ

PRO tier — 1/1.8" sensor + F1.0

Larger 1/1.8" CMOS and F1.0 aperture gathers ~4× more light than a standard 1/2.7" F1.6 camera — delivers usable colour at 0.0008 Lux, one of the industry's lowest ratings.

Active deterrence — strobe + siren + voice

On-camera red/blue strobe, siren and 110 dB SPL speaker with pre-loaded voice warnings. Triggers automatically the moment SMD 4.0 confirms a human or vehicle in the alarm zone — no operator, no NVR, no phone required.

WizColor 24/7 full-colour

Four multi-core LEDs blend warm light + IR for 50 m warm light full-colour identification and 60 m IR stealth reach. Colour identification of clothing, plates and vehicles all night.

WizSense 3 Pro AI + AcuPick

On-camera Perimeter Protection (tripwire, intrusion, loitering, stay) with human/vehicle classification. AcuPick attribute search when paired with a Dahua AI NVR — find footage by clothing colour, vehicle type or direction.

Two-way audio

Dual built-in microphones + built-in 2 W speaker — talk to visitors, warn intruders, or brief couriers from your phone via DMSS.

ANZ regional variant

The -ANZ suffix ships with Australian firmware and is officially supported by the Dahua Australia distribution channel — backed by CCTV Guru's local 3-year warranty and same-day RMA.

Camera, lens & illumination
Model DH-IPC-HFW3849T1-AS-PV-PRO-ANZ
Form factor TiOC PRO fixed-lens bullet (HFW chassis, metal + plastic)
Image sensor 1/1.8" CMOS progressive (PRO-tier large format)
Maximum resolution 3840 × 2160 (8 MP / 4K)
Frame rate 8 MP @ 25/30 fps · 1080p @ 25/30 fps
WDR 120 dB True WDR · HLC · BLC · 3D-NR · Defog · SSA
Minimum illumination 0.0008 Lux @ F1.0 (Colour) · 0.0004 Lux @ F1.0 (B/W) · 0 Lux (with illuminator)
Day / night Auto (ICR) / Colour / B&W
Lens type Fixed focal, M16 mount, fixed iris
Focal length 2.8 mm (also available as 3.6 mm variant)
Maximum aperture F1.0
Field of view (2.8 mm) H: 109° · V: 59° · D: 131°
Minimum focus distance 3.2 m (2.8 mm) · 4.4 m (3.6 mm)
IR illumination Up to 60 m (multi-core LED)
Warm-light illumination Up to 50 m (multi-core LED, WizColor)
WizColor Yes — 24/7 full-colour night vision
TiOC active deterrence, Pro AI & audio
Active deterrence Red/blue warning strobe · siren · voice broadcast
Speaker Built-in 2 W speaker · 110 dB SPL @ 10 cm
Two-way audio Yes (dual mic + speaker via DMSS)
AI engine WizSense 3-Series (TiOC PRO / Pro AI)
Perimeter Protection Tripwire · Intrusion · Loitering · Stay (with human / vehicle classification)
SMD SMD 4.0
AcuPick Yes — with a compatible Dahua AI NVR
AI SSA Yes
Face detection Yes (full image, snapshot + enhancement)
Video compression AI H.265 · AI H.264 · Smart H.265+ · Smart H.264+ · MJPEG (sub-stream)
Built-in microphone Yes — dual mic
Audio I/O 1 in / 1 out (RCA)
Alarm I/O 1 in / 1 out
Audio codec PCM · G.711a/Mu · G.726 · G.723
Network port RJ-45 10/100 Base-T
ONVIF Profile S, G, T, M · CGI
Storage microSD up to 512 GB · FTP / SFTP / NAS
Mobile client DMSS (iOS / Android)
Power, environment & build
Power supply 12 VDC / PoE+ (802.3at)
Power consumption Basic 6.2 W (PoE) / 4.3 W (12 VDC) · Max 15.1 W (PoE) / 11.8 W (12 VDC) with WDR + warm light + siren + AI on
Operating temperature −40 °C to +60 °C
Humidity ≤ 95% RH non-condensing
Protection IP67
Casing Metal + plastic
Dimensions (L×W×H) 288.4 × 94.4 × 84.7 mm
Net weight 1.0 kg
Certifications CE-LVD (EN 62368-1) · CE-EMC (2014/30/EU)
Australian warranty 3 years (via CCTV Guru)
Best used for

Residential frontage / driveway

Turn a driveway into a hostile environment for intruders — strobe + voice warning fires as soon as anyone crosses the tripwire, not after they've broken in.

Retail & commercial after-hours

Overnight self-defence for shops, workshops, storage yards. Voice broadcast lets you tell would-be thieves you're watching without dispatching a guard.

Construction site perimeter

Warm light + strobe deters copper theft. IP67 metal build handles dust and rain year-round.

Rural & farm gate approach

Alpine-to-tropical −40 °C to +60 °C rating for exposed rural sites. 60 m IR + 50 m warm light covers long approaches.

Works with

Dahua WizSense NVRs

Full AI feature parity with any Dahua 4-Series or 5-Series WizSense AI NVR. AcuPick works end-to-end with an AcuPick NVR.

Third-party NVRs (ONVIF)

ONVIF Profile S, G, T, M — drops onto Hikvision, HiLook, UNV and Milestone NVRs for live view + record. Active deterrence still triggers on-camera.

DMSS mobile app

Free iOS / Android app for remote view, playback, live two-way audio and one-tap arming/disarming of the deterrence chain.

PoE+ switch (802.3at)

Requires PoE+ due to peak 15.1 W draw with siren + strobe + warm light active. Any 802.3at-compliant switch or Dahua AI NVR PoE port.

Compatible mounts & accessories

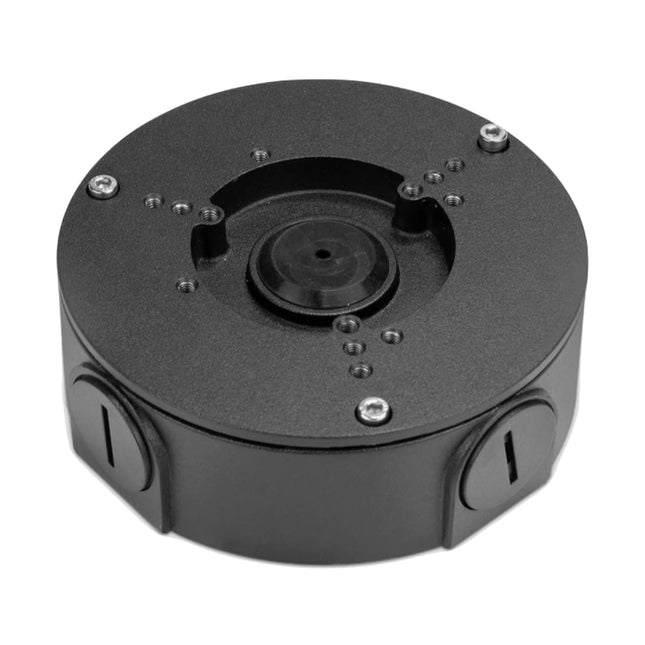

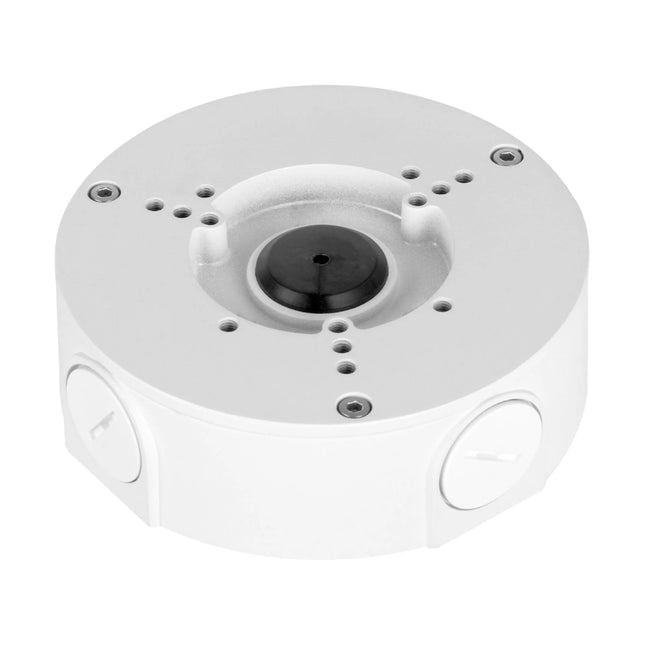

Dahua PFA130-E Waterproof Junction Box

Recessed IP66 junction box for clean cable concealment on brick, render or weatherboard — the recommended cable-hide box for this bullet. Available in white or black to match the camera colour. White → · Black →

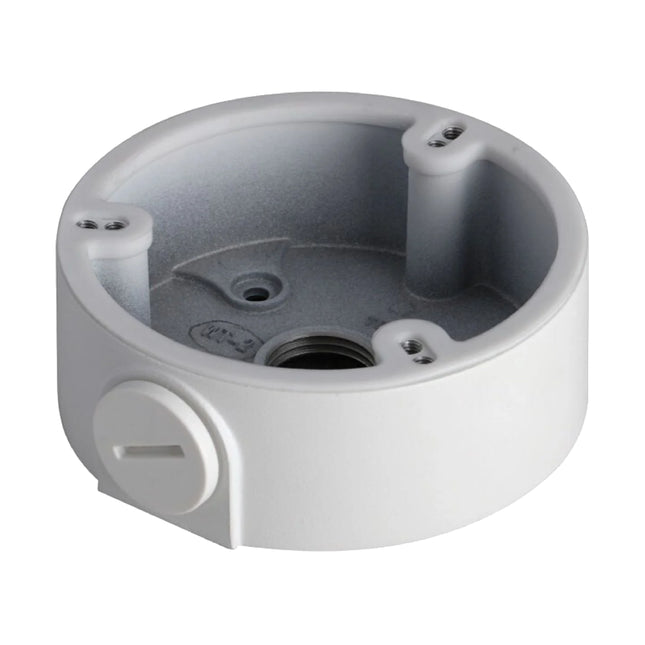

Dahua PFA135 Junction Box

Slim aluminium junction ring — lighter, lower-profile cable-hiding option for tidy flush installs where full IP66 depth isn't required. View PFA135 →

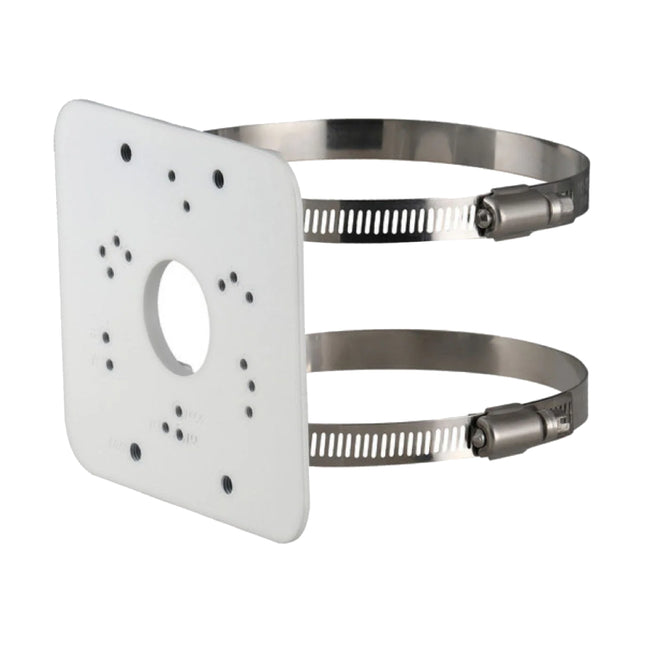

Dahua PFA152-E Pole Mount

Heavy-duty pole bracket for fence posts, light poles and gate columns. Pairs with the bullet's built-in wall arm for pole-mounted installs. View PFA152-E →

8ware Cat6 CCTV Patch Lead

Blue slim-shielded outdoor Cat6 patch lead in 0.5 m / 1 m / 2 m / 3 m — the runs we install on every Dahua PoE camera. View 8ware Cat6 →

Wall-mount note: the HFW3849T1 has an integrated wall arm on the bullet chassis, so no separate wall bracket is required for standard flat-wall installs — the PFA130-E or PFA135 simply recesses the cable through the wall for a tidy finish. For fence posts or poles, add the PFA152-E.

Installation notes
  • PoE+ (802.3at) required — standard 802.3af PoE will NOT power the deterrence chain at full output. Check your NVR/switch supports 802.3at per port.
  • Lens variants: This SKU is the 2.8 mm version (109° wide). A 3.6 mm version is available separately (93° narrower).
  • The active deterrence chain can be armed/disarmed per-schedule via DMSS or the camera web UI — e.g. deterrence off during business hours, on overnight.
  • Voice broadcast supports pre-loaded warnings; custom voice files can be uploaded via the web UI.
  • microSD up to 512 GB for edge recording. Recommended: endurance-rated card for 24/7 continuous recording.
  • No IK rating listed on this chassis — mount above 3 m for anti-tamper if used in high-vandalism positions.
Frequently asked questions
What's the difference between the standard 3849 and the 3849 PRO?
The PRO tier uses a larger 1/1.8" sensor (vs 1/2.7" on standard) and a much faster F1.0 lens (vs F1.6) — delivering usable colour night vision at 0.0008 Lux vs 0.003 Lux. If you install cameras in genuinely dark positions (rural, undercover, unlit driveways), the PRO is worth the extra cost.
Will it deter intruders automatically without me doing anything?
Yes. The TiOC deterrence chain fires the instant SMD 4.0 confirms a human or vehicle inside the rule zone — strobe, siren and voice all run on-camera 24/7, without any operator, NVR command or mobile-app interaction.
Can I turn off the strobe or siren for daytime?
Yes — per-schedule arming/disarming via DMSS or the web UI. Common setup: deterrence off business hours, on overnight and weekends.
How loud is the siren?
110 dB SPL @ 10 cm from a 2 W built-in speaker — loud enough to be uncomfortable at close range without being neighbour-nuisance from across the street.
Does it need PoE+ or will standard PoE work?
PoE+ (802.3at) is required at full output (15.1 W peak with siren + strobe + warm light active). Standard 802.3af PoE may power the base camera but will cause the deterrence chain to under-perform or reset.
What's the difference between the "-ANZ" and standard IPC-HFW3849T1-AS-PV-PRO?
The -ANZ is the Australia / New Zealand regional variant with local firmware, supported by Dahua AU — that's what carries the local 3-year warranty. Non-ANZ grey-market units are not warranted by AU distributors.
Can I remotely re-frame or zoom?
No — this is a fixed 2.8 mm lens (or 3.6 mm). Pick focal length up front. For remote zoom, use the motorised 5559 series.
Will it work with my existing Hikvision or UNV NVR?
Yes for live view + recording via ONVIF Profile S/T, and the on-camera deterrence still triggers automatically. AI features (AcuPick, human/vehicle metadata) only work end-to-end with a Dahua AI NVR.
