TiOC PRO · WizColor · 8 MP 4K · AcuPick · Motorised

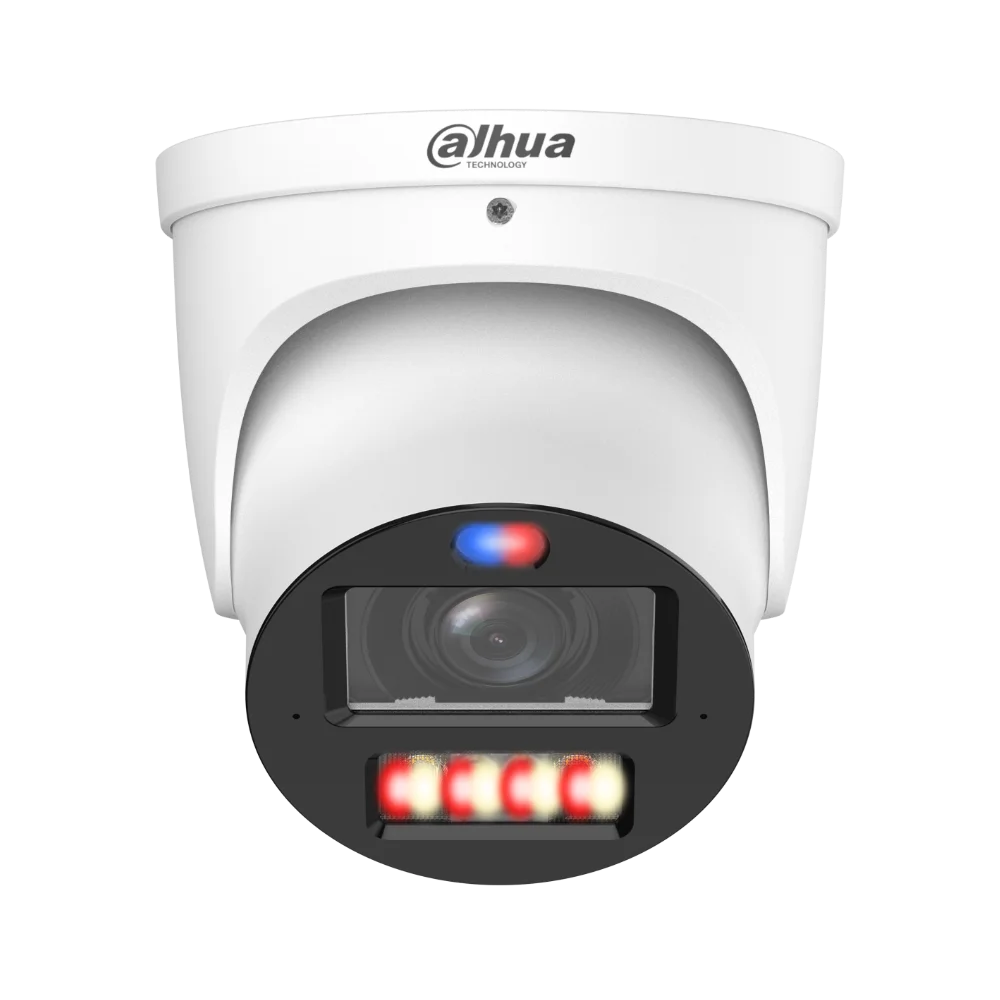

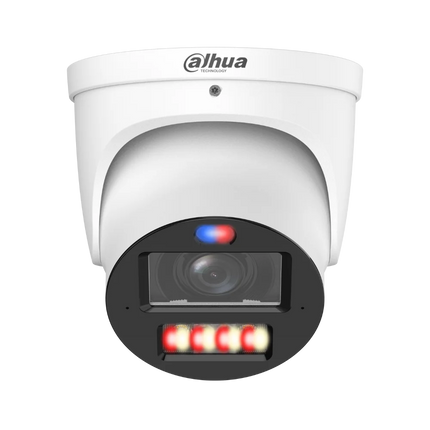

Dahua DH-IPC-HDW3849H-ZAS-PV-PRO-ANZ — 8 MP 4K TiOC PRO WizColor AcuPick Motorised Vari-focal Eyeball Turret WizSense Network Camera (3849 PRO Series)
The Dahua DH-IPC-HDW3849H-ZAS-PV-PRO-ANZ is the top-of-tier TiOC PRO turret in the 3849 series — combining Dahua's brightest F1.2 large-aperture WizColor lens with motorised 2.7–12 mm vari-focal optics, full 8 MP 4K (3840 × 2160) imaging, native AcuPick attribute search, and the complete TiOC PRO active-deterrence stack (red/blue strobe, 110 dB built-in siren, dual-mic two-way talk). The 1/1.8" CMOS Starlight sensor pulls usable colour down to 0.0006 lux through the F1.2 aperture — class-leading low-light performance that the standard fixed-lens 3849 series can't match. The motorised vari-focal range covers 112° wide for broad shopfront / driveway coverage down to a 48° tight pull for plate-grade evidence on long approaches, with smart dual-light (50 m IR + 50 m warm light) handing off the moment WizSense classifies a target. WDR is 120 dB; the housing is IP67 sealed; power is 12 VDC or PoE+ (802.3at) with 13.8 W peak draw. Edge AcuPick lets a paired Dahua 5-Series AcuPick NVR search recorded footage by colour, top/bottom clothing, vehicle type and direction — the attribute filter that turns hours of footage into seconds of investigation. Built for Australian premium residential, commercial frontage, school grounds, NDIS sites, council reserves and retail back-of-house where the project brief demands every inch of camera-side performance the WizSense 3 series can deliver. Backed by a 3-year Australian warranty through CCTV Guru as authorised Dahua AU reseller. SKU 3849 PRO series.
Optical Zoom
2.7–12 mm Motorised
Resolution
8 MP 4K @ 25/30 fps
F1.2 WizColor
0.0006 lux Colour
AI Engine
WizSense 3 + AcuPick
Active Deterrence
TiOC PRO · 110 dB Siren
Power
PoE+ 802.3at / 12 VDC
See the Dahua TiOC PRO Active Deterrence Platform in Action
Dahua's official TiOC PRO highlight — the same active-deterrence platform that runs on the HDW3849H-ZAS-PV-PRO-ANZ. Red/blue strobe lighting, a 110 dB audible siren, dual-mic two-way talk and WizSense human/vehicle classification working together to challenge intruders the moment they're detected — not after the fact when reviewing footage.
Why Choose the Dahua HDW3849H-ZAS-PV-PRO-ANZ TiOC PRO Turret
This is the camera Australian project specifiers reach for when every other constraint — budget, install location, switch budget — has been signed off and the brief is simply "the best 8 MP turret Dahua makes for active deterrence". Below are the six reasons it earns that brief.
F1.2 WizColor — Brightest Lens in Class
The 2.7–12 mm motorised vari-focal lens opens to F1.2 — a stop and a half wider than the standard 3849 series. Combined with the 1/1.8" CMOS Starlight sensor, the camera captures 0.0006 lux colour at the wide end. Real-world result: usable full-colour evidence at twilight and under moonlight, without forcing the warm light on and announcing the camera's position.
True 8 MP 4K Detail
The 1/1.8" CMOS captures a native 3840 × 2160 raster — four times the pixel density of 1080p. Combined with the motorised tele setting and AcuPick attribute search, faces, number plates and signage stay readable across the camera's full hemisphere.
Re-Frame Remotely via DMSS App
The motorised 2.7–12 mm vari-focal is fully app-controllable. Re-frame the scene from anywhere with internet — no ladder visits, no tradesperson callout. Install at 2.7 mm wide for general site coverage, then pull tight to 12 mm on the driveway approach if you need plate-grade evidence after a break-in.
TiOC PRO — Built-In 110 dB Siren
Most active-deterrence cameras integrate an external speaker amplifier. The HDW3849H-ZAS-PV-PRO has the speaker built into the housing — peaking at 110 dB at 10 cm. Combined with red/blue strobe and dual-mic two-way talk, this is the loudest TiOC PRO active-deterrence package in Dahua's WizSense 3 catalogue.
AcuPick Attribute Search Native
Paired with a Dahua 5-Series AcuPick NVR (NVR5208-8P, NVR5216-16P or NVR5432), the camera lets you search hours of recorded video by attributes — "red top, white sedan, walking east" — and pull matching clips in seconds. The single feature that turns a 4 K recording into an actually-useful investigation tool.
Smart Dual Light — 50 m IR + 50 m Warm
4 multi-core LEDs deliver the longest dual-light reach in the 3849 family. The camera runs invisible IR after dark until WizSense classifies a person or vehicle, then the warm-light array switches on the target to capture full-colour evidence. No constant white-light wash for neighbours.
Important Install Note — PoE+ Required
This camera draws up to 13.8 W on PoE when illuminator, warm light, active deterrence and AI are all active. It requires 802.3at PoE+, not standard 802.3af, or a local 12 VDC supply at the camera. A standard 802.3af switch will undervolt the active-deterrence siren on event. The eyeball gimbal supports flexible install framing, but once tightened the lens is locked at the chosen zoom — re-frame remotely via DMSS instead. For coastal or humid Australian installs, pair with the DH-PFA137 in-ceiling junction box to keep condensation off the RJ-45 termination. Network: 100 Base-T RJ-45.
AI & Smart Detection Capabilities
WizSense 3 Edge AI
Independent AI chip running Dahua's latest deep-learning algorithms for human and vehicle classification. The most accurate WizSense generation Dahua ships — filters out animals, branches and shadows so only the right type of target raises an alert and triggers active deterrence.
AcuPick Attribute Search
Deep-learning attribute matching across people and vehicles. When paired with a compatible Dahua 5-Series AcuPick NVR, you can search recorded video by clothing colour, top/bottom, vehicle type and direction. The forensic-investigation feature.
Face Detection (Full Image)
Face-detection mode supports full-image face capture across the scene — useful for retail customer counting, NDIS visitor logs and shopfront analytics where local privacy law permits.
Perimeter Protection (IVS)
Tripwire, intrusion, stay detection, loitering detection — all with human-and-vehicle classification. Draw a line across a driveway or a polygon around a yard and only get pushed an alert (and active-deterrence trigger) when the right type of target crosses it.
SMD 4.0 Smart Motion
Smart Motion Detection 4.0 filters wind-blown branches, possums on fences, shadows and small animals at the edge — only people and vehicles raise alerts. Slashes false-alarm volume on residential, NDIS and rural sites.
Two-Way Talk — Dual Mic + 110 dB Speaker
The dual built-in microphone array supports clearer two-way audio than single-mic competitors, and the 110 dB built-in speaker means you can challenge intruders or instruct delivery drivers without an external amplifier. Operate via the free DMSS mobile app from anywhere with internet.
Technical Specifications
Camera & Image Sensor
| Model |
DH-IPC-HDW3849H-ZAS-PV-PRO-ANZ |
| Form Factor |
Eyeball turret (HDW chassis) |
| Image Sensor |
1/1.8" CMOS (Starlight) |
| Maximum Resolution |
3840 × 2160 (8 MP 4K) |
| Scanning System |
Progressive |
| Minimum Illumination |
0.0006 lux @ F1.2 (Colour) · 0.0003 lux @ F1.2 (B/W) · 0 lux (illuminator on) |
| S/N Ratio |
> 56 dB |
| WDR |
120 dB |
| Day / Night |
Auto (ICR) / Colour / B&W |
| BLC / HLC |
Yes / Yes |
| Noise Reduction |
3D NR |
| Smart Illumination |
Yes |
| Smart Dual Light |
Yes (target-triggered IR / warm-light hand-off) |
| WizColor |
Yes (F1.2 large-aperture full-colour low-light) |
Lens & Illumination
| Lens Type |
Motorised vari-focal |
| Focal Length |
2.7 mm – 12 mm |
| Maximum Aperture |
F1.2 (WizColor) |
| Field of View |
H: 112° – 48° · V: 58° – 27° · D: 137° – 55° |
| IR Illumination |
Up to 50 m |
| Warm Light Illumination |
Up to 50 m |
| Illuminator Configuration |
4 × multi-core LEDs (IR + warm light) |
| Illuminator Control |
Auto · Manual · Zoom Priority |
Intelligence, Active Deterrence & Video
| AI Engine |
WizSense 3 (TiOC PRO platform · AcuPick-native) |
| IVS — Perimeter Protection |
Tripwire · intrusion · stay detection · loitering detection · face detection (full image) · human + vehicle classification |
| Smart Motion Detection |
SMD 4.0 |
| AcuPick |
Yes (with compatible Dahua AcuPick NVR) |
| Active Deterrence — Light |
Red & blue strobe warning · configurable duration and frequency |
| Active Deterrence — Sound |
Built-in speaker, max 110 dB at 10 cm, multiple alarm sounds + custom upload |
| Video Compression |
Smart H.265+ · H.265 · Smart H.264+ · H.264 · H.264H · H.264B · MJPEG (sub stream) |
| Resolutions |
8 MP · 6 MP · 5 MP · 4 MP · 3 MP · 1080p · 720p · D1 · VGA · CIF |
| Main Stream |
3840 × 2160 @ 1 – 25/30 fps |
| Bit Rate Control |
VBR · CBR |
Audio, Alarm & Network
| Built-in Microphone |
Yes — dual mic |
| Built-in Speaker |
Yes — max 110 dB at 10 cm · 2 W max |
| Two-Way Talk |
Yes (via DMSS app) |
| Audio Compression |
PCM · G.711a · G.711Mu · G.726 · G.723 |
| Audio Input |
1 channel (RCA) |
| Audio Output |
1 channel (RCA) |
| Alarm Input |
1 channel — wet contact, 5 mA, 3–5 VDC |
| Alarm Output |
1 channel — dry contact, 1,000 mA 30 VDC / 500 mA 50 VAC |
| Network Port |
RJ-45 (10/100 Base-T) |
| Network Protocols |
IPv4 · IPv6 · HTTP · HTTPS · TCP · UDP · ARP · RTP · RTSP · RTCP · RTMP · SMTP · FTP · SFTP · DHCP · DNS · DDNS · QoS · UPnP · NTP · Multicast · ICMP · IGMP · NFS · SAMBA · PPPoE · SNMP · P2P · Bonjour · 802.1x |
| Interoperability |
ONVIF (Profile S, G, T) · CGI |
| Storage |
FTP · SFTP · NAS · Micro SD card up to 512 GB |
| Mobile Client |
DMSS (iOS / Android) |
| Management Software |
SmartPSS Lite · DSS · DMSS |
Power, Environment & Build
| Power Supply |
12 VDC / PoE+ (IEEE 802.3at) |
| Power Consumption (Basic) |
4.1 W (12 VDC) · 5.3 W (PoE+) |
| Power Consumption (Max.) |
11.3 W (12 VDC) · 13.8 W (PoE+) with H.265 + WDR + warm light + active deterrence + AI |
| Dual-Power Backup |
Yes (12 VDC and PoE+ simultaneously supported) |
| Operating Temperature |
–30 °C to +60 °C |
| Operating Humidity |
≤ 95% RH (non-condensing) |
| Protection Rating |
IP67 |
| Product Dimensions |
127.6 mm × Φ122.0 mm |
| Net Weight |
0.94 kg |
| Gross Weight |
1.17 kg |
| Certifications |
CE-LVD (EN62368-1) · CE-EMC · RCM (AU) |
| Australian Warranty |
3 Years (via CCTV Guru) |
How It Compares — HDW3849H-ZAS-PV-PRO-ANZ vs HDW3849H-AS-PV-PRO-ANZ
The closest sibling is the Dahua DH-IPC-HDW3849H-AS-PV-PRO-ANZ — the fixed 2.8 mm version of the same TiOC PRO camera. Same sensor, same TiOC PRO active deterrence, same WizColor positioning. The decision is whether you want motorised re-framing (this camera) or a fixed lens at a lower price (sibling).
| Feature |
HDW3849H-ZAS-PV-PRO-ANZ (this camera — motorised)
|
HDW3849H-AS-PV-PRO-ANZ (sibling — fixed)
|
| Resolution |
8 MP 4K (3840 × 2160) |
8 MP 4K (3840 × 2160) |
| Sensor |
1/1.8" CMOS Starlight |
1/1.8" CMOS Starlight |
| Lens |
Motorised vari-focal 2.7 – 12 mm · F1.2 |
Fixed 2.8 mm · F1.0 |
| FOV (wide) |
112° H wide → 48° H tele |
~109° H (fixed) |
| AI Engine |
WizSense 3 + AcuPick |
WizSense 3 + AcuPick |
| Smart Dual Light |
IR 50 m + warm light 50 m |
IR 30 m + warm light 30 m |
| WDR |
120 dB |
120 dB |
| Built-in Speaker (110 dB) |
Yes — TiOC PRO |
Yes — TiOC PRO |
| Dual Mic |
Yes |
Single mic |
| Remote Re-Framing |
Yes — re-frame from DMSS app |
No — fixed install framing |
| Power Draw (PoE max) |
13.8 W (PoE+ 802.3at) |
~10 W (PoE 802.3af) |
| IP Rating |
IP67 |
IP67 |
| Best For |
Project specifiers who want every WizSense 3 feature, longest reach, and remote re-framing |
Predictable install framing with TiOC PRO and WizColor at lower power and price |
Recommended AcuPick NVR Pairings
For full AcuPick attribute search on recorded footage, this camera should be paired with a Dahua 5-Series AcuPick NVR running V5 firmware. Below are four CCTV Guru-stocked recorders sized to the most common Australian deployments.
Dahua DHI-NVR5208-8P-AI/ANZ
5-Series AcuPick NVR · 8 channels · 8 built-in PoE+ ports · 2 HDD bays · 1U. The most popular pairing for residential and small-business sites running 4–8 cameras — runs this PoE+ camera off built-in power, leaves channel headroom for fixed cameras.
View Dahua NVR5208-8P-AI →
Dahua DHI-NVR5216-16P-AI/ANZ
5-Series AcuPick NVR · 16 channels · 16 PoE+ ports (1–8 ePoE) · 2 HDD bays · 1U · 384 Mbps incoming. Sized for medium commercial sites and multi-building yards.
View Dahua NVR5216-16P-AI →
Dahua DHI-NVR4216-16P-AI/ANZ
4-Series WizSense AI NVR · 16 channels · 16 PoE ports · 2 HDD bays · 4K HDMI · Smart 2.0 AI with SMD+ and IVS. Value-pick build for sites where AcuPick is nice-to-have rather than essential.
View Dahua NVR4216-16P-AI →
Dahua DHI-NVR5432-AI/ANZ
5-Series AcuPick NVR · 32 channels · 4 HDD bays · dual GbE NICs · dual HDMI + dual VGA · 1.5U. Enterprise-scale AcuPick — warehouses, schools, multi-tenant strata, large-format retail.
View Dahua NVR5432-AI →
Compatible Mounts & Accessories
DH-PFA137 — In-Ceiling Junction Box
The most popular accessory for this turret — protects the RJ-45 termination from condensation behind ceiling/soffit mounts. Strongly recommended for AU coastal and humid installs.
DH-PFA106 — Surface Junction Box
Surface-mounted junction box for tidy cable management on rendered or brick walls when ceiling mounting isn't an option.
DH-PFB203W — Wall Mount Bracket
Wall mount bracket for vertical-wall installs — turns the turret into an angled-down façade camera. Useful for shopfront and entry-point coverage.
DH-PFA152-E — Pole Mount Bracket
Pole mount bracket fitting 60 – 110 mm diameter poles. Ideal for carpark light poles, perimeter fence posts and rural driveway pylons.
DH-PFA101 — Corner Mount
Corner mount bracket for external building corners — useful for double-frontage coverage where the turret needs to see both adjacent façades.
DH-PFM320D-EN — 12 VDC 2 A Adapter
Genuine Dahua 12 VDC 2 A power adapter. Use when running the camera on local DC instead of PoE+, or as a backup supply alongside PoE+.
Frequently Asked Questions
Is the Dahua HDW3849H-ZAS-PV-PRO-ANZ NDAA compliant?
No. Dahua is not certified under NDAA Section 889. If your project has an NDAA mandate (US federal, certain Australian government contracts, or critical-infrastructure tenders that follow the same standard), choose a NDAA-compliant brand from our range instead.
What does "TiOC PRO" mean and how is it different from standard TiOC?
TiOC stands for "Three-in-One Camera" — Dahua's name for cameras that combine 24/7 video surveillance, real-time AI alarms and active deterrence in one housing. TiOC PRO adds WizColor large-aperture optics (F1.2 here), longer-reach Smart Dual Light (50 m vs 30 m on standard TiOC), dual built-in microphones and a 110 dB built-in speaker. It's the top-tier TiOC tier in Dahua's WizSense 3 line-up.
What does "WizColor" mean?
WizColor is Dahua's name for cameras built around a large-aperture lens (F1.0 or F1.2) paired with a 1/1.8" or larger Starlight CMOS. The result is class-leading full-colour low-light performance — usable colour video at illumination levels where standard cameras flip to black-and-white. This camera's 0.0006 lux colour minimum is the practical advantage WizColor delivers.
Does the camera include AcuPick attribute search?
Yes — AcuPick attribute search is built into the camera's WizSense 3 firmware. To actually search recorded footage by attributes (colour, top/bottom clothing, vehicle type, direction) you must record to a compatible Dahua 5-Series AcuPick NVR running V5 firmware.
Does it require PoE+ or will standard PoE work?
PoE+ (IEEE 802.3at) is required. The camera draws up to 13.8 W with illuminator, warm light, active deterrence and AI all active — that's over the 12.95 W ceiling of standard 802.3af. A standard PoE switch will undervolt and the active-deterrence siren may not trigger reliably. Use an 802.3at PoE+ switch or a local 12 VDC supply.
Can I re-frame the camera after install without a ladder?
Yes — that's the main reason to choose the ZAS motorised version over the fixed AS sibling. The 2.7 – 12 mm vari-focal lens is motorised and fully controllable from the free DMSS mobile app. Re-frame, zoom, focus and auto-focus all from your phone, anywhere with internet.
How loud is the built-in siren?
Maximum 110 dB at 10 cm distance (Dahua lab spec). The volume and play count are configurable from 0–100% and 1–10 plays per trigger via the DMSS app. Most residential installs run at 40–60% volume to challenge intruders without disturbing neighbours. Custom sound files can be uploaded for site-specific challenges.
How does it compare to the standard 3849H-ZAS-PV-ANZ-S2 (non-PRO)?
This PRO variant adds the WizColor F1.2 aperture (vs F1.6), longer Smart Dual Light reach, dual-microphone array and 110 dB built-in speaker. If WizColor low-light and TiOC PRO deterrence stack matter for the brief, choose this. If you're cost-sensitive and the standard TiOC platform is enough, the S2 non-PRO variant is the more economical pick.
Does it work with third-party NVRs?
Yes — ONVIF Profile S, G and T are supported, so the camera will record to any ONVIF-compatible third-party NVR. Note that AcuPick attribute search and SMD 4.0 alarm push only work end-to-end on a genuine Dahua AI NVR, and active-deterrence triggers from IVS events only fire on Dahua firmware.
Can I view the camera live on my phone?
Yes — the camera works with Dahua's free DMSS app on iOS and Android. Add the device with the QR code on the housing, sign in, and you get live view, two-way audio, motion alerts, recorded-footage playback and remote lens re-framing from anywhere with internet. No subscription required.
Downloads
Order Your Dahua HDW3849H-ZAS-PV-PRO-ANZ from CCTV Guru
"Add to cart" to order online, or contact our Australian team for a bulk quote, project pricing, multi-camera configuration advice or NVR compatibility check. We are authorised Australian Dahua resellers, hold stock locally, and back every 3849 PRO series camera with a 3-year Australian warranty and Australian-based tech support. Phone, email or live chat us through cctvguru.com.au/pages/contact — most enquiries are answered the same business day.
