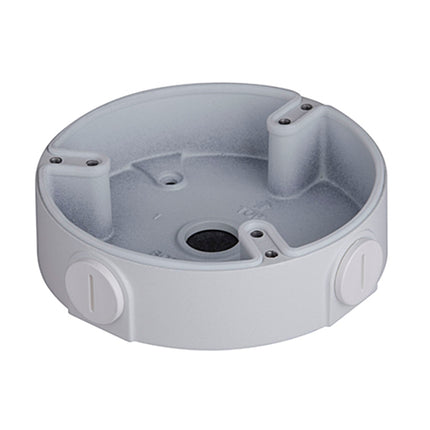

The Dahua PFA137 is an essential accessory for any professional security installation. This waterproof junction box provides a secure, weatherproof enclosure for camera pigtails and connectors, ensuring long-term reliability by preventing water ingress and cable corrosion. Now available in both Classic White and Midnight Black to perfectly match your camera housing and building aesthetics.
Key Performance Features
-
Rugged Construction: Built from high-quality aluminum alloy, providing excellent structural strength and durability.
-
IP66 Waterproof Rating: Engineered for harsh outdoor environments, keeping your electrical connections bone-dry in heavy rain and dust.
-
Seamless Integration: Designed specifically for Dahua dome and turret cameras, ensuring a perfect physical fit and easy alignment.
-

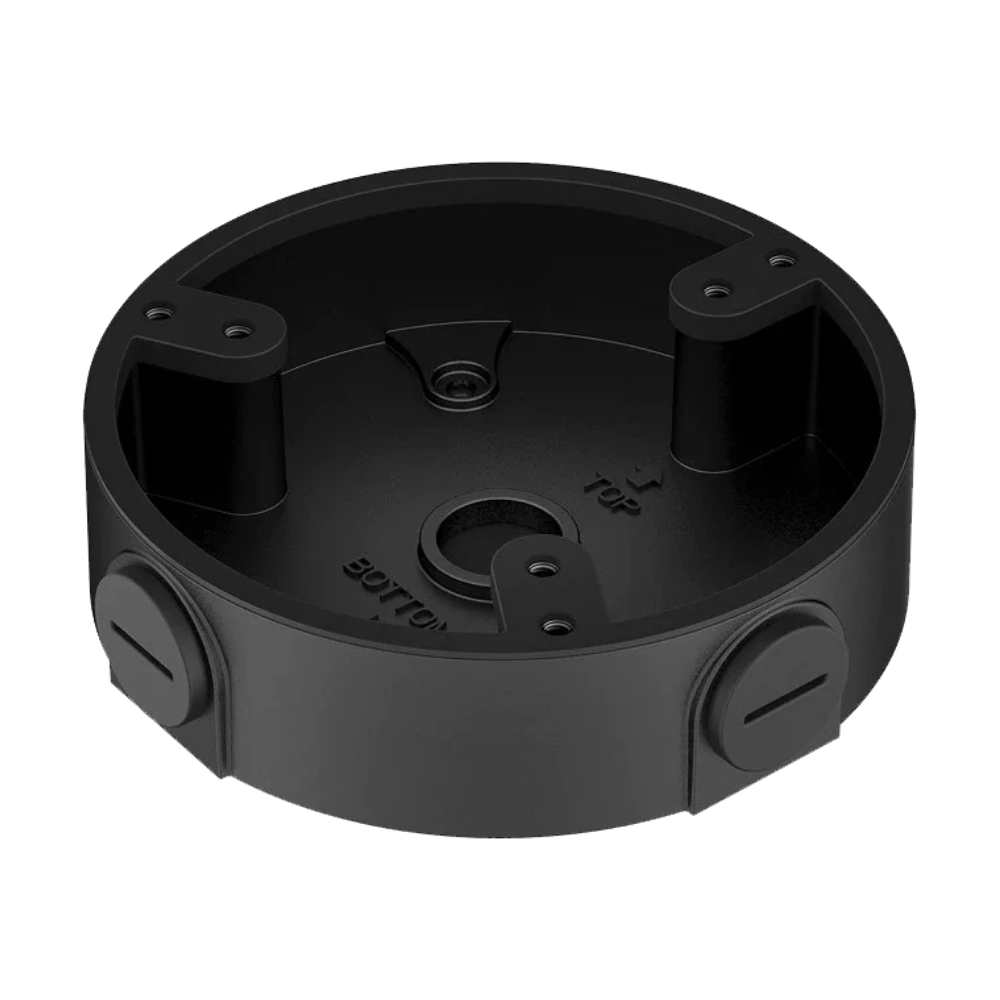

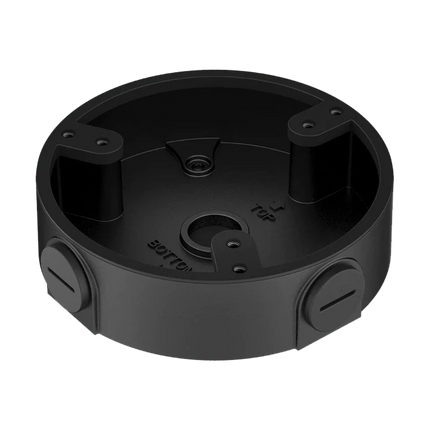

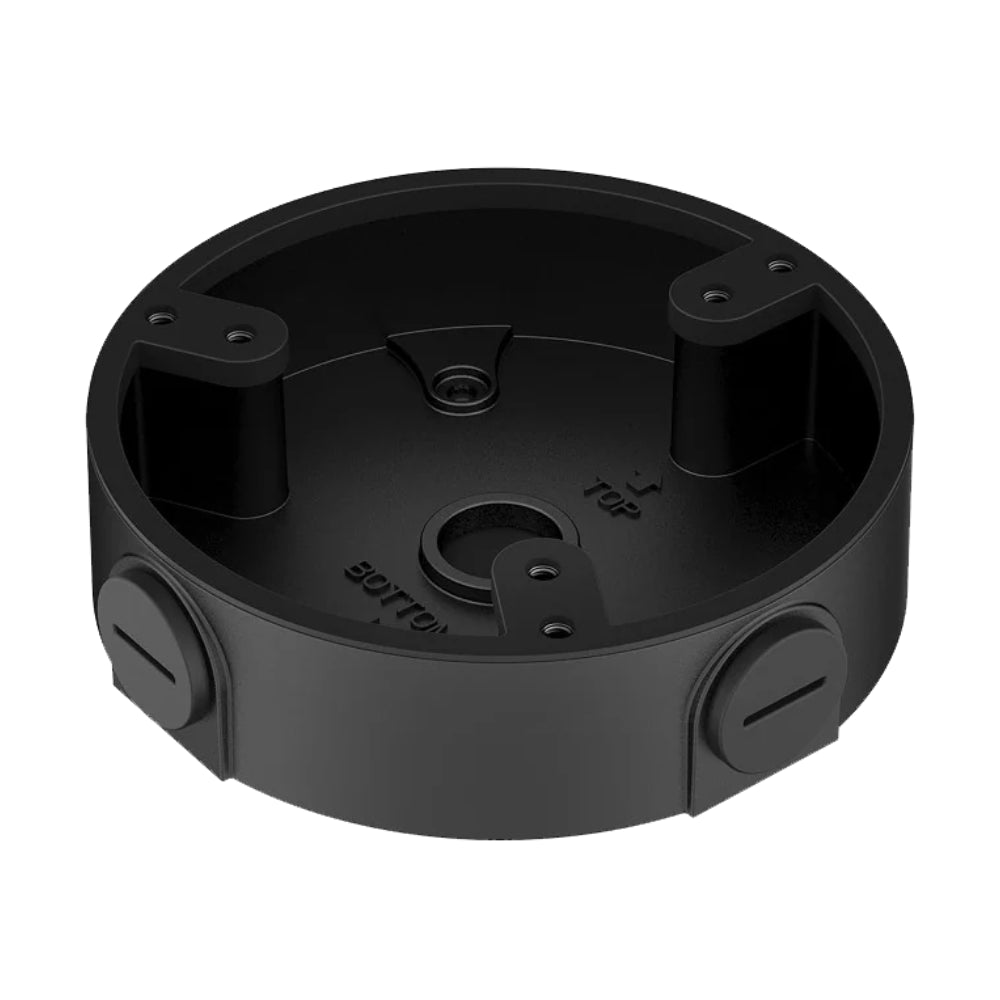

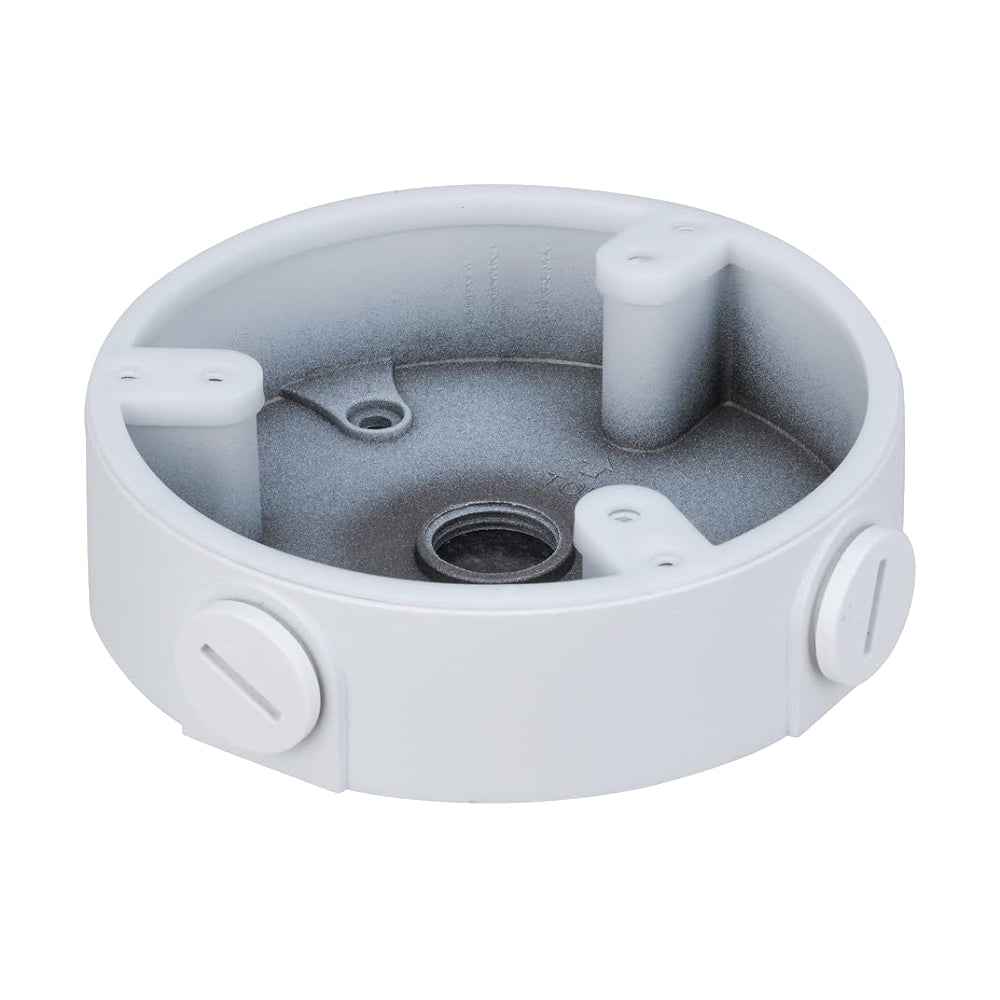

Color Options: Choose White for standard residential installs or Black (PFA137-B) for modern architectural finishes or dark soffits.
Technical Specifications
| Model |
DH-PFA137 (White) / DH-PFA137-B (Black) |
| Material |
Aluminum Alloy |
| Dimensions |
Φ122.0mm x 34.0mm (4.80” x 1.34”) |
| Pipe Thread |
G1/2" |
| Load Bearing |
1.0kg (2.2lb) |
| Ingress Protection |
IP66 Rated |
| Operating Temp. |
-40ºC to +60ºC |
Why Use a PFA137 Junction Box?
-
Cable Protection: Protects your RJ45 and power connectors from tampering and environmental damage.
-
Clean Aesthetics: Hides messy cables behind the camera for a tidy, professional look.
-
Serviceability: Provides a convenient access point for future maintenance without needing to re-run cables.
Downloads
DH-PFA137_datasheet
Installation Tip: For high-exposure outdoor areas, we recommend using the included waterproof gasket and applying a small amount of silicone sealant to the screw holes for maximum protection.
