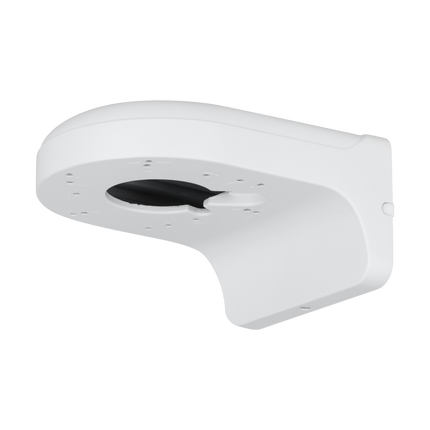

The Dahua PFB2203W is a professional-grade wall mount bracket designed to provide a secure and aesthetically pleasing mounting solution for Dahua dome cameras. Constructed from high-quality aluminum, this bracket is built to withstand harsh environments while ensuring your surveillance equipment remains stable and correctly positioned.
Key Performance Features
-
High-Quality Material: Manufactured from durable aluminum alloy, providing excellent structural integrity and corrosion resistance.
-
Weatherproof Design: With an IP66 rating, this bracket is ideal for both indoor and outdoor installations, protecting connections from dust and water.
-

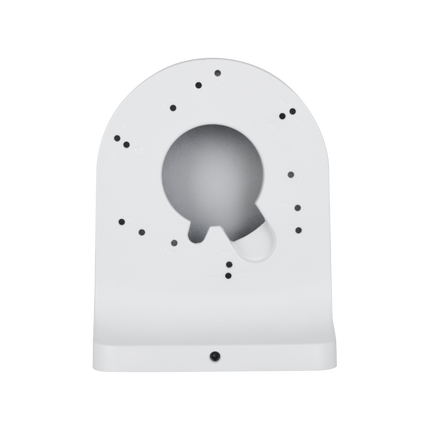

Integrated Junction Box: Features a hollow center design that allows for clean cable management, hiding connectors and wires from view and protecting them from tampering.
-
High Load Capacity: Engineered to support up to 1.0kg (2.2lb), ensuring compatibility with a wide range of Dahua mini-dome and turret cameras.
Why Use the PFB2203W Bracket?
-
Professional Finish: Provides a clean, "factory" look for residential and commercial security installations.
-
Easy Installation: The bracket features pre-drilled holes for standard wall mounting and simple camera attachment points.
-
Optimized Viewing: Extends the camera away from the wall to reduce reflections and provide a better angle of the monitored area.
The Dahua PFB2203W wall mount bracket is highly versatile, designed primarily for dome and eyeball (turret)cameras. Based on Dahua’s technical compatibility data, it is compatible with a wide range of series.
Compatible Camera Series & Models
The PFB2203W is typically used for cameras with a base diameter that matches its mounting plate (approx. 122mm to 129mm). Key compatible series include:
How to Confirm Compatibility
Because Dahua frequently updates their camera housings, the most accurate way to confirm is to check the Camera Accessory Selection guide or the specific camera's datasheet under the "Accessories" section.
General Compatibility Rule: If your camera is compatible with the PFA137 or PFA130-E junction boxes, it is almost certainly compatible with the PFB2203W wall mount, as they share the same mounting hole patterns.
Key Specs for Installation:
-
Load Bearing: Supports up to 1.0 kg (2.2 lb).
-
Material: Aluminum alloy & SGCC (provides high durability and corrosion resistance).
-
Dimensions: 162.0 mm × 129.4 mm × 80.0 mm.
Technical Specifications
| Feature |
Specification |
| Model |
PFB2203W |
| Material |
Aluminum Alloy |
| Dimensions |
160.0mm x 122.0mm x 76.0mm |
| Pipe Thread |
G1/2" |
| Load Bearing |
1.0kg (2.2lb) |
| Weight |
0.49kg (1.08lb) |
| Color |
White |
| Operating Temp. |
-40ºC to +60ºC (-40ºF to +140ºF) |
| Protection Rating |
IP66 |
Guru Tip: To ensure a fully waterproof seal for outdoor use, always use the included G1/2” pipe thread or applicable conduit and apply waterproof tape to the cable entry points.
