Dahua DH-IPC-HFW3649T1-ZAS-PV-ANZ-S2 — 6 MP WizSense 3 TiOC 3.0 Smart Dual Light Motorised Vari-Focal Active Deterrence Bullet (3649 S2, 2.7–13.5 mm)

Description

DAHUA TiOC 3.0 · 6 MP · WIZSENSE 3 · SMART DUAL LIGHT · ACUPICK · ANZ

DH-IPC-HFW3649T1-ZAS-PV-ANZ-S2 6 MP TiOC 3.0 Motorised Vari-Focal Bullet — Australian Stock & 3-Year Warranty

The Dahua DH-IPC-HFW3649T1-ZAS-PV-ANZ-S2 is the S2 chassis refresh of Dahua's 6 MP TiOC bullet, upgraded from TiOC 2.0 to TiOC 3.0 on the WizSense 3-Series Pro AI engine. Motorised 2.7–13.5 mm F1.0 vari-focal lens lets you re-frame the shot remotely from DMSS — wide 104° at 2.7 mm down to a tight 33° pull at 13.5 mm. Purpose-built for the Australian and New Zealand market with local firmware and a 3-year AU warranty. Available in White and Black at the same price.

Smart Dual Light pairs 50 m IR + 40 m warm light for auto-switching stealth or full-colour identification based on SMD 4.0 classified events. When the AI confirms a person or vehicle, the red/blue strobe activates, the built-in siren + speaker plays a voice warning, and the event fires an alarm to your NVR — all on-camera, no operator required. AcuPick attribute search works end-to-end with a Dahua 5-Series AcuPick NVR to find footage by clothing colour, vehicle type or direction.

Dual built-in microphones + built-in speaker enable two-way audio through DMSS. Standard PoE (802.3af) or 12 VDC — max draw only 12.1 W with siren + strobe + warm light firing.

3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why the HFW3649T1-ZAS-PV-ANZ-S2

TiOC 3.0 (not 2.0) on WizSense 3

The S2 chassis refresh moves this bullet up to TiOC 3.0 on Dahua's WizSense 3 Pro AI engine — adding SMD 4.0, AcuPick attribute search, and Smart Dual Light (auto-switching IR + warm) over the original TiOC 2.0 platform.

Motorised 2.7–13.5 mm F1.0

5× motorised vari-focal remote-controlled via DMSS — install wide (104°) then pull tight (33°) on the area of interest. F1.0 aperture is unusually wide for this class — more light on the sensor for cleaner low-light footage.

Smart Dual Light — 50 m IR + 40 m warm

Two IR LEDs + two warm-light LEDs auto-switch based on SMD 4.0 event. Stealth IR when quiet, warm-light full-colour when a person or vehicle enters the alarm zone.

Active deterrence — strobe + siren + voice

On-camera red/blue strobe, siren and speaker with pre-loaded voice warnings. Triggers automatically when SMD 4.0 confirms a human or vehicle — no operator, no phone, no NVR command needed.

AcuPick + Perimeter Protection

Pair with a Dahua 5-Series AcuPick NVR for attribute search across recorded footage — find someone by clothing colour or a vehicle by type. Perimeter Protection with tripwire, intrusion and H/V classification runs on-camera.

Two-way audio + standard PoE

Dual built-in mics + built-in speaker — talk to visitors, warn intruders, brief couriers via DMSS. Runs on standard 802.3af PoE — max 12.1 W with everything firing. No PoE+ needed.

Camera, lens & illumination

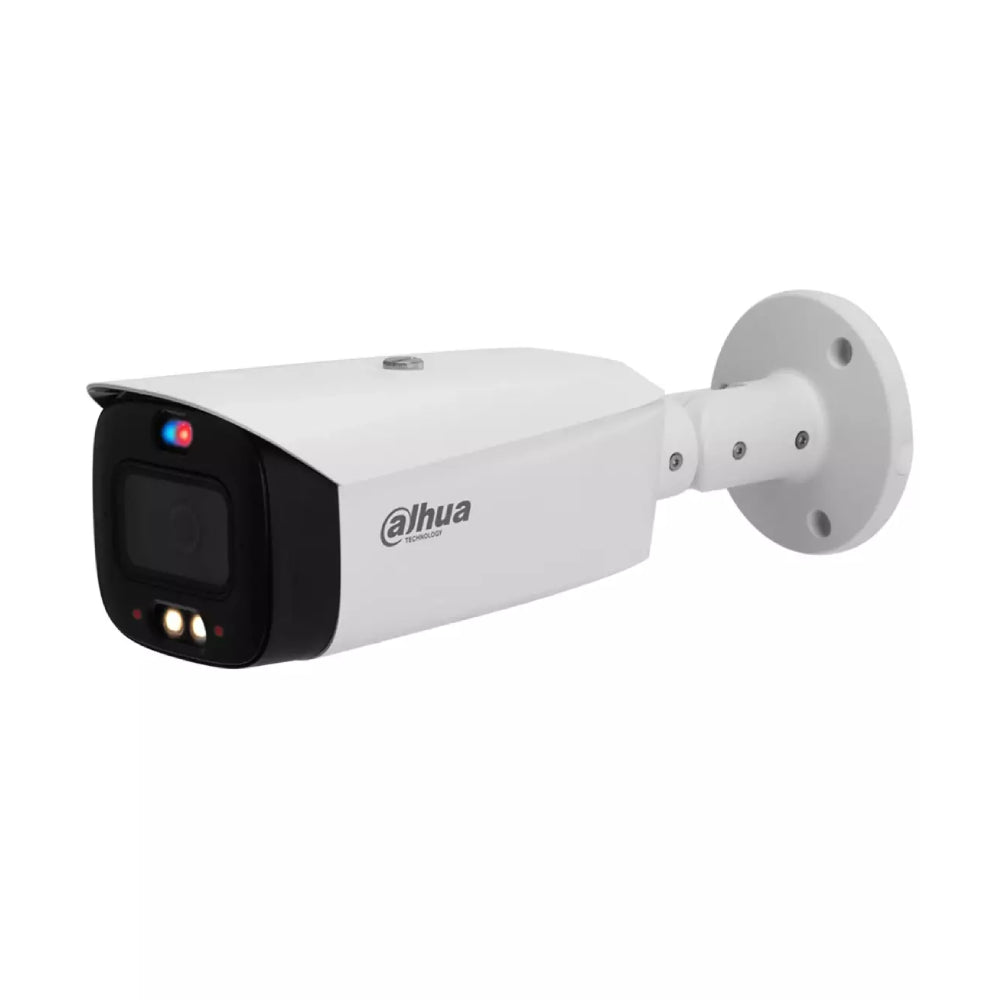

Model DH-IPC-HFW3649T1-ZAS-PV-ANZ-S2 (White) · DH-IPC-HFW3649T1-ZAS-PV-ANZ-S2-BLK (Black)
Form factor TiOC 3.0 motorised vari-focal bullet (HFW chassis, metal)
Image sensor 1/2.7″ CMOS progressive
Maximum resolution 3072 × 2048 (6 MP)
Frame rate 6 MP @ 25/30 fps · 1080p @ 25/30 fps
WDR 120 dB True WDR · HLC · BLC · 3D-NR · Defog
Day / night Auto (ICR) / Colour / B&W
Lens type Motorised vari-focal, fixed iris
Focal length 2.7 – 13.5 mm (5× zoom)
Maximum aperture F1.0
Field of view H: 104° – 33°
IR illumination Up to 50 m (2 multi-core IR LEDs)
Warm-light illumination Up to 40 m (2 warm-light LEDs)
Smart Dual Light Yes — auto or manual switching
TiOC 3.0 deterrence, Pro AI & audio
Active deterrence Red/blue warning strobe · siren · voice broadcast (custom audio supported)
Two-way audio Yes (dual mic + speaker via DMSS)
AI engine WizSense 3-Series (TiOC 3.0 / Pro AI)
Perimeter Protection Tripwire · Intrusion (with human / vehicle classification)
SMD SMD 4.0
AcuPick Yes — with a compatible Dahua 5-Series AcuPick NVR
Video compression AI H.265 · AI H.264 · Smart H.265+ · Smart H.264+ · MJPEG (sub-stream)
Built-in microphone Yes — dual mic
Audio I/O 1 in / 1 out (RCA)
Alarm I/O 1 in / 1 out
Network port RJ-45 10/100 Base-T
ONVIF Profile S, G, T, M · CGI
Storage microSD up to 512 GB · FTP / SFTP / NAS
Mobile client DMSS (iOS / Android)
Power, environment & build
Power supply 12 VDC / PoE (802.3af)
Power consumption Basic 5.8 W (PoE) / 4.5 W (12 VDC) · Max 12.1 W (PoE) / 10.3 W (12 VDC) with siren + strobe + warm light on
Operating temperature −30 °C to +60 °C
Humidity ≤ 95% RH non-condensing
Protection IP67
Casing Metal · White or Black
Certifications CE-LVD (EN 62368-1) · CE-EMC (2014/30/EU)
Australian warranty 3 years (via CCTV Guru)
See TiOC 3.0 & AcuPick in action
Dahua AcuPick — attribute-based person & vehicle search (@DahuaUKIreland)
Compatible mounts & accessories

Dahua PFA130-E Waterproof Junction Box

Recessed IP66 junction box for clean cable concealment on brick, render or weatherboard. White or black to match. White → · Black →

Dahua PFA135 Junction Box

Slim aluminium junction ring for tidy flush installs where full IP66 depth isn't required. View PFA135 →

Dahua PFA152-E Pole Mount

Heavy-duty pole bracket for fence posts, light poles and gate columns. View PFA152-E →

8ware Cat6 CCTV Patch Lead

Blue slim-shielded outdoor Cat6 patch lead in 0.5 m / 1 m / 2 m / 3 m. View 8ware Cat6 →

Frequently asked questions
Is this camera TiOC 2.0 or TiOC 3.0?
The S2 chassis is TiOC 3.0 on the WizSense 3 Pro AI engine — adds SMD 4.0, AcuPick attribute search and Smart Dual Light (auto-switching IR + warm) over the older TiOC 2.0 platform. Older marketing copy calling this "TiOC 2.0" is out of date.
Do I need a special NVR for AcuPick?
Yes — AcuPick target search requires a compatible Dahua 5-Series AcuPick NVR. TiOC deterrence, SMD 4.0, IVS and two-way audio all work on any Dahua AI NVR or via ONVIF on third-party recorders.
Will it deter intruders automatically?
Yes. The TiOC 3.0 deterrence chain fires the instant SMD 4.0 confirms a human or vehicle in the rule zone — strobe, siren and voice all run on-camera 24/7 without any operator, NVR command or mobile-app interaction.
Can I zoom or re-frame remotely after install?
Yes — the motorised 2.7–13.5 mm vari-focal lens is fully remote-controlled via DMSS. No ladder revisits.
Can I turn off the strobe or siren for daytime?
Yes — per-schedule arming/disarming via DMSS. Common setup: deterrence off during business hours, on overnight and weekends.
How far does the night vision reach?
50 m IR (stealth) or 40 m warm light (full colour). Smart Dual Light auto-switches based on SMD 4.0 event.
What's the difference between the White and Black versions?

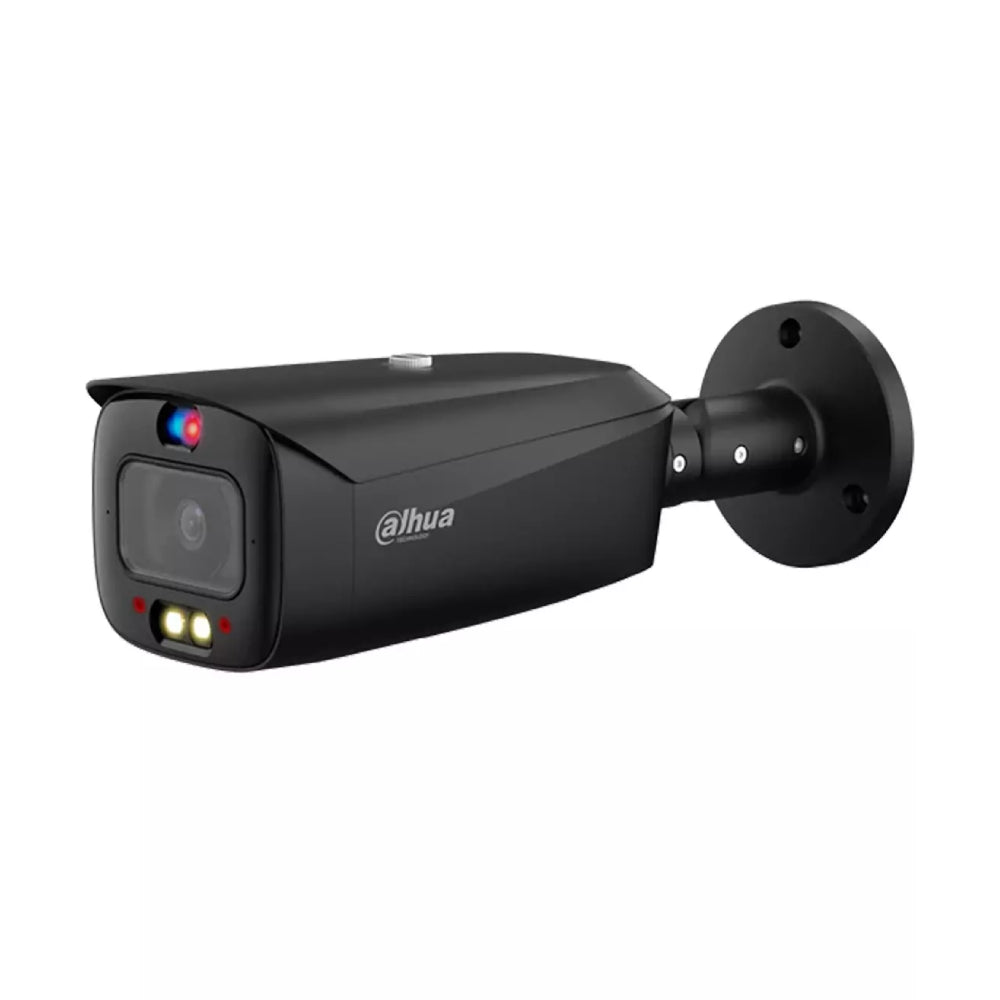

Specifications are identical. -ANZ-S2 is white; -ANZ-S2-BLK is black. Same price. Choose black for dark eaves and charcoal fascia; white for cream/render walls.
Will it work with my existing Hikvision or UNV NVR?
Yes for live view + recording via ONVIF Profile S/T. AcuPick and human/vehicle metadata only work end-to-end with a Dahua AI NVR.
Downloads
DH-IPC-HFW3649T1-ZAS-PV-ANZ-S2 Datasheet (PDF) Bullet Network Camera Quick Start Guide (PDF) Bullet Network Camera Installation Guide (PDF)
