Description

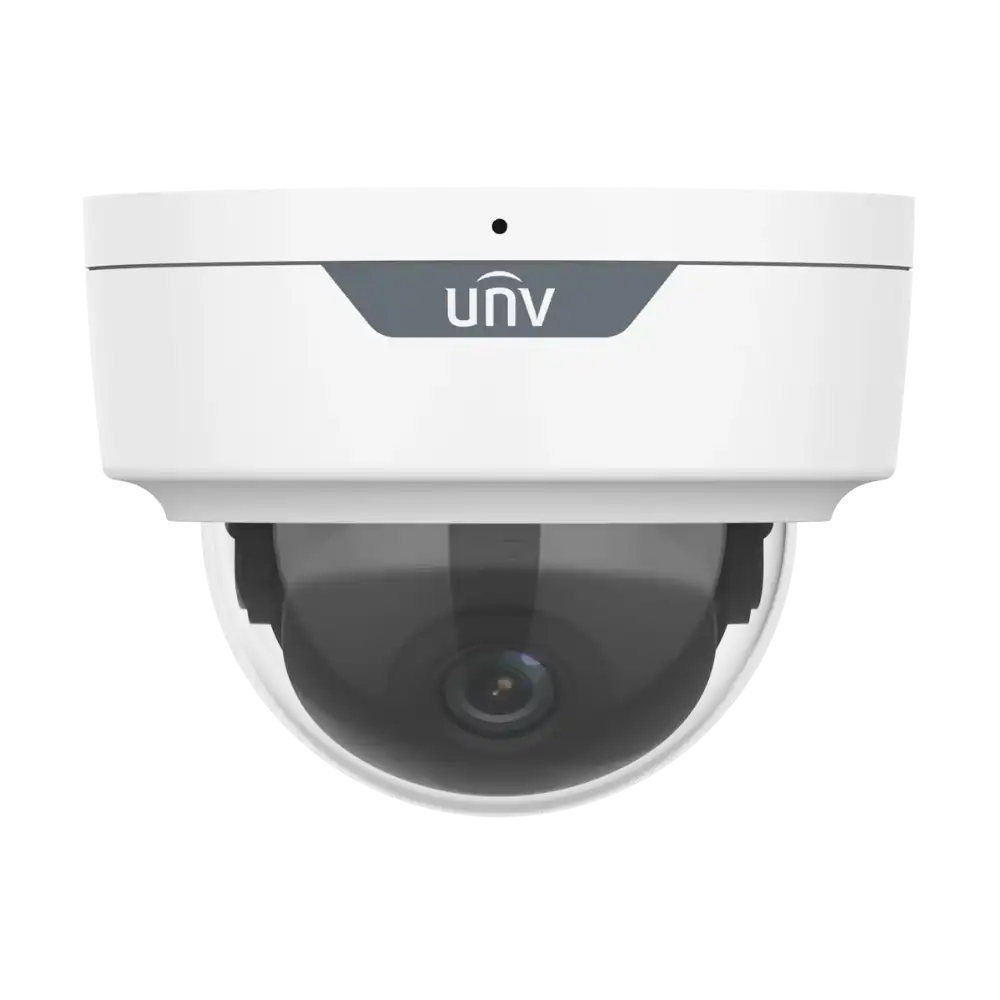

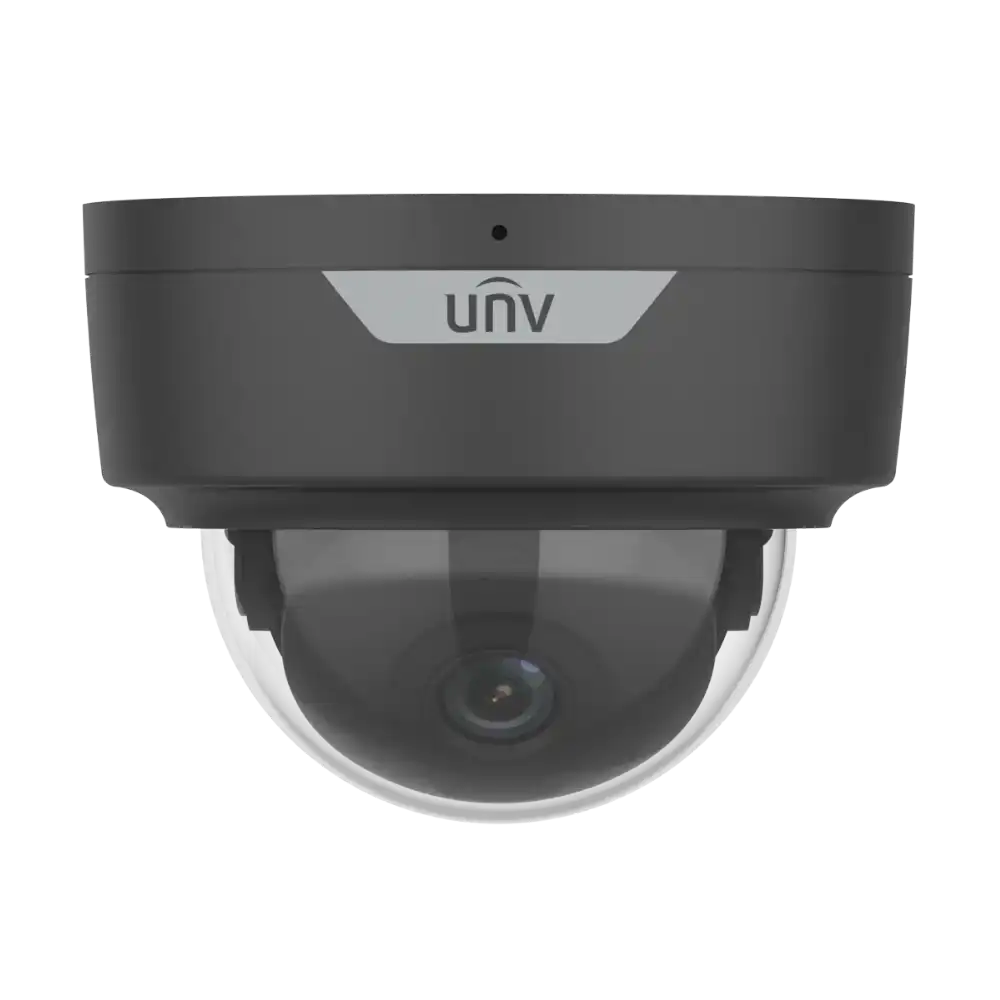

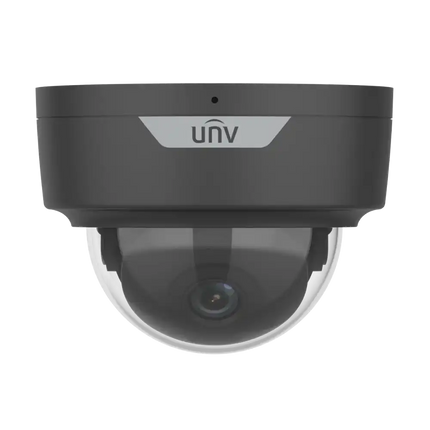

The Uniview UNV IPC326SS-ADF28K-I1 is a 6MP Intelligent LightHunter fixed dome network camera designed for demanding indoor and outdoor surveillance applications.
Powered by LightHunter technology and a 1/2.7″ CMOS sensor, this camera delivers excellent low-light performance with sharp detail and accurate colour reproduction.
With 130 dB true WDR, advanced AI-based intrusion detection, and people flow counting, the IPC326SS-ADF28K-I1 provides reliable monitoring in environments with strong backlight, heavy foot traffic, or frequent false-alarm triggers.
Its IK10 vandal resistance and IP67 weatherproof rating make it suitable for public areas, retail, offices, schools, and commercial premises.
Key Features
-
6MP resolution (3072 × 2048) at up to 30fps
-
LightHunter technology for ultra-high image quality in low illumination
-
130 dB true WDR for strong backlight scenes
-
2.8mm fixed lens (F1.6) with wide viewing angle
-
Smart IR up to 40m with automatic IR control
-
AI intelligent perimeter protection
- (line crossing, intrusion, enter/leave area with human/vehicle classification)
-
People flow counting & crowd density monitoring
-
Audio I/O 1/1 and Alarm I/O 1/1, built-in microphone
-
microSD edge storage up to 512GB
-
Ultra 265 / H.265 / H.264 / MJPEG compression
-
IK10 vandal resistant & IP67 weatherproof
- PoE (IEEE 802.3af) or 12V DC power
Technical Specifications
| Brand |
Uniview UNV |
| Model / SKU |
IPC326SS-ADF28K-I1 |
| Camera Type |
6MP Fixed Dome Network Camera |
| Image Sensor |
1/2.7" CMOS |
| Maximum Resolution |
6MP (3072 × 2048) |
| Lens |
2.8mm fixed lens, F1.6 |
| Field of View |
H: 110°, V: 58.7°, D: 130° |
| Low Light Performance |
0.002 lux (colour), 0 lux with IR on |
| WDR |
130 dB true WDR |
| IR Illumination |
Smart IR, up to 40m (850nm) |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| AI Functions |
Line crossing, intrusion, people counting, crowd density |
| Audio / Alarm |
Audio 1 in / 1 out, Alarm 1 in / 1 out |
| Edge Storage |
microSD up to 512GB |
| Network |
1 × RJ45 10/100 Mbps Ethernet |
| Power |
DC 12V ±25% or PoE (IEEE 802.3af) |
| Power Consumption |
Max 6.5W |
| Protection Rating |
IP67, IK10 |
| Operating Temperature |
-30°C to 60°C |
| Material |
Metal |
| Dimensions |
Ø111 × 83 mm |
| Weight |
0.42 kg |
