WizSense 3 · 6 MP · Smart Dual Light · AcuPick Ready

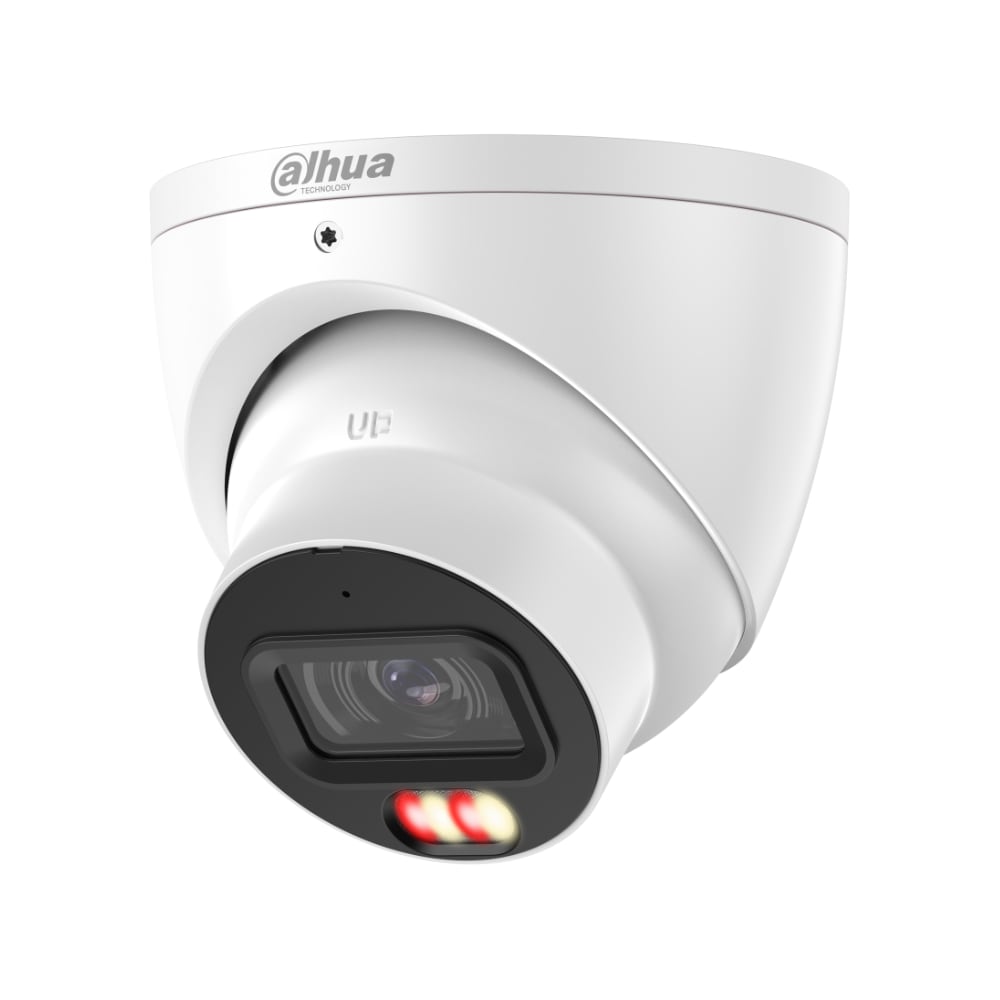

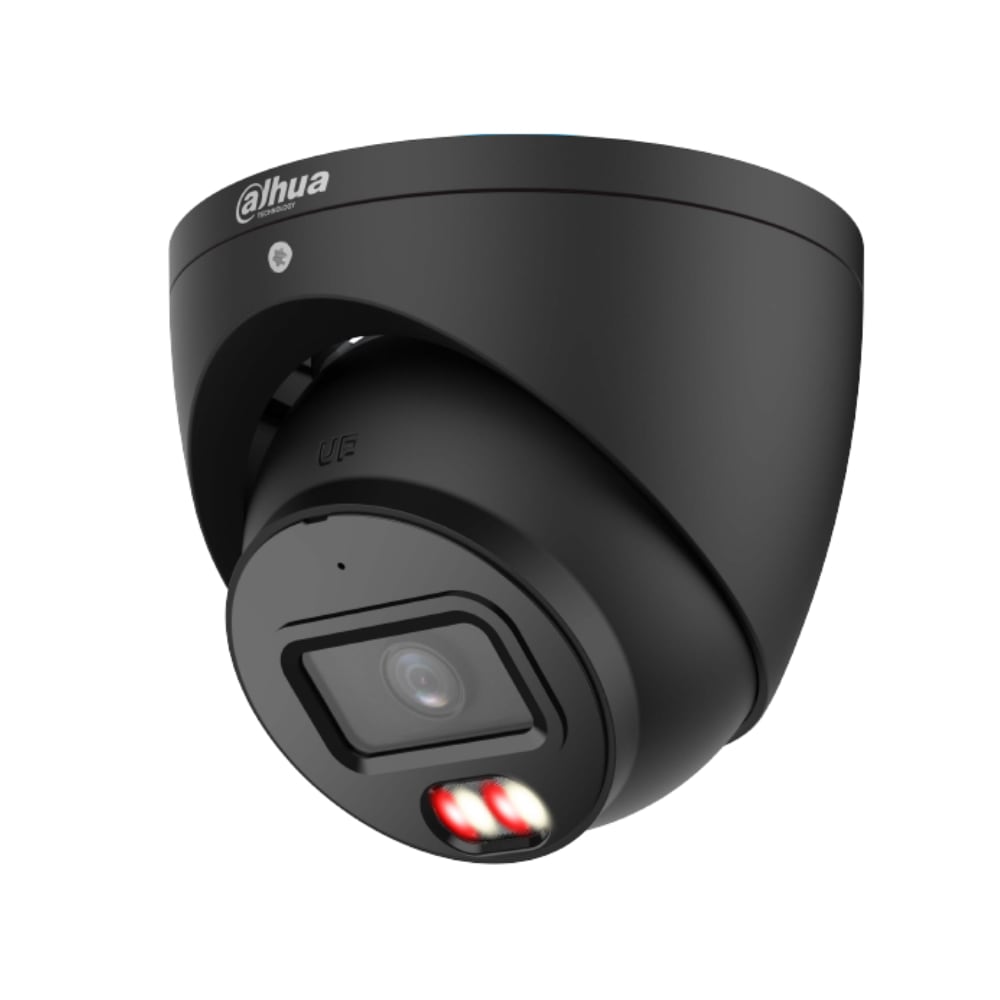

Dahua DH-IPC-HDW3667EM-S-IL-ANZ — 6 MP Smart Dual Light Fixed-Focal Eyeball Turret WizSense Network Camera (3667 Series)
The Dahua DH-IPC-HDW3667EM-S-IL-ANZ is a 6 MP WizSense 3 outdoor eyeball turret IP camera with a fixed-focal 2.8 mm F1.4 lens (3.6 mm option also available). The 1/2.7" CMOS sensor outputs 3288 × 1850 at 25/30 fps with Smart H.265+ encoding, and Dahua's Smart Dual Light engine pairs a 30 m IR illuminator with a 30 m warm-light array — the camera runs invisible IR after dark, then flips to full-colour white light the instant WizSense classifies a person or vehicle in the scene. WDR is rated at 120 dB, the compact 105.5 × Φ122 mm housing is IP67 sealed across –40 °C to +60 °C (Alpine-rated), and the on-board electronics include a built-in microphone, audio compression and a 1/1 alarm wet-contact pair. Edge AcuPick, SMD 4.0 and perimeter protection run on the WizSense 3 deep-learning chip; peak draw is only 9.5 W on standard 802.3af PoE — among the lightest power profiles in the 6 MP turret class. Built for Australian residential, NDIS, small-business and shopfront installs where a discreet ceiling/soffit-mounted eyeball is preferred over a visible bullet — driveways, alfresco entries, awnings, granny-flat verandahs, retail interiors and undercover carparks. Backed by a 3-year Australian warranty through CCTV Guru. SKU 3667 series.
Resolution
6 MP @ 25/30 fps
Smart Dual Light
IR 30 m + Warm 30 m
AI Engine
WizSense 3 + AcuPick
Protection
IP67 · –40 to +60 °C
Power
12 VDC / PoE 802.3af · 9.5 W max
Why Choose the Dahua HDW3667EM-S-IL-ANZ Turret
This is the WizSense 3 6 MP eyeball turret that punches above its price tier — same sensor and AI as the more expensive motorised-zoom HFW3667T, in a compact, low-profile ceiling/soffit-friendly chassis. Below are the six reasons it consistently outperforms generic 6 MP turrets on Australian sites.
True 6 MP Image, Not Upscaled
The 1/2.7" CMOS captures a native 3288 × 1850 raster — more than double the pixel density of 1080p. Digital zoom into faces, plates and signage stays usable instead of dissolving into a noise field.
Discreet Eyeball Form Factor
At only 105.5 × Φ122 mm and 0.53 kg, the HDW3667EM mounts cleanly to eaves, soffits, awnings and undercover ceilings — places where a bullet camera would look bulky or non-residential. Modern minimalist aesthetic for retail, NDIS and architectural homes.
Smart Dual Light, No Light Pollution
30 m IR runs invisibly until WizSense classifies a person or vehicle, then the 30 m warm-light array switches on the target to capture full-colour evidence. No permanent white-light wash for neighbours to complain about.
120 dB WDR Holds the Frame
Strong wide dynamic range holds detail in both bright sky and dark interior in a single frame — important for awning-shaded entries, glass shopfronts, and the high-contrast Australian midday sun where lesser cameras blow out one side.
AcuPick-Ready Edge AI
Paired with a Dahua AcuPick NVR, you can search hours of recorded video by attributes — "red top, blue trousers, walking east" — and pull matching clips in seconds rather than scrubbing the timeline by hand.
Lowest Power Draw in the Class
Maximum 9.5 W on PoE — comfortable on any 802.3af switch, including the integrated PoE ports on Dahua's compact NVRs. Lower running cost over the camera's lifetime and easier to budget on shared-PoE switches.
Important Install Note
The HDW3667EM is a fixed-focal turret — frame the camera carefully at install time, as there's no remote re-framing later. The eyeball gimbal allows ±75° pan, ±75° tilt and 0–360° rotation at the mount, so framing is flexible at install but locked once tightened. For outdoor installs in exposed coastal or humid positions, we recommend pairing with the DH-PFA137 in-ceiling junction box to keep condensation off the RJ-45 termination. The compact body fits common Australian eave-soffit cutouts without needing a wall-bracket arm.
AI & Smart Detection Capabilities
AcuPick Target Search
Deep-learning attribute matching across people and vehicles. Find a target across hours of recorded video by colour, top/bottom clothing, vehicle type and direction — when paired with a compatible Dahua AcuPick NVR.
SMD 4.0 — Smart Motion Detection
Motion alerts triggered only by humans and vehicles. Wind-blown branches, small animals, possums on a fence and shadows are filtered out at the edge — slashing false-alarm volume on residential and small-business sites.
Perimeter Protection (IVS)
Configurable tripwire and intrusion zones with human-and-vehicle classification. Draw a line across a driveway or a polygon around a yard and only get pushed an alert when the right type of target crosses it.
Smart Dual Light Deterrence
When WizSense classifies a person in the warm-light zone, the white-light array triggers automatically — leaving subjects in no doubt they have been captured in full colour. A passive deterrent that costs nothing extra in licensing or hardware.
AI SSA — Scene Self-Adaptation
The camera detects environmental conditions like rain, fog, backlight, low light and flicker, and automatically adjusts image parameters to keep the scene clear without an operator touching the settings.
Smart Search & Event Extraction
Pairs with a Smart NVR to refine intelligent search, extract and merge event video. Skip past hours of empty footage and jump straight to the moments where something the AI flagged as relevant happened.
Technical Specifications
Camera & Image Sensor
| Model |
DH-IPC-HDW3667EM-S-IL-ANZ |
| Form Factor |
Eyeball turret (HDW chassis) |
| Image Sensor |
1/2.7" CMOS |
| Maximum Resolution |
3288 × 1850 (6 MP) |
| Scanning System |
Progressive |
| Minimum Illumination |
0.005 lux @ F1.4 (Colour) · 0.0005 lux @ F1.4 (B/W) · 0 lux (illuminator on) |
| S/N Ratio |
> 56 dB |
| WDR |
120 dB |
| Day / Night |
Auto (ICR) / Colour / B&W |
| BLC / HLC |
Yes / Yes |
| Noise Reduction |
3D NR |
| Smart Illumination |
Yes |
| Smart Dual Light |
Yes (target-triggered IR / warm-light hand-off) |
| Privacy Masking |
Multiple areas |
Lens & Illumination
| Lens Type |
Fixed-focal |
| Lens Mount |
M12 |
| Focal Length |
2.8 mm (this listing) · 3.6 mm variant also available |
| Maximum Aperture |
F1.4 |
| Field of View (2.8 mm) |
H: 110° · V: 58° · D: 132° |
| IR Illumination |
Up to 30 m |
| Warm Light Illumination |
Up to 30 m |
| Illuminator Configuration |
2 × multi-core LEDs (IR + warm light) |
Intelligence & Video
| AI Engine |
WizSense 3 Series |
| IVS — Perimeter Protection |
Tripwire, intrusion (with human + vehicle classification) |
| Smart Motion Detection |
SMD 4.0 |
| AcuPick |
Yes (with compatible Dahua AcuPick NVR) |
| AI SSA |
Yes (scene self-adaptation) |
| Smart Search |
Yes (paired with Smart NVR) |
| Video Compression |
H.265 · H.264 · H.264H · H.264B · MJPEG (sub stream) |
| Smart Codec |
Smart H.265+ · Smart H.264+ |
| Resolutions |
6 MP · 5 MP · 4 MP · 3 MP · 1080p · 720p · D1 · VGA · CIF |
| Main Stream |
3288 × 1850 @ 1–25/30 fps |
| Bit Rate Control |
VBR · CBR · ABR |
Audio, Alarm & Network
| Built-in Microphone |
Yes |
| Audio Compression |
PCM · G.711a · G.711Mu · G.726 · G.723 |
| Alarm Event |
SD card status · network disconnection · IP conflict · illegal access · motion detection · video tampering · tripwire · intrusion · scene change · audio detection · voltage detection · SMD · security exception |
| Network Port |
RJ-45 (10/100 Base-T) |
| Network Protocols |
IPv4 · IPv6 · HTTP · HTTPS · TCP · UDP · ARP · RTP · RTSP · RTCP · RTMP · SMTP · FTP · SFTP · DHCP · DNS · DDNS · QoS · UPnP · NTP · Multicast · ICMP · IGMP · NFS · SAMBA · PPPoE · SNMP · P2P · 802.1x |
| Interoperability |
ONVIF (Profile S, G, T) · CGI |
| Storage |
FTP · SFTP · NAS · Micro SD card up to 512 GB |
| Mobile Client |
DMSS (iOS / Android) |
| Management Software |
SmartPSS Lite · DSS · DMSS |
| Cyber Security |
Trusted boot · trusted execution · trusted upgrade · video encryption · firmware encryption · 802.1x · HTTPS · IP/MAC filtering · WSSE · X.509 |
Power, Environment & Build
| Power Supply |
12 VDC / PoE (802.3af) |
| Power Consumption (Basic) |
3.7 W (12 VDC) · 5.3 W (PoE) |
| Power Consumption (Max.) |
7.4 W (12 VDC) · 9.5 W (PoE) with H.265 + WDR + warm light + AI |
| Dual-Power Backup |
Yes (12 VDC and PoE simultaneously supported) |
| Operating Temperature |
–40 °C to +60 °C |
| Operating Humidity |
≤ 95% RH (non-condensing) |
| Storage Temperature |
–40 °C to +60 °C |
| Protection Rating |
IP67 |
| Product Dimensions |
105.5 mm × Φ122.0 mm |
| Net Weight |
0.53 kg |
| Gross Weight |
0.71 kg |
| Certifications |
CE-LVD (EN62368-1) · CE-EMC (2014/30/EU) · RCM (AU) |
| Australian Warranty |
3 Years (via CCTV Guru) |
How It Compares — HDW3667EM-S-IL-ANZ vs HFW3667E-AS-IL-ANZ
The closest sibling is the Dahua DH-IPC-HFW3667E-AS-IL-ANZ — the **bullet** version of this exact camera. Same sensor, same Smart Dual Light, same WizSense 3, same AcuPick. The decision is purely form factor and aesthetics — eyeball turret (discreet, ceiling/soffit-friendly) vs bullet (visible, deters intruders by visibility, slightly longer body).
| Feature |
HDW3667EM-S-IL-ANZ (this camera — turret)
|
HFW3667E-AS-IL-ANZ (bullet sibling)
|
| Form Factor |
Eyeball turret — discreet, low profile |
Bullet — visible, longer-bodied |
| Resolution |
6 MP (3288 × 1850) |
6 MP (3288 × 1850) |
| Sensor |
1/2.7" CMOS |
1/2.7" CMOS |
| Lens |
Fixed 2.8 mm (3.6 mm option) · F1.4 |
Fixed 2.8 mm (3.6 mm option) · F1.4 |
| AI Engine |
WizSense 3 + AcuPick |
WizSense 3 + AcuPick |
| Smart Dual Light |
IR 30 m + warm 30 m |
IR 30 m + warm 30 m |
| WDR |
120 dB |
120 dB |
| Dimensions |
105.5 × Φ122 mm — compact eyeball |
~238 × 90.7 × 90.7 mm — longer body |
| Net Weight |
0.53 kg |
~0.48 kg |
| Power Draw (PoE max) |
9.5 W — lowest in class |
10 W |
| Built-in Mic |
Yes |
Yes |
| Operating Temperature |
–40 °C to +60 °C |
–40 °C to +60 °C |
| IP Rating |
IP67 |
IP67 |
| Best For |
Discreet mounting — eaves, soffits, awnings, retail interiors, NDIS dwellings, architectural homes |
Visible deterrence — front-facade, driveway approach, shopfronts where the camera should be seen |
Recommended NVR Pairings
For AcuPick attribute search on recorded footage, this camera should be paired with a Dahua 5-Series AI NVR running V5 firmware. Below are four CCTV Guru-stocked recorders sized for the most common Australian deployments.
Dahua DHI-NVR5208-8P-AI/ANZ
5-Series AcuPick NVR · 8 channels · 8 built-in PoE ports · 2 HDD bays · 1U · perimeter protection and SMD Plus. The most popular pairing for residential and small-business sites running 4–8 cameras.
View Dahua NVR5208-8P-AI →
Dahua DHI-NVR5216-16P-AI/ANZ
5-Series AcuPick NVR · 16 channels · 16 PoE+ ports (1–8 ePoE) · 2 HDD bays · 1U · 384 Mbps incoming. Sized for medium commercial sites and multi-building yards.
View Dahua NVR5216-16P-AI →
Dahua DHI-NVR4216-16P-AI/ANZ
4-Series WizSense AI NVR · 16 channels · 16 PoE ports · 2 HDD bays · 4K HDMI · Smart 2.0 AI with SMD+ and IVS. The value-pick 16-channel build for sites that don't need full AcuPick attribute search.
View Dahua NVR4216-16P-AI →
Dahua DHI-NVR5432-AI/ANZ
5-Series AcuPick NVR · 32 channels · 4 HDD bays · dual GbE NICs · dual HDMI + dual VGA · 1.5U. Enterprise-scale AcuPick across the entire estate — warehouses, schools, multi-tenant strata and large-format retail.
View Dahua NVR5432-AI →
Compatible Mounts & Accessories
DH-PFA137 — In-Ceiling Junction Box
The most popular accessory for this turret — protects the RJ-45 termination from condensation behind ceiling/soffit mounts. Strongly recommended for AU coastal and humid installs.
DH-PFA106 — Junction Box (Surface)
Surface-mounted junction box for tidy cable management on rendered or brick walls when ceiling mounting isn't an option.
DH-PFB203W — Wall Mount Bracket
Wall mount bracket for vertical-wall installs — turns the turret into an angled-down façade camera. Useful for shopfront and entry-point coverage.
DH-PFA152-E — Pole Mount Bracket
Pole mount bracket fitting 60–110 mm diameter poles. Ideal for carpark light poles, perimeter fence posts and rural driveway pylons.
DH-PFA101 — Corner Mount
Corner mount bracket for external building corners. Useful for double-frontage coverage where the turret needs to see both adjacent façades.
DH-PFM321D-EN / DH-PFM320D-EN — 12 VDC Adapters
Genuine Dahua 12 VDC power adapters — 1 A and 2 A options. Use when running the camera on local DC instead of PoE, or as a backup supply alongside PoE.
Frequently Asked Questions
Is the Dahua HDW3667EM-S-IL-ANZ NDAA compliant?
No. Dahua is not certified under NDAA Section 889. If your project has an NDAA mandate (US federal, certain Australian government contracts, or critical-infrastructure tenders that follow the same standard), choose a NDAA-compliant brand from our range instead.
What's the difference between the 2.8 mm and 3.6 mm lens options?
2.8 mm gives a wider 110° horizontal field of view — best for shopfronts, single driveways, hallway interiors and small carparks where coverage matters more than range. 3.6 mm narrows the field but pushes more pixels onto distant targets — better for longer driveways and front-fence approaches.
Does this camera include AcuPick?
Yes — AcuPick attribute search is built into the camera's WizSense 3 firmware. To actually search recorded footage by attributes you must record to a compatible Dahua AcuPick NVR running V5 firmware.
Should I choose the turret or the bullet (HFW3667E) version?
Functionally identical sensor, AI and Smart Dual Light. Choose the turret HDW3667EM for discreet ceiling/soffit/eave mounting — modern minimalist aesthetic, blends into architecture. Choose the bullet HFW3667E when you want the camera to be visibly seen as a deterrent.
How far can it see at night?
Smart Dual Light gives 30 m on IR and 30 m on warm light. DORI Identify range (where a face is recognisable) is roughly 8.5 m at the 2.8 mm lens. For longer range, the motorised-zoom HFW3667T-ZAS-IL-ANZ variant pushes Identify out to 28 m at its tele setting.
Can I run this camera on standard PoE?
Yes — it is 802.3af-compliant and pulls a maximum of only 9.5 W. Any quality 802.3af switch with budget headroom will run it comfortably — the lowest power draw in its 6 MP turret class.
Does it have a microphone?
Yes, the camera has a built-in microphone. NDIS, retail and public-space sites should check local audio-recording legislation before enabling sound recording.
Does it work with third-party NVRs?
Yes — it supports ONVIF Profile S, G and T, so it will record to any ONVIF-compatible third-party NVR. Note that AcuPick attribute search and SMD 4.0 alarm push only work end-to-end on a genuine Dahua AI NVR.
What temperature range is it rated for?
–40 °C to +60 °C — the same wide cold-tolerance window as the bullet variant. Suitable for Alpine NSW, Tasmanian highland, and any AU site that sees overnight frost.
Can I view the camera live on my phone?
Yes — the camera works with Dahua's free DMSS app on iOS and Android. Add the device with the QR code on the housing, sign in, and you get live view, two-way audio, motion alerts and recorded-footage playback from anywhere with internet. No subscription required.
Downloads
Order Your Dahua HDW3667EM-S-IL-ANZ from CCTV Guru
"Add to cart" to order online, or contact our Australian team for a bulk quote, project pricing, multi-camera configuration advice or NVR compatibility check. We are authorised Australian Dahua resellers, hold stock locally, and back every 3667-series camera with a 3-year Australian warranty and Australian-based tech support. Phone, email or live chat us through cctvguru.com.au/pages/contact — most enquiries are answered the same business day.
