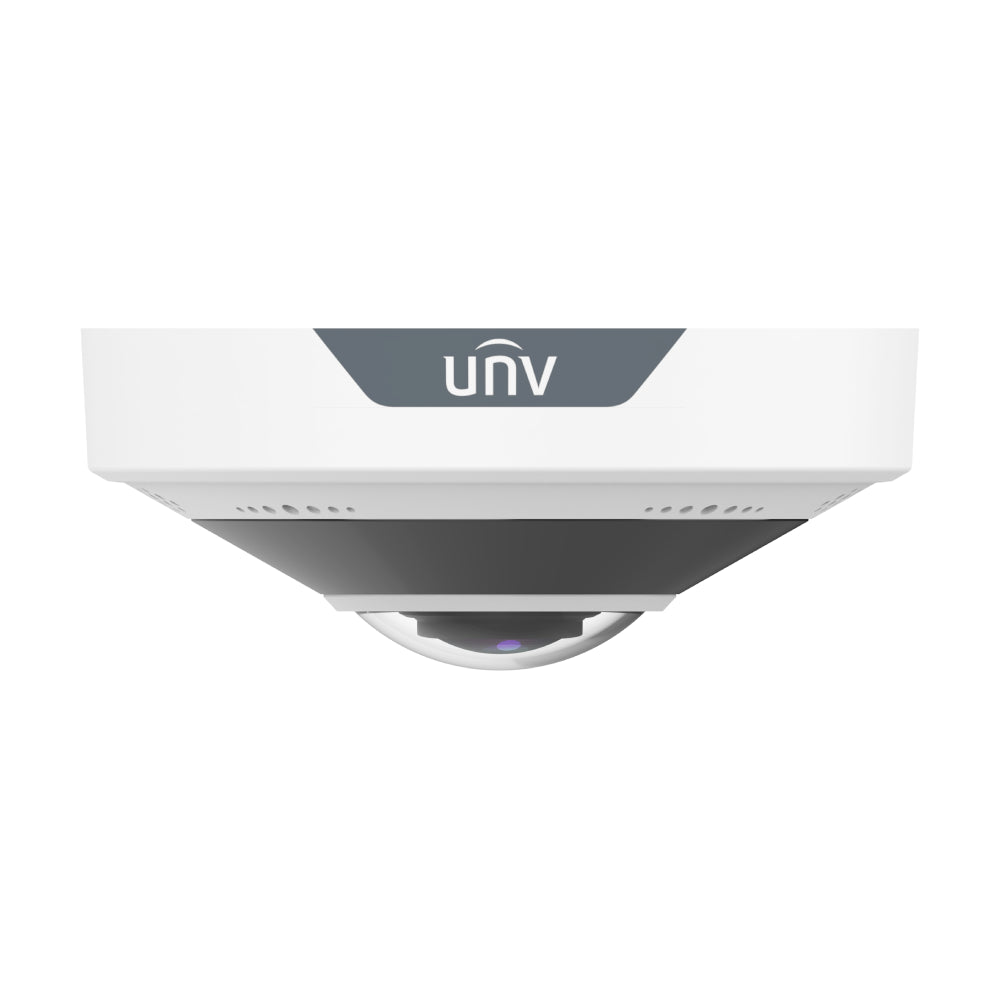

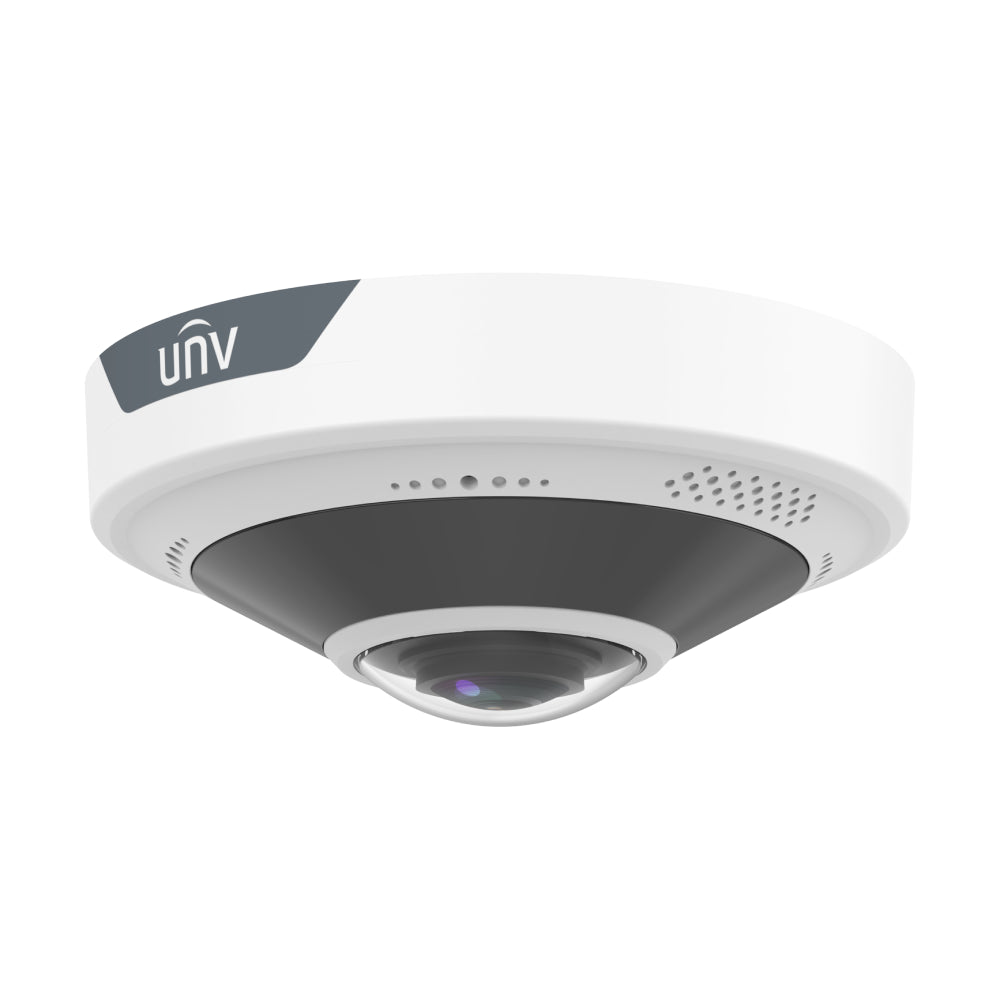

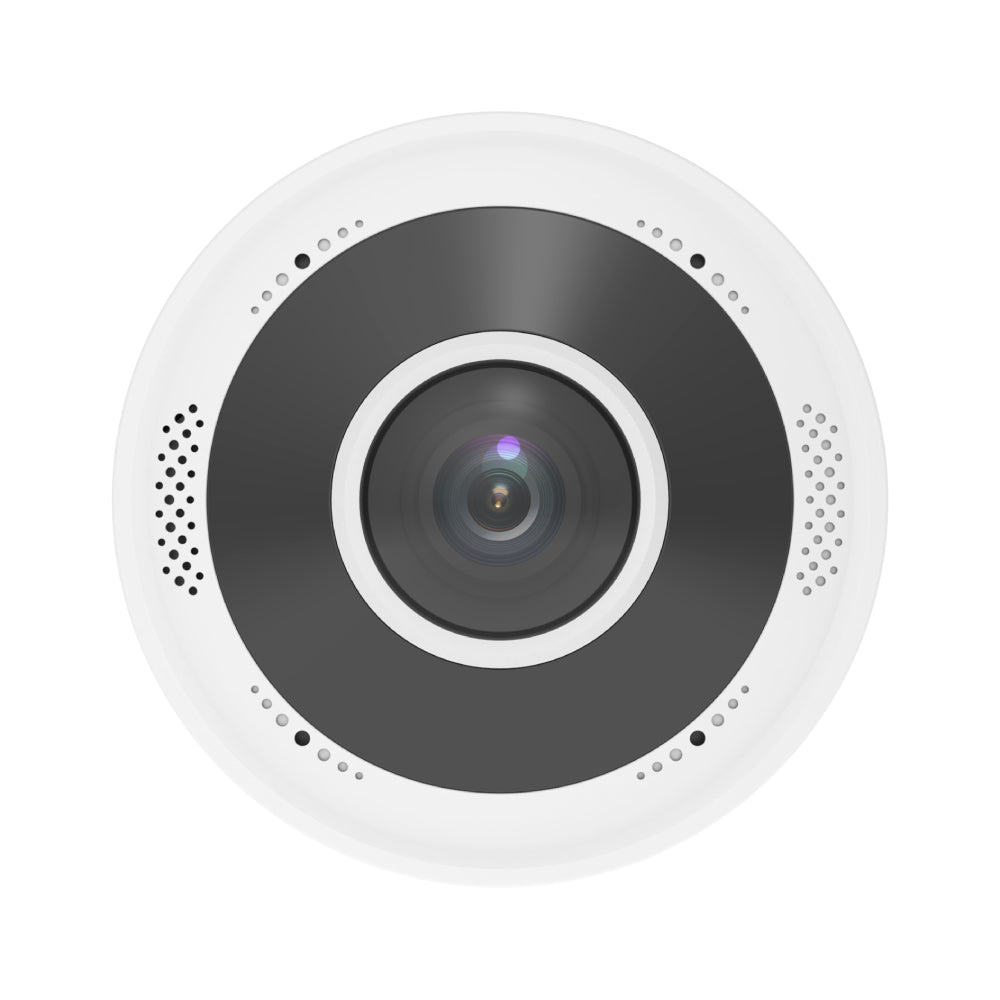

Uniview IPC816SB-ADF16KMC-I1 6MP Fisheye Dome Network Camera

Description

UNIVIEW · IPC816SB-ADF16KMC-I1

Uniview IPC816SB-ADF16KMC-I1 6MP Fisheye Dome Network Camera

The Uniview IPC816SB-ADF16KMC-I1 is a 6MP fisheye network camera with a 1.6 mm lens and 120 dB WDR. It records 6MP (2560 × 2560), up to 30 fps, supports local microSD storage up to 512 GB, and uses ir: 15 m (49.2 ft) illumination. Built-in microphone; built-in speaker and two-way audio. Protection: IP67 (IEC 60529) IK10 (IEC 62262).

Specifications
Model IPC816SB-ADF16KMC-I1
Design Fisheye
Image Sensor 1/2.5" CMOS
Resolution / Frame Rate 6MP (2560 × 2560), up to 30 fps
Lens 1.6 mm, F2.0
Horizontal View 180 °
WDR 120 dB
Illumination IR: 15 m (49.2 ft)
Audio Built-in microphone; built-in speaker and two-way audio
Audio I/O 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O 1/1
Local Storage MicroSD up to 512 GB
Power DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption Max. 8.4 W
Protection IP67 (IEC 60529) IK10 (IEC 62262)
Dimensions Ø126 mm × 52 mm (Ø5.0" × 2.1") (Ø × H)
Weight 0.44kg （0.97lb）
Compression Ultra 265, H.265, H.264, MJPEG
Network RJ45 10/100 Mbps

Frequently Asked Questions

What lens and resolution does it have?

1.6 mm, F2.0. 6MP (2560 × 2560), up to 30 fps.

How does it work at night?

IR: 15 m (49.2 ft). Actual image detail depends on the scene and installation.

Does it have two-way audio?

Built-in microphone; built-in speaker and two-way audio.

Can it record without an NVR?

It supports local recording with a microSD card up to 512 GB. A card is required for local storage.

How is it powered?

DC 12 V±25%, PoE (IEEE 802.3af); Max. 8.4 W.

Which mounts are compatible?

Use the exact camera model in the Uniview accessory list. The linked mounting products are compatible choices; mounting assemblies may require an adapter or pendant.

Technical DatasheetQuick Start GuideOperation Manual

Uniview IPC816SB-ADF16KMC-I1 6MP Fisheye Dome Network Camera

Product form

SKU: IPC816SB-ADF16KMC-I1

$499.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Add Ons & Accessories

    • Shipped today? Order within: Oct 09, 2026 14:00:00 +1100
    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    UNIVIEW · IPC816SB-ADF16KMC-I1

    Uniview IPC816SB-ADF16KMC-I1 6MP Fisheye Dome Network Camera

    The Uniview IPC816SB-ADF16KMC-I1 is a 6MP fisheye network camera with a 1.6 mm lens and 120 dB WDR. It records 6MP (2560 × 2560), up to 30 fps, supports local microSD storage up to 512 GB, and uses ir: 15 m (49.2 ft) illumination. Built-in microphone; built-in speaker and two-way audio. Protection: IP67 (IEC 60529) IK10 (IEC 62262).

    Specifications
    Model IPC816SB-ADF16KMC-I1
    Design Fisheye
    Image Sensor 1/2.5" CMOS
    Resolution / Frame Rate 6MP (2560 × 2560), up to 30 fps
    Lens 1.6 mm, F2.0
    Horizontal View 180 °
    WDR 120 dB
    Illumination IR: 15 m (49.2 ft)
    Audio Built-in microphone; built-in speaker and two-way audio
    Audio I/O 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
    Alarm I/O 1/1
    Local Storage MicroSD up to 512 GB
    Power DC 12 V±25%, PoE (IEEE 802.3af)
    Power Consumption Max. 8.4 W
    Protection IP67 (IEC 60529) IK10 (IEC 62262)
    Dimensions Ø126 mm × 52 mm (Ø5.0" × 2.1") (Ø × H)
    Weight 0.44kg （0.97lb）
    Compression Ultra 265, H.265, H.264, MJPEG
    Network RJ45 10/100 Mbps

    Frequently Asked Questions

    What lens and resolution does it have?

    1.6 mm, F2.0. 6MP (2560 × 2560), up to 30 fps.

    How does it work at night?

    IR: 15 m (49.2 ft). Actual image detail depends on the scene and installation.

    Does it have two-way audio?

    Built-in microphone; built-in speaker and two-way audio.

    Can it record without an NVR?

    It supports local recording with a microSD card up to 512 GB. A card is required for local storage.

    How is it powered?

    DC 12 V±25%, PoE (IEEE 802.3af); Max. 8.4 W.

    Which mounts are compatible?

    Use the exact camera model in the Uniview accessory list. The linked mounting products are compatible choices; mounting assemblies may require an adapter or pendant.

    Technical DatasheetQuick Start GuideOperation Manual
