TiOC 3 · 6 MP · AcuPick · Active Deterrence

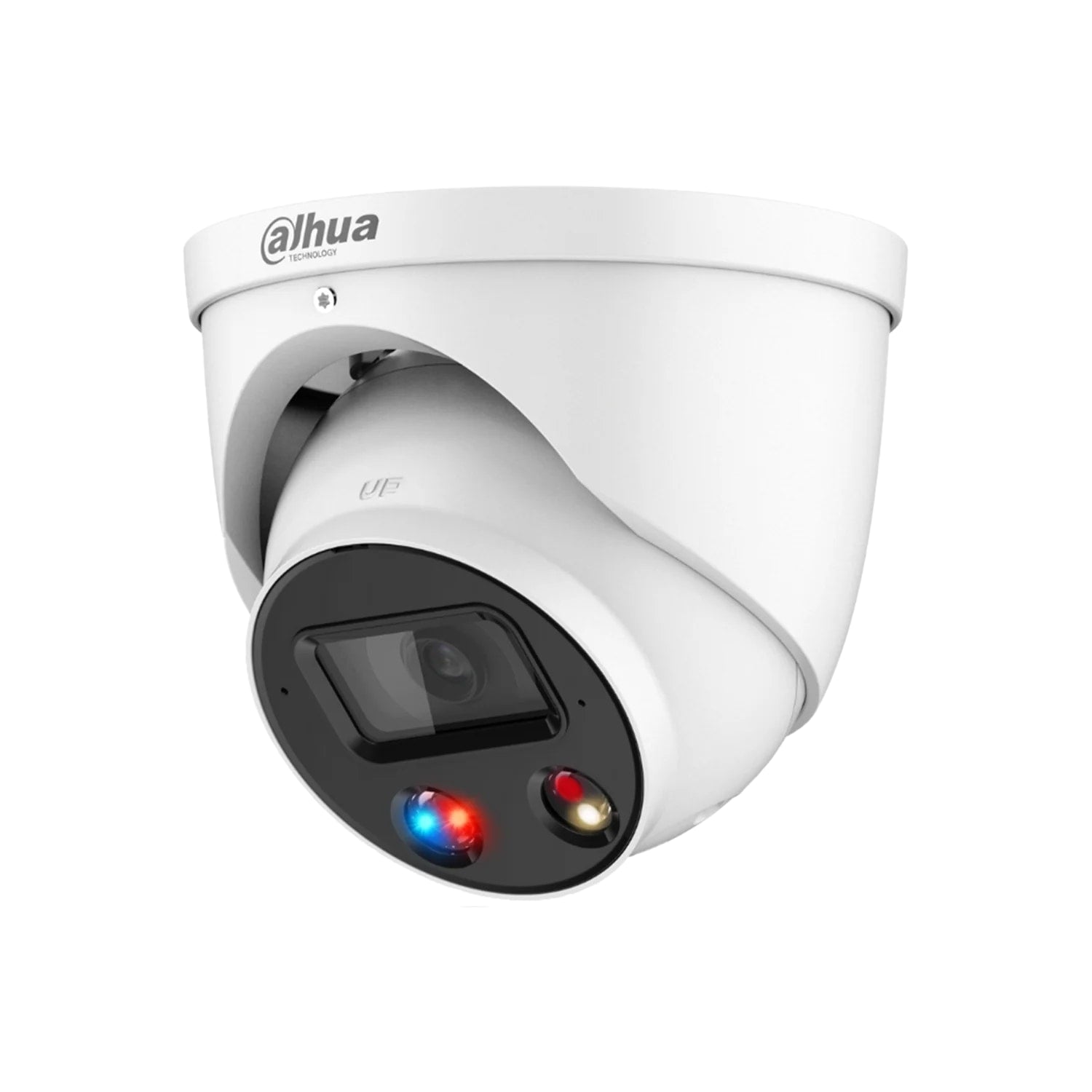

Dahua 6MP AcuPick Turret
Dahua DH-IPC-HDW3649H-AS-PV-ANZ-S2 — 6 MP TiOC 3 AcuPick Active Deterrence Full-Colour Starlight Turret WizSense Network Camera (3649 Series)
The Dahua DH-IPC-HDW3649H-AS-PV-ANZ-S2 is the 3649-series TiOC 3 active-deterrence turret with native AcuPick — three cameras in one chassis: a 24/7 surveillance camera, a real-time alarm device and an audible/visible intruder deterrent. The 1/1.8" CMOS Starlight sensor outputs 6 MP (3288 × 1850) at 25/30 fps with Smart H.265+ encoding through a fixed-focal 2.8 mm F1.6 lens. Smart Dual Illumination pairs a 30 m IR illuminator with a 30 m warm-light array for full-colour night vision. When WizSense classifies a person or vehicle inside an IVS zone, the camera triggers red and blue strobe lighting and an audible alarm from the built-in siren and speaker. Two-way audio over the built-in mic and speaker means an operator can speak directly to the intruder via the DMSS app. WDR is 140 dB; the housing is IP67 sealed; SMD 4.0 filters animal and foliage motion at the edge. Edge AcuPick lets a paired Dahua AcuPick NVR search recorded footage by attributes. Backed by a 3-year Australian warranty.
Resolution
6 MP @ 25/30 fps
Smart Dual Light
IR 30 m + Warm 30 m
AI Engine
WizSense + AcuPick
Active Deterrence
TiOC Strobe + Siren
Power
12 VDC / PoE 802.3af
See the Dahua TiOC Active Deterrence Platform in Action
Dahua's official TiOC highlight — red/blue strobe + audible alarm + smart dual light + full-colour evidence.
Why Choose the Dahua HDW3649H-AS-PV-ANZ-S2 TiOC Turret
Red & Blue Strobe + Built-in Siren
The TiOC active-deterrence stack triggers automatically when WizSense identifies a person or vehicle inside an IVS zone.
Two-Way Audio Talk-Down
The built-in microphone and speaker support live two-way talk through the free DMSS mobile app.
True 6 MP Full-Colour Night Vision
The 1/1.8" Starlight CMOS captures 3288 × 1850 in full colour down to extremely low light levels.
SMD 4.0 — Only Alerts on Real Targets
Smart Motion Detection 4.0 filters wind-blown branches, possums, shadows and small animals at the edge.
AcuPick-Ready Edge AI
Paired with a Dahua AcuPick NVR, you can search hours of recorded video by attributes.
Discreet Turret, IP67 Sealed
Compact eyeball form factor mounts cleanly to eaves, soffits, awnings and undercover ceilings.
Important Install Note
The HDW3649H-AS-PV-ANZ-S2 is fixed-focal — frame the camera carefully at install time. NDIS, retail and public-space sites should check local audio-recording legislation before enabling sound recording. Available in white (this listing) or black (HDW3649H-AS-PV-ANZ-BLK).
AI & Smart Detection Capabilities
TiOC Active Deterrence (Red & Blue + Siren)
Linkable to any IVS event — tripwire, intrusion, motion-by-target-type.
WizSense Human & Vehicle Classification
On-device deep-learning algorithms classify every motion event as human, vehicle, animal or "other".
AcuPick Attribute Search
Deep-learning attribute matching across people and vehicles — with a compatible Dahua AcuPick NVR.
SMD 4.0 Smart Motion
Motion alerts triggered only by humans and vehicles.
Perimeter Protection (IVS)
Configurable tripwire and intrusion zones with human-and-vehicle classification.
Two-Way Audio via DMSS
Built-in mic and speaker support full-duplex two-way audio through the free DMSS mobile app.
Technical Specifications
Camera & Image Sensor
| Model |
DH-IPC-HDW3649H-AS-PV-ANZ-S2 |
| Form Factor |
Eyeball turret (HDW chassis) |
| Image Sensor |
1/1.8" CMOS Starlight |
| Maximum Resolution |
3288 × 1850 (6 MP) |
| Minimum Illumination |
0.0015 lux @ F1.6 (Colour) · 0 lux (warm light on) |
| WDR |
140 dB |
| Day / Night |
Auto (ICR) / Colour / B&W |
| Smart Dual Illumination |
Yes (target-triggered IR / warm-light hand-off) |
| Available Colour |
White (this listing) · Black variant available as HDW3649H-AS-PV-ANZ-BLK |
Lens & Illumination
| Lens Type |
Fixed-focal |
| Focal Length |
2.8 mm (this listing) · 3.6 mm variant also available |
| Maximum Aperture |
F1.6 |
| Field of View (2.8 mm) |
H: ~106° · V: ~57° |
| IR Illumination |
Up to 30 m |
| Warm Light Illumination |
Up to 30 m |
Intelligence, Active Deterrence & Video
| AI Engine |
WizSense (TiOC 3 platform · AcuPick-native) |
| IVS — Perimeter Protection |
Tripwire, intrusion (with human + vehicle classification) |
| Smart Motion Detection |
SMD 4.0 |
| AcuPick |
Yes (with compatible Dahua AcuPick NVR) |
| Active Deterrence — Light |
Red & blue strobe warning |
| Active Deterrence — Sound |
Built-in speaker with multiple alarm sounds + custom upload |
| Video Compression |
Smart H.265+ · H.265 · Smart H.264+ · H.264 · MJPEG (sub stream) |
| Main Stream |
3288 × 1850 @ 1–25/30 fps |
Audio, Alarm & Network
| Built-in Microphone |
Yes |
| Built-in Speaker |
Yes (active deterrence + two-way talk) |
| Two-Way Talk |
Yes (via DMSS app) |
| Alarm I/O |
1 in / 1 out |
| Network Port |
RJ-45 (10/100 Base-T) |
| Interoperability |
ONVIF (Profile S, G, T) · CGI |
| Storage |
FTP · SFTP · NAS · Micro SD card up to 512 GB |
| Mobile Client |
DMSS (iOS / Android) |
Power, Environment & Build
| Power Supply |
12 VDC / PoE (IEEE 802.3af) |
| Power Consumption (Max.) |
~10 W |
| Operating Temperature |
–30 °C to +60 °C |
| Protection Rating |
IP67 |
| Certifications |
CE-LVD · CE-EMC · RCM (AU) |
| Australian Warranty |
3 Years (via CCTV Guru) |
Frequently Asked Questions
What does "TiOC 3" mean?
TiOC stands for "Three-in-One Camera" — combining 24/7 video surveillance, real-time AI alarms and active deterrence (strobe + siren + two-way audio) in one housing.
Does the camera include AcuPick?
Yes — AcuPick attribute search is built into the camera's WizSense firmware. To search recorded footage by attributes you must record to a compatible Dahua AcuPick NVR.
Is the active deterrence too loud for residential use?
No — the alarm volume is configurable from 0–100% and the play count is configurable from 1–10 times per trigger.
Can I use this camera for two-way intercom?
Yes — the built-in microphone and speaker support full-duplex two-way audio through Dahua's free DMSS mobile app.
Can I run this camera on standard PoE?
Yes — it is 802.3af-compliant and pulls a maximum of approximately 10 W.

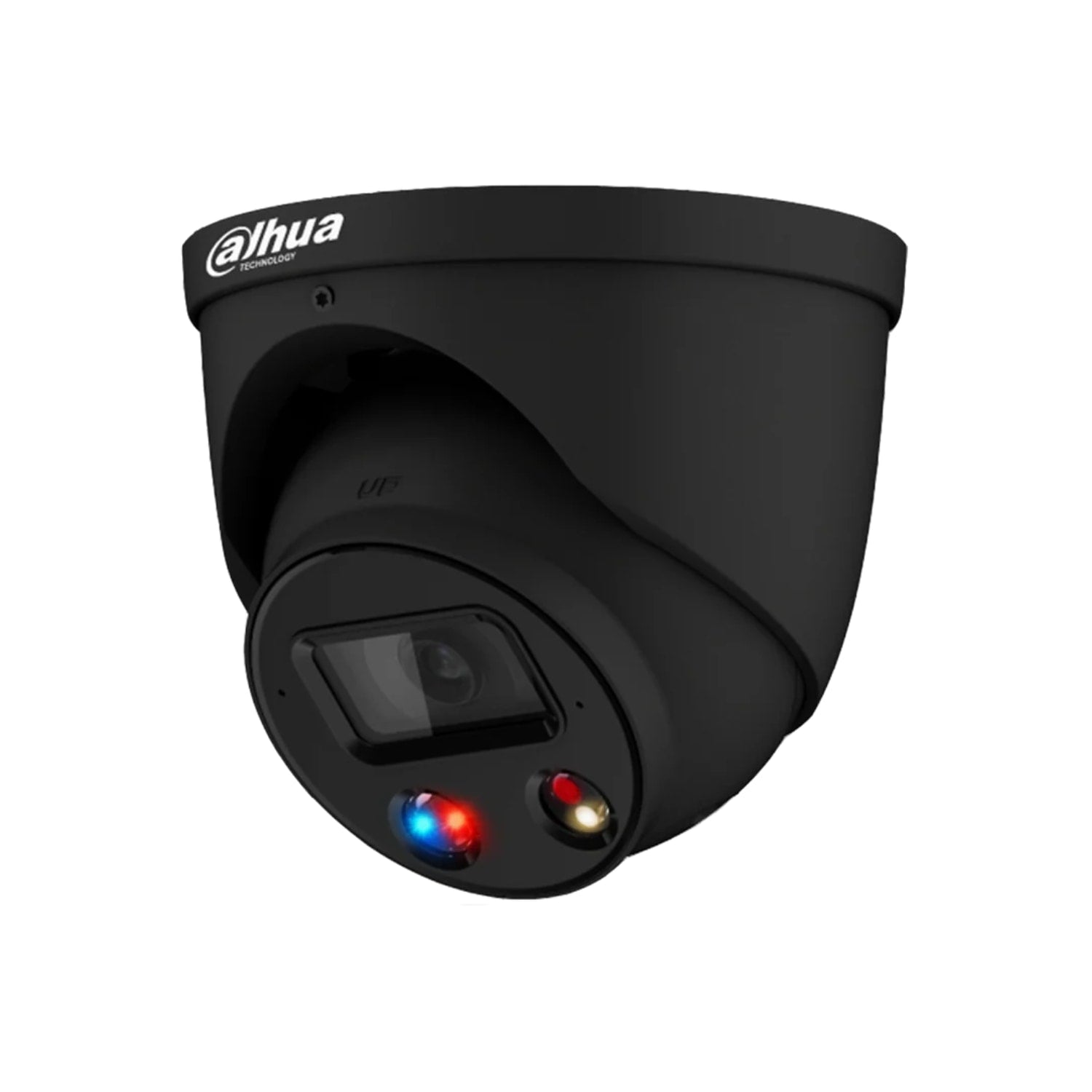

Is the black version available?
Yes — the same camera is available in black as the DH-IPC-HDW3649H-AS-PV-ANZ-BLK SKU.
Does it work with third-party NVRs?
Yes — it supports ONVIF Profile S, G and T.
Can I view the camera live on my phone?
Yes — the camera works with Dahua's free DMSS app on iOS and Android.
Downloads
Order Your Dahua HDW3649H-AS-PV-ANZ-S2 from CCTV Guru
"Add to cart" to order online, or contact our Australian team for a bulk quote, project pricing or NVR compatibility check. Phone, email or live chat us through cctvguru.com.au/pages/contact.
