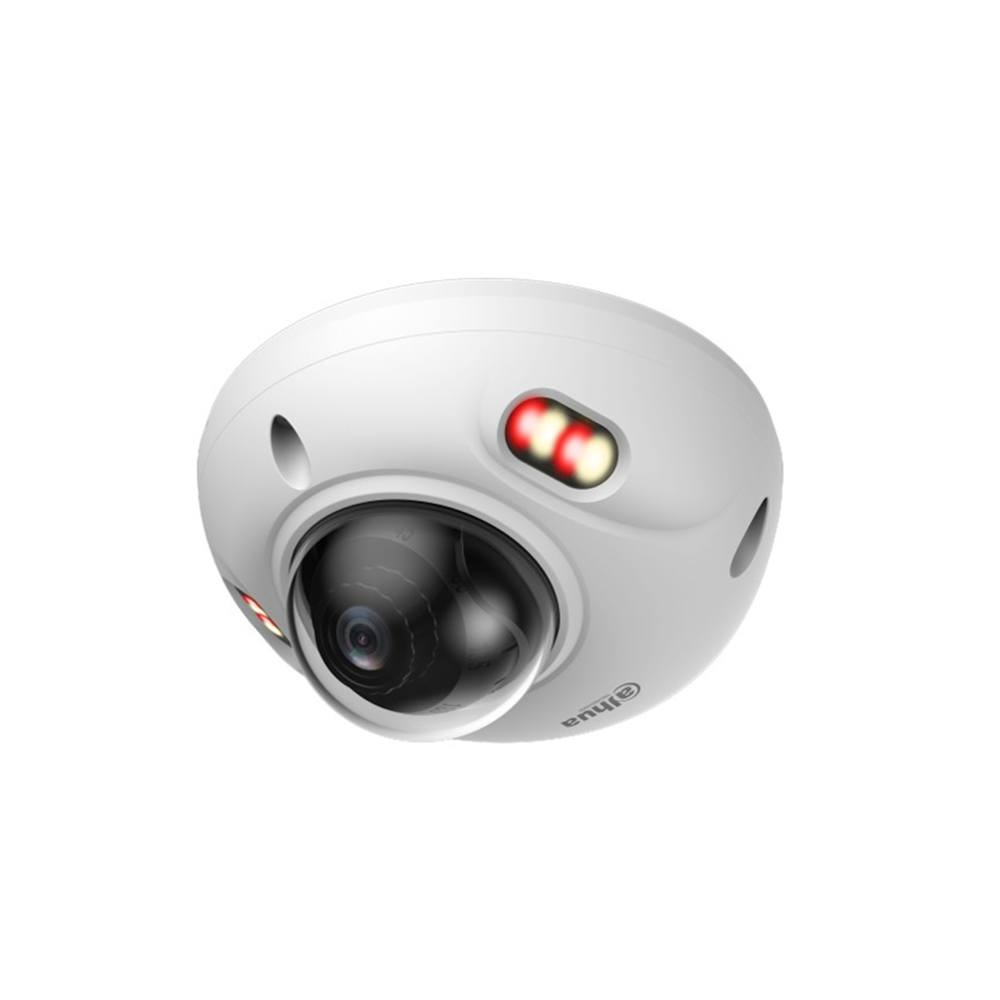

DAHUA · IP SECURITY CAMERASDahua DH-IPC-HDBW3667F-AS-IL-ANZ 6MP Smart Dual Light Dome Camera
Protect entrances and exposed mounting locations with a 6MP WizSense dome camera featuring Smart Dual Light, a built-in microphone and an IK10 vandal-resistant housing. The DH-IPC-HDBW3667F-AS-IL-ANZ combines infrared monitoring with warm-light colour capture when configured events occur.
Resolution
6MP, 3288 × 1850, up to 25/30 fps
Night illumination
Up to 30 m IR and 30 m warm light
Designed for your installation
Human and vehicle classification helps focus motion alerts on relevant activity. AcuPick support can assist video searching when paired with a compatible recorder and firmware, while the dome format offers a robust alternative to a turret camera in accessible locations.
Smart Dual Light, IR and warm-light operation
Smart motion
SMD 4.0 human and vehicle filtering
Tripwire and intrusion with target classification
AcuPick with compatible system
Technical Specifications
| Model |
DH-IPC-HDBW3667F-AS-IL-ANZ |
| Resolution |
6MP, 3288 × 1850, up to 25/30 fps |
| Lens |
2.8 mm fixed, F1.6 |
| Horizontal view |
108.4° |
| Night illumination |
Up to 30 m IR and 30 m warm light |
| Lighting modes |
Smart Dual Light, IR and warm-light operation |
| Smart motion |
SMD 4.0 human and vehicle filtering |
| Perimeter rules |
Tripwire and intrusion with target classification |
| Search |
AcuPick with compatible system |
| Audio |
Built-in microphone, 1 audio input and 1 output |
| Alarm interface |
1 input, 1 output |
| Edge storage |
microSD up to 512 GB, sold separately |
| Power |
12 VDC or IEEE 802.3af PoE |
| Protection |
IP67 weather resistance, IK10 impact resistance |
Setup and compatibility
Use a compatible PoE NVR or switch and protect all cable joints from moisture. Optional mounting families listed by Dahua include PFA136, PFA109, PFB220C and PFB305W; the correct combination depends on the mounting surface. Detection and colour performance depend on scene conditions.
Downloads
DH-IPC-HDBW3667F-AS-IL-ANZ Datasheet (PDF)
Frequently asked questions
Can DH-IPC-HDBW3667F-AS-IL-ANZ record to a microSD card?
Yes. microSD up to 512 GB, sold separately. The card is separate; configure recording and retention for the installation.
What should I check before installation?
Use a compatible PoE NVR or switch and protect all cable joints from moisture. Optional mounting families listed by Dahua include PFA136, PFA109, PFB220C and PFB305W; the correct combination depends on the mounting surface. Detection and colour performance depend on scene conditions.
Where can I download the DH-IPC-HDBW3667F-AS-IL-ANZ datasheet?
The manufacturer PDF is hosted on CCTV Guru’s Shopify file library and linked in Downloads on this product page.
