Uniview UNV IPC3616SS-ADF28K-I1 — 6MP LightHunter IR Fixed Eyeball | 2.8mm · 130dB WDR · 40m IR · IP67

Description

NDAA Compliant · 6MP LightHunter IR Turret

IPC3616SS-ADF28K-I1 — Australian Stock & 3-Year Warranty

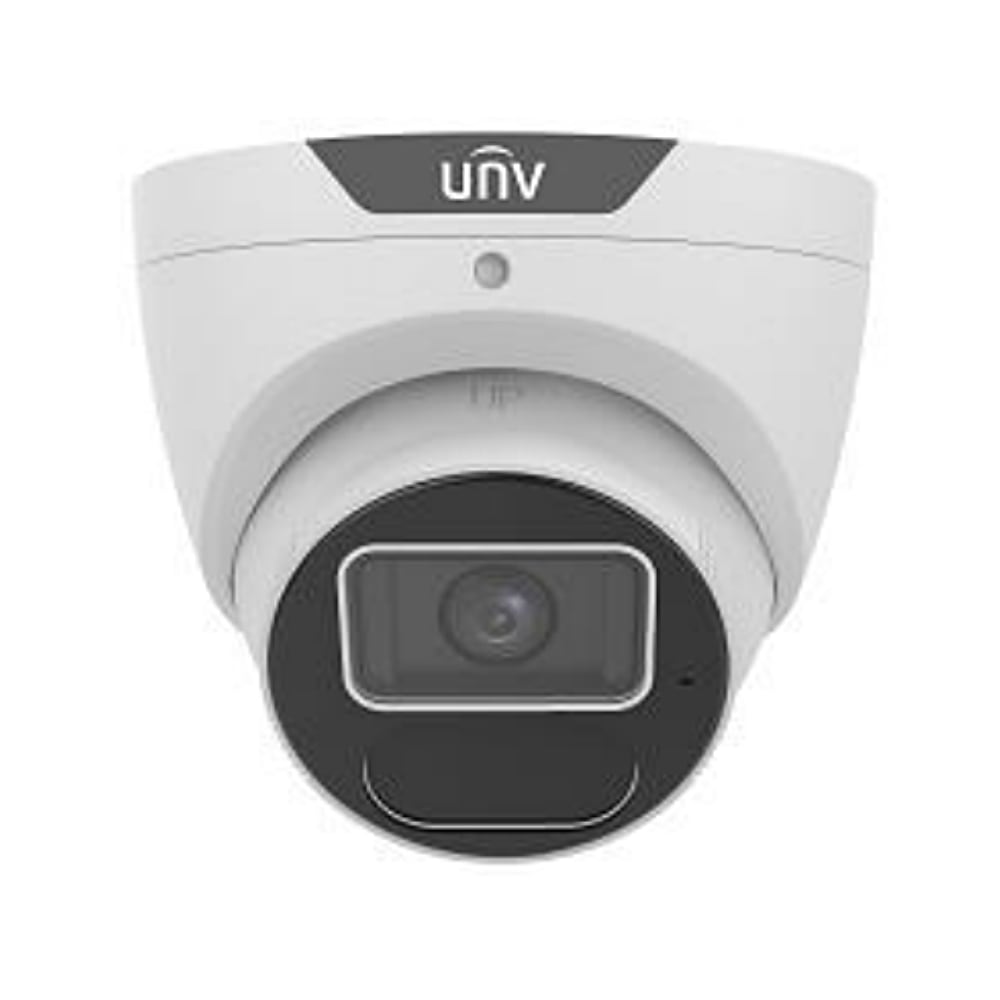

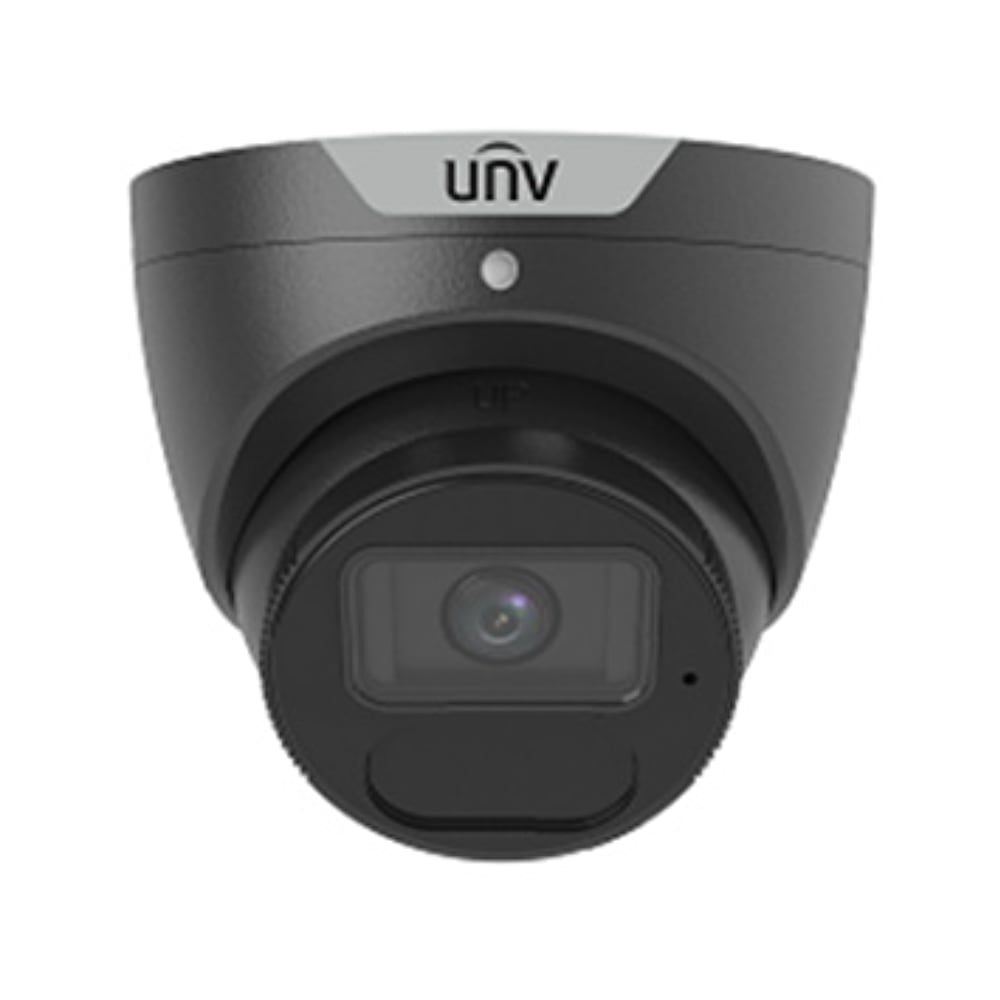

The Uniview UNV IPC3616SS-ADF28K-I1 is a 6 MP LightHunter IR fixed eyeball (turret) IP camera built for professional surveillance around Australian homes and businesses. It combines LightHunter low-light imaging and 130 dB true WDR with a 2.8 mm fixed wide-angle lens (F1.6), Smart IR night vision up to 40 m, AI perimeter analytics with people counting, a built-in microphone, single-cable PoE power and a rugged IP67 weatherproof housing — backed locally with a 3-year Australian warranty.

Why the IPC3616SS-ADF28K-I1 stands out

Resolution
6MP / 3072×2048
Low-Light
LightHunter + 130dB WDR
Night Vision
Smart IR to 40m
Lens / View
2.8mm · 107.2° wide

Built for Australian conditions

See detail in tricky light

LightHunter low-light processing and 130 dB true WDR keep bright doorways, backlit entries and shaded yards balanced and clear — day or night.

Smart AI events

On-camera human and vehicle classification with line-crossing, intrusion, people counting and crowd-density monitoring cut false triggers and add insight.

One-cable install

PoE (IEEE 802.3af) carries power and data over a single Cat6 run to your NVR or PoE switch — no separate power supply at the camera.

Weatherproof & tough

IP67 sealing handles Australian sun, dust and downpours across a -30°C to 60°C range, with a built-in mic for scene audio.

Technical specifications

Uniview UNV IPC3616SS-ADF28K-I1 — Full Specifications
Brand / Series Uniview UNV · LightHunter
Model IPC3616SS-ADF28K-I1
Image Sensor 1/2.7″ progressive-scan CMOS
Resolution 6 MP — 3072×2048 @ up to 25fps
Lens 2.8 mm fixed @ F1.6
Field of View 107.2° (H)
Low-Light Tech LightHunter · 0.002 lux @ F1.6 · 0 lux with IR
Wide Dynamic Range 130 dB true WDR
Night Vision Smart IR up to 40 m (131 ft)
Smart Analytics Human & vehicle classification, intrusion, line crossing, people counting, crowd density
Audio Built-in microphone
Compression Ultra 265 / H.265 / H.264 / MJPEG
Storage MicroSD up to 256 GB
Network RJ45 · ONVIF · RTSP / HTTPS
Power PoE (IEEE 802.3af) / DC 12V · max 6.5W
Weather IP67 weatherproof
Operating Temp -30°C to 60°C
Form Factor Turret / Eyeball · Ø129 × 110 mm
Compliance NDAA / Section 889 compliant
Warranty 3-Year Australian warranty

Frequently asked questions

Does it record in colour at night?

At night this model uses Smart IR for crisp black-and-white night vision up to 40 m. LightHunter still delivers detailed, low-noise colour footage in dim light. For full-colour night vision under no light, choose a ColorHunter dual-light model.

Is the IPC3616SS-ADF28K-I1 NDAA compliant?

Yes. Uniview UNV cameras are NDAA Section 889 compliant, making them suitable for government, commercial and security-sensitive sites in Australia.

What lens and coverage does it have?

A fixed 2.8 mm F1.6 lens gives a wide ~107° horizontal field of view — ideal for entries, driveways, yards and small shopfronts.

What AI features does it include?

It supports human and vehicle classified intrusion and line-crossing detection, plus people-flow counting and crowd-density monitoring.

How is it powered?

Single-cable PoE (IEEE 802.3af) over Cat6 to a PoE NVR or switch, drawing max 6.5W. A 12V DC option is also supported.

Does it have a microphone?

Yes — a built-in mic captures scene audio alongside video (check local laws before recording audio).

How much storage does it support?

The microSD slot accepts cards up to 256 GB for on-camera edge recording alongside your NVR.

Is it suitable outdoors?

Absolutely. The IP67-rated body is rated -30°C to 60°C for permanent outdoor installation in Australian conditions.

What warranty applies?

This camera ships with a 3-year Australian warranty and local CCTV Guru tech support.

Documentation & downloads

IPC3616SS-ADF28K-I1 Datasheet Uniview UNV Turret User Manual Uniview UNV Turret Quick Start Guide
