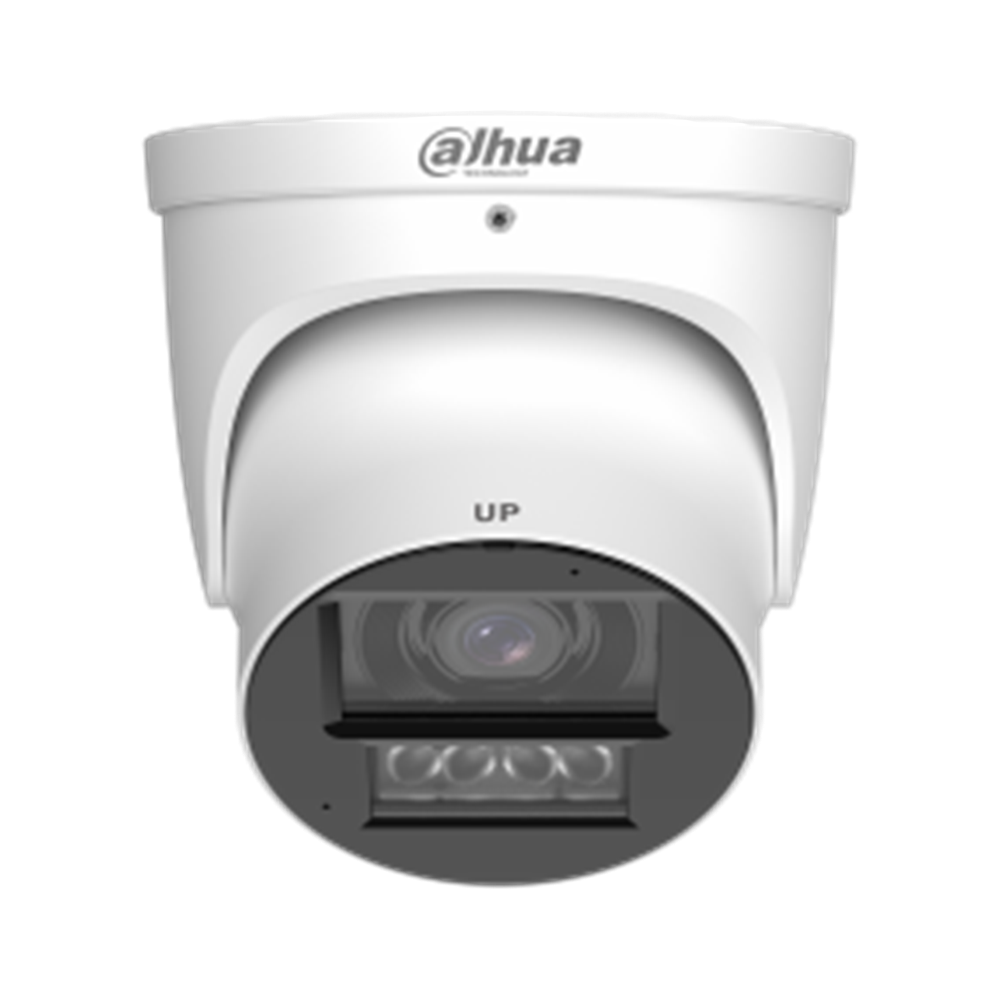

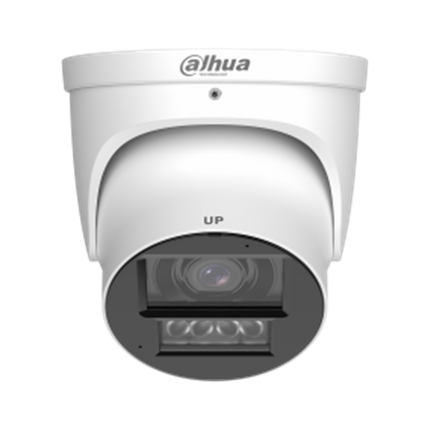

DAHUA · IP SECURITY CAMERASDahua DH-IPC-HDW5659H-ASE-PV-PRO-ANZ 6MP WizColor Active Deterrence Turret Camera
Bring brighter low-light footage and proactive warnings to a demanding CCTV installation. The Dahua DH-IPC-HDW5659H-ASE-PV-PRO-ANZ is a 6MP WizColor WizMind turret with an F1.0 lens, AI image processing, dual microphones and a built-in speaker for two-way communication and active deterrence.
Resolution
6MP, 3072 × 2048 at up to 25/30 fps
Image technology
WizColor, AI ISP
Designed for your installation
The large-aperture lens and WizColor processing target improved colour detail in dim scenes. Intelligent perimeter rules, metadata, people counting and AcuPick provide more flexible event review when configured with compatible Dahua recording equipment.
Night illumination
Up to 60 m IR, 50 m warm light
SMD 4.0, intelligent perimeter rules, AI rule assistance
AcuPick, video metadata, people counting
Technical Specifications
| Model |
DH-IPC-HDW5659H-ASE-PV-PRO-ANZ |
| Resolution |
6MP, 3072 × 2048 at up to 25/30 fps |
| Lens |
2.8 mm fixed, F1.0 |
| Horizontal view |
109° |
| Image technology |
WizColor, AI ISP |
| Wide dynamic range |
130 dB |
| Night illumination |
Up to 60 m IR, 50 m warm light |
| Detection |
SMD 4.0, intelligent perimeter rules, AI rule assistance |
| Analytics |
AcuPick, video metadata, people counting |
| Audio |
Dual microphones, built-in speaker, two-way talk |
| Interfaces |
1 audio input/output and 1 alarm input/output |
| Local storage |
microSD up to 1 TB, sold separately |
| Power |
12 VDC, IEEE 802.3at PoE+, ePoE |
| Maximum PoE consumption |
24.2 W under specified maximum-load conditions |
| Protection |
IP67 and IK10 |
Setup and compatibility
Allow for the camera’s maximum power draw when sizing a PoE switch or NVR. Optional mounts include PFA137, PFA106, PFB220C, PFB305W and PFB2203W in the combinations specified by Dahua. Full-colour results require available scene light or illumination; this is not a guarantee of colour in complete darkness without lighting.
Official product family video
Dahua WizColor technology overview
Downloads
DH-IPC-HDW5659H-ASE-PV-PRO-ANZ Datasheet (PDF)
Frequently asked questions
Can DH-IPC-HDW5659H-ASE-PV-PRO-ANZ record to a microSD card?
Yes. microSD up to 1 TB, sold separately. The card is separate; configure recording and retention for the installation.
What should I check before installation?
Allow for the camera’s maximum power draw when sizing a PoE switch or NVR. Optional mounts include PFA137, PFA106, PFB220C, PFB305W and PFB2203W in the combinations specified by Dahua. Full-colour results require available scene light or illumination; this is not a guarantee of colour in complete darkness without lighting.
Where can I download the DH-IPC-HDW5659H-ASE-PV-PRO-ANZ datasheet?
The manufacturer PDF is hosted on CCTV Guru’s Shopify file library and linked in Downloads on this product page.
