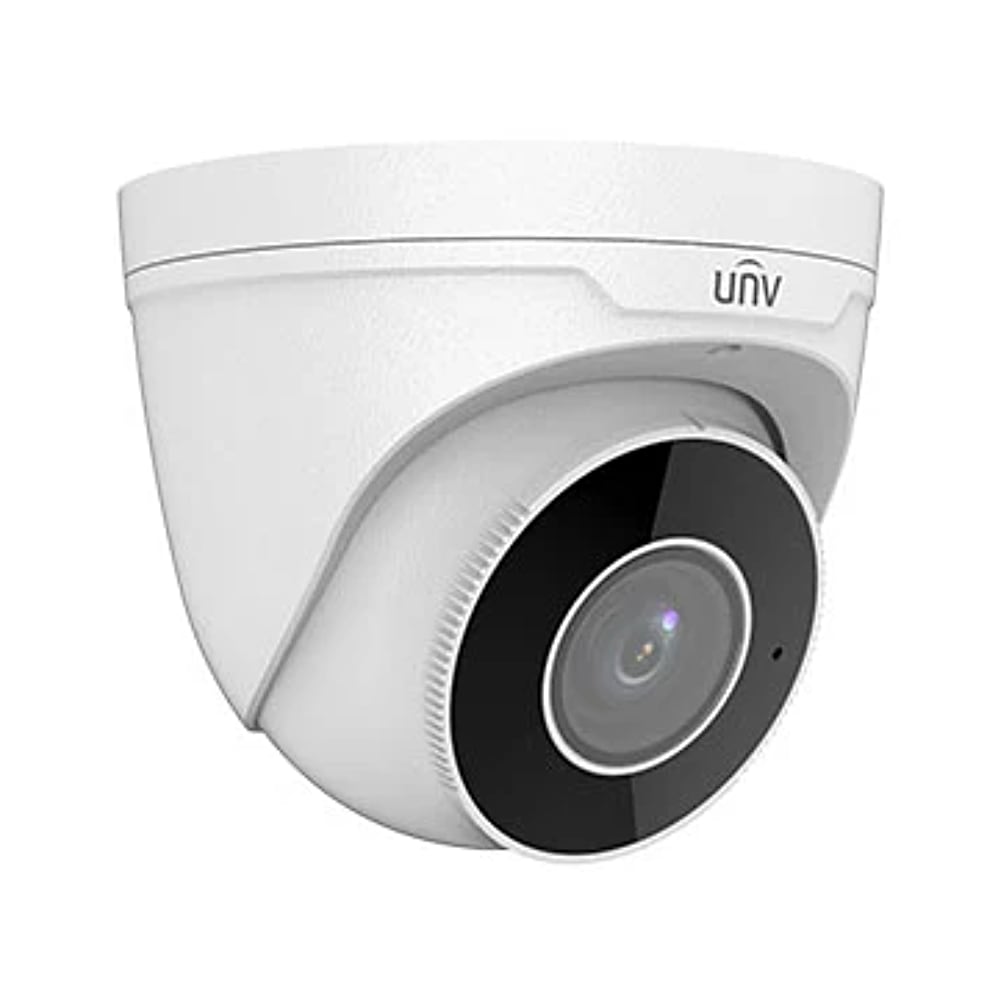

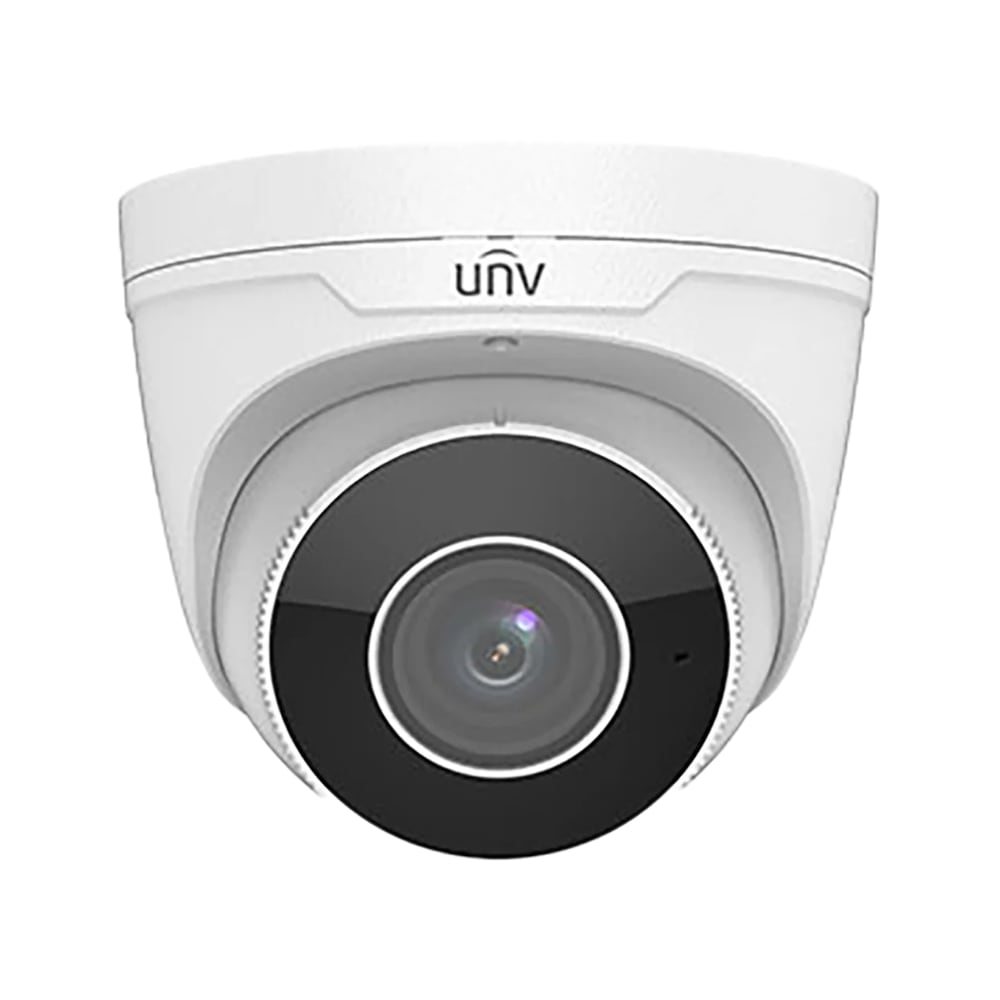

Uniview UNV IPC3636LE-ADZK-G 6MP Varifocal Eyeball/Turret IP Camera

The IPC3636LE-ADZK-G is a 6 MP varifocal turret with a motorized 2.8–12 mm AF lens for flexible framing and fast setup. It delivers up to 3072×2048 @ 25 fps with Ultra 265/H.265/H.264/MJPEG compression, balances tough lighting via 120 dB true WDR, and uses Smart IR to 40 m for clear night footage. A built-in microphone, micro-SD up to 256 GB, PoE, and IP67 metal housing make it a dependable 24/7 choice.

Key Features

6 MP 1/2.7" CMOS; up to 3072×2048 @ 25/20 fps
Motorized varifocal 2.8–12 mm lens with auto-focus (AF)
Smart IR up to 40 m; IR-cut (ICR)
120 dB true WDR; 2D/3D DNR; digital defog; BLC/HLC
Built-in microphone; Ultra 265 / H.265 / H.264 / MJPEG
9:16 corridor mode; motion detection; privacy mask; ROI
Edge storage: micro-SD up to 256 GB; ANR/NAS
PoE (IEEE 802.3af); IP67 metal housing; 3-axis adjustment

Technical Specifications

Specification	Details
Brand / Series	Uniview UNV / Easy Series
Model (SKU)	IPC3636LE-ADZK-G
Sensor / Resolution	1/2.7" CMOS / 6 MP (3072×2048 @ 25 fps)
Lens	Motorized varifocal 2.8–12 mm; auto-focus (AF)
IR Range	Up to 40 m; 850 nm; Smart IR
Dynamic Range	120 dB true WDR
Compression	Ultra 265 / H.265 / H.264 / MJPEG
Audio	Built-in microphone; G.711
Storage	Micro-SD up to 256 GB; ANR/NAS
Smart Functions	Cross line & intrusion (human-based), motion, tamper, audio
Network/Protocols	IPv4, TCP/UDP, RTP/RTSP, HTTP/HTTPS, SNMP, 802.1x; ONVIF S/G/T
Power	DC 12 V ±25% or PoE (IEEE 802.3af), Max ~8.0 W
Protection	IP67; 6 kV surge
Operating Conditions	−30 °C ~ 60 °C; ≤95% RH (non-cond.)
Dimensions / Weight	Ø129 × 110 mm; 0.67 kg
Adjustment	Pan 0–360°, Tilt 0–75°, Rotate 0–360°

DORI (Approx.)

Focal Length	Detect	Observe	Recognize	Identify
2.8 mm	63 m	25.2 m	12.6 m	6.3 m
12 mm	270 m	108 m	54 m	27 m

What’s Included

Uniview UNV IPC3636LE-ADZK-G camera
Mounting hardware & quick guide

Customer Requirements

RJ45 Cat6 cable and PoE switch/NVR
Surveillance-grade HDD in NVR or micro-SD card (up to 256 GB) for recording
Optional junction/wall mounts depending on surface

More Information

Uniview UNV IPC3636LE-ADZK-G Datasheet
Uniview UNV IPC3636LE-ADZK-G User Manual
