Pro AI ANPR · 4 MP · 120 km/h LPR · Motorised 8–32 mm
Pro AI ANPR Bullet

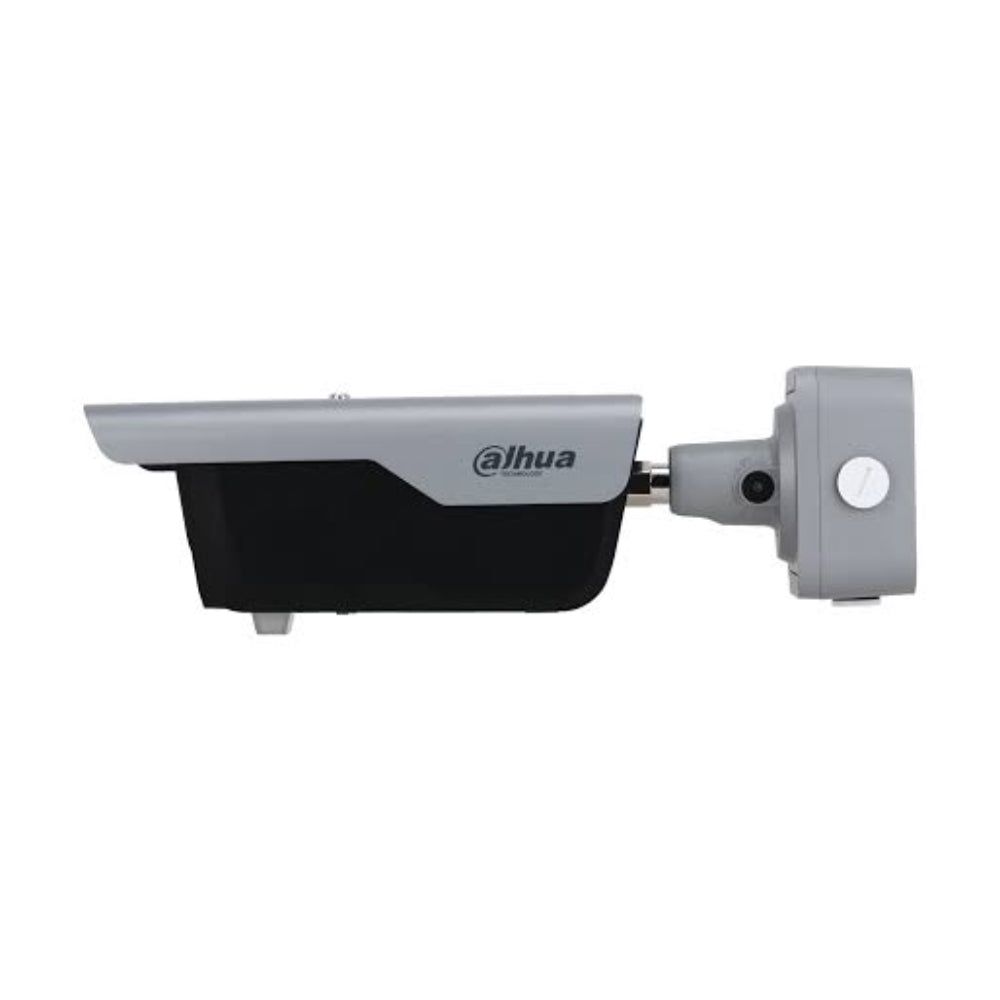

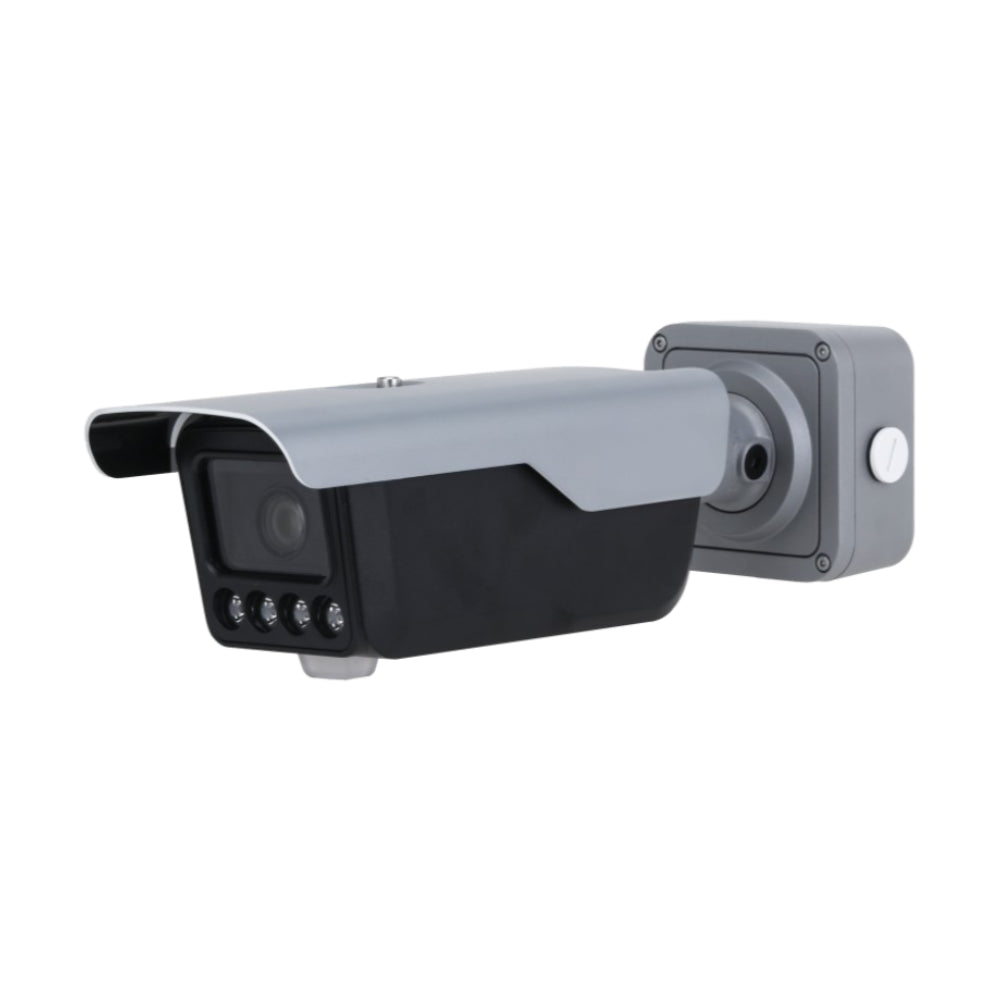

Dahua DHI-ITC413-PW4D-IZ3 — 4 MP AI ANPR/LPR Bullet Camera Up to 120 km/h Motorised 8–32 mm (ITC413 Series)
The Dahua DHI-ITC413-PW4D-IZ3 is a dedicated 4 MP AI ANPR/LPR bullet purpose-built for licence plate capture at carpark entries, gated communities, tollways, weighbridges and depot boom gates. Its 1/1.8″ CMOS sensor and motorised 8–32 mm lens reliably read Australian and New Zealand plates on vehicles travelling at up to 120 km/h, while 140 dB true WDR keeps plates legible against backlight, headlight glare and night-time conditions. An on-board ANPR engine returns plate text, vehicle type, brand, colour and direction as structured metadata, ready to drive boom gates, intercoms or LPR databases without an extra server. Built-in white-light supplement illuminates the plate at night, the integrated speaker plays voice alarms or pre-recorded messages, and the IP67/IK10 metal housing protects against weather and tampering. Dual-stream ePoE, audio I/O, alarm I/O and a microSD slot make integration into existing Dahua AI/ANZ NVRs or third-party ANPR platforms straightforward. Backed by a 3-year Australian warranty through CCTV Guru, an authorised Dahua reseller.
Why Choose the Dahua DHI-ITC413-PW4D-IZ3 ANPR Bullet
Plates at 120 km/h
Reads Australian and New Zealand plates on vehicles travelling up to 120 km/h with low miss rates — built for tollways and arterial roads.
Motorised 8–32 mm Lens
Remote zoom and auto-focus lets installers tune the capture window precisely without revisiting the pole or boom gate.
Vehicle Classification
On-board AI returns plate text plus vehicle type (car, truck, SUV, bus), brand and colour as structured metadata.
140 dB True WDR
Handles backlight, headlight glare and tunnel exits without losing plate legibility — critical for 24/7 carpark and tollway use.
Built-in White Light + Speaker
Supplementary white-light illumination keeps plates readable at night, while the integrated speaker plays voice alarms and warnings.
IP67 / IK10 Metal Build
Sealed against dust, water and vandalism — suited to roadside poles, weighbridges and unattended depot entries.
Important Install Note
Mount the ITC413-PW4D-IZ3 at 3–6 m height with a horizontal offset that gives a 15–30° angle to oncoming plates — this is the sweet spot for AU plate dimensions. The motorised 8–32 mm lens covers single-lane carpark booms at close range and tollway capture at 15–25 m. Use a quality 24 V DC or PoE+ source and run plate text via SDK or ONVIF metadata into your boom controller, DSS or third-party LPR platform.
AI & Smart Detection
ANPR / LPR Engine
Dedicated on-board ANPR/LPR engine reads plates and returns text + confidence score in real time — no server required.
Vehicle Attribute Analysis
Captures plate, vehicle type, brand, colour and travelling direction as structured event data for boom or barrier control.
Whitelist / Blacklist
On-board plate database with allow / deny lists triggers different relay outputs, voice prompts or push notifications.
Speed Capture
Captures plate frames on vehicles up to 120 km/h with high-shutter mode — suited to tollway and arterial deployments.
Voice Alarm + Strobe
Built-in speaker delivers pre-recorded or live voice warnings; alarm outputs can drive external strobe lights or boom gates.
Edge Storage & Metadata
Plate snapshots and event metadata are stored locally on microSD for failover and reconciliation with a central ANPR database.
Technical Specifications
Camera, Lens & Illumination
| Image Sensor |
1/1.8″ 4 MP progressive-scan CMOS |
| Effective Pixels |
2688 (H) × 1520 (V) |
| Max Resolution |
2688 × 1520 @ 25/30 fps |
| Lens |
Motorised 8–32 mm with auto-focus |
| Field of View |
H: 39°–11° · V: 22°–6° |
| Illumination |
Built-in white-light supplementary LED |
| Min. Illumination |
0.002 lx (colour) · 0.0002 lx (B/W) |
| WDR / SNR |
140 dB true WDR · SNR > 56 dB |
| Day/Night |
ICR auto switching |
Intelligence, Audio & Network
| AI Series |
Smart ANPR / LPR (Pro AI) |
| ANPR Capture Speed |
Up to 120 km/h |
| Plate Analytics |
Plate text · vehicle type · brand · colour · direction · whitelist / blacklist |
| Video Compression |
H.265 / H.264 / MJPEG (sub stream) · smart codec |
| Audio |
1 audio in · 1 audio out · built-in speaker · G.711a/u, AAC |
| Alarm I/O |
2 in · 2 out |
| Storage |
microSD up to 256 GB · NAS · FTP |
| Network |
RJ45 10/100 ePoE · ONVIF (Profile S/G/T) · CGI, RTSP, SDK |
Power, Environment & Build
| Power Supply |
24 V DC · PoE+ (802.3at) |
| Power Consumption |
< 19 W (max) |
| Operating Temp. |
−40 °C to +70 °C · < 95% RH |
| Ingress Protection |
IP67 · IK10 |
| Material |
Metal housing |
| Dimensions |
352 mm × 105 mm × 105 mm |
| Weight |
≈ 2.6 kg |
| Certifications |
CE · FCC · RCM |
Recommended NVR Pairings
DHI-NVR5208-8P-AI/ANZ
8-channel WizMind AI NVR with full ANPR metadata support — perfect for single-lane carpark or boom gate sites. View →
DHI-NVR5216-16P-AI/ANZ
16-channel WizMind AI NVR with on-board ANPR database and event push for boom gate integration. View →
DHI-NVR4216-16P-AI/ANZ
16-channel 4K Smart AI NVR — budget-friendly option for multi-lane carpark and depot installations. View →
DHI-NVR5432-AI/ANZ
32-channel WizSense AI NVR for tollway, weighbridge or multi-lane facilities running several ANPR feeds. View →
Frequently Asked Questions
Is the ITC413-PW4D-IZ3 NDAA compliant?No. Dahua cameras are not NDAA Section 889 compliant and should not be specified for US federal projects.
What plate speed does it support?Up to 120 km/h with the appropriate mounting angle and shutter settings — suited to AU tollways and arterial roads.
Does it read Australian plates?Yes — the ANPR engine supports AU and NZ plate formats including state plates, personalised plates and most heavy-vehicle plates.
Does it need a separate ANPR server?No. All ANPR / LPR processing happens on the camera; plate text and metadata are returned via SDK, ONVIF or HTTP events.
Can it drive a boom gate directly?Yes. The on-board whitelist / blacklist plus 2 alarm outputs can drive a boom relay or intercom directly, or via a Dahua NVR / DSS.
What lens range does the motorised lens cover?8–32 mm motorised with auto-focus — suits single-lane carpark booms at close range and tollway capture at 15–25 m.
Is white-light illumination always on?No. White light triggers on motion or low-light only and is dimmable to avoid blinding drivers — IR is also supported via auxiliary illuminators.
Does it integrate with third-party LPR?Yes — ONVIF metadata, HTTP events and SDK make integration with Genetec LPR, AppearTV or custom boom controllers straightforward.
What warranty applies in Australia?CCTV Guru provides a 3-year Australian warranty on the ITC413-PW4D-IZ3 with local technical support.
Does CCTV Guru offer installation?Yes — we have ANPR-experienced installers across Australia and can quote on full carpark, depot or tollway rollouts.
